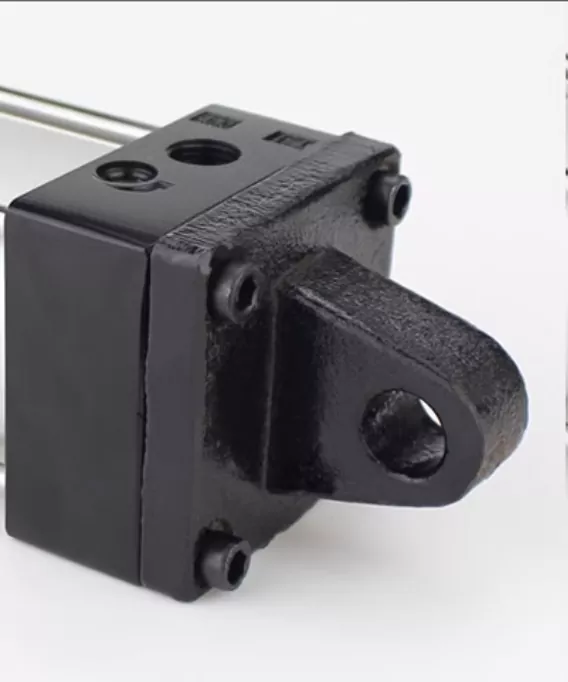

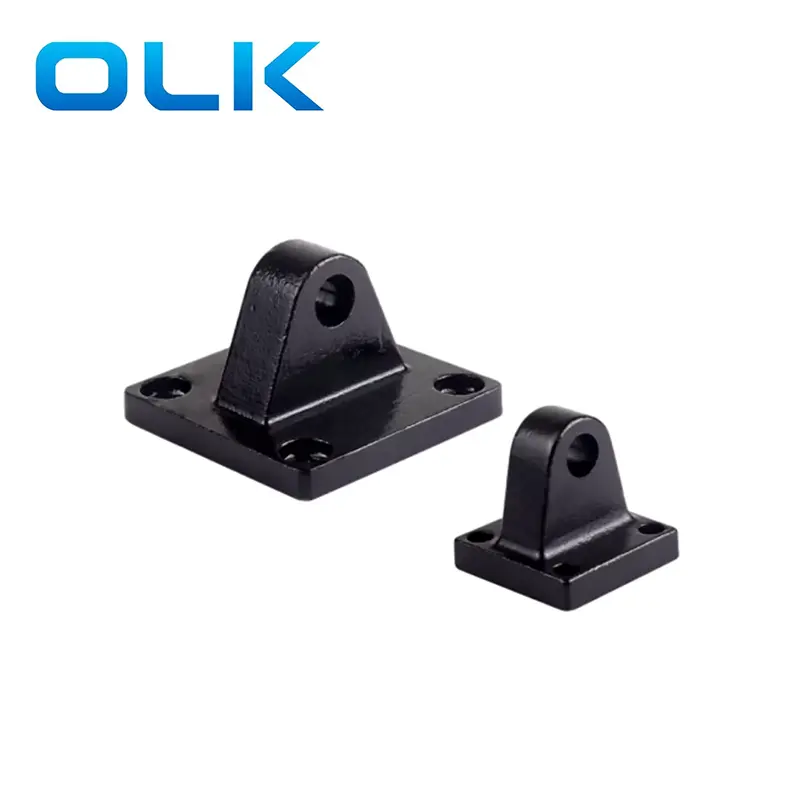

OLK Iron CA clevis bracket used in SC series standard pneumatic cylinder.CA rear mounting bracket installed on the tail side of the SC pneumatic cylinder,rear clevis mount CA clevis bracket belongs to the types of rotating support installation accessories,allowing the SC cylinder swing back and forth within a certain range.Due to its low stability, it is more suitable for installation in small and simple spaces. Overall, CA is more suitable for situations with small bore size pneumatic cylinder and light loads.
CA rear mounting bracket suitable for application scenarios such as automation equipment, woodworking machinery, and conveyor systems that require front-end articulated installation.
|

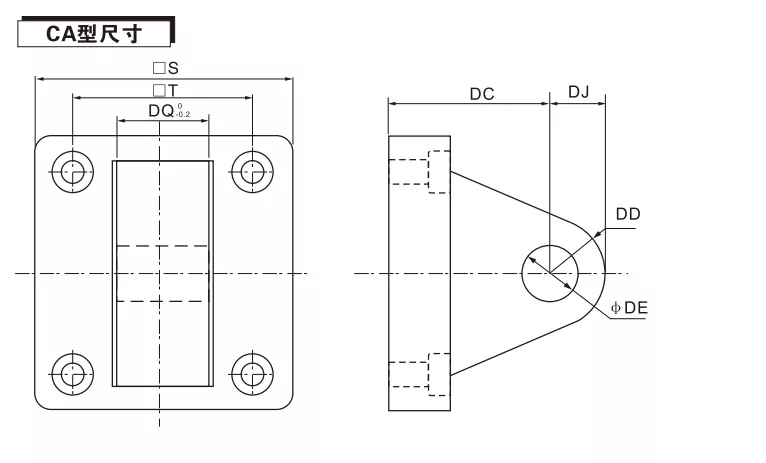

Code / Bore Diameter |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
|
S |
48 |
50 |
62 |
75 |
94 |
112 |
140 |
180 |
220 |
|
T |
33 |
37 |
47 |
56 |
70 |
84 |
110 |
140 |
175 |
|
DC |
34 |
34 |
34 |
34 |
48 |
48 |
50 |
55 |
60 |
|
DD |
14 |
14 |
15 |
15 |
20 |
20 |
25 |
30 |
30 |
|
DE |
12 |
14 |
14 |
14 |
20 |
20 |
25 |
30 |
30 |
|
DJ |
14 |
14 |
15 |
15 |
20 |
20 |
33 |
35.5 |
37 |
|
DQ |
16 |
20 |
20 |
20 |
32 |
32 |
69.7 |
89.7 |
89.7 |
What pneumatic cylinder can it be used on CA clevis bracket ?
The installation position of the four threaded holes is fixed and can only be used for SC cylinders,
How to install CA cylinder clevis mount on the SC cylinder?
Align four screws with the four threaded holes at the bottom of the SC cylinder, fix their positions with screws, and finally tighten each threaded hole in sequence
What is the difference between CA and CB?
Both belong to the bottom mounting components of SC cylinders, with only differences in structure and usage.CA clevis bracket is used for working conditions with limited space, while CB rear clevis is suitable for working conditions with higher stability
Under what working conditions do we choose CA?
The installation space of the cylinder is limited, and if a more convenient installation method is needed, CA can be recommended.
