One of the key features of our Foot Operated Directional Valve is its durable and high-quality construction. Made from top-grade materials, this valve is designed to withstand even the most demanding conditions and provide long-lasting performance. Its compact size and lightweight design also make it easy to install and use, even in tight spaces.
A foot pedal valve is a pneumatic component operated by foot movement to control the direction of airflow. It is widely used in machinery manufacturing, automated assembly, and testing equipment. By pressing the pedal, the valve spool shifts to switch the air passage, enabling the start, stop, or direction change of actuators. The foot valve features a compact structure and quick response, effectively simplifying operations and improving production efficiency. Depending on working requirements, models with locking mechanisms, protective covers, or silencers can be selected to suit various environments and safety standards.
The main advantage of a foot valve is that it allows the operator to control the valve with the foot, freeing both hands for other tasks.

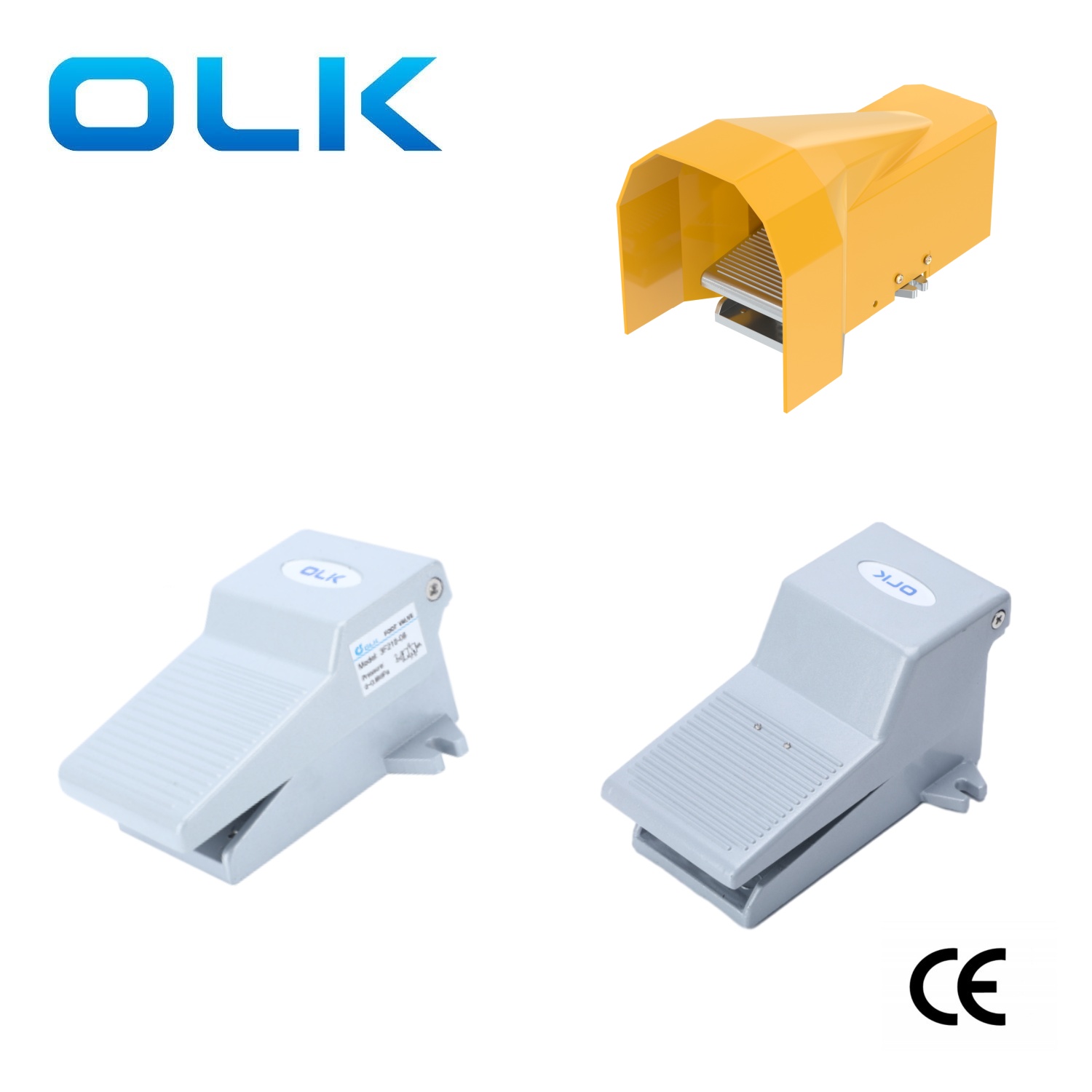

To prevent accidental operation, a protective housing can be added.
For applications requiring sustained actuation with less effort, a locking-type foot valve can be selected.
OLK is one of the leading pneumatic manufacturers in China, producing the widest range of foot valves with ample stock and fast delivery.
With over 22 years of industry experience, our technical team provides professional OEM/ODM services.
We offer multiple body color options and UV laser logo customization for a more refined and professional brand appearance.
|
|
|
|
|
|
|
|
|
|
Model |

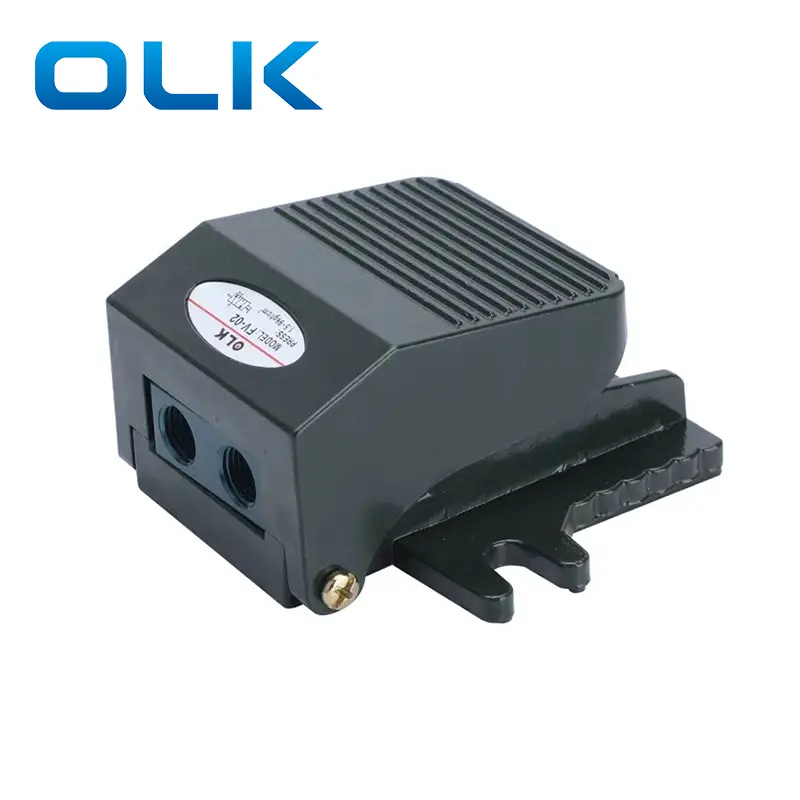

FV-02 |
3FM210 |
3F210 |
FV320 |
FV420 |
4F210 |
|
|
Way / Position |
2 position 3 way |
2 position 3 way |
2 position 3 way |
2 position 3 way |
2 position 4 way |
2 position 5 way |
|
|
Product Appearance Features |
Port Size |
Inlet=outlet=G1/4 |
06:Inlet=outlet=G1/8 08：Inlet=outlet=G1/4 |
06:Inlet=outlet=G1/8 08：Inlet=outlet=G1/4 |
Inlet=outlet=G1/4 Exhaust port =G1/8 |
Inlet=outlet=G1/4 Exhaust port =G1/8 |
Inlet=outlet=G1/4 |
|
Locking Type |
Without lock |
Without lock |
Optional lock / without lock |
Without lock |
Without lock |
Optional lock / without lock |
|
|
Exhaust Port |
Built-in exhaust port |
Built-in exhaust port |
Built-in exhaust port with silencer |
Side port (G1/8) |
Side port (G1/8) |
Built-in exhaust port with silencer |
|
|
Valve body material |
Valve body:aluminum alloy |
Valve body:aluminum alloy |
Valve body:aluminum alloy |
Valve body:aluminum alloy |
Valve body:aluminum alloy |
Valve body:aluminum alloy |
|
|
Non-slip mat |
// |
Non-slip pad at the valve base for stable positioning. |
Anti-slip pads are installed on all four feet. |
Non-slip pad on the pedal for safer foot control and at the valve base for stable positioning. |
Non-slip pad on the pedal for safer foot control and at the valve base for stable positioning. |
Anti-slip pads are installed on all four feet. |
|
|
Features & Applications |
Basic foot valve, simple structure, suitable for single air circuit on/off control such as small equipment or testing benches. |
Compact and quick-response type, ideal for controlling single-acting cylinders or simple blowing operations. |
Classic model with higher flow and stable performance, suitable for general pneumatic control systems. |
Suitable for single-acting cylinder and used for industrial equipment, marking machines, and assembly |
Allows bidirectional control of cylinders, suitable for double-acting cylinders or air source switching. |
Standard 5/2 foot valve for forward and backward motion control of cylinders; most widely used model. |
|
