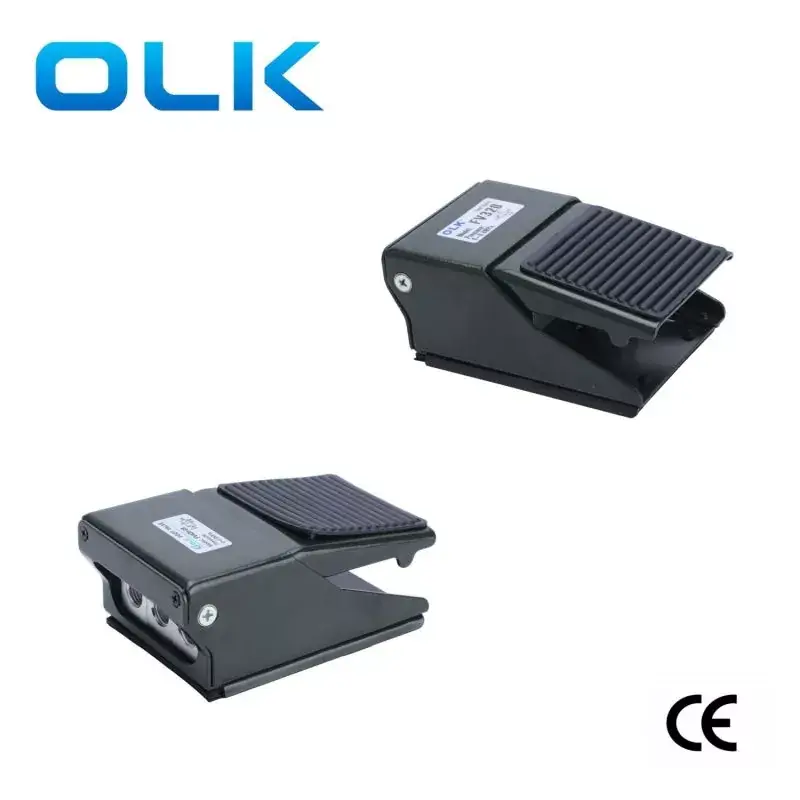

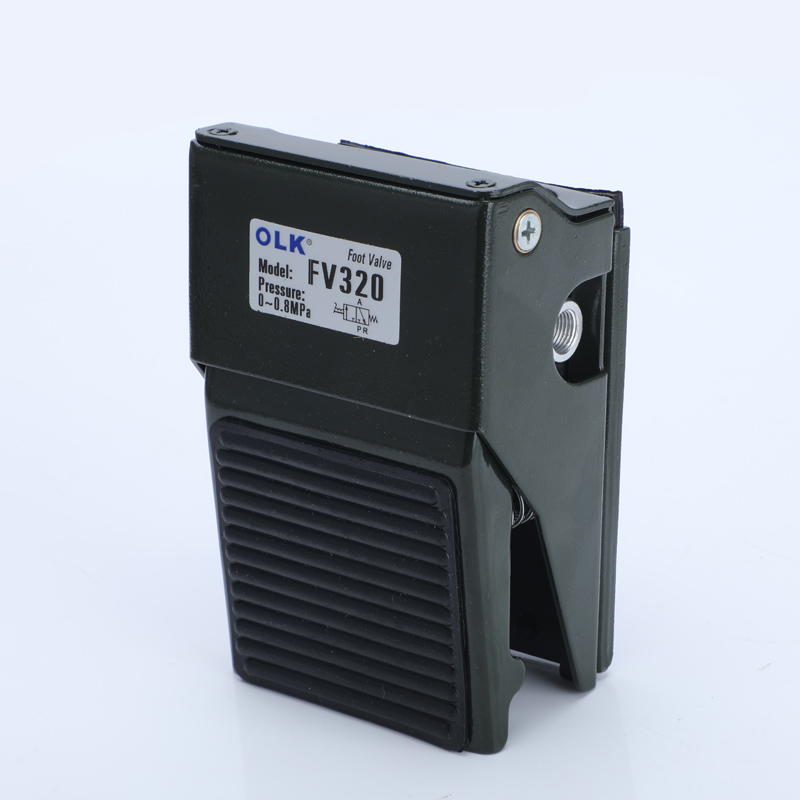

FV320/420 Series Foot Valve 3 Way 4 Way

OLK China pneumatic manufacturer good FV320/420 Series Foot Valve 3 Way 4 Way. FV320/420 foot pedal valve belong to the sinlge-action.The feature smoth stepping wihout sticking and air leakage.Besides it without easy deformatino,excellent corrosion and wear resistance.

Workshop staff use their feet more easily because the OLK designed anti slip foot pads increase friction and durability.FV420 padel valve ensuring a long serive life.

If the user need to choose 2 posion 3 way  or 2 position  4 way working modes,he can make FV320 pedal valve operated foot switch to achive directions.During use, please pay attention to the position and status of the foot pedal valve to ensure correct operation and avoid malfunction due to misuse. They are suitable for industries such as semiconductor manufacturing, print tension control, and automation control.

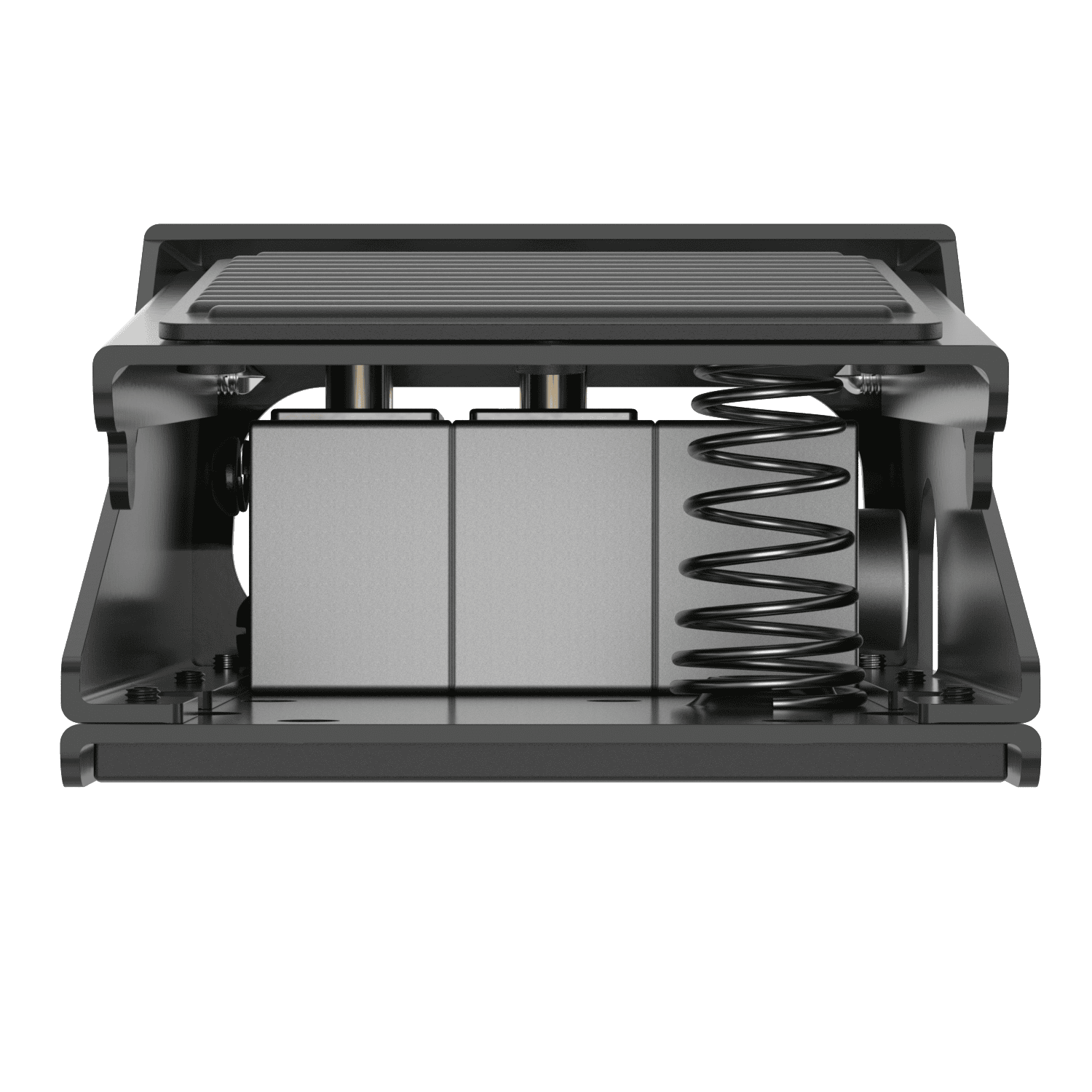

FV320 FV420 Pedal Valve Structure:

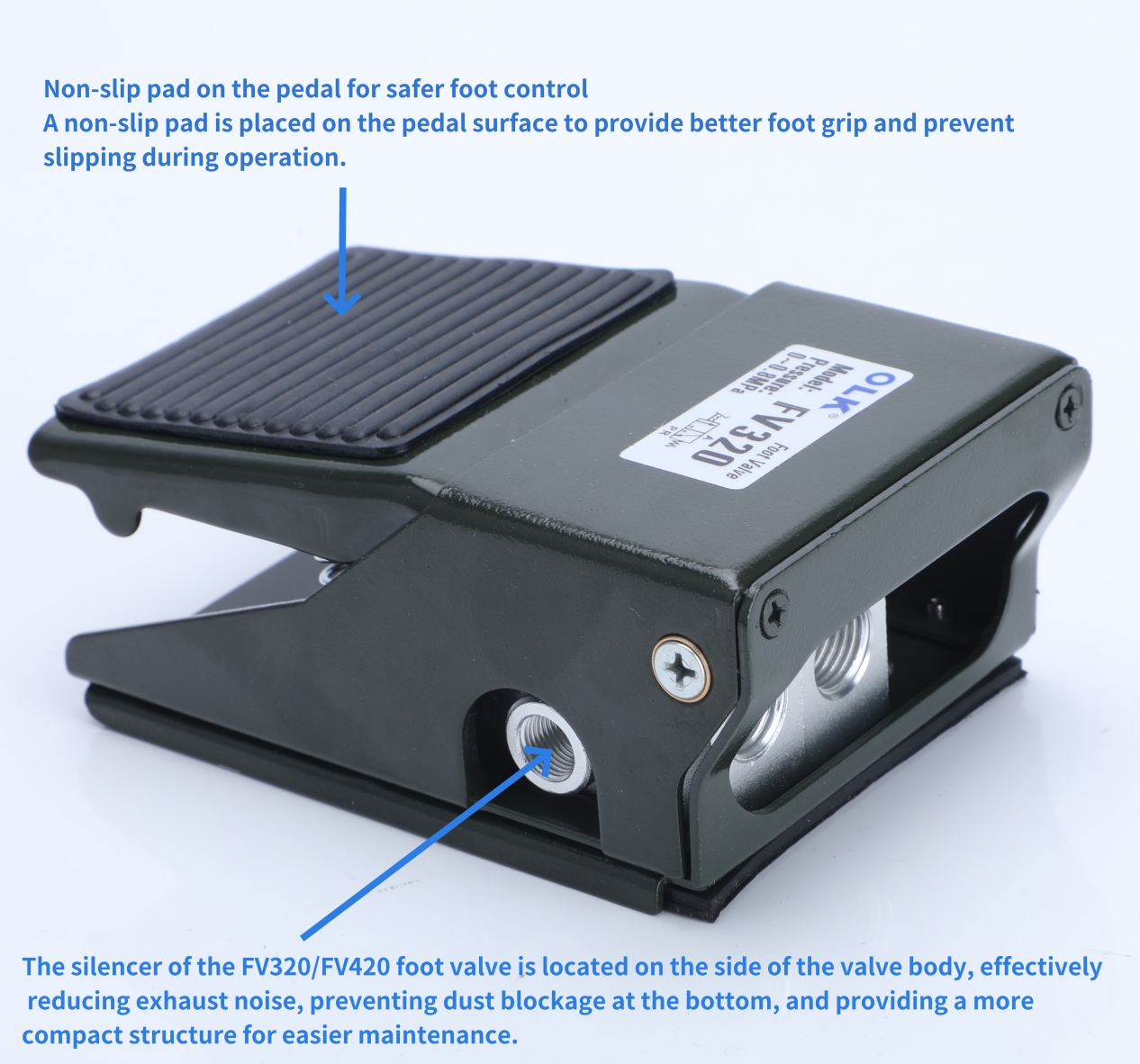

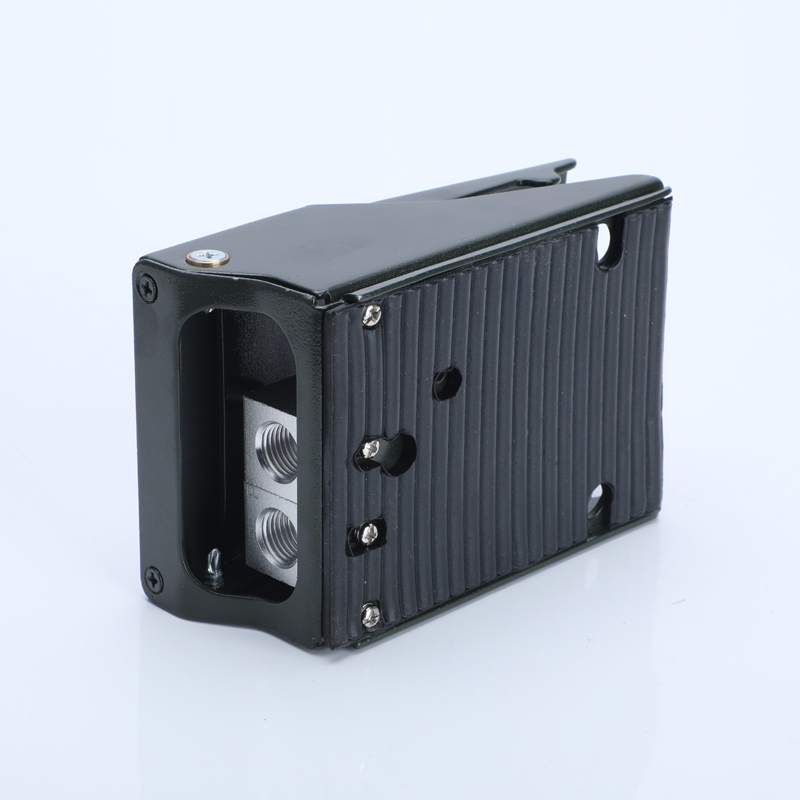

A non-slip pad is placed on the pedal surface and the valve base to provide better foot grip and prevent slipping during operation.

The silencer is mounted on the side of the foot valve

Valve body:aluminum alloy;Valve body housing: Iron

Symbol:

FV320/420 Series Foot Valve 3 Way 4 Way  General parameters

FAQs:

What's the FV320 and FV420 feature and application?

FV320 is used to control the single-acting air cylinder .The pedal cylinder stretches out and the pedal release cylinder retracts

FV420 is used to control the double-acting air cylinder .The pedal cylinder stretches out and the pedal release cylinder retracts

Usually used for small manpower equipment

Where is the exhaust port in FV320 pedal valve ?

The exhaust port is on the side of the FV320 valve body.Exhaust port is G1/8
