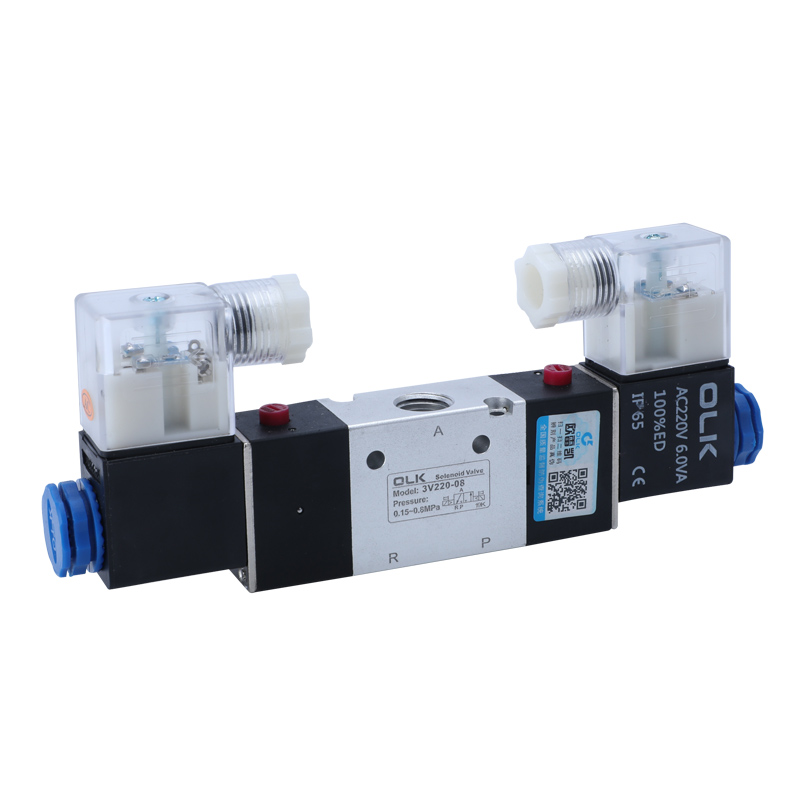

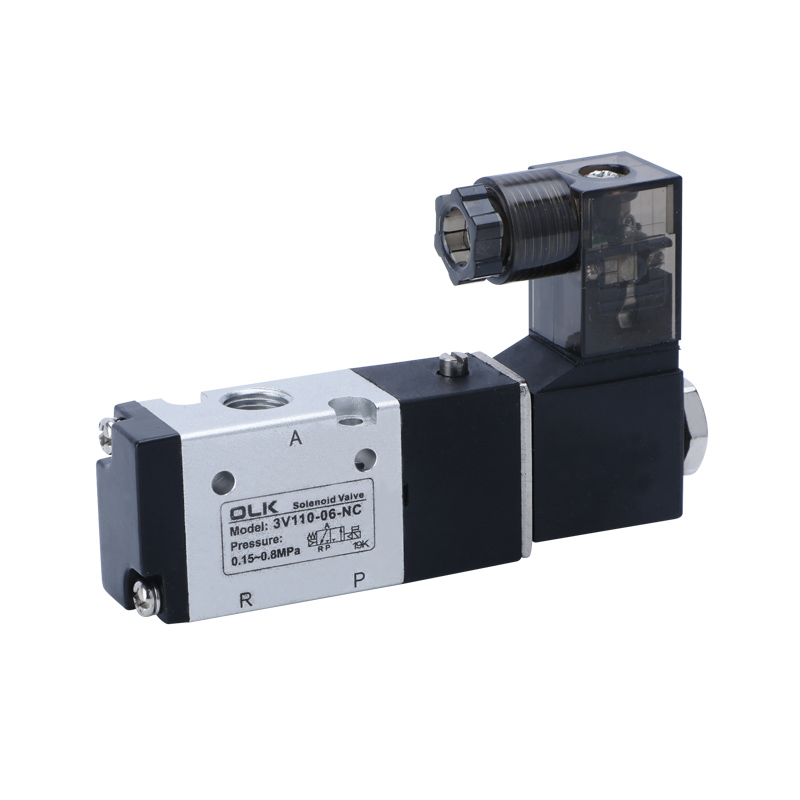

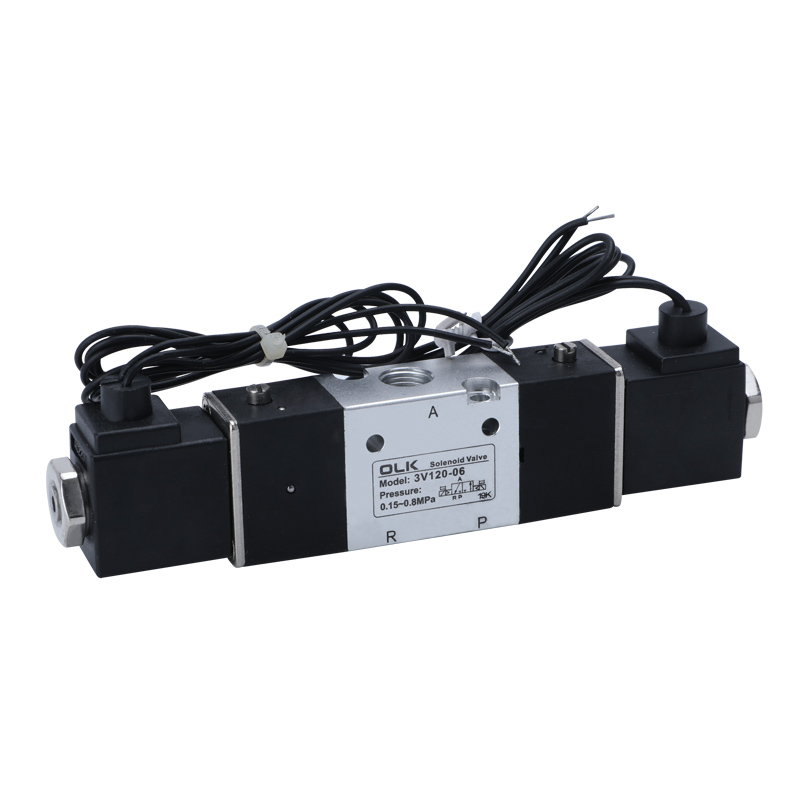

3V Series Solenoid Valve 3 Way

Model:3V210

You can rest assured to buy 3V Series Solenoid Valve 3 Way from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry PDF DownLoad

Product Description

The Ouleikai (OLK) 3V Series Solenoid Valve 3 Way, belongs to the pilot-operated solenoid directional valve category, featuring fast response speed and reliable operation, suitable for controlling single-acting cylinders. The valve body is made of corrosion-resistant, high-temperature-resistant aluminum alloy, making it suitable for use in various harsh environments.

It can be matched with industrial automation scenarios, such as fluid control and conversion on various automated production lines, pneumatic equipment, medical devices, etc.

SYMBOL:

Ordering Code
3V	1	10	6	NO	A
Model	Code	Valve type	port size	Action type	Voltage	Non:Din type
3V :2 position 3 way solenoid valve	1:100 series	10:single acting solenoid vlave 3/2 way	M5:M5	NO:normally closed	AC220V	L :Line type
	2:200 series	20:double acting solenoid valve 3/2 way	06:G1/8	NO:normally open	AC110V
	3:300 series		08:G1/4		AC24V
	4:400 series		10:G3/8		AC36V
			15:G1/2		DC12V
					DC24V

OULEIKAI pilot-operated 3V series solenoid valve 3 way Product characteristics

1. Direct-acting configuration, responsive switching;

2. Options available for normally closed and normally open types;

3. Coaxial shut-off structure, excellent sealing, large flow rate;

4. No need for oil lubrication;

5. Equipped with manual device for easy installation and debugging;

6. Multiple standard voltage grades are available for selection.

3V series solenoid valve 3 way General parameters data:

working medium	Air (filtered through a filter over 40μm)
Action	Pilot type
number of positions	Two position three way
lubricating	unnecessary
Working pressure range MPa(psi)	0.15∼0.8(21~114)
Guaranteed pressure resistance	1.5MPa (215psi)
Body material	aluminum alloy
Standard Voltage	AC220V, AC110V, AC24V, DC24V, DC12V
Use voltage range	AC:±15％DC:±10％
protection level	IP65 (DIN40050)
heat resistance grade	Class B
Connection type	DIN socket type, outlet type
Excitation time	0.05 seconds or less

3V series solenoid valve 3 way different parameters

model	Port diameter	Working temperature °C	MAX operating frequency	Flow cross-sectional area mm² (CV value)	power consumption
3V110-M5	M5	-20∼70	5 times/second	5.5(0.31)	AC: 3VA DC: 3W
3V120-M5	M5	-20∼70	5 times/second	5.5(0.31)	AC: 3VA DC: 3W
3V110-06	G1/8	-20∼70	5 times/second	12.0(0.67)	AC: 3VA DC: 3W
3V120-06	G1/8	-20∼70	5 times/second	12.0(0.67)	AC: 3VA DC: 3W
3V210-06	Intake=outlet=G1/8	-20∼70	5 times/second	14.0(0.78)	AC: 6VA DC: 4.8W
3V220-06	Intake=outlet=G1/8	-20∼70	5 times/second	14.0(0.78)	AC: 6VA DC: 4.8W
3V210-08	Intake=outlet=G1/4	-20∼70	5 times/second	16.0(0.89)	AC: 6VA DC: 4.8W
3V220-08	Intake=outlet=G1/4	-20∼70	5 times/second	16.0(0.89)	AC: 6VA DC: 4.8W
3V310-08	Intake=outlet=G1/4	-20∼70	5 times/second	25.0(1.39)	AC: 6VA DC: 4.8W
3V320-08	Intake=outlet=G1/4	-20∼70	5 times/second	25.0(1.39)	AC: 6VA DC: 4.8W
3V310-10	Intake=outlet=G3/8	-20∼70	5 times/second	30.0(1.67)	AC: 6VA DC: 4.8W
3V320-10	Intake=outlet=G3/8	-20∼70	5 times/second	30.0(1.67)	AC: 6VA DC: 4.8W
3V410-15	Intake=outlet=G1/2	-5∼60	3 times/second	50.0(2.79)	AC: 6VA DC: 4.8W
3V420-15	Intake=outlet=G1/2	-5∼60	3 times/second	50.0(2.79)	AC: 6VA DC: 4.8W
