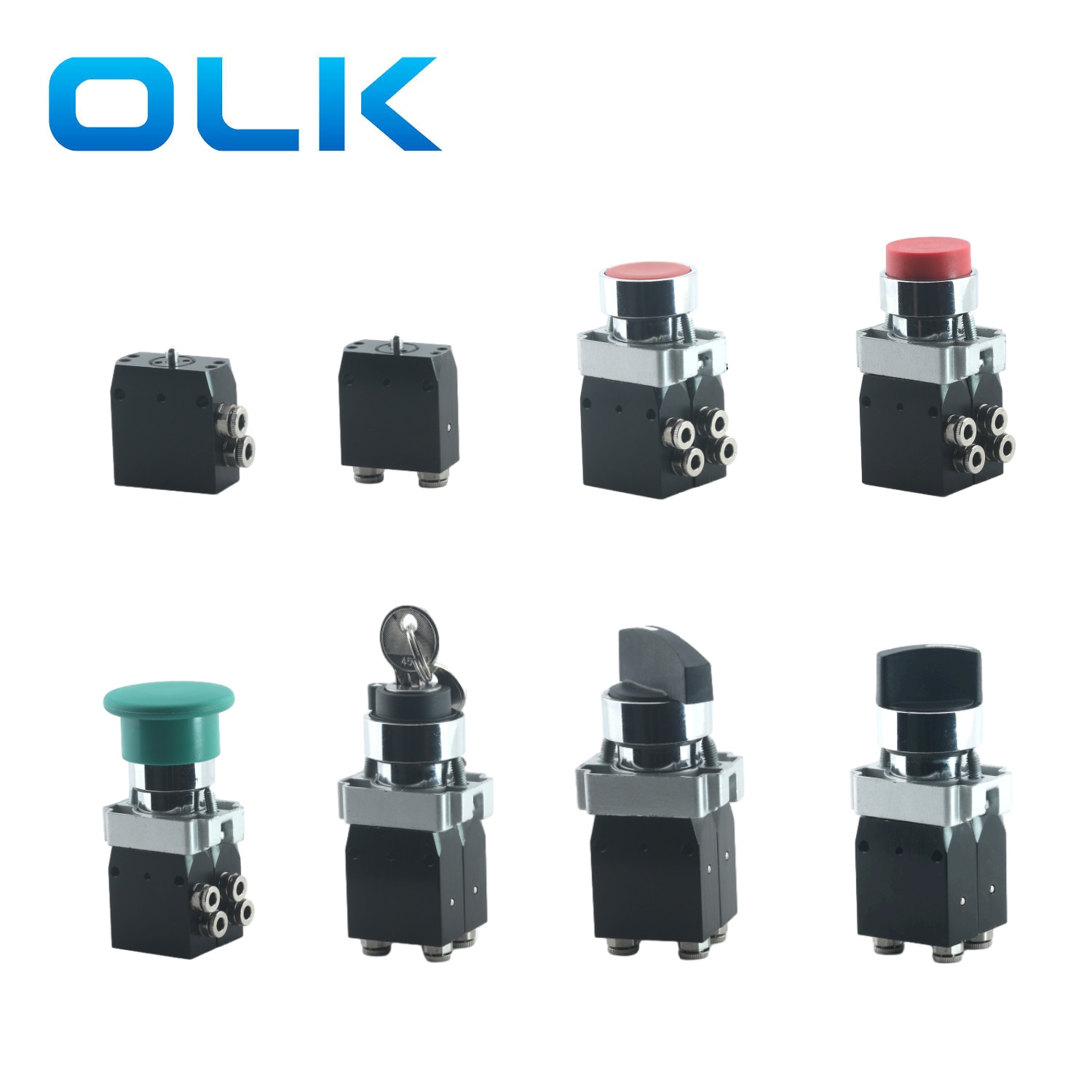

Ouleikai (OLK) 104 series micro push button valve is a compact 3/2 pneumatic mechanical valve designed for precision and efficiency. It is often used to detect if something is moving, like a door or window opening and closing, or to sense parts moving inside a machine. 3-way and 2-way valves are available in NO or NC versions.Series M104 valve with various button switch can be choose .Besides there are three position can be choose in long-arm switches,short-arm switches and key switches .Including two-position,three-position maintained and three-position momentary.
Its lightweight aluminum alloy body ensures durability while maintaining a sleek, modern design.

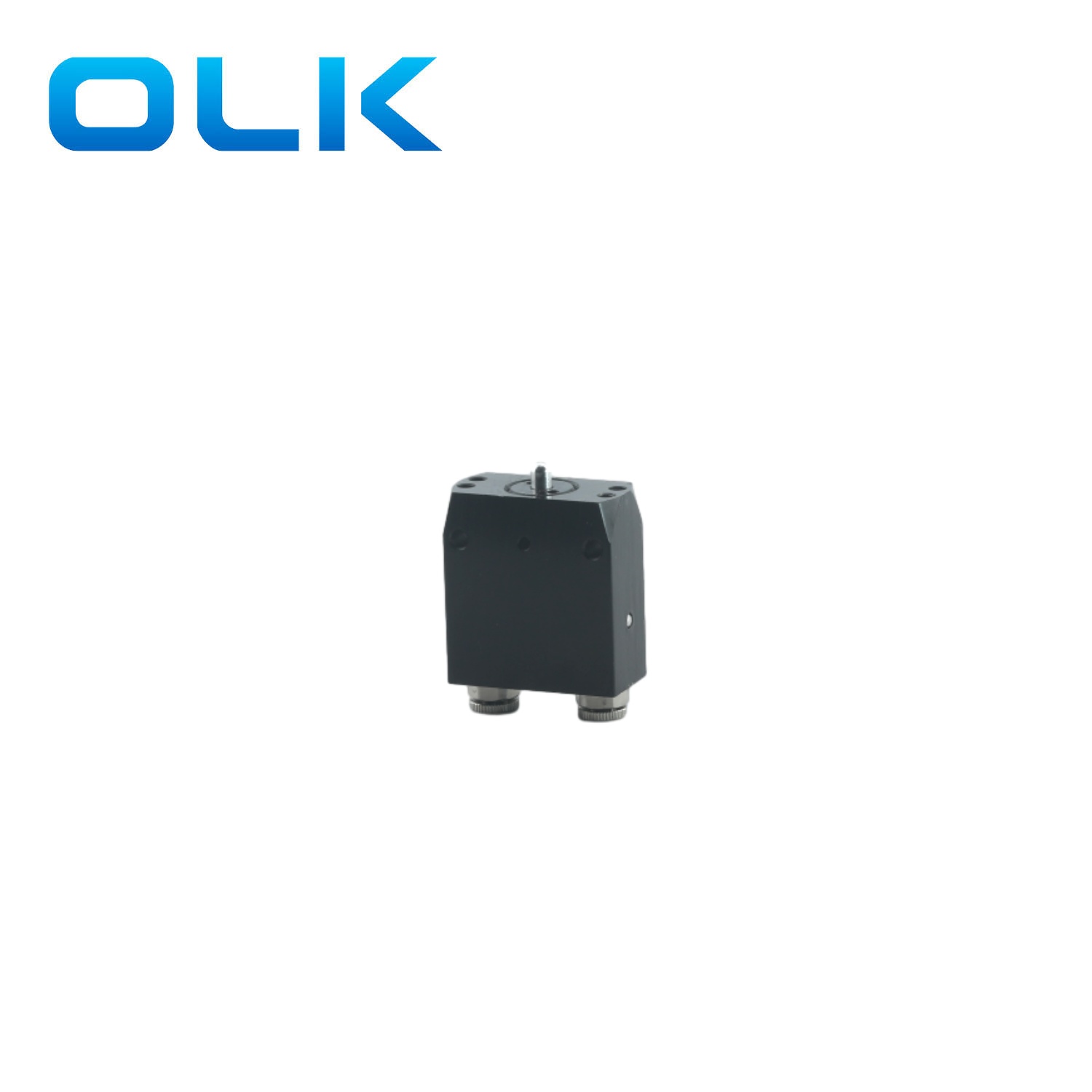

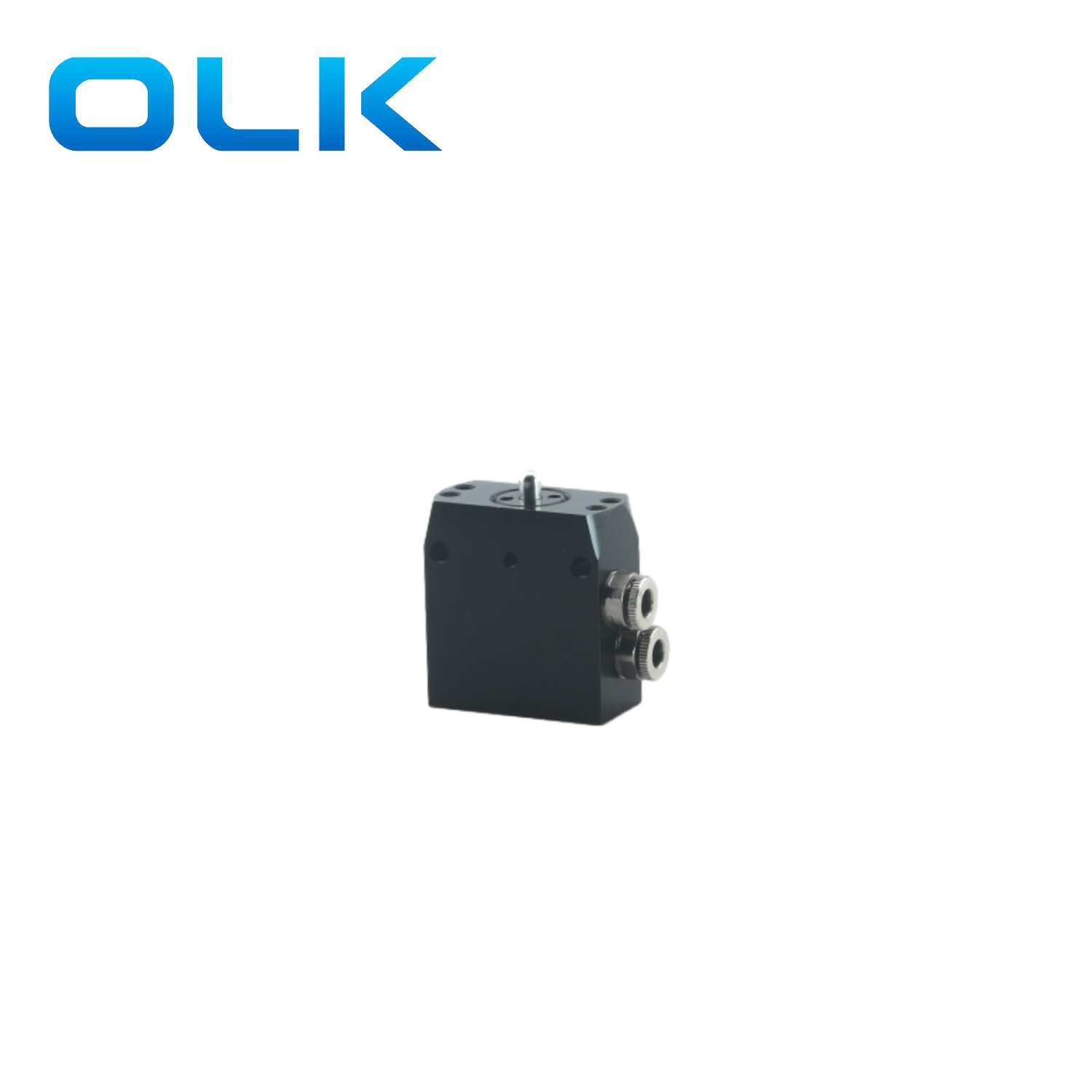

3 way 104 series micro push button valve is available in two configurations: side port and bottom port, offering flexible installation options to suit different applications.
For added convenience, the built-in push-to-connect fittings allow for quick and hassle-free tubing connections, eliminating the need for additional adapters or fittings. Experience a seamless and efficient pneumatic solution with the 104 series mechanical valve!

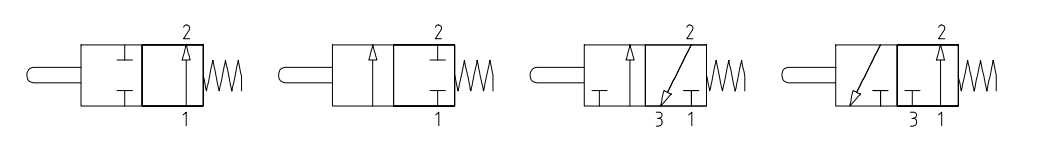

SERIES M104 SYMBOL:
|
Ordering code |
||||||||||
|
M104 |
_ |
22 |
_ |
622 |
_ |
1 |
_ |
P |
_ |
F |
|
MODEL: |
Number of ports |
Actuator type |
Button Color |
Port type |
Function |
|||||
|
104 series micro valve |
22 : 2 position 2 way |
Blank:Basic type |
1:Red |
L:Side port |
A:NO |
|||||
|
32: 2 position 3 way |
623:Flat button type |
2:Black |
P:Bottom port |
C:NC |
||||||
|
623:Convex Button type |
3:Green |
|||||||||
|
625: Mushroom Button type |
4:Yellow |
|||||||||
|
627: Long arm switches |
||||||||||
|
628: Key switches type |
||||||||||
|
630: Short arm switches |
||||||||||
Series 104 micro push button valve General parameters
|
working medium |
Air (filtered through a filter over 40μm) |
|
Function |
NO,NC |
|
Effective orifice |
Φ2.5 |
|
connector |
4mm push in connector |
|
Port diameter |
G1/8 |
|
Number of positions |
2/2 way or 3/2 way |
|
Standard flow rate NL/min |
90NL/min |
|
Maximum working pressure |
10 bar |
|
Working temperature °C |
‘-5∼70℃ |
|
Body material |
aluminum alloy |
|
M104 valve - Order Summary for Button Types |
||
|

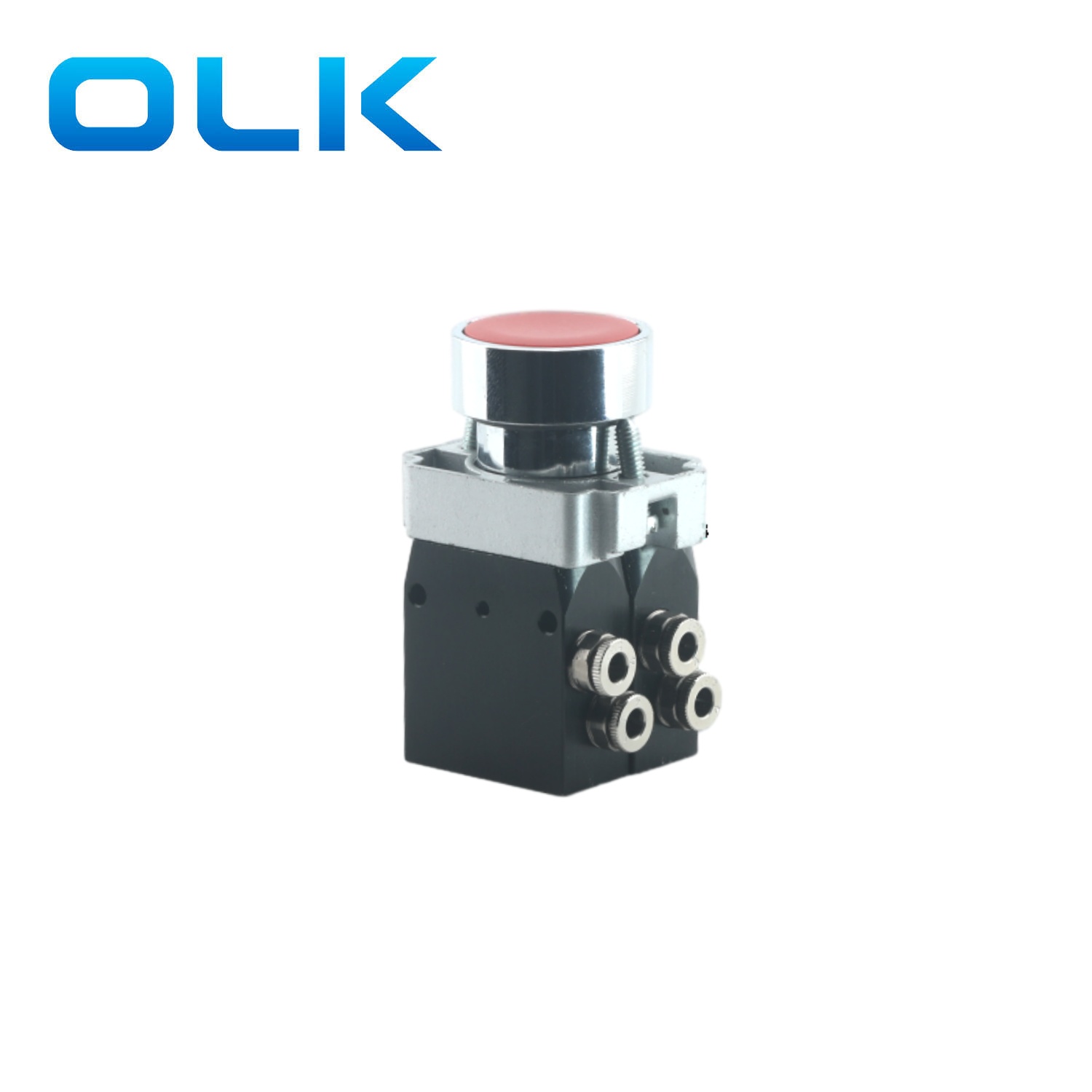

622:Flat button type |
M104 . 622 . 1 |
1:red |
|
M104 . 622 . 2 |
2:black |
|
|
M104 . 622 . 3 |
3:green |
|
|
M104 . 622 . 4 |
4.yellow |
|
|

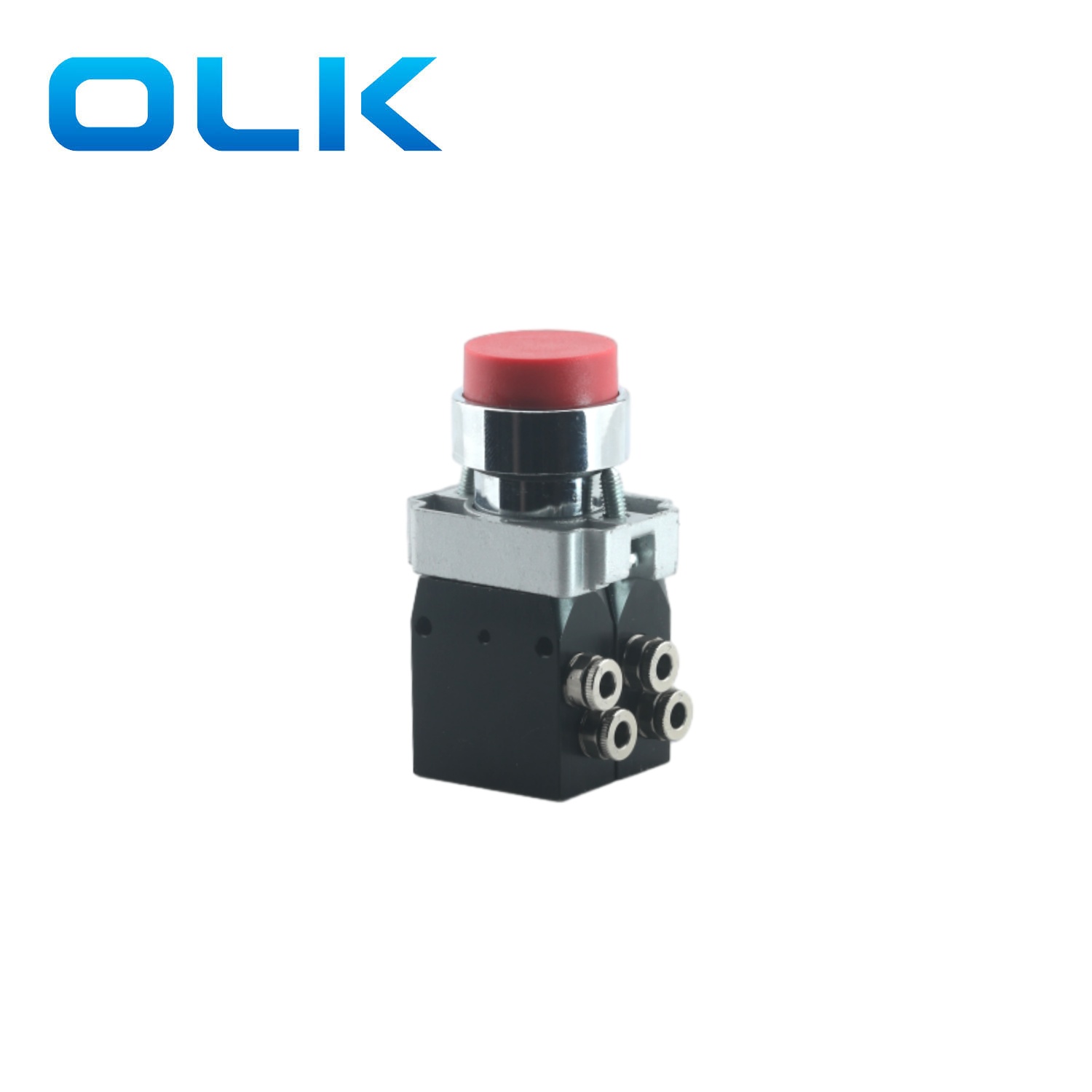

623:Convex Button type |
M104 . 623 . 1 |
1:red |
|
M104 . 623 . 2 |
2:black |
|
|
M104 . 623 . 3 |
3:green |
|
|
M104 . 623 . 4 |
4.yellow |
|
|

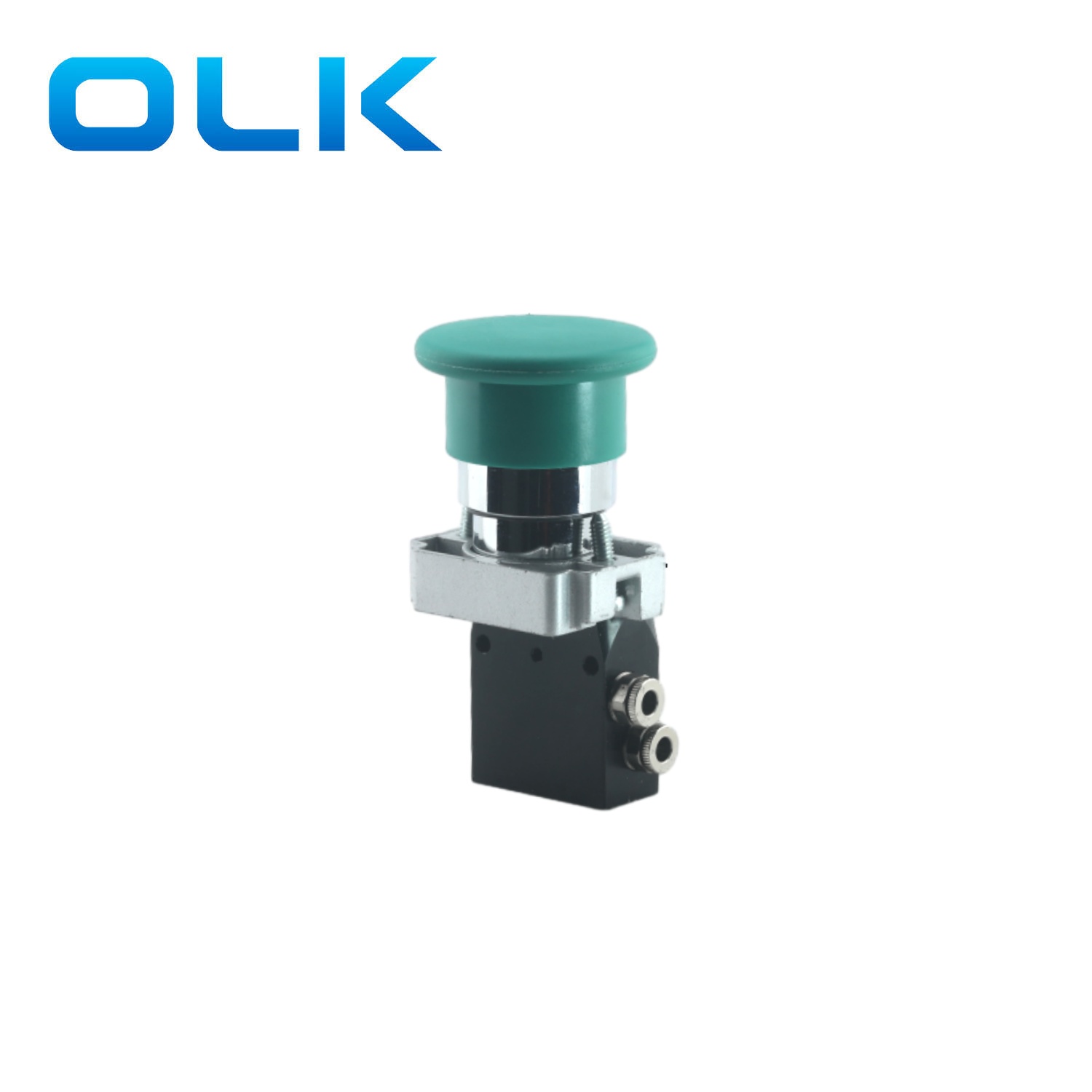

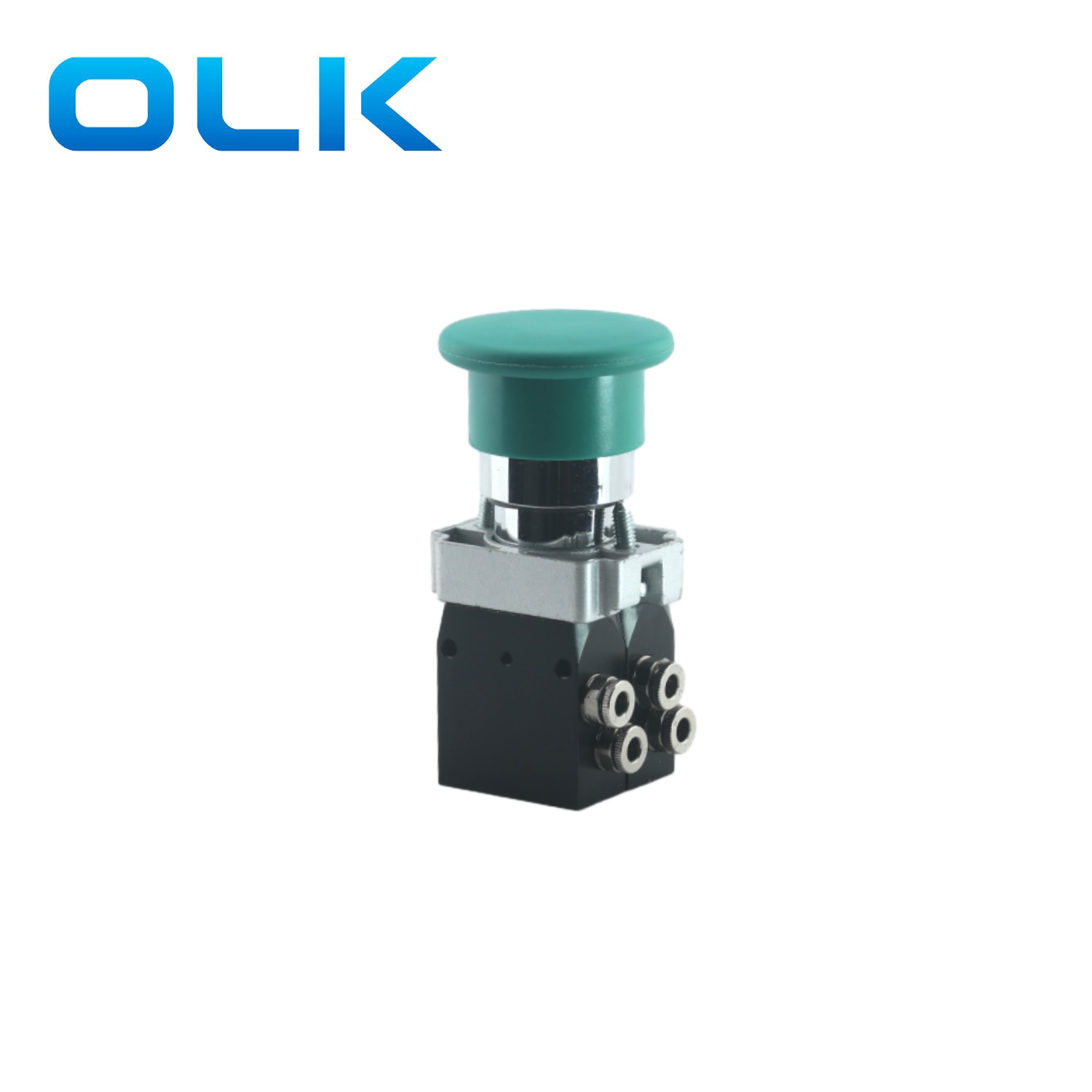

625: Mushroom Button type |
M104 . 625 |
|
|
627: Long arm switches |
M104 . 627 |
Two-position Maintained Switch |
|
M104 . 627.0 |
0:Three-position Momentary |
|
|
M104 . 627.1 |
1:Three-position Maintained Switch |
|
|

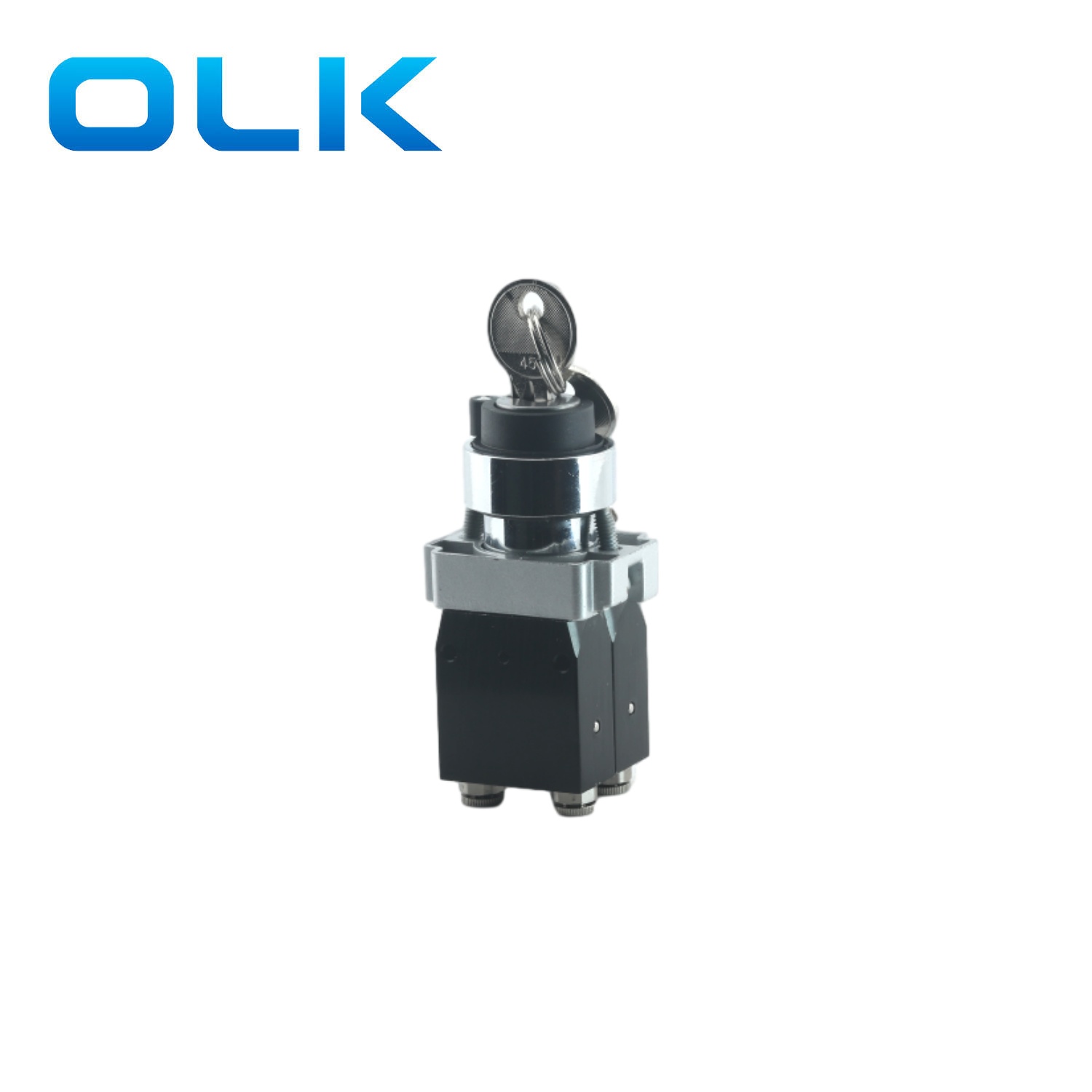

628: Key switches type |
M104.628 |
Two-position Maintained Switch |
|
M104.628.0 |
0:Three-position Momentary |
|
|
M104.628.1 |
1:Three-position Maintained Switch |
|
|

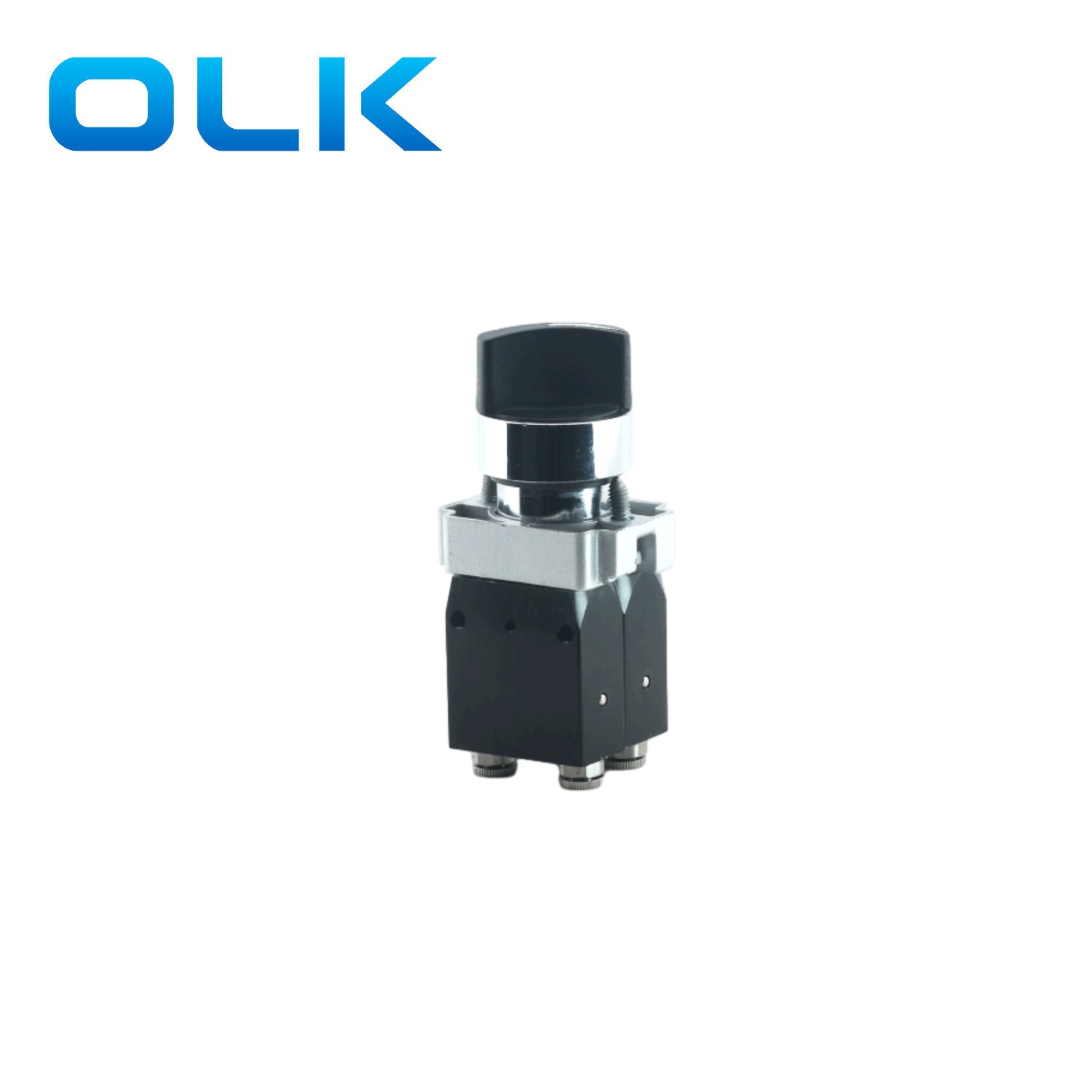

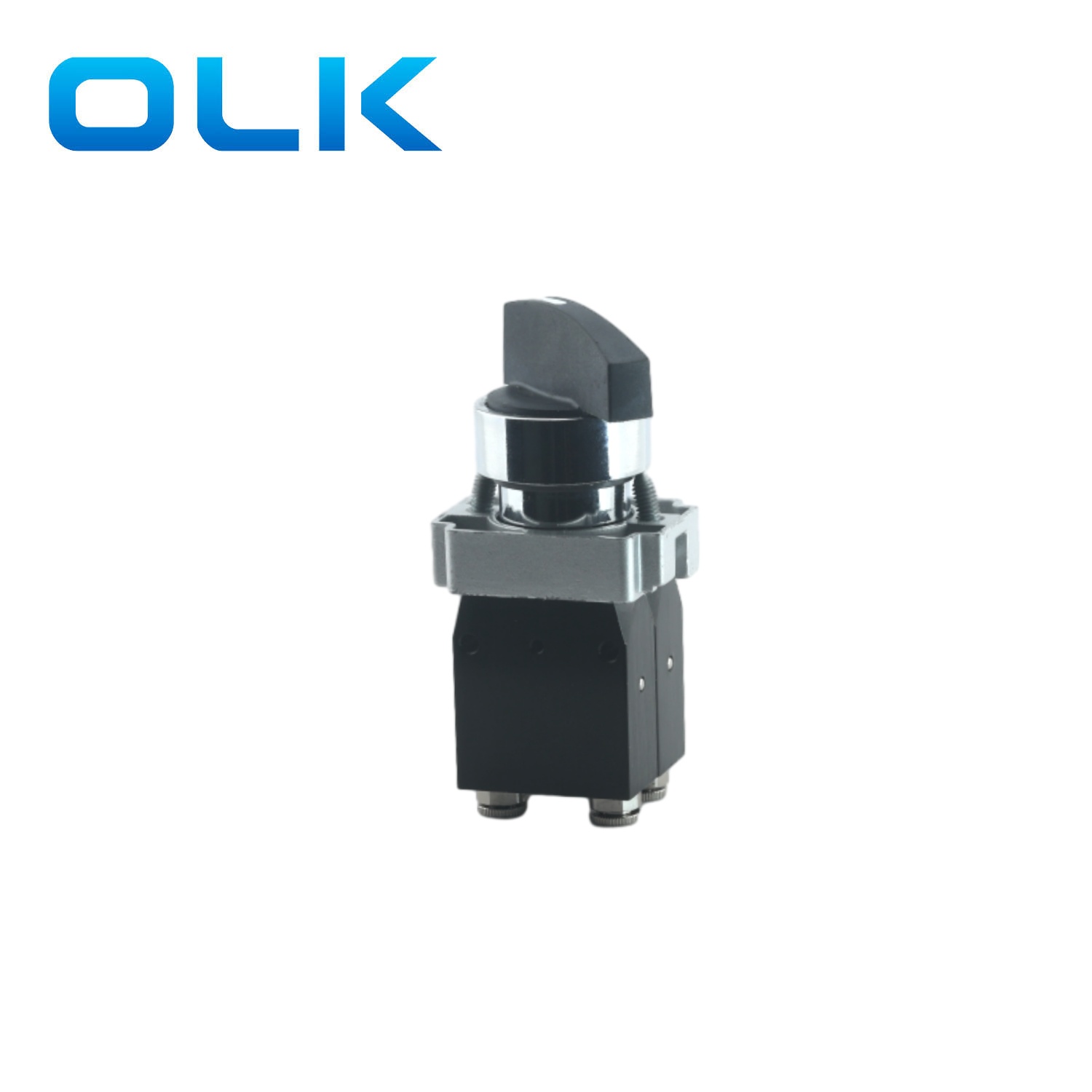

630: Short arm switches |
M104.630 |
Two-position Maintained Switch |
|
M104.630.0 |
0:Three-position Momentary |
|
|
M104.630.1 |
1:Three-position Maintained Switch |
|
|
Mounting Panel |
M104.00 |
|
