M5 Series Mechanical Button Control Valve 5 Way

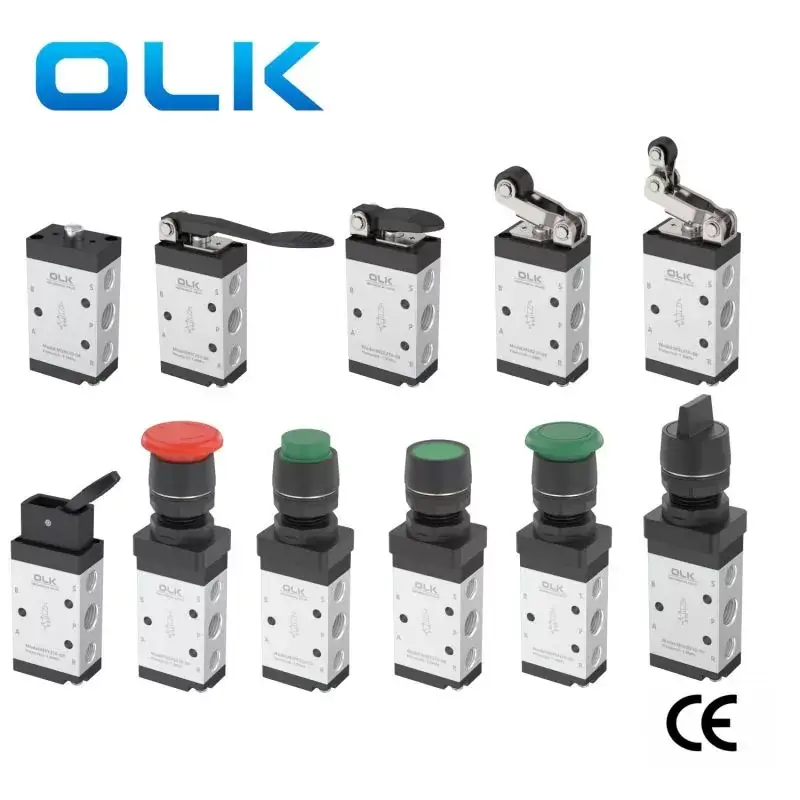

  • M5 Series Mechanical Button Control Valve 5 WayM5 Series Mechanical Button Control Valve 5 Way
  • M5 Series Mechanical Button Control Valve 5 WayM5 Series Mechanical Button Control Valve 5 Way
  • M5 Series Mechanical Button Control Valve 5 WayM5 Series Mechanical Button Control Valve 5 Way

M5 Series Mechanical Button Control Valve 5 Way

Model:M5 mechanical valve

OLK is a professional M5 Series Mechanical Button Control Valve 5 Way manufacturers and suppliers in China. If you interested inM5 series mechanical valves products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.

AIRTAC TYPE M5 series 5/2 way mechanical button valve manufacutered by OLK pneumatic company.M5 mechanical valve is a sliding column structure.The exhuaust ports located on the valve body.M5 button valve will more easy to installation the muffler to reduce noise and pollution.The M5 Series Mechanical Button Control Valve 5 Way, while the M5-210 offers G1/8 and G1/4 interface threads.

symbol:


Ordering code
M5                      PM 210 06 R

Button type Code PORT SIZE Button color
M5:M type B:Basic Type (M5B)
110:110 series single control 100:06:G/18 PL:RED

C:Long Handle Type (M5C)
210:210 series single control 200:06:G1/8 PP/PF/PM/HS:RED,GREEN,BLACK

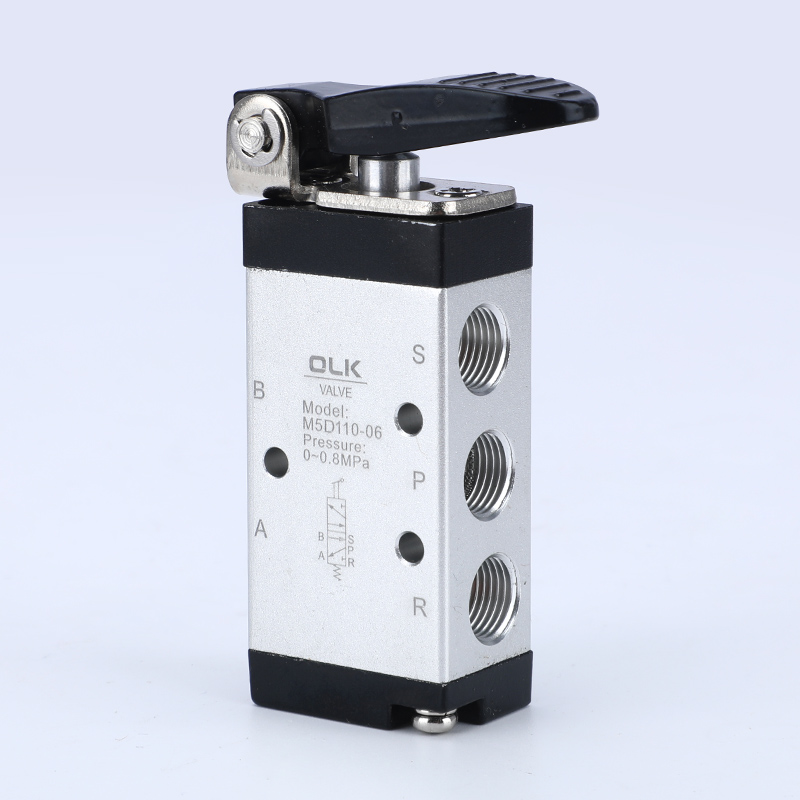

D:Short Handle Type (M5D)

200:08G1/4

R:Roller Lever Type (M5R)




L:Unidirectional Roller Lever Type (M5L)

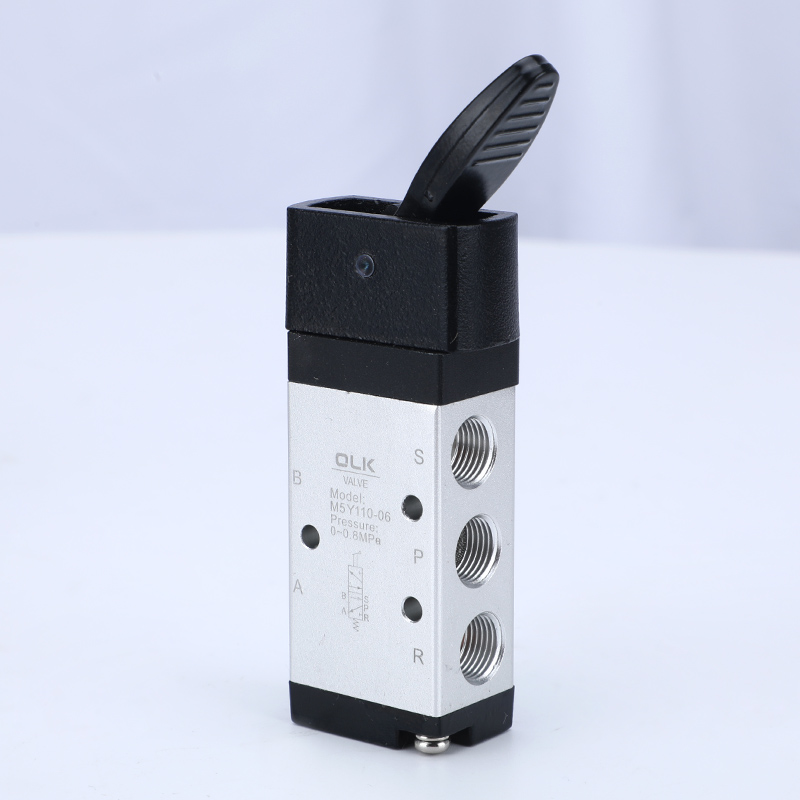

Y:Rocker Arm Type (M5Y)




PM:Mushroom Head Button Type (M5PM)

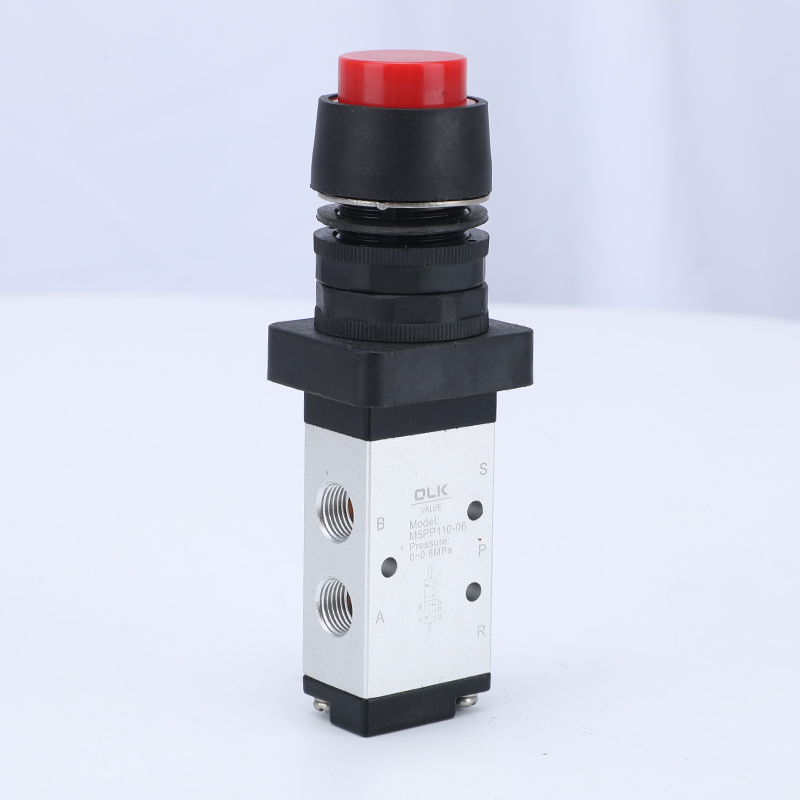

PP:Raised Head Button Type (M5PP)

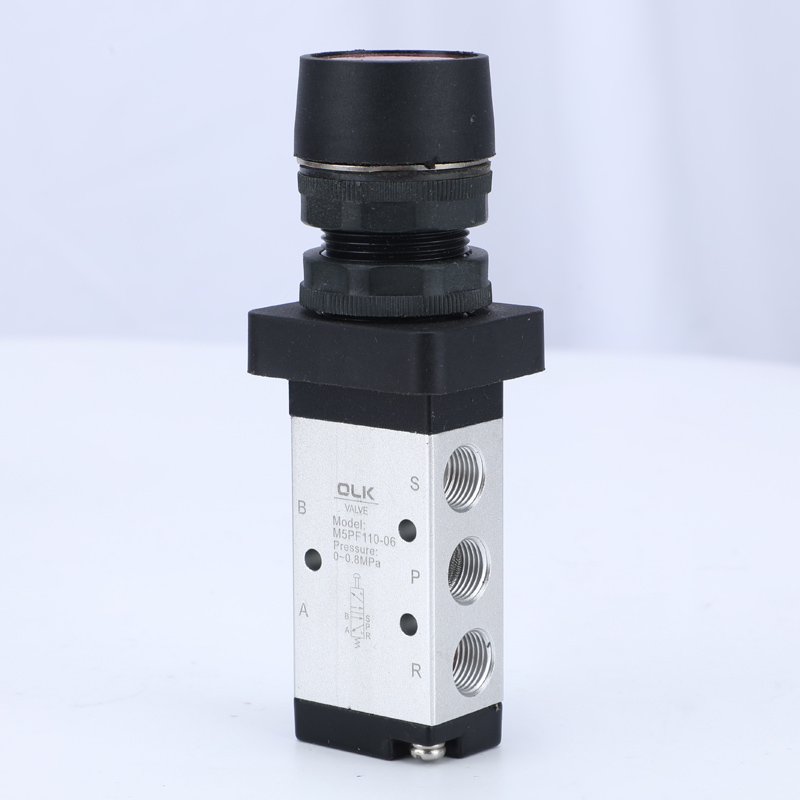

PF:Flat Head Button Type (M5PF)




PL:Emergency Stop Impact Button Type (M5PL)




HS:Selector Type (M5HS)

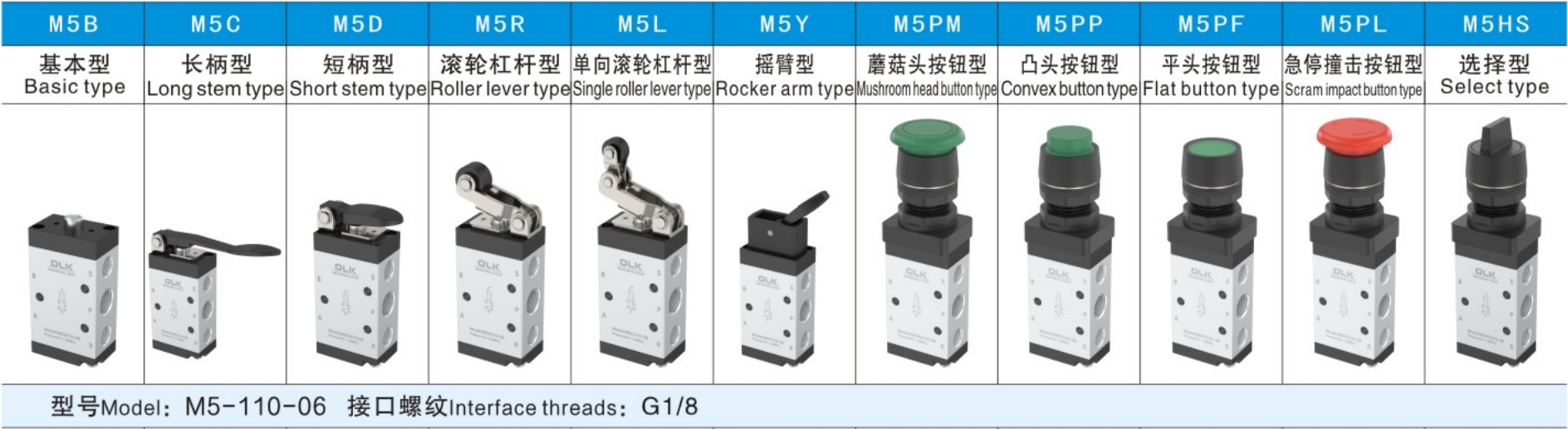

The button types available include:

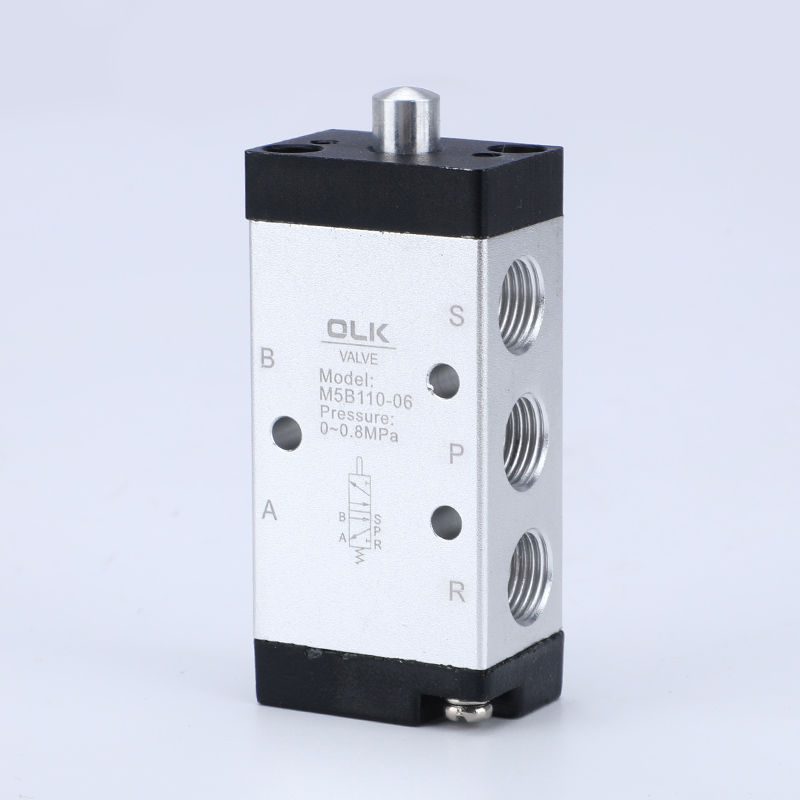

- Basic Type (M5B)

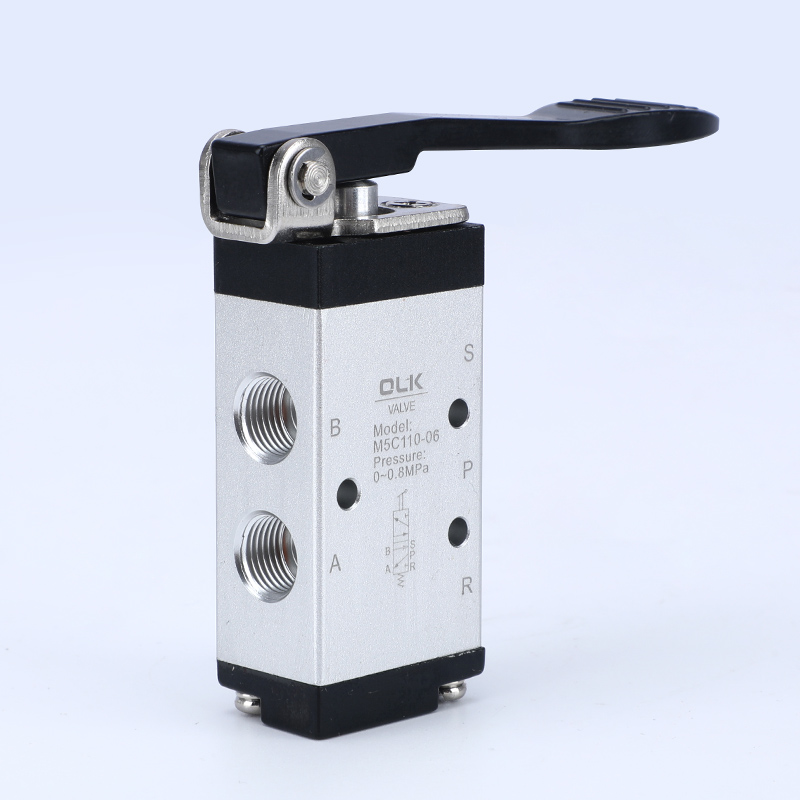

- Long Handle Type (M5C)

- Short Handle Type (M5D)

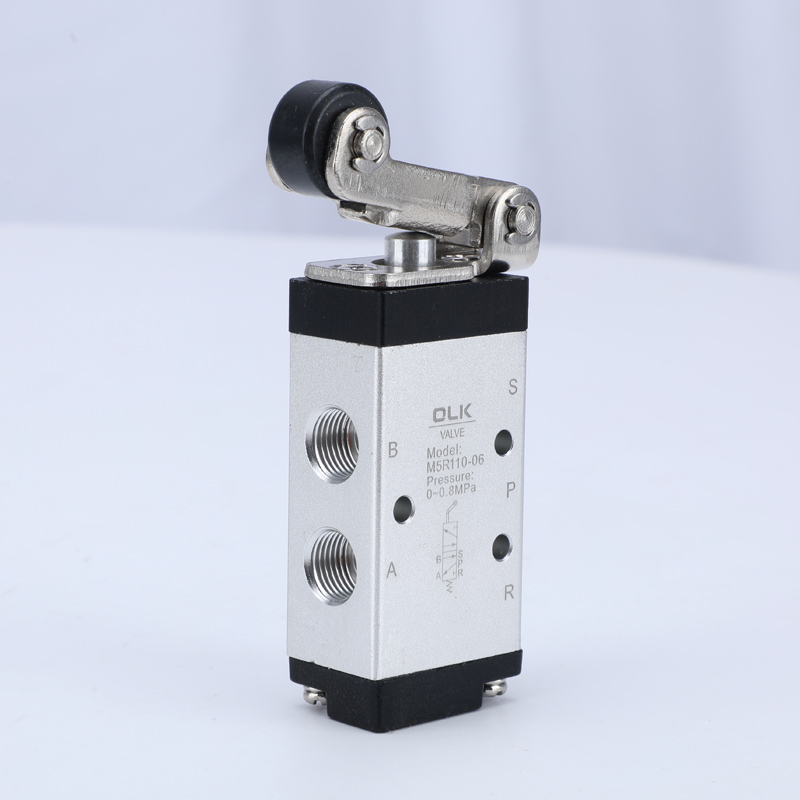

- Roller Lever Type (M5R)

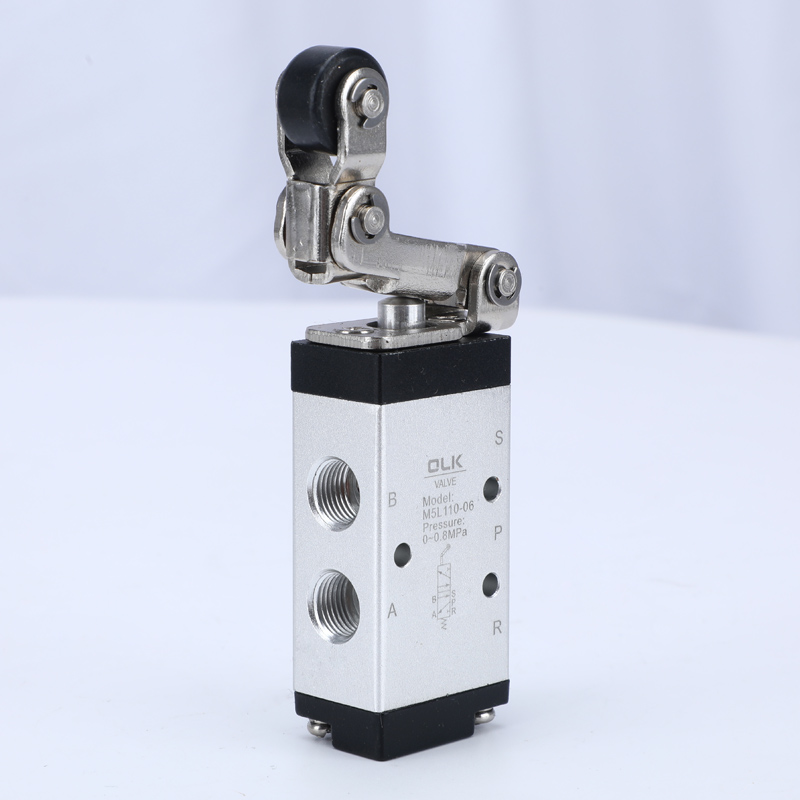

- Unidirectional Roller Lever Type (M5L)

- Rocker Arm Type (M5Y)

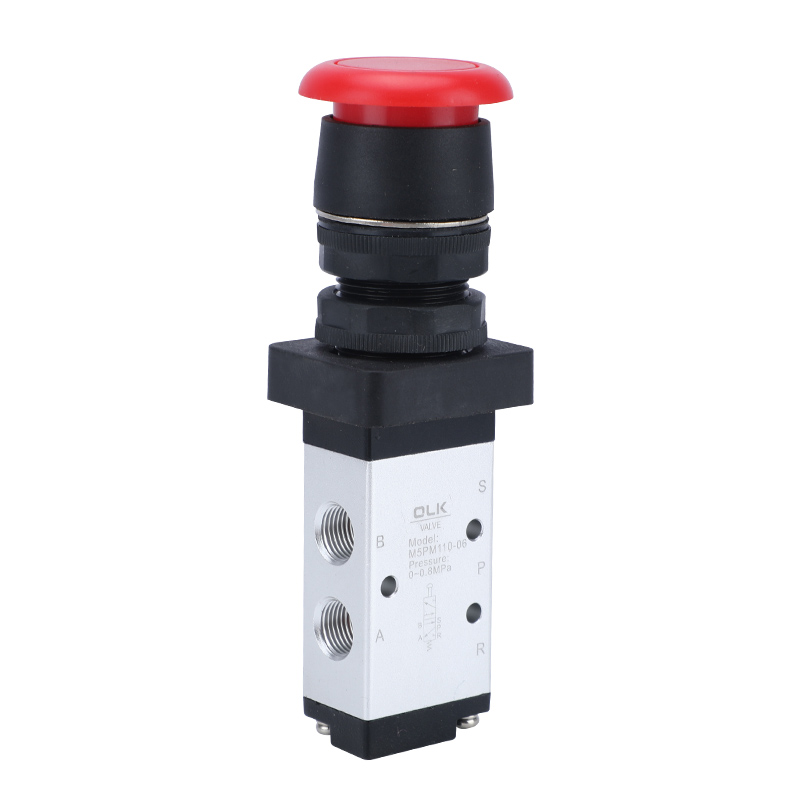

- Mushroom Head Button Type (M5PM)

- Raised Head Button Type (M5PP)

- Flat Head Button Type (M5PF)

- Emergency Stop Impact Button Type (M5PL)

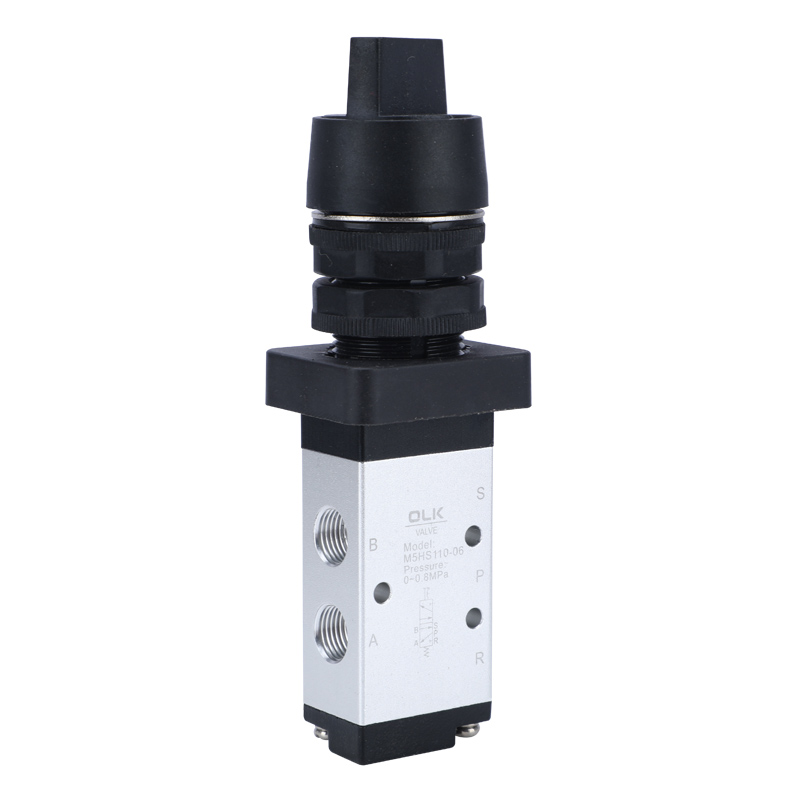

- Selector Type (M5HS)


For the PM, PP, and PF types, there are three button colors to choose from: red, green, and black.

OULEIKAI  M5 series mechanical button control valves Product characteristics

1. Exhaust ports are located on the body, facilitating the installation of silencers to reduce noise and pollution.

2. M5B, M5R, M5L series require external forces for switching, provided by external mechanisms, suitable for position detection or stroke switches.

3. M5C,M5D, M5Y,M5PF,M5PM,M5PP,M5PL,M5HS series are manually operated with various structural control heads for convenience under different conditions.

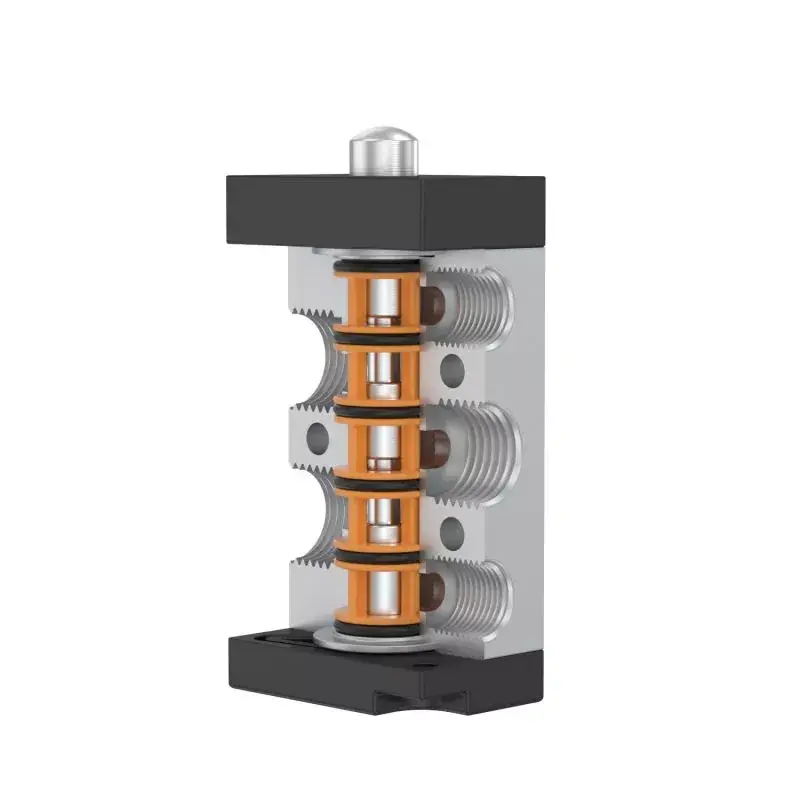

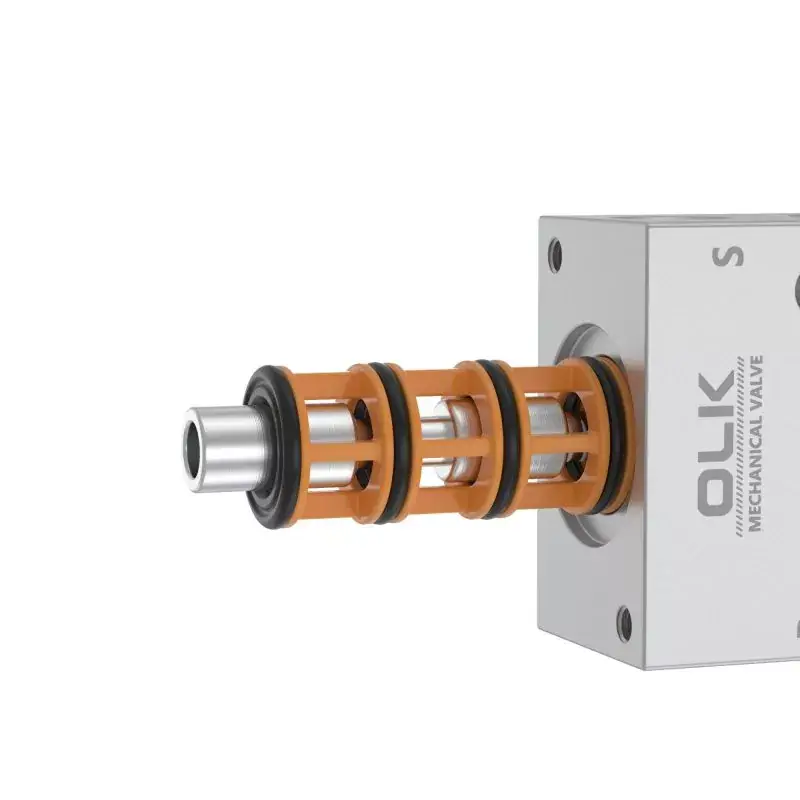

4. Sliding column structure, control force unaffected by working pressure (i.e., no back pressure effect), inner ring seal for good sealing, flexible switching.

5. No need for oil lubrication.

6. Multiple position installations for easy use.

7. M5C, M5D, M5Y, M5R, M5L series control heads are made of metal, ensuring long life and greater reliability and stability.

M5 series mechanical button control valves General parameters

working medium

Air (filtered through a filter over 40μm)

Action

External direct acting

Port diameter

05:M5,06:G1/8,08:G1/4

number of positions

2 position 5 way

lubricating

unnecessary

Working pressure range MPa(psi)

0∼1.0(~145)

Guaranteed pressure resistance

1.5MPa (215psi)

Working temperature °C

-20∼70

Cross-sectional area mm² (CV value)

05:2.5(0.14),06:8(0.45),08:12(0.67)

Body material

aluminum alloy


M5 series mechanical button control valves  Installation and application:

Precautions

1) The control part is made of engineering plastic, and only manual operation is allowed. Do not use metal impact to switch the valve.

2)  The M5B, M5C, M5D, M5PM, M5PF, and M5PP series are automatically reset. M5Y, M5HS, and M5PL manual valves are manually reset. After pressing the M5PL into the treasure position, the rotary knob needs to be rotated to reset.

3)  Pay attention to the reversing stroke. When any external force causes the valve to reverse, the basic reversing stroke should not exceed the range of reversing stroke specified in the control stroke table, otherwise it will cause damage to the valve body.

4) The M5L one-way roller valve can only switch in one direction (hitting from right to left). Invalid impact in the other direction (curved left to right).

5)  The control head combination can be ordered separately.
