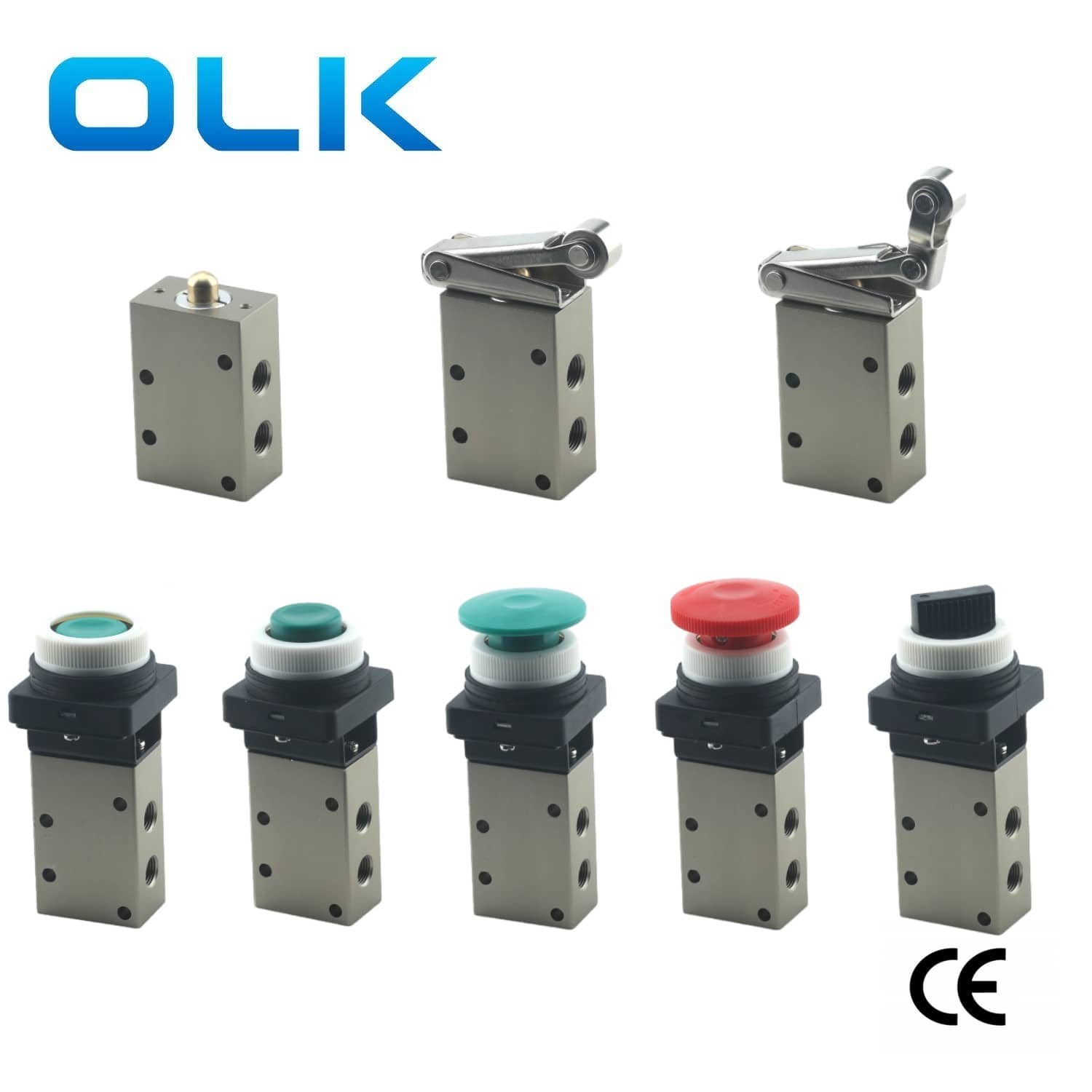

Our Mechanical Button Control Valve allows for precise control over fluid flow rates, making it an ideal choice for applications that require precision fluid control. The valve features a mechanical button control, which offers a reliable and easy-to-use interface for adjusting fluid flow rates.
A mechanical control directional valve is a type of valve that does’t need an electrical signal .But it relies on mechanical force to control the spool. According to the operating action mode, it can be classified into basic type, direct-acting type, roller type, lateral roller type, lever roller type, adjustable rod type, adjustable lever roller type, and through type. It is commonly applied in continuous operations, highly automated equipment, and limit actions of production line machinery.
|
Symbol |
Valve Type |
Operation Method |
Features |
Application |
OLK mechanical valve model |
|
|
Basic Type Mechanical Valve |
Reset the valve core when there is no external force; When the push rod is pressed by external force, the push rod contacts the valve core and seals the R port, and then push the valve core to make P-A connected |
Simple operation, push to switch, release to reset |
Commonly used for equipment inching, manual control and simple limit switch |
JMJ-00,JM322,MV522,MV322,MOV321,CM3B,VM131-01-00,VM133-M5-001,VM230-02-00,VM430-01-00,S3B-M5,S3B-06,M3B-08,M3B-110-06,M3B-210-06,M3B-210-08,M5B-110-06,M5B-210-06,M5B-210-08,XQ250610,XQ230610,XQ250410,XQ230410, |
|
|
Straight plunger typeMechanical Valve |
Direct force on spool |
Cannot withstand high axial force |
·Triggered when workpiece falls from top to bottom.
·Vertical lifting mechanism detects the end position. ·Top limit detection. |
VM130-01-05,VM132-M5-05 |
|
|
RollerplungerMechanical Valve |
A roller is added at the top of the push rod of the valve. making the collision block contact tangentially along the roller, and then the roller transmits the force to the push rod |
Roller lever valve with adjustable roller arm flexible trigger angle and strong adaptability.Reduces force on spool, extends valve life, more reliable |
Commonly used for conveying line, automatic tooling, cylinder stroke detection and limit control. |
CM3V-06,VM130-01-06,S3V-M5,S3V-06,S3V-08, |
|
|
Toggle lever type valve |
Pull thetoggle leverleft and right by hand to switch the valve core between two positions, so as to realize on-off/reversing |
Toggle lever design for frequent switching |
Pneumatic tooling fixture, small production equipment, equipment commissioning stage, for manual switching cylinder action |
CM3Y-06,VM130-01-08 |
|
|
Roller lever mechanical valve |
Use the lever to increase the downward pressure of the push rod |
Bi-directional trigger: the roller is located on the top of the valve body, and the mechanical motion on both sides can trigger the valve. Suitable for reciprocating motion: especially suitable for linear slide table and both ends of push rod to trigger signals during reciprocating motion. |
Travel limit of production line, automatic reciprocating detection and mechanical linkage. |
JMJ-07,JM322R(JM-07),MV522R(MV-09),MV322R,MOV321R(MOV-02),CM3R,VM131-01-01,VM133-M5-01,VM230-02-01,VM430-01-01,S3R-M5,S3R-06,S3R-08,M3R-110-06,M3R-210-06,M3R-210-08,M5R-110-06,M5R-210-06,M5R-210-08,K23JC3-L6,XQ250612,XQ230612,XQ250412,XQ230412,S3R-M5,S3R-06,S3R-08,M3L-110-06,M3-210-06,M3L-210-0 |
|
|
One way roller lever type mechanical valve |
When the mechanical collision block moves forward, the valve core is pressed down. The collision block passes through the roller, and the valve core returns by the spring force. When the collision block returns, as the small lever at the head can be bent, the valve core does not move when the roller returns, and the valve does not reverse. |
The outlet output pulse signal of the valve is used to eliminate the obstacle signal in the loop to simplify the loop |
·Arrangements for limiting the direction of movement, e.g. allowing the workpiece to push the trigger in one direction only.
·Automatic feeding system to prevent triggering in case of reverse movement.
·Safety control places to reduce the risk of misoperation. |
JMJ-08L,JM-08L,MV522L,MV322L,CM3L,VM131-01-02,VM133-M5-02,VM230-02-02S,VM430-01-02S,S3L-M5,S3L-06,S3L-08,M3L-110-06,M3L-210-06,M3L-210-08,M5L-110-06,M5L-210-06,M5L-210-08, |
OLK is a Chinese pneumatic manufacturer with the widest range of mechanical valves and large stock for fast delivery. With 22 years of technical experience, OLK team provide OEM/ODM service. We can customize valve bodies, offer different button options, and add UV laser logo marking for a more refined branding.
·When a mechanical valve is used, the contact surface of the collision block and the roller has a tilt angle of 30 ° or 45 °. The maximum speed of collision block is different for different operating mechanisms, which shall be observed.
·The time for the cylinder block to press the mechanical valve must exceed the switching time of the mechanical valve, so the cylinder speed cannot be too fast; If it is too fast, the length of collision block should be increased.
·Do not use mechanical valves as stops.
