5 Way JMJ Series Mechanical Valve

Welcome to wholesale or customized 5 way JMJ series mechanical valve from our factory at any time. We will provide you with factory discount prices for our products. OLK is 5 way JMJ series mechanical valve manufacturers and suppliers in China.

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

A directional control valve that switches the spool using mechanical force is called a mechanical control directional valve. Its main valve is similar to that of a solenoid valve.

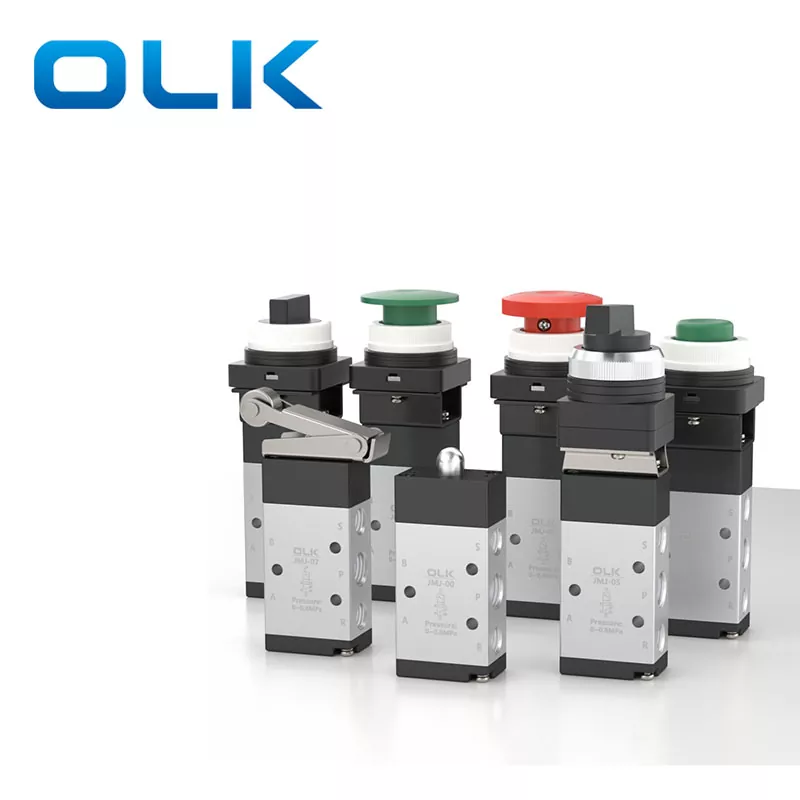

Ouleikai (OLK) 5 way JMJ series mechanical valve don’t need lubricant.The valve body itself has a direct action mode, but there are 9 control modes for button operation.The JMJ mechanical valve port size is 08:G1/4.

- Basic Type (JMJ-00)

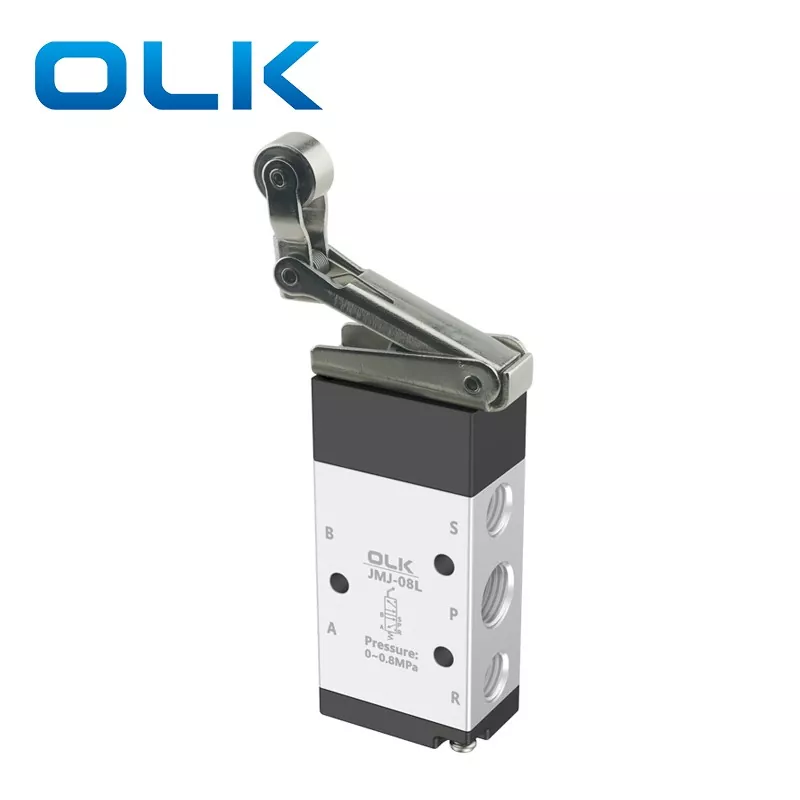

- One-way roller Type (JMJ-08L)

- Roller Type (JMJ-07)

- Flat Button (JMJ-05)

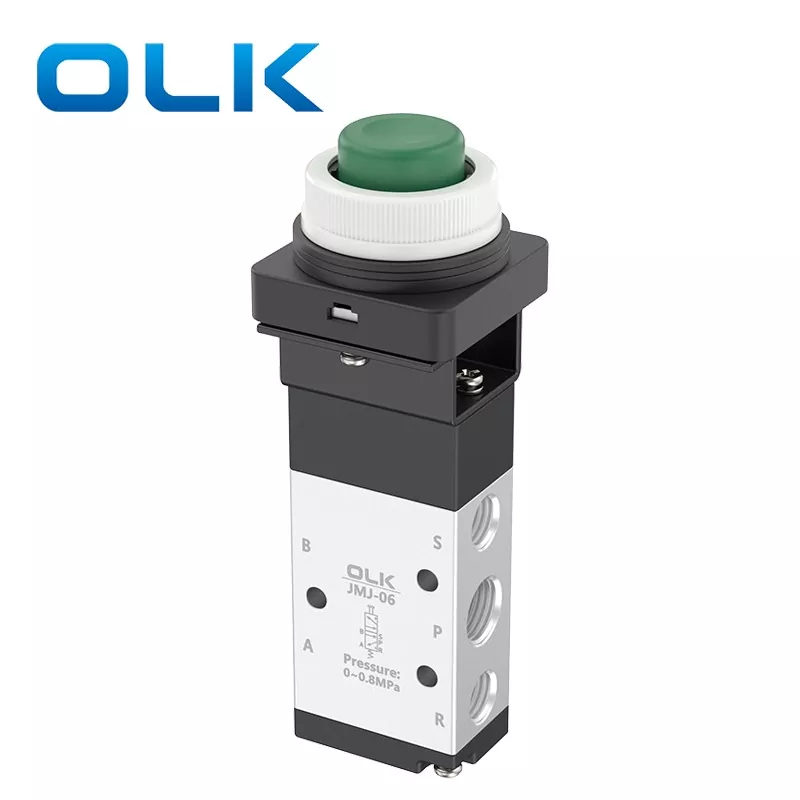

- Raised Button (JMJ-06)

- Large Round Button (JMJ-04)

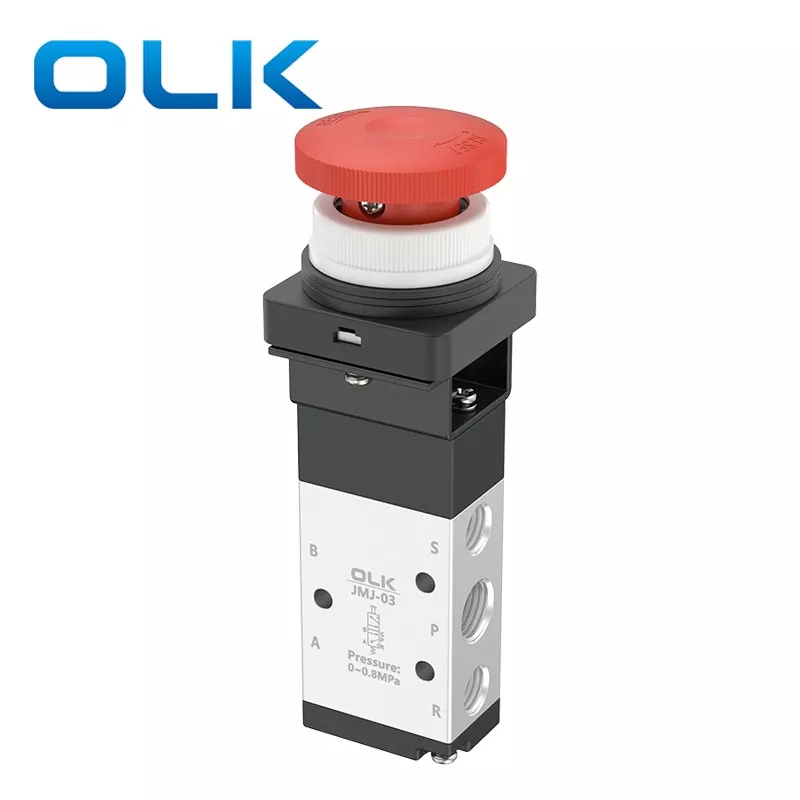

- Locking Button (JMJ-03)

- Selector Knob (JMJ-01)

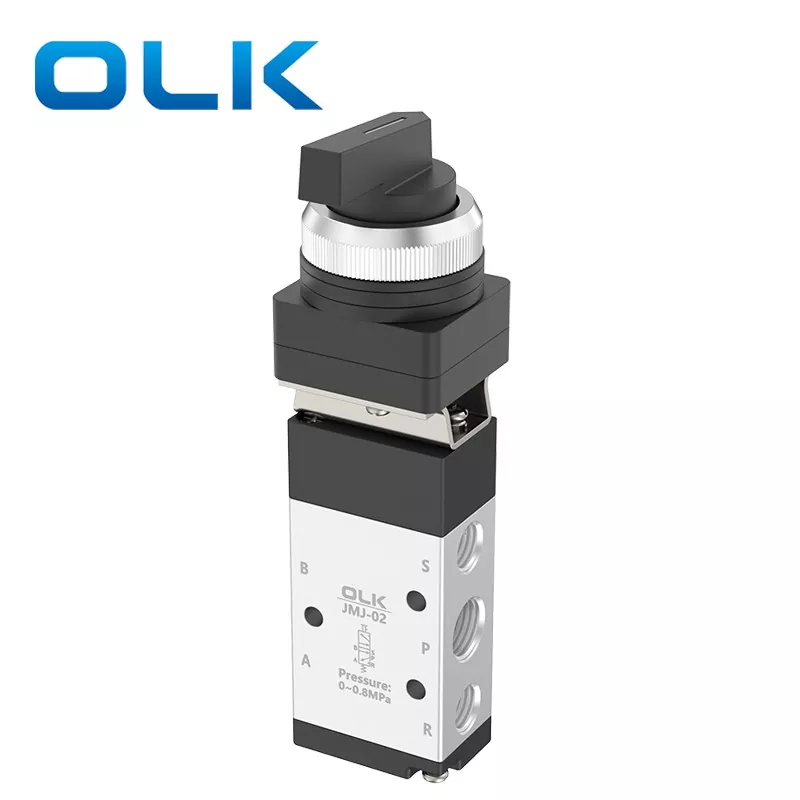

- Selector Knob (JMJ-02)

5 way JMJ522 SERIES Mechanical button control valve General parameters

working medium	Air (filtered through a filter over 40μm)
Action	External Control Direct Action
Port diameter	G1/4
number of positions	Two positionfive way
lubricating	unnecessary
Working pressure range MPa(psi)	0∼0.8(0~114)
Guaranteed pressure resistance	1.5MPa (215psi)
Working temperature °C	-5∼60
Body material	aluminum alloy

Model	JMJ-00	JMJ-08L	JMJ-07	JMJ-05	JMJ-06	JMJ-04	JMJ-03	JMJ-01	JMJ-02
Name	Basic type	One-way roller type	Roller type	Flat button	Flat button	Large circular button	Lock type button	Selection knob	Selection knob

Port size	G 1/4
