Article Summary: The TN Series Dual Axis Cylinder by OLK is a cutting-edge solution for industries seeking precise, efficient, and versatile automation components. This article explores its features, benefits, applications, technical specifications, and provides an FAQ for engineers and automation specialists.
Table of Contents
- Overview of TN Series Dual Axis Cylinder
- Key Features and Advantages
- Technical Specifications
- Applications in Modern Industry
- Installation and Maintenance Tips
- TN Series vs Competitors
- Frequently Asked Questions (FAQ)
- Conclusion

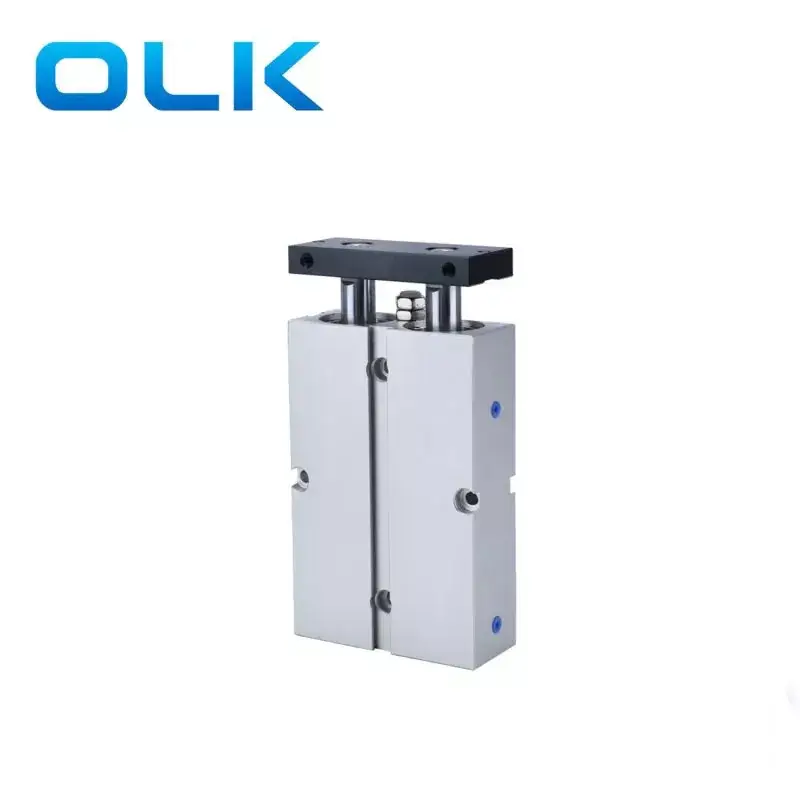

Overview of TN Series Dual Axis Cylinder
The TN Series Dual Axis Cylinder by OLK is designed for high-precision automation tasks requiring simultaneous movement along two axes. Unlike conventional single-axis cylinders, the TN Series offers unmatched flexibility and accuracy, reducing the need for multiple actuators and simplifying complex mechanical designs.
Dual-axis cylinders are critical in industries such as electronics, automotive manufacturing, material handling, and robotics. They provide both linear and rotational movements, making them ideal for pick-and-place operations, assembly tasks, and precise alignment applications.
Key Features and Advantages
The TN Series Dual Axis Cylinder offers numerous features that distinguish it from traditional actuators:
- Dual-axis movement: Provides linear and rotational motion in a single unit.
- Compact design: Minimizes space requirements and simplifies integration.
- High precision: Supports micron-level positioning and repeatability.
- Durable construction: Made with high-quality materials for long operational life.
- Easy maintenance: Modular components reduce downtime during servicing.
- Energy efficiency: Optimized for pneumatic and electric models to save energy.
These advantages help reduce overall system complexity, improve productivity, and enhance reliability.
Technical Specifications
The following table summarizes the key technical parameters of the TN Series Dual Axis Cylinder:
| Specification | Details |
|---|---|
| Stroke Length | 10 mm – 200 mm |
| Rotation Angle | 0° – 180° |
| Maximum Load | Up to 50 kg |
| Operating Pressure | 0.3 – 0.7 MPa (pneumatic) |
| Repeatability | ±0.05 mm |
| Mounting Options | Foot mount, flange mount, and pivot mount |
| Material | Aluminum alloy body, stainless steel shafts |
Applications in Modern Industry
The TN Series Dual Axis Cylinder has widespread applications due to its versatile movement and precise control:
1. Robotics and Automation
- Pick-and-place robots for assembly lines
- Precision alignment for welding and soldering
- Rotational positioning of small components
2. Electronics Manufacturing
- PCB assembly line automation
- Component testing and inspection
- Microelectronics pick-and-place operations
3. Automotive Industry
- Precise control for assembly of parts
- Material handling in limited spaces
- Integration in robotic arms for painting or welding
4. Packaging and Material Handling
- Multi-axis movement for sorting and stacking
- Enhanced flexibility for product orientation
- Automation of repetitive packaging tasks
Installation and Maintenance Tips
Proper installation and regular maintenance ensure the TN Series Dual Axis Cylinder performs at peak efficiency. Here are essential tips:
- Mounting: Secure the cylinder using recommended mounting options to avoid misalignment.
- Lubrication: Regularly lubricate moving parts based on manufacturer instructions.
- Inspection: Check seals, rods, and rotational joints for wear every 6 months.
- Environmental Protection: Keep cylinders away from corrosive environments to extend lifespan.
- Calibration: Ensure sensors and rotation controls are calibrated for precision tasks.
TN Series vs Competitors
Compared to other dual-axis cylinders in the market, the TN Series stands out in several ways:
| Feature | TN Series (OLK) | Competitor A | Competitor B |
|---|---|---|---|
| Dual-axis capability | Yes, integrated linear + rotational | Separate units required | Limited rotational movement |
| Precision | ±0.05 mm | ±0.1 mm | ±0.08 mm |
| Durability | High (aluminum + stainless steel) | Medium | Medium |
| Compactness | Yes, space-saving design | Moderate | Large footprint |
Frequently Asked Questions (FAQ)
Q1: What industries benefit most from TN Series Dual Axis Cylinders?
A: Electronics, automotive, robotics, and packaging industries gain the most advantage due to precise dual-axis motion and compact design.
Q2: How does the TN Series improve automation efficiency?
A: By combining linear and rotational motion in one unit, it reduces the number of actuators required, saving space and reducing mechanical complexity.
Q3: What maintenance is required for long-term reliability?
A: Routine inspection of seals and shafts, proper lubrication, calibration, and environmental protection ensure optimal performance.
Q4: Can the TN Series be customized for specific applications?
A: Yes, OLK offers customization options for stroke length, rotation angle, and mounting configurations to fit unique automation needs.
Q5: How do TN Series cylinders compare in cost and performance?
A: While slightly higher in price than some competitors, TN Series cylinders provide superior precision, durability, and compact integration, offering better long-term value.
Conclusion
The TN Series Dual Axis Cylinder by OLK is a transformative component in modern automation. Its combination of dual-axis movement, high precision, compact design, and durability makes it an essential choice for industries seeking efficiency and accuracy. Whether in robotics, electronics manufacturing, or automotive assembly, the TN Series helps streamline processes, reduce mechanical complexity, and improve overall productivity.
For more information on the TN Series Dual Axis Cylinder and how it can elevate your automation projects, contact us today.
