CB Clevis Mounting Bracket

The following is an introduction to CB clevis mounting bracket, OLK PNEUMATIC hope to help you better understand CB clevis mounting bracket. Welcome new and old customers to continue to cooperate with us to create a better future together!

Send Inquiry

Product Description

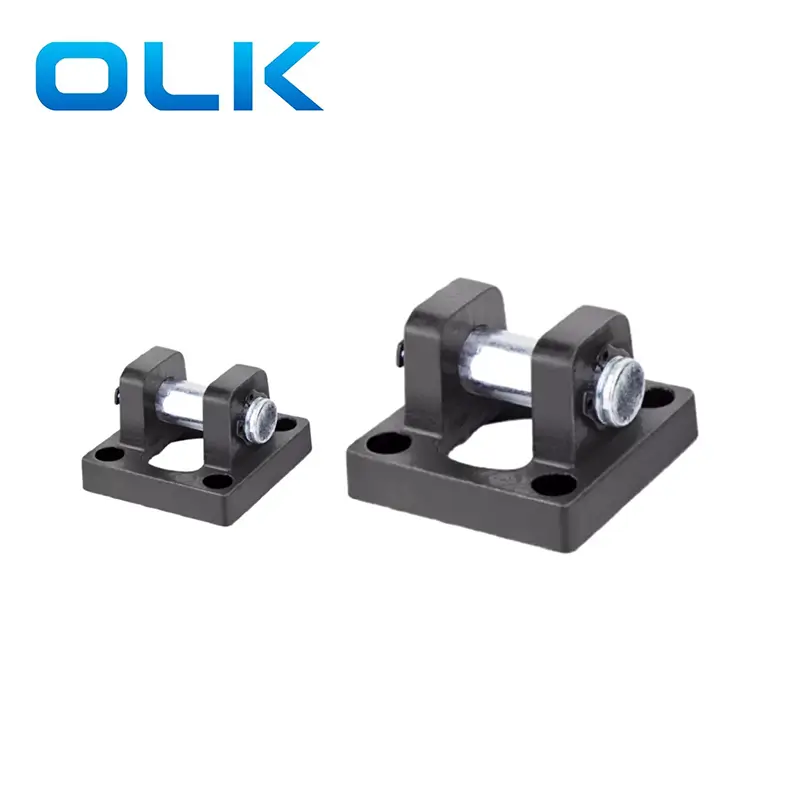

OLK pneumatic company double ear rear mount-CB clevis mounting bracket for SC series pneumatic cylinder.CB clevis bracket have double-sided with symmetrical and centr slot design.It have a better alignment and stability.It is commonly used in hinged or center-mounted application and works well with U-shaped mounting brackets.The structure offers higher strength and even force distribution, making it ideal for high-speed or frequent-motion systems.CB clevis mounting bracket suitable for medium to large bore size pneumatic cylinders, heavy-duty loads, or dynamic applications.

Application :

CB clevis mounting bracket widely used in printing equipment, food machinery, packaging lines, and other devices that require floating connections at the moving end.

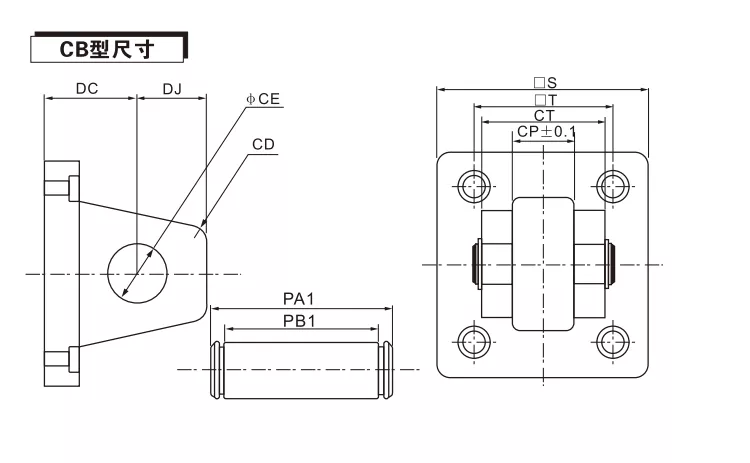

CB clevis mounting bracket size:

Code / Bore Diameter	32	40	50	63	80	100	125	160	200
CC	19	19	19	19	32	32	50	55	60
CD.	5	5	3	3	8	8	8	9	9
CE	12	14	14	14	20	20	25	30	30
CJ	13	13	15	15	21	21	31	35.5	36
CP	16.3	20.3	20.3	20.3	32.3	32.3	70	90	90
CT	32	44	52	52	64	64	130	170	170
PA1	41	51.8	60.3	60.3	73.8	73.8	139	181	181
PB1	33.5	45.5	54	54	65.5	65.5	131.5	171.5	171.5
S	48	50	62	75	94	112	140	180	220
T	33	37	47	56	70	84	110	140	175

FAQs：

What pneumatic cylinder can it be used on CB clevis mounting bracket ?

The installation position of the four threaded holes is fixed and can only be used for SC cylinders,

How to install CB cylinder clevis mount on the SC cylinder?

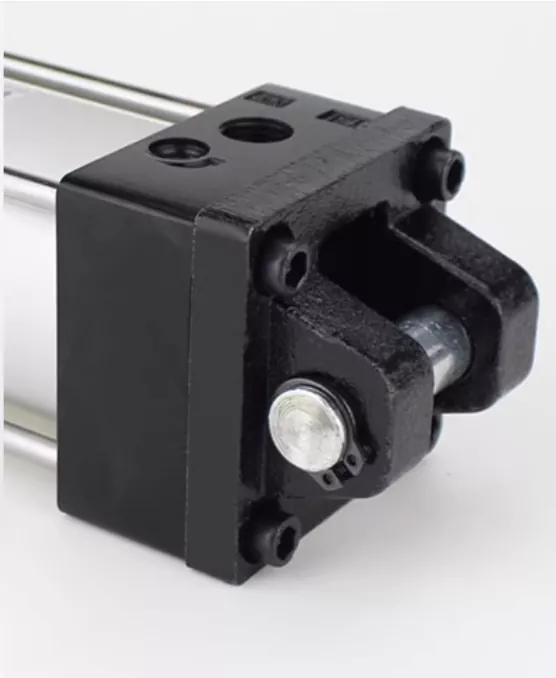

Align four screws with the four threaded holes at the bottom of the SC cylinder, fix their positions with screws, and finally tighten each threaded hole in sequence

What is the difference between CA and CB?

CA clevis is single clevis ,CB clevis is double clevis.

Does the CB clevis mounting bracket include screws?

Different specifications of CB cylinder clevis mount use different screws. Please consult sales for specific inquiries and quotations
