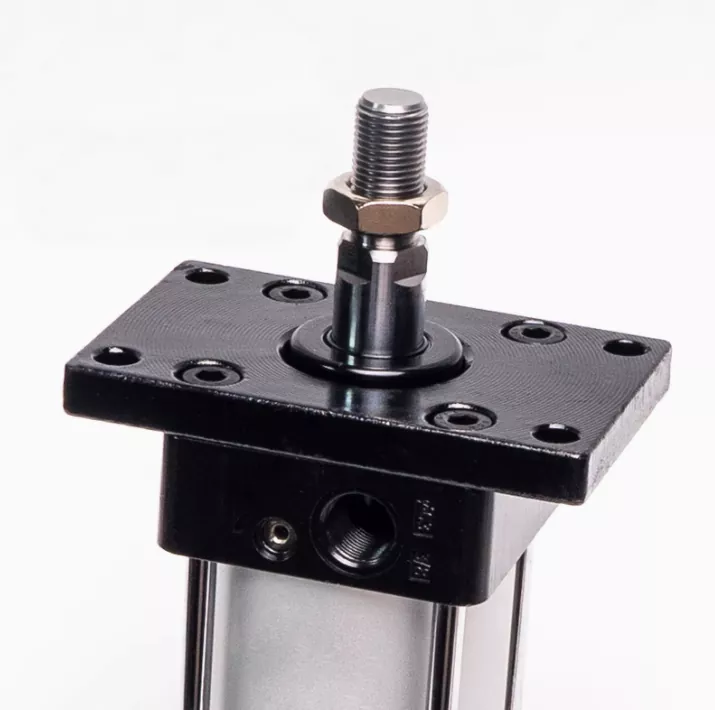

The FA flange mount is a front mounting bracket used for SC series standard pneumatic cylinders.Fix the cylinder body so that the movement of the load and the movement direction of the piston are on the same axis or parallel.FA mounting accessory overall structure adopt intergrated stamping molding.and the surface is black zinc plating technology.Strong bearing capacity and more durable,so it has a long life can be used many times.

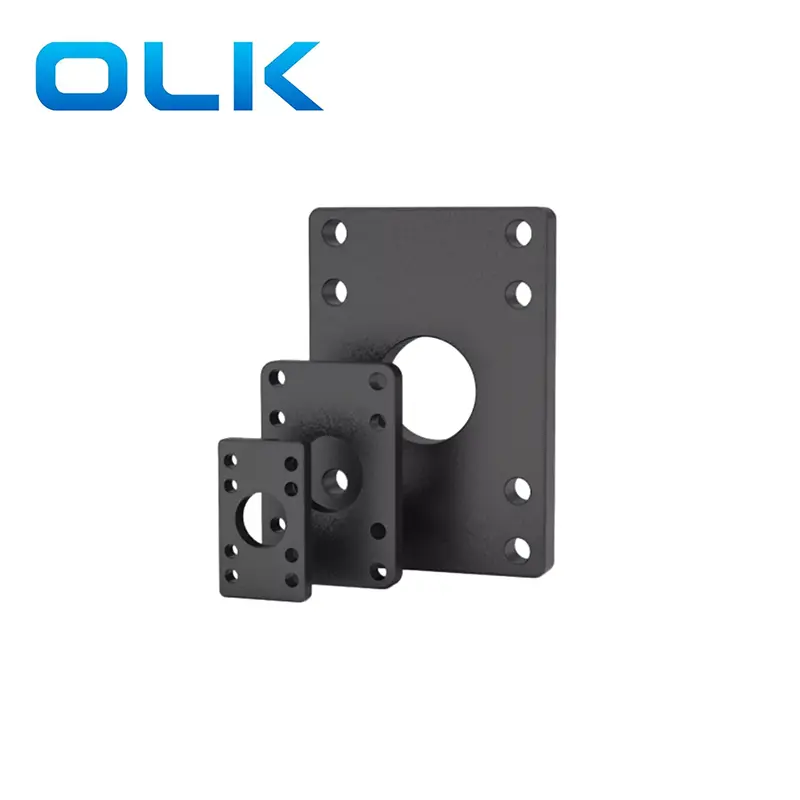

FA flange mount is a black rectangle flat with mounting holes,allowing the SC series pneumatic cylinder fixed securely to machine and surface from the non-rod end.It complies with ISO 15552 or ISO 6431 cylinder mounting standards.Accurate size hole position, compact structure, easy installation and combination.Suitable for temperatures between 0-60℃ environment
Application:Due to the suitability of FA-Front flange cylinder bracket for installing equipment with brackets or robotic arms at the front end, and usually on the same plane as the installation holes of automatic machines. So there are several typical application scenarios as follows
Packaging machines: Fixed-position linear movements with precise stroke control.
Automation equipment: Stable mounting for cylinders in vertical or horizontal positioning.
Material handling: Used in fixtures where the cylinder needs to be securely bolted.
Machining stations: For pressing, pushing, or clamping actions that require zero lateral movement.
Test rigs and control units: Where rigid cylinder positioning is essential for repeatability.
|
SC |
63 |
X |
50 |
- |
S |
- |
FA |
|
SC series standard pneumacit cylinder |
Bore size |
|
stroke |
|
S：magnetic |
|
FA:Cylinder head withFA flange mount |
|
|
|
|
|
|
Blank:non |
|
|
|

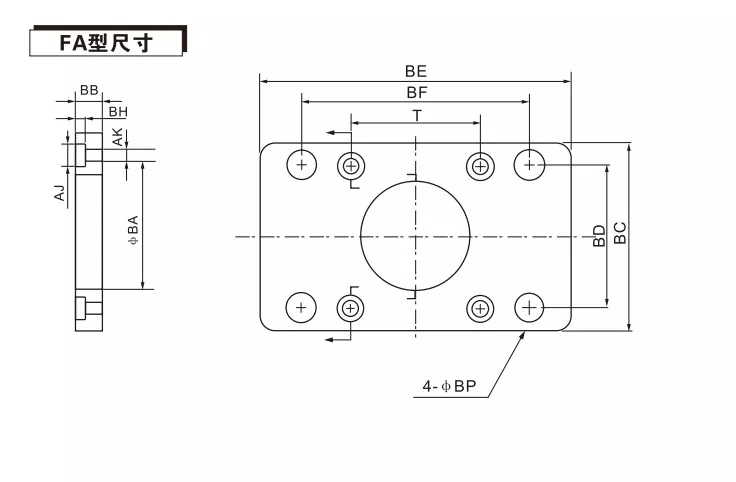

Code / Bore Diameter |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
|
BA |
28.3 |
32.3 |
38.3 |
38.3 |
47.3 |
47.3 |
60.3 |
65.3 |
75.3 |
|
BB |
10 |
10 |
10 |
12 |
16 |
16 |
20 |
20 |
25 |
|
BC |
47 |
52 |
65 |
76 |
95 |
115 |
140 |
180 |
220 |
|
BD |
33 |
36 |
47 |
56 |
70 |
84 |
90 |
115 |
135 |
|
BE |
72 |
84 |
104 |
116 |
143 |
162 |
224 |
280 |
320 |
|
BF |
58 |
70 |
86 |
98 |
119 |
138 |
180 |
230 |
270 |
|
BH |
6.5 |
6.5 |
6.5 |
8.5 |
10.5 |
10.5 |
8 |
8 |
12 |
|
AJ |
10.5 |
10.5 |
10.5 |
13.5 |
16.6 |
16.6 |
19 |
25 |
25 |
|
AK |
6.5 |
6.5 |
6.5 |
8.5 |
10.5 |
10.5 |
13 |
17 |
17 |
|
BP |
7 |
7 |
9 |
9 |
11 |
11 |
16 |
18 |
22 |
|
T |
33 |
37 |
47 |
56 |
70 |
84 |
110 |
140 |
175 |
Can FA front flange cylinder bracket be matched with other cylinders for use?
The installation holes of different cylinders have different positions, and matching FA flange plates should be used. This FA series flange plate can only be used with SC series standard cylinders.
Whtats the different with OLK FA flange mount and FB Rear Flange？
FA Front Flange: Connect the front end of the cylinder to the equipment, with the piston rod facing outward during installation. Commonly used in equipment front-end and load push scenarios.
FB Rear Flange: Connect the rear end of the cylinder to the equipment, and hide the cylinder body behind the bracket. Suitable for situations where the cylinder body needs to be fixed and its position maintained.
