Y Type Cylinder Clevis

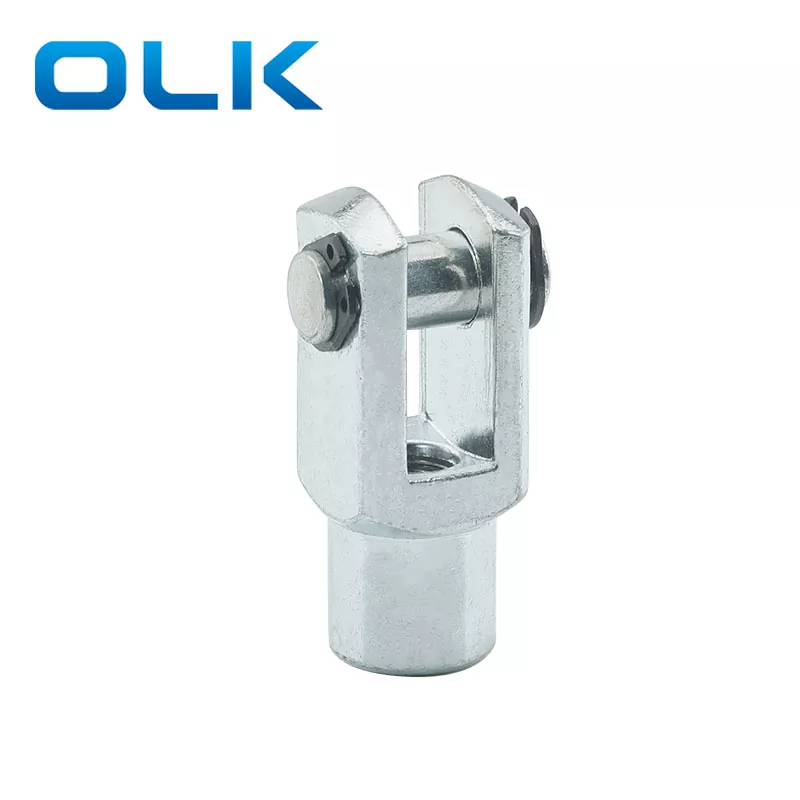

As the professional manufacture, OLK pneumatic would like to provide you Y type cylinder clevis. And OLK will offer you the best after-sale service and timely delivery. The surface of the integrated iron Y type cylinder clevis is galvanized with high hardness and corrosion resistance. The internal thread is smooth and free of burrs, and it can be rotated and screwed onto the cylinder piston rod with external thread for use.

Send Inquiry

Product Description

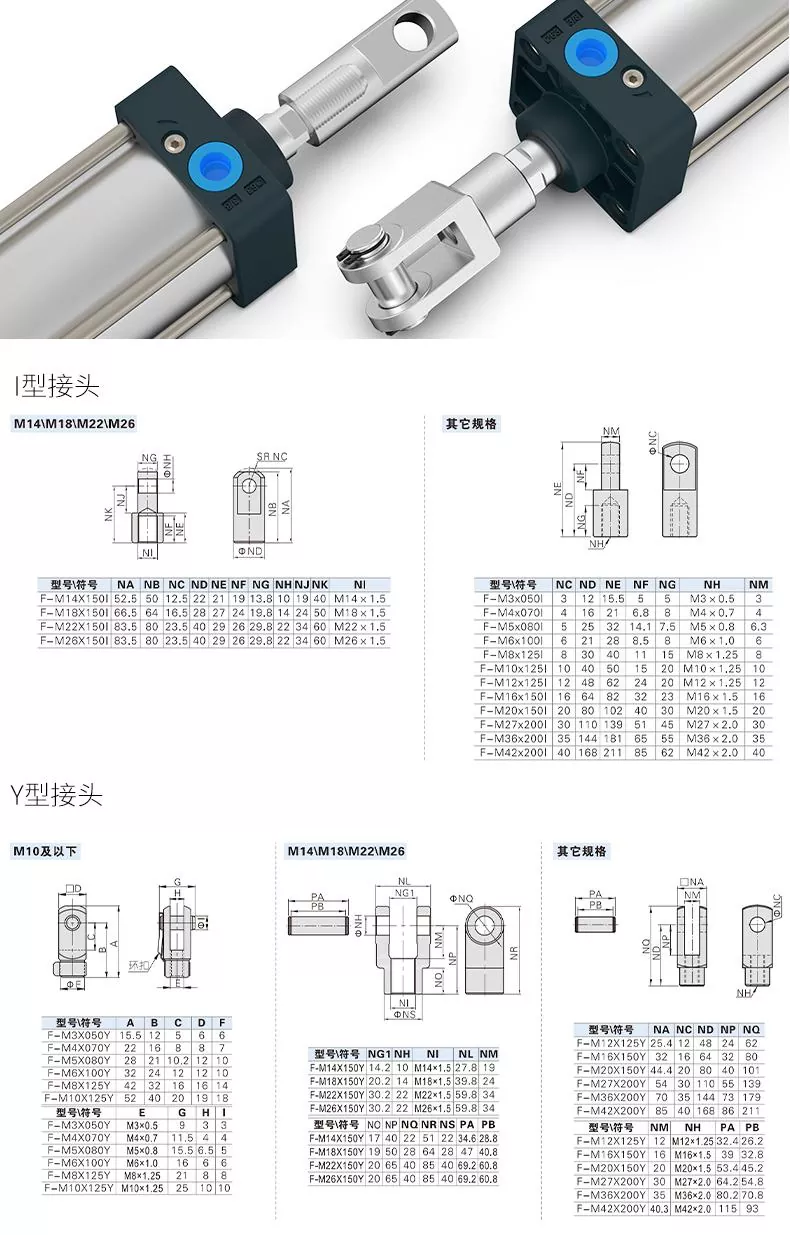

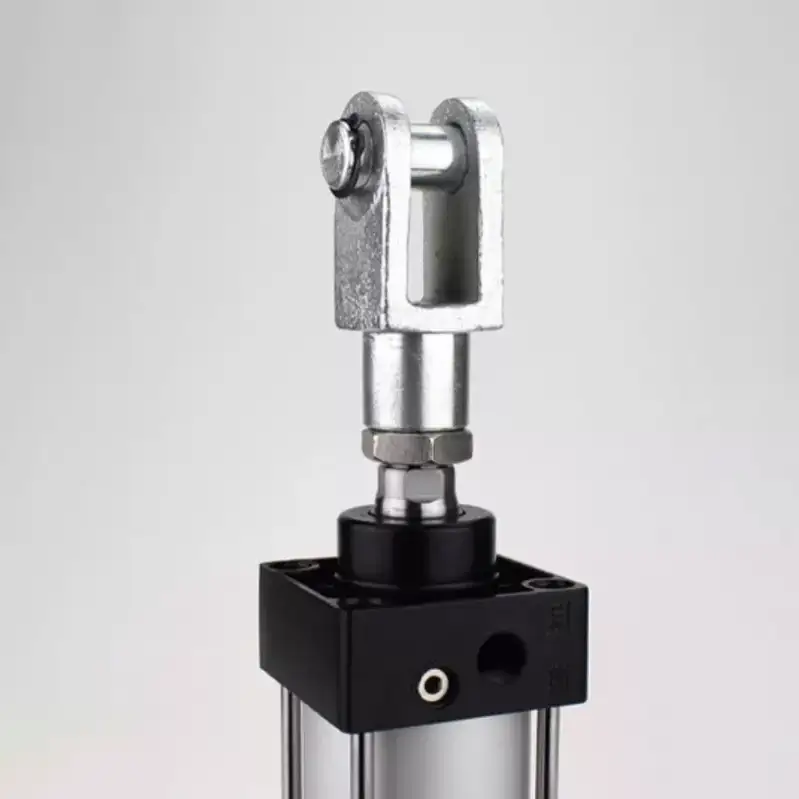

OLK suggest Y type cylinder clevis can be installed in situations with small tilt angles and is suitable for SC, MAL, MA cylinders

When the cylinder is connected to the vertical guide rail, it prevents the piston rod from moving parallel and causing biased loads. Installing a Y-shaped joint becomes a movable connection to eliminate biased loads

BSP Thread Size	Nominal Diameter (DN)
BSP Thread Size	Nominal Diameter (DN)	Outer Thread Diameter (mm)	Inner Thread Diameter (mm)
G1/8	DN6	9.5±0.2	8.8±0.2
G1/4	DN8	12.5±0.3	11.5±0.3
G3/8	DN10	16.2±0.3	15.3±0.3
G1/2	DN15	20.3±0.3	19.5±0.3
G3/4	DN20	25.7±0.5	24±0.5
G1	DN25	32.5±0.5	30.5±0.5
