TCTC-M bracket

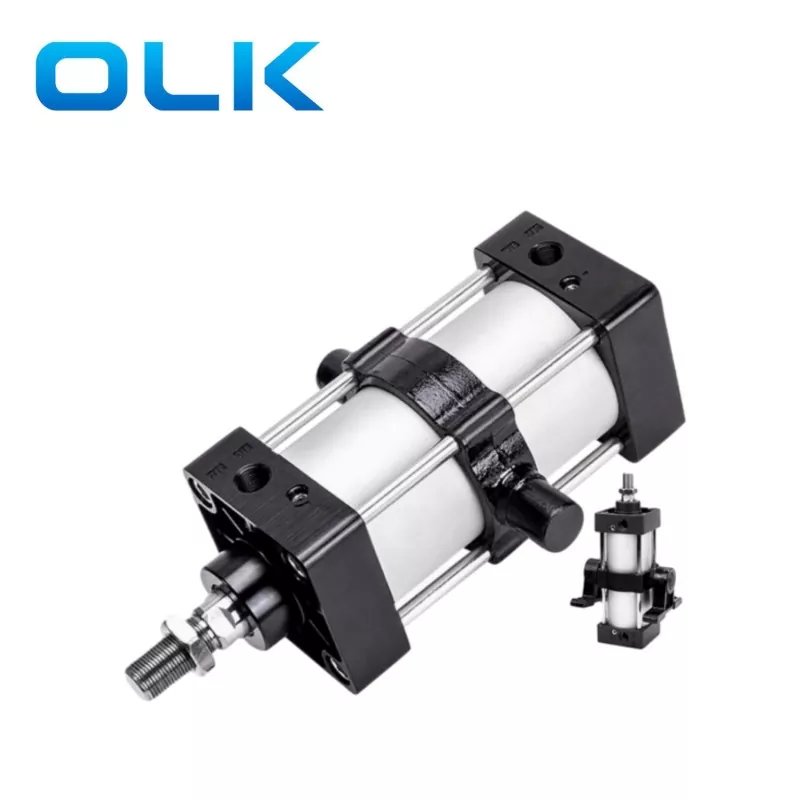

As a professional TC/TC-M bracket manufacture, you can rest assured to buy TC/TC-M bracket from our factory and OLK will offer you the best after-sale service and timely delivery. The OLK standard installation bracket for the middle swing TC/TC-M bracket is made of high-strength iron injection molding, and the surface is coated with black zinc technology, which is not easy to rust and is corrosion-resistant. The TC/TC-M bracket is usually installed in the middle position of the pneumatic cylinder, and the TC mounting bracket can be fixed at any position. The air cylinder can swing around the middle ear axis, which is suitable for long bore size cylinders. The installation bracket design for TC and TC-M is structurally stable, ensure that the air cylinder doesn’t shake during high-speed reciprocating motion.

Send Inquiry

Product Description

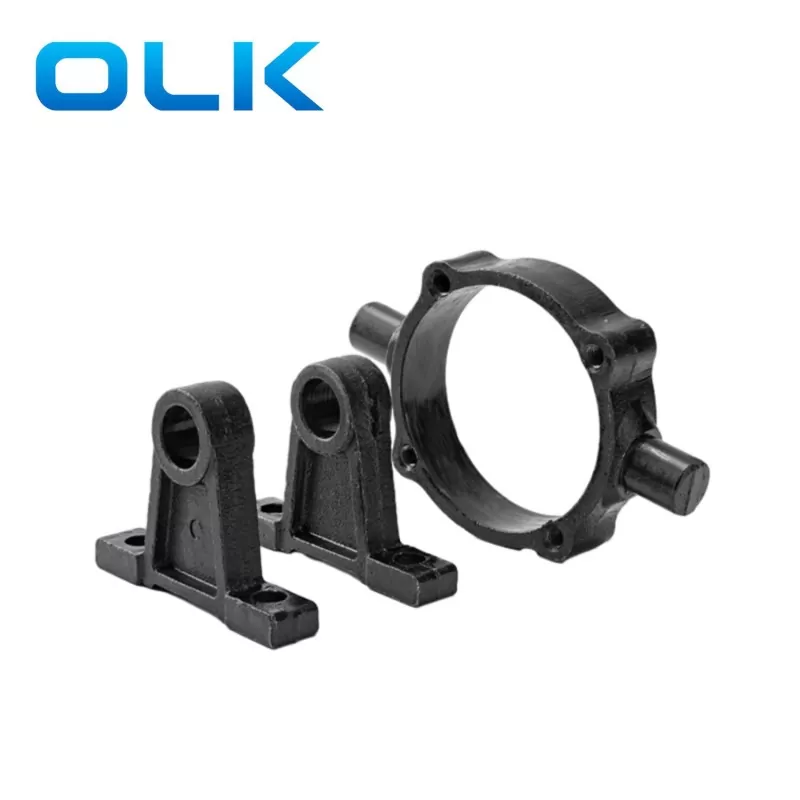

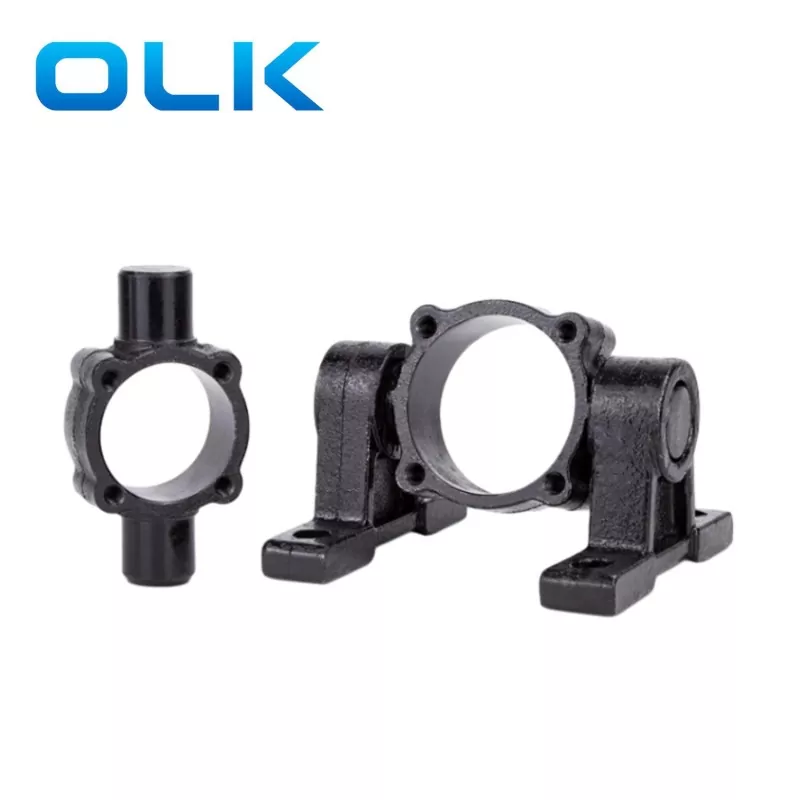

Compared to TC bracket, TC-M mounting bracket has two additional mounting bases, and the TC-M bracket structure is more robust, suitable for applications with high cylinder operating frequency or high driving force.

Both the TC and TC-M mounting bracket swing have 360 ° rotation characteristics. TC/TC-M can perform vertical rocker arm movements and adjust the degree of freedom of air cylinder movement, suit for work scenarios such as packaging equipment, sorting systems, assembly equipment, etc.

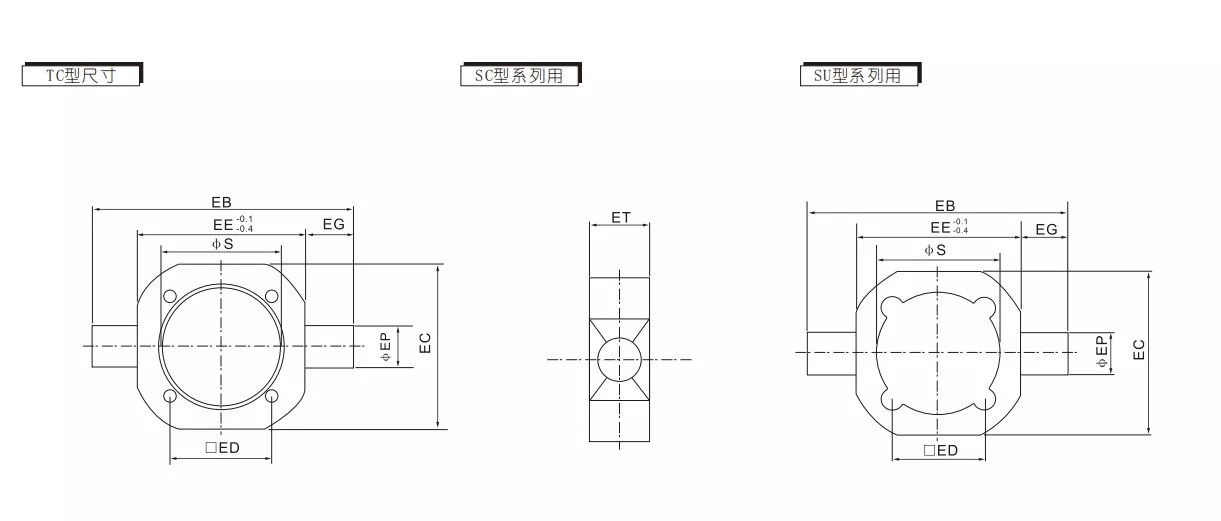

TC bracket External dimension data

Code / Bore Diameter	EB	EC	ED	EE	EG	EP	ET	S
40	113	63	37	63	25	25	30	45.5
50	126	76	47	76	25	25	30	55.5
63	138	88	56	88	25	25	30	68.5
80	164	114	70	114	25	25	35	87.5
100	182	132	84	132	25	25	40	107.5
125	210	153	110	155	24	30	40	134
160	270	199	140	199	35.5	32	44	172
200	320	245	175	245	37	32	50	218

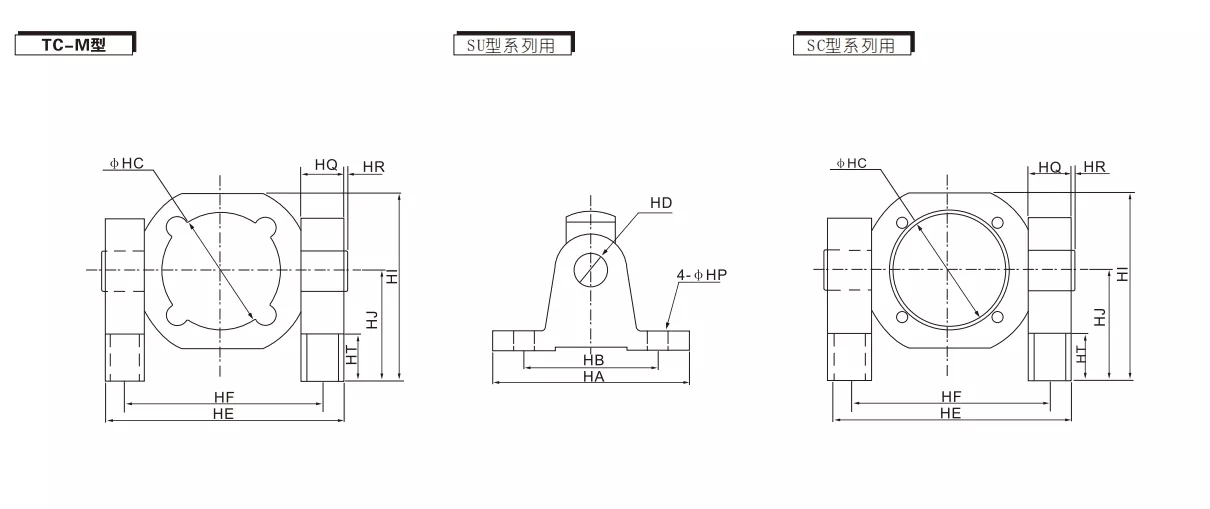

TC-M bracket External dimension data

Code / Bore Diameter	HA	HB	HC	HD	HE	HF	HI	HJ	HQ	HR	HT	HP
40	110	80	45.5	22	109	86	81.5	50	23	2	12	12
50	110	80	45.5	22	122	99	88	50	23	2	12	12
63	110	80	68.5	22	134	111	94	50	23	2	12	12
80	120	85	87.5	22	160	137	127	70	23	2	14	14
100	120	85	107.5	22	178	155	136	70	23	2	14	14

FAQ:

What is the difference between TC and TC-M installation brackets?

TC bracket: usually a standard installation bracket, suitable for general installation needs.

TC-M bracket: Designed as an improved installation bracket, it may be more suitable for specific installation environments or provide more stable support.

What are the materials for TC bracket?

OLK brand TC bracket’s material is iron.

What cylinder is TC/TC-M bracket suit for ?

TC mounting bracket suit for SC pneumatic cylinder.
