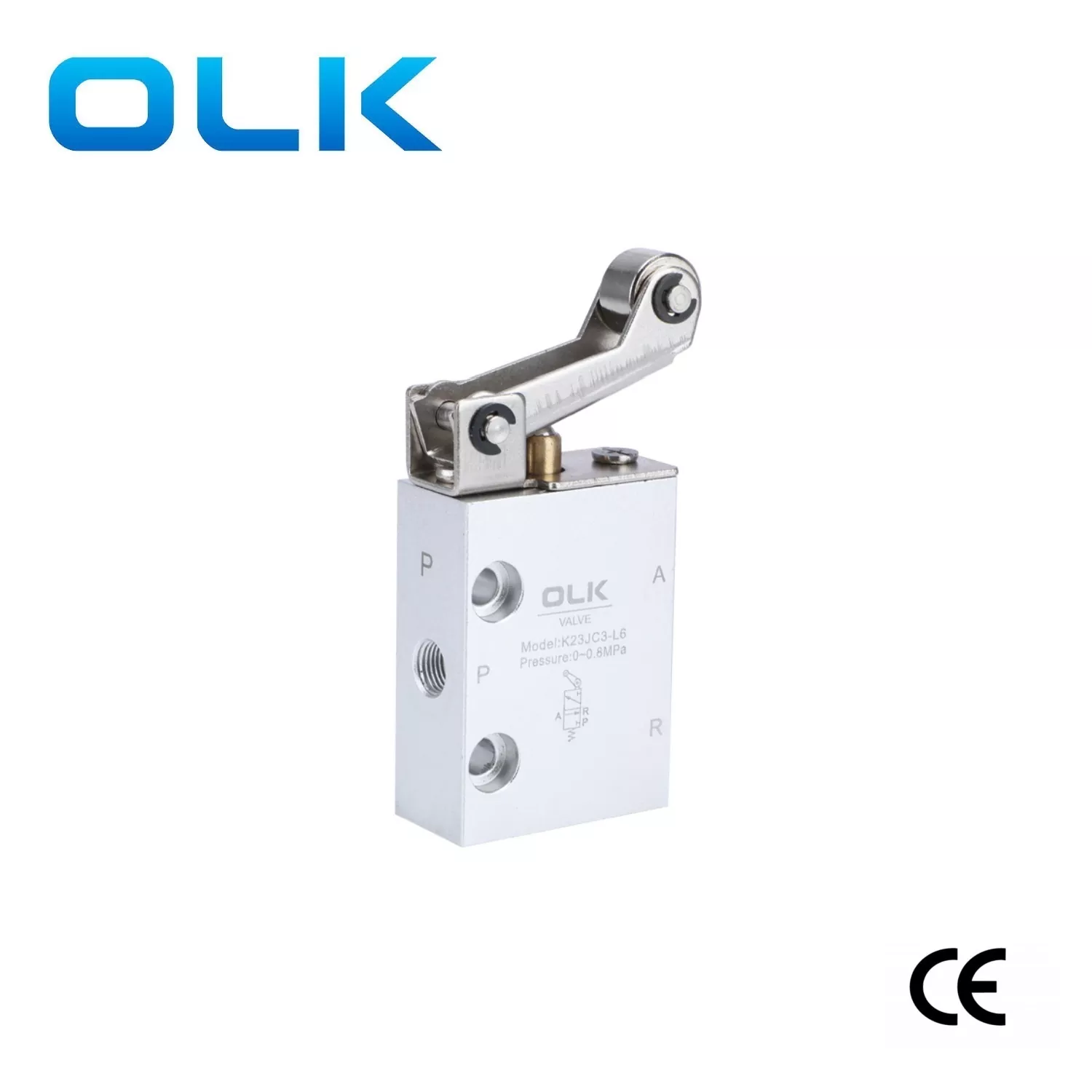

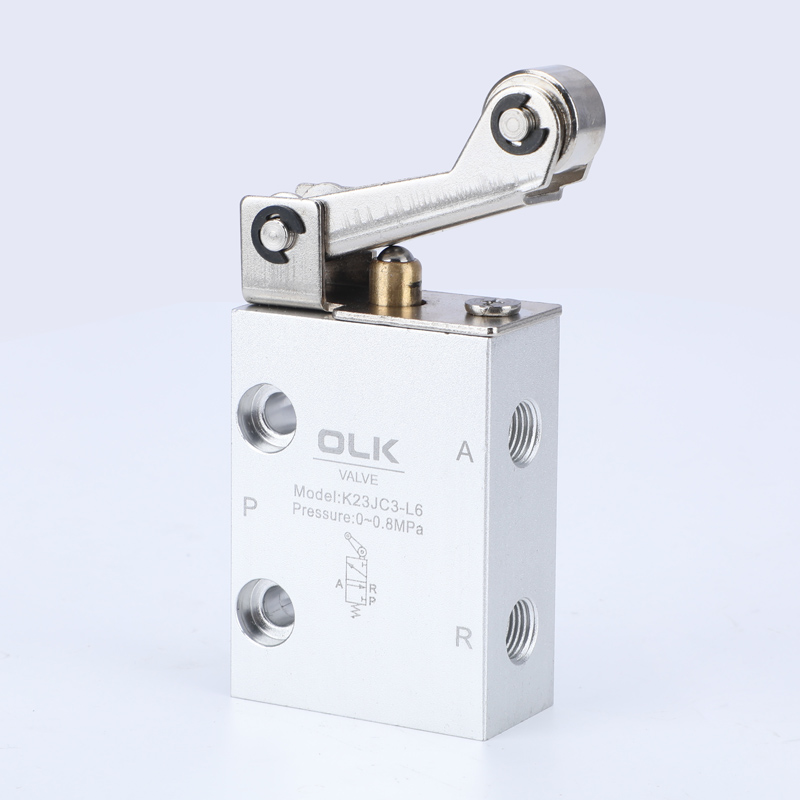

Roller Mechanical Valve K23JC3-L6 3 Way

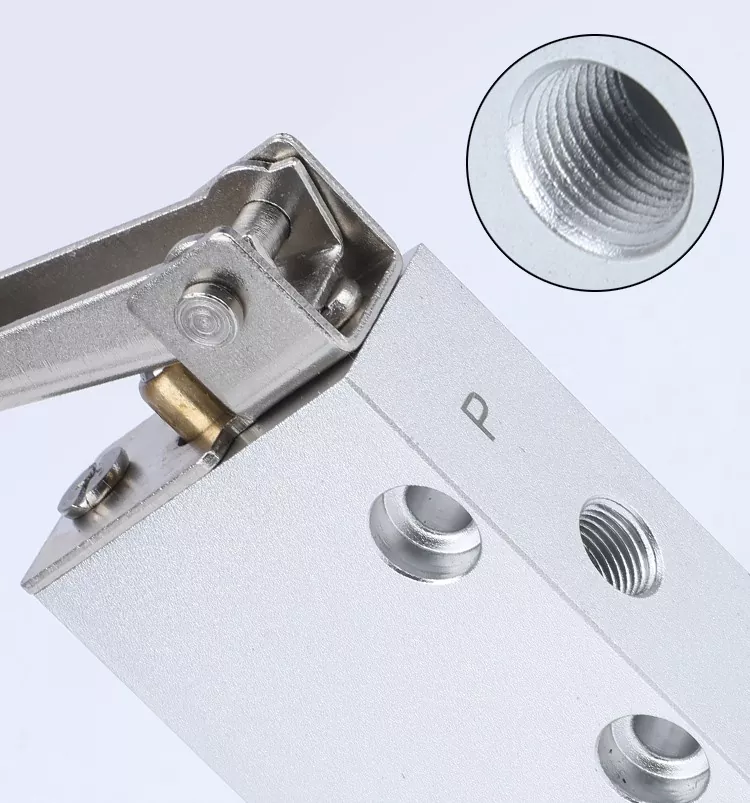

Roller Mechanical valve K23JC3-L6 3 way is a high intensity and high frequency mechanical valve.The roller is made of carbon steel,which is flexible and stronger.You can see the ring design at the connection,which can easily change the direction of the roller.The most exciting things is that the card ring can be freely installed and change the direction of the wheel,It can be suitable for different working conditions!

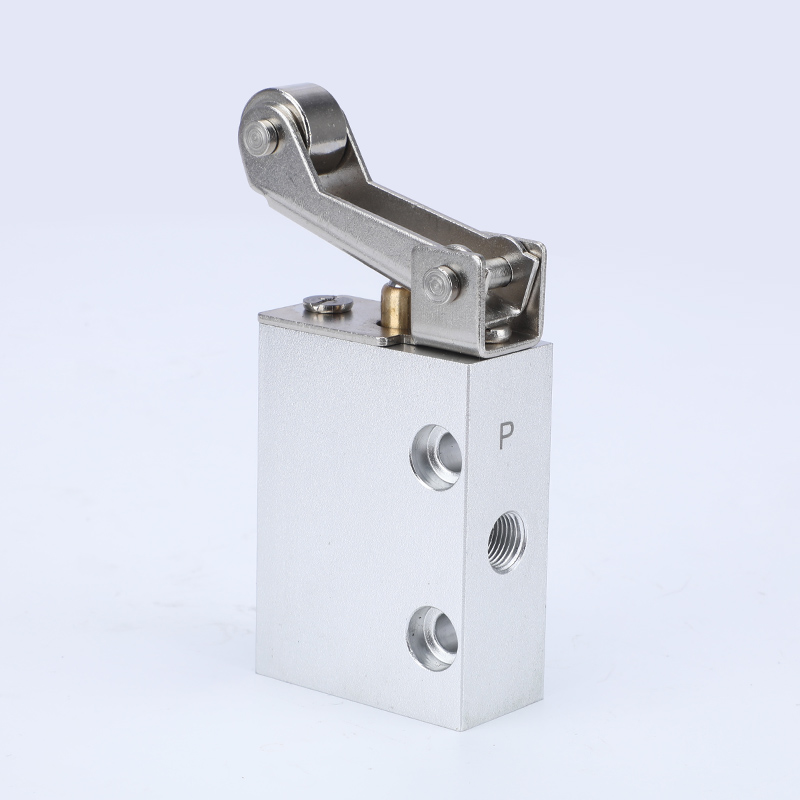

OLK pneumatic Roller Controlled Valve For K23JC3-L6  the impact bar is made of copper and wrapped in steel balls.It is very wear-resistant part and long service life.Inlet/outlet can be  chose port size G1/4 and G1/8.

Roller Mechanical valve K23JC3-L6 3 way Product characteristics:

1. Normally closed (Press down to vent)

2. The wheel can freely change the direction

K23JC3-L6 3 wayStandard specifications:

FAQs:

1.What is the Roller Mechanical valve K23JC3-L6 3 way travel distance of the roller?

Roller travel distance of the roller is 16mm.

1. What is the Max operating pressure of the K23JC-L6 roller mechanical valve?

Roller Mechanical valve K23JC3-L6 3 way Max Operating Pressure is 8 bar.
