The 4V Series Solenoid Valve 5 Way solenoid valve is a fluid directional valve suitable for air as the working medium.
The 5 way 4V series solenoid valve body is made of aluminum alloy and incorporates high-quality materials such as grade A dust-proof pilot heads, Mitsubishi sealing components, and non-freezing lubricating oil. It can maintain its functionality in harsh working environments. This valve has undergone rigorous EMC and LVD compliance testing and obtained CE certification, meeting the highest safety and quality standards.
The product accepts customized appearance colors, allowing users to quickly identify the product in complex integrated system environments.
The standard interfaces for the 4V series solenoid valves are M5, G1/8, G1/4, G3/8, G1/2, available in integrated sets for easy installation. There are multiple options for operating voltages, depending on the specific application scenario, to choose the appropriate voltage power.
The4V series solenoid valves Ouleikai (OLK) are widely used in various industrial scenarios such as packaging automation, medical machinery, textile equipment, providing reliable solutions for your production line.
Product Features:
1. Pilot mode: external and internal options available;
2.. Piston-type structure, excellent sealing, sensitive response；
3.Three-position solenoid valves offer three central functions to choose from:
4. Dual-head two-position solenoid valves feature memory function;
5. Internal holes processed with special techniques, low frictional resistance, low start-up pressure, long service life;
6.no need for oil lubrication;

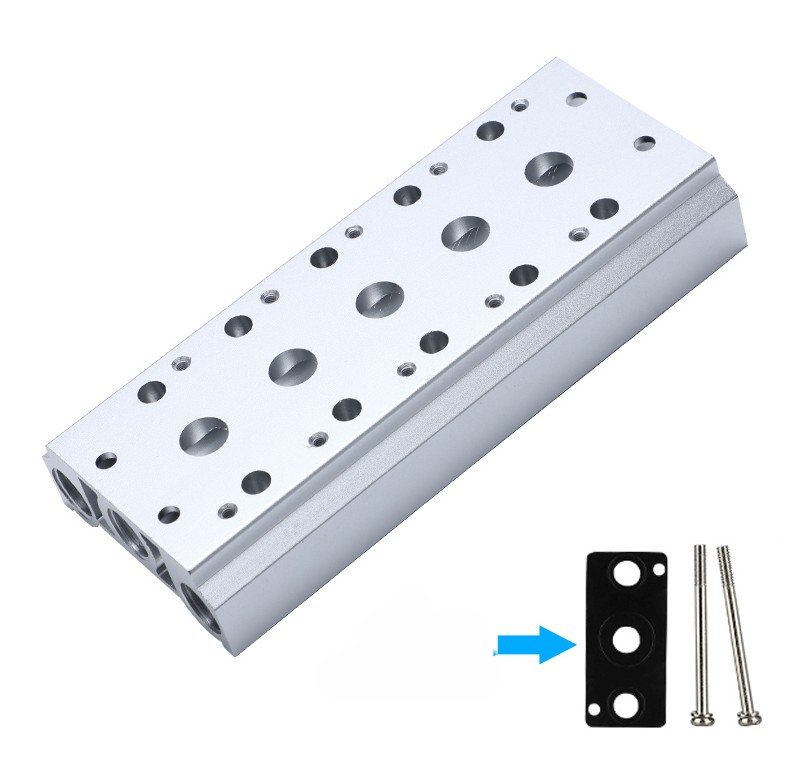

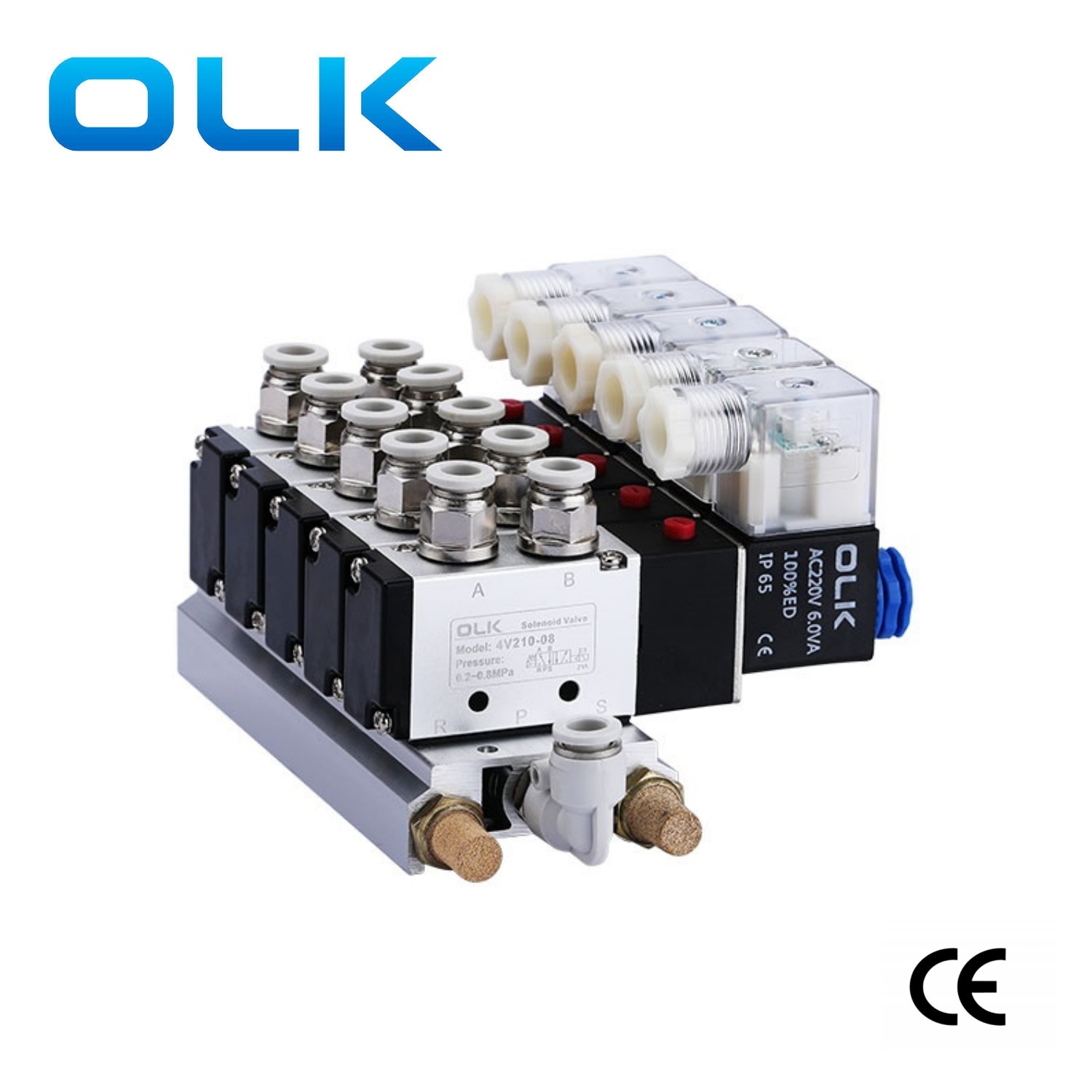

7.Can be integrated with baseplate valve assembly, saving installation space;
8. Equipped with manual device for easy installation and debugging;
9. Multiple standard voltage levels available for selection.
|
working medium |
Air (filtered through a filter over 40μm) |
|
Action |
Pilot type |
|
lubricating |
unnecessary |
|
Working pressure range MPa(psi) |
0.15∼0.8(21~114) |
|
Guaranteed pressure resistance |
1.5MPa (215psi) |
|
Working temperature °C |
-20∼70 |
|
Body material |
aluminum alloy |
|
Standard Voltage |
AC220V, AC110V, AC24V, DC24V, DC12V |
|
Use voltage range |
AC:±15％DC:±10％ |
|
power consumption |
AC: 3VA DC: 3W |
|
protection level |
IP65 (DIN40050) |
|
heat resistance grade |
Grade B |
|
Connection type |
DIN socket type, outlet type |
|
Excitation time |
0.05 seconds or less |
|
model |
Port diameter |
number of positions |
highest operating frequency |
Effective cross-sectional area mm² (CV value) |
|
4V110-M5 |
Intake=outlet=M5 |
2 position 5 way |
5 times/second |
5.5(0.31) |
|
4V120-M5 |
Intake=outlet=M5 |
2 position 5 way |
5 times/second |
5.5(0.31) |
|
4V130C-M5 |
Intake=outlet=M5 |
Three position five way |
3 times/second |
5.0(0.28) |
|
4V130E-M5 |
Intake=outlet=M5 |
Three position five way |
3 times/second |
5.0(0.28) |
|
4V130P-M5 |
Intake=outlet=M5 |
Three position five way |
3 times/second |
5.0(0.28) |
|
4V110-06 |
Intake=outlet=G1/8 |
2 position 5 way |
5 times/second |
12.0(0.67) |
|
4V120-06 |
Intake=outlet=G1/8 |
2 position 5 way |
5 times/second |
12.0(0.67) |
|
4V130C-06 |
Intake=outlet=G1/8 |
Three position five way |
3 times/second |
9.0(0.50) |
|
4V130E-06 |
Intake=outlet=G1/8 |
Three position five way |
3 times/second |
9.0(0.50) |
|
4V130P-06 |
Intake=outlet=G1/8 |
Three position five way |
3 times/second |
9.0(0.50) |
|
4v210-06 |
Intake=outlet=G1/8 |
2 position 5 way |
5 times/second |
14.0(0.78) |
|
4v220-06 |
Intake=outlet=G1/8 |
2 position 5 way |
5 times/second |
14.0(0.78) |
|
4v230C-06 |
Intake=outlet=G1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|
4v230E-06 |
Intake=outlet=G1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|
4v230P-06 |
Intake=outlet=G1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|
4v210-08 |
Inlet=Outlet=G1/4 Exhaust=G1/8 |
2 position 5 way |
5 times/second |
16.0(0.89) |
|
4v220-08 |
Inlet=Outlet=G1/4 Exhaust=G1/8 |
2 position 5 way |
5 times/second |
16.0(0.89) |
|
4v230C-08 |
Inlet=Outlet=G1/4 Exhaust=G1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|
4v230E-08 |
Inlet=Outlet=G1/4 Exhaust=G1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|
4v230P-08 |
Inlet=Outlet=G1/4 Exhaust=G1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|
4V310-08 |
Intake=outlet=G1/4 |
2 position 5 way |
4/sec |
25.0(1.40) |
|
4V320-08 |
Intake=outlet=G1/4 |
2 position 5 way |
4/sec |
25.0(1.40) |
|
4V330C-08 |
Inlet=Outlet=G3/8 Exhaust=G1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|
4V330E-08 |
Inlet=Outlet=G3/8 Exhaust=G1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|
4V330P-08 |
Inlet=Outlet=G3/8 Exhaust=G1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|
4V310-10 |
Intake=outlet=G1/4 |
2 position 5 way |
4/sec |
30(1.68) |
|
4V320-10 |
Intake=outlet=G1/4 |
2 position 5 way |
4/sec |
30(1.68) |
|
4V330C-10 |
Inlet=Outlet=G3/8 Exhaust=G1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|
4V330E-10 |
Inlet=Outlet=G3/8 Exhaust=G1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|
4V330P-10 |
Inlet=Outlet=G3/8 Exhaust=G1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|
4V410-15 |
Intake=outlet=G1/2 |
2 position 5 way |
3 times/second |
50.0(2.79) |
|
4V420-15 |
Intake=outlet=G1/2 |
2 position 5 way |
3 times/second |
50.0(2.79) |
|
4V430C-15 |
Intake=outlet=G1/2 |
Three position five way |
3 times/second |
30(1.68) |
|
4V430E-15 |
Intake=outlet=G1/2 |
Three position five way |
3 times/second |
30(1.68) |
|
4V430P-15 |
Intake=outlet=G1/2 |
Three position five way |
3 times/second |
30(1.68) |
