3V 4V Manifold Valve

No matter if it is a 3V or 4V pneumatic solenoid valve, besides the single valve type, we can also put many solenoid valves together. This is called a 3V 4V manifold valve or solenoid valve base busbar.

3V 4V manifold valve is a plate with many air paths. It has compact design. Solenoid valve base busbar can install 2 to 20 pneumatic solenoid valves on one manifold. But the number of positions on the manifold cannot be changed.

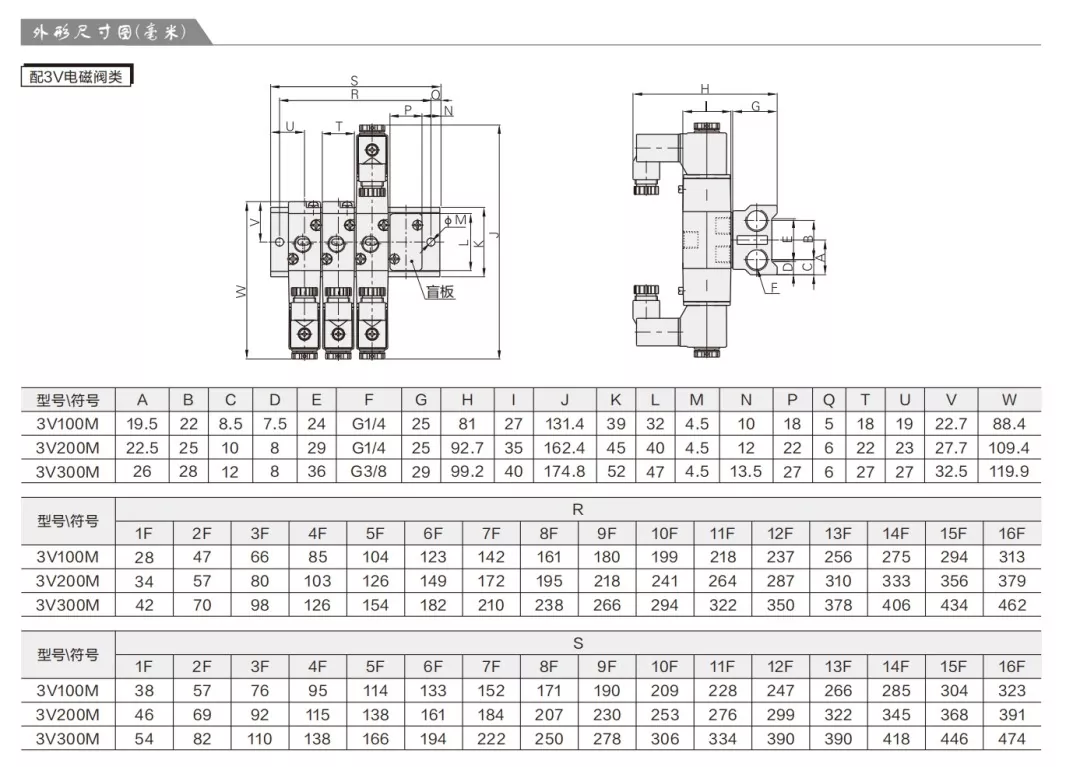

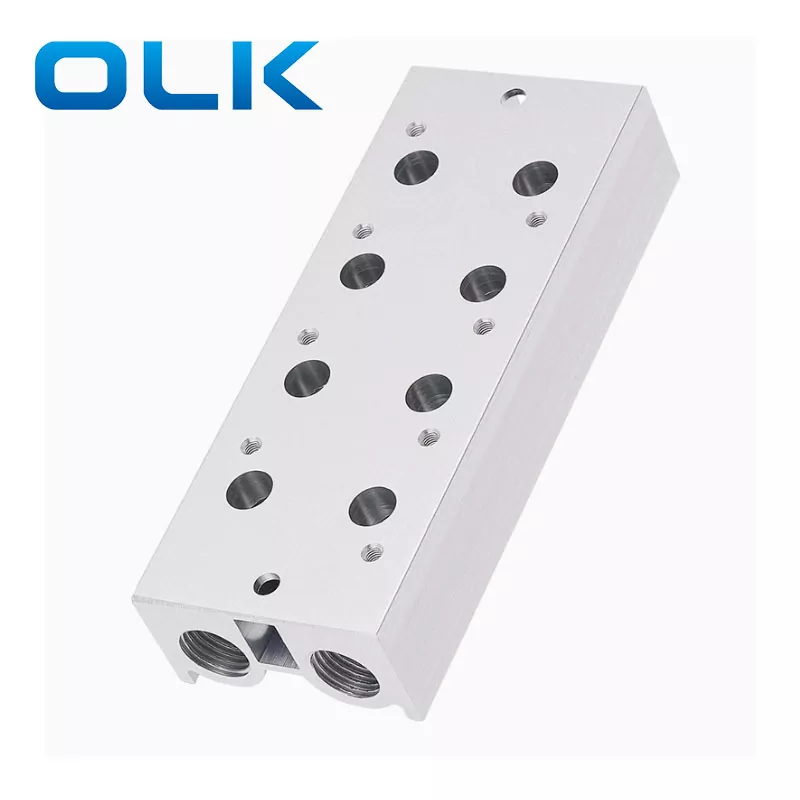

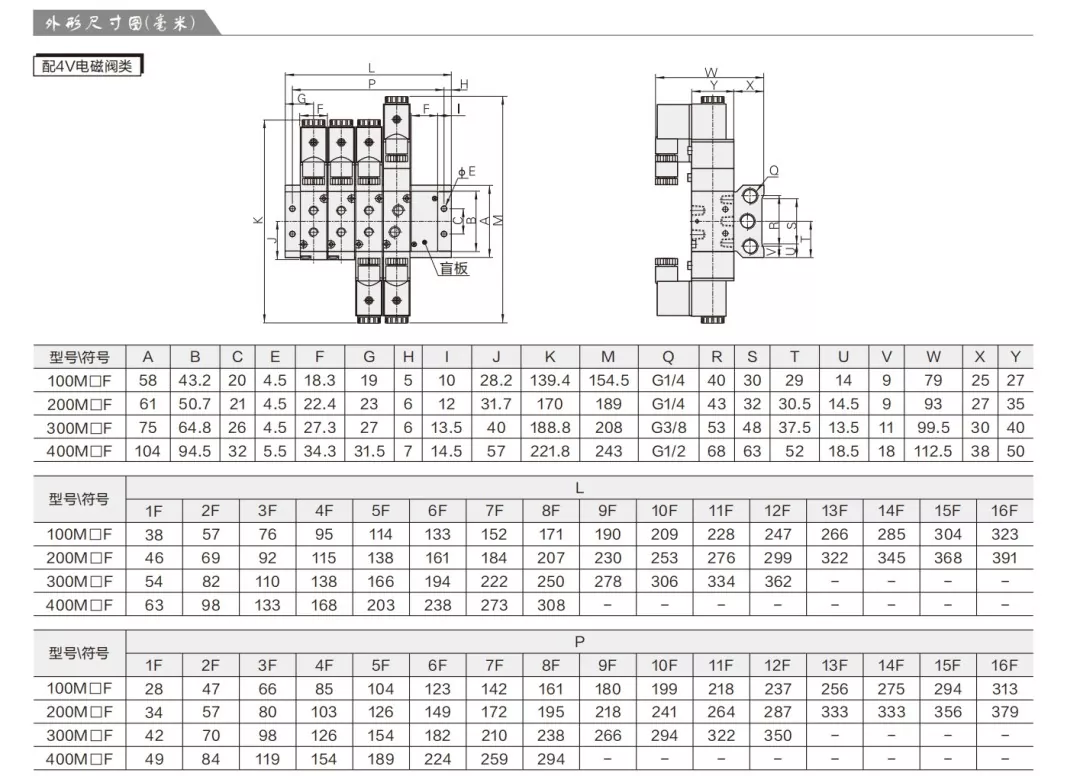

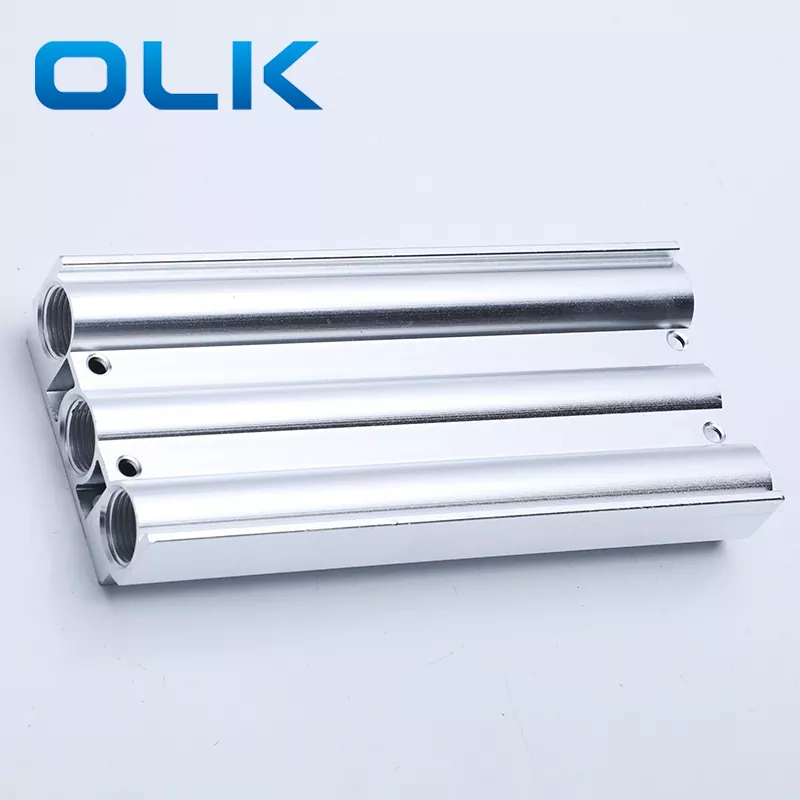

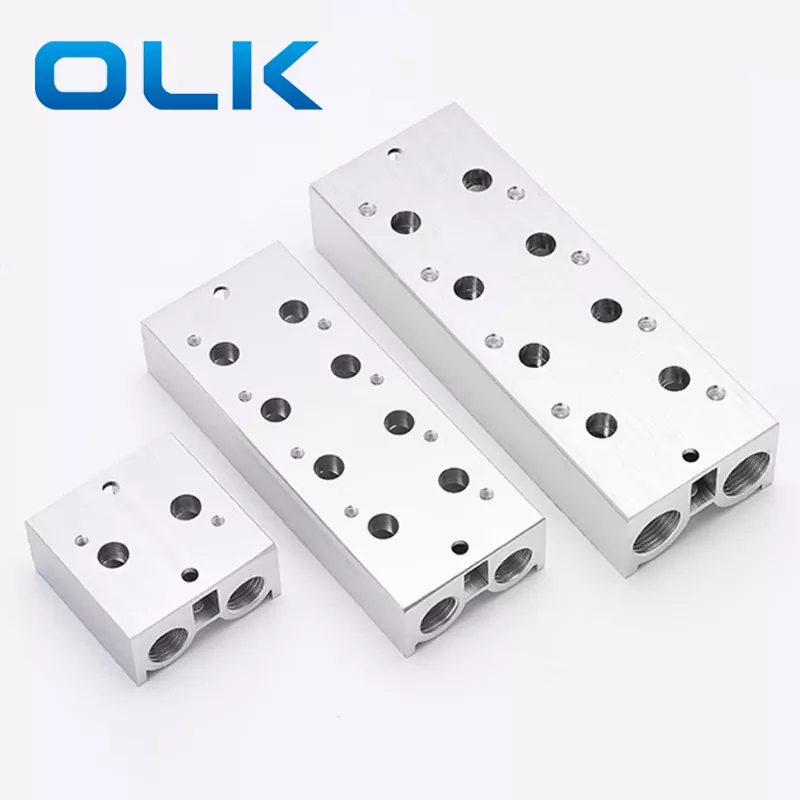

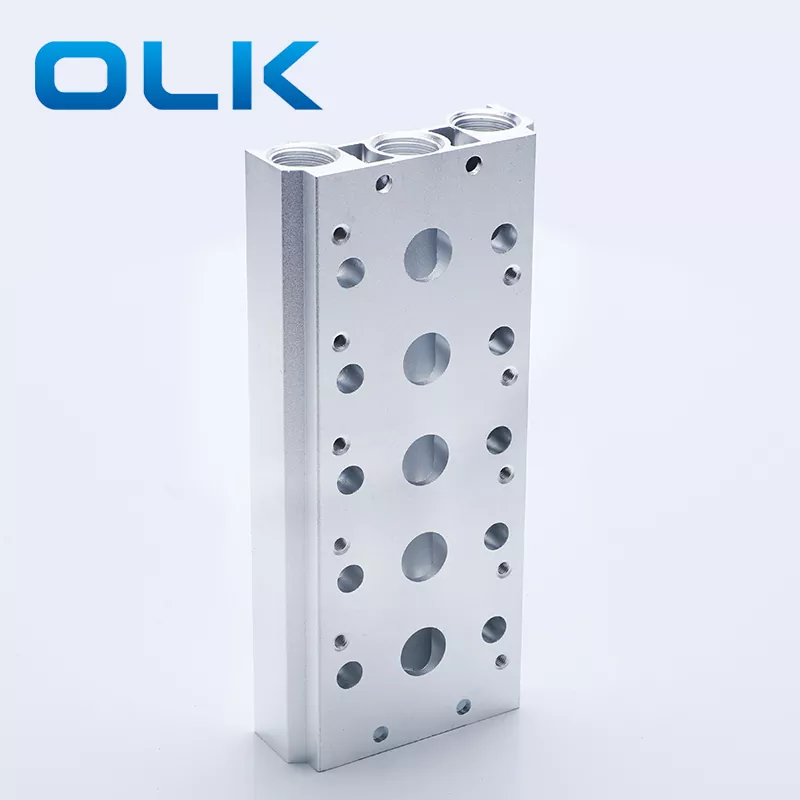

All the pneumatic solenoid valves on the manifold share the same air supply port (P port) and exhaust port (R port).For the 3V manifold valve , there is one air inlet and one air outlet on the left side. Two plugs are installed on the right side.For the 4V manifold valve, there is one air inlet in the middle and two air outlets on both sides (on the left side). Three plugs are installed on the right side.

We can install a silencer or a plug on the exhaust port. When using a silencer, we must make sure the small holes are not blocked.

3V/4V manifold solenoid valve Product characteristics：

1. It can integrate a unified series of directional control valves into a valve group, saving space and costs.

2.  It has unified intake, exhaust, and wiring, making it easy to find faults.

3. It is flexible in combination and has strong expandability, allowing for arbitrary combination or expansion of the number of directional control valves connected

Attention:

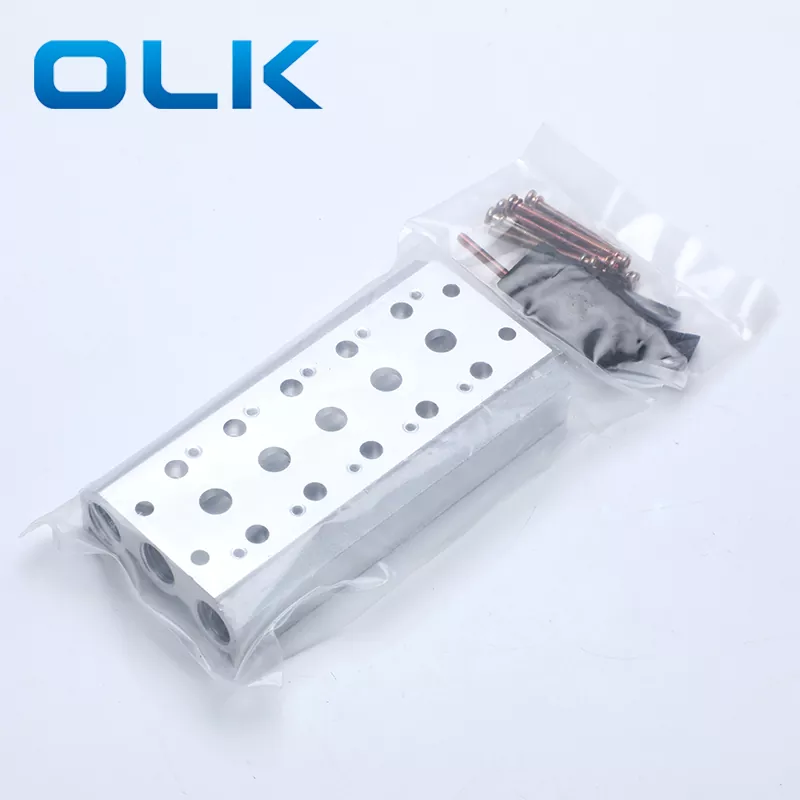

1.3V-manifold Solenoid valve kits contains manifold, seal and screw;

2.3V solenoid valve manifold Blank plate kits contains blank plate and screw.

3.When installing the gasket between the pneumatic solenoid valve and the valve plate, the protruding part should be installed facing downwards to avoid air leakage.

FAQS:

1.What is the function of blank plates in solenoid valve groups?

Seal unused positions: The blank plate is used to cover reserved positions in the valve manifold where no solenoid valve is currently installed, preventing air leakage and the ingress of dust or debris.It ensures the overall airtightness of the valve assembly. The blank plate allows for easy future expansion or reconfiguration without the need to replace the entire manifold, reducing maintenance costs.In certain cases, the blank plate can also be used to isolate specific channels for safety or when a section of the system is temporarily not in use.

2. What ‘s piping types of the 3v 4v manifold valve

A single pneumatic valve or a solenoid valve  base busbar , there are two types of piping with external tubes: direct piping and base piping.
