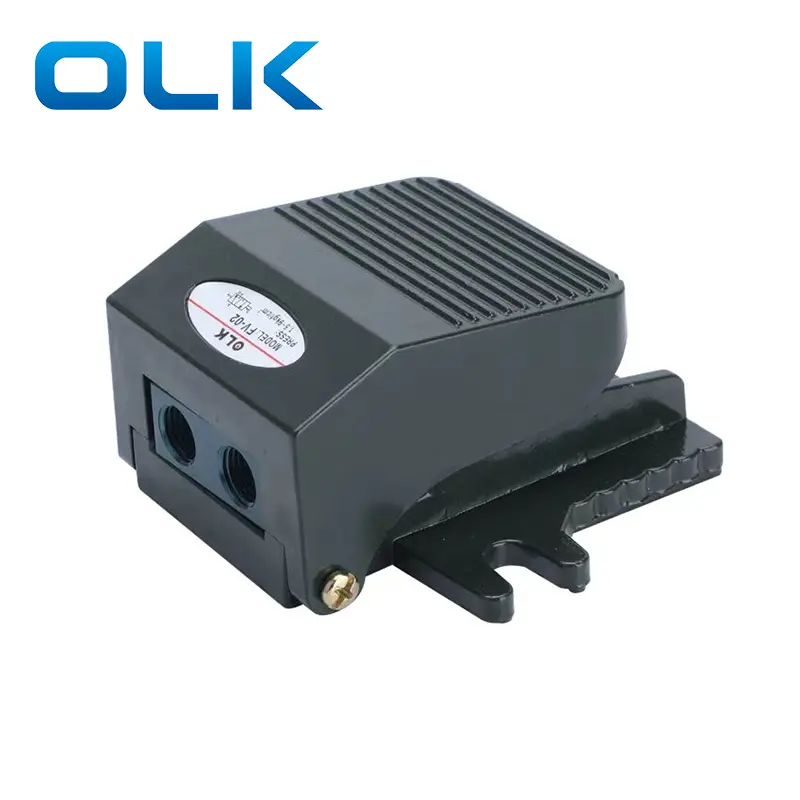

FV-02 Pneumatic Foot Pedal Valve 3 Way

The compact FV-02 Pneumatic foot pedal valve 3 way made of black aluminum alloy material. Two position three-way, direct acting normally closed design, with automatic spring reset. Just step on the pedal to ventilate. When selecting connectors, it is recommended to use PC straight connectors, which are easy to operate and convenient. P port for intake and A port outlet for exhaust. Built in R exhaust port. Due to its simple structure of one in one out, the product is suitable for controlling the opening and closing of a single air path, such as semi-automatic small equipment or test benches

Attention: When connecting the intake and exhaust pipes, the pipes should not be reversed as it may cause air leakage and internal leakage

OLK FV-02 Pneumatic foot pedal valve 3 way Product characteristics

·The exhaust port is built-in

·with both the valve body and housing made of aluminum alloy

FV-02 Pneumatic foot pedal valve 3 way symbol

FV-02 Pneumatic foot pedal valve 3 way  General parameters

different parameters

FAQS:

Can the FV-02 foot pedal valve control the gas flow rate?

No, it can only be used as a switch

Is it normal for there to be a gas leakage sound during ventilation?

The FV-02 valve body is equipped with an exhaust port, so normal ventilation sounds during operation are expected.

What color is the FV-02 valve body itself?

The FV-02 valve body is made of black aluminum alloy.
