VF5000 Solenoid Valve 5 Way

OLK is a professional VF5000 solenoid valve 5 way manufacturers and suppliers in China. If you interested in VF5000 solenoid valve 5 way products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.

Send Inquiry

Product Description

VF5000 solenoid valve 5/2 way ,5/3 way is Direct Piping Type.The spool bore is specially machined to minimize friction, reduce starting pressure, and extend service life. With a large port size, the valve delivers higher airflow, making it ideal for operating multiple actuators or medium-to-large cylinders.The VF5000 series port size is 3/8.

Its modular structure supports manifold installation, enabling centralized air supply and simplifying piping. Designed for high-flow pneumatic applications, the DS/VF 3000 and 5000 series solenoid valves are commonly applied in industrial machinery and automated production lines.

VF5000 solenoid valve 5 way Features:

·High Flow

·Piping / Modular / Space-Saving

·Industrial-Grade Durability

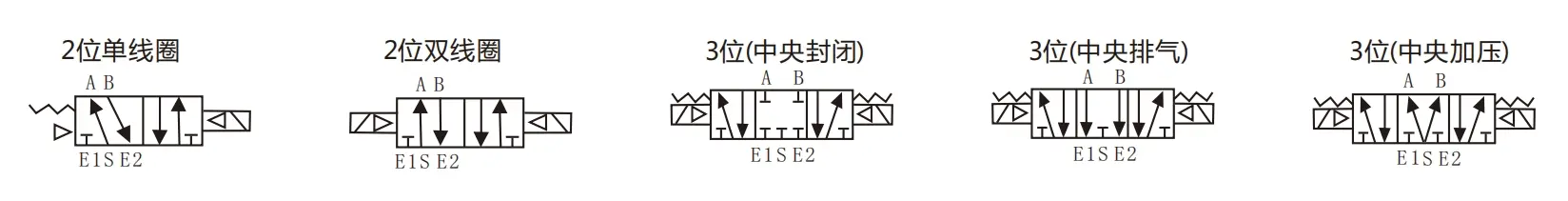

VF5000 solenoid valve 5 way Symbol

Ordering Code
VF5	130	_	4	G	B	02
Model	valve type		voltage	line type	manul	port size
VF5000 solenoid valve	130:single solenoid 5/2 way		3:110VAC	G:line type		02:PT3/8
	230:double solenoid vlave 5/2 way		4:220VAC	D:Din type
	330C:double solenoid vlave5/3way closed center		5:24VDC	DZ:DZ with light
	430E:double solenoid vlave5/3way exhaust center		6:12VDC
	530P:double solenoid valve 5/3 way pressure center

Common specifications
Working medium	Air
Woking temperature	0-50℃
Lubrication	No Need
Manual Override	Screwdriver-Locking Type
Shock/Vibration Resistance	30G/5G (8.3--2000Hz)
Enclosure	Dustproof

Model	position	coil	kgf/cm² (Mpa)	Response Time (ms)	Max. Operating Frequency	port size	Effective Cross-Sectional Areamm²(CV)	kgf

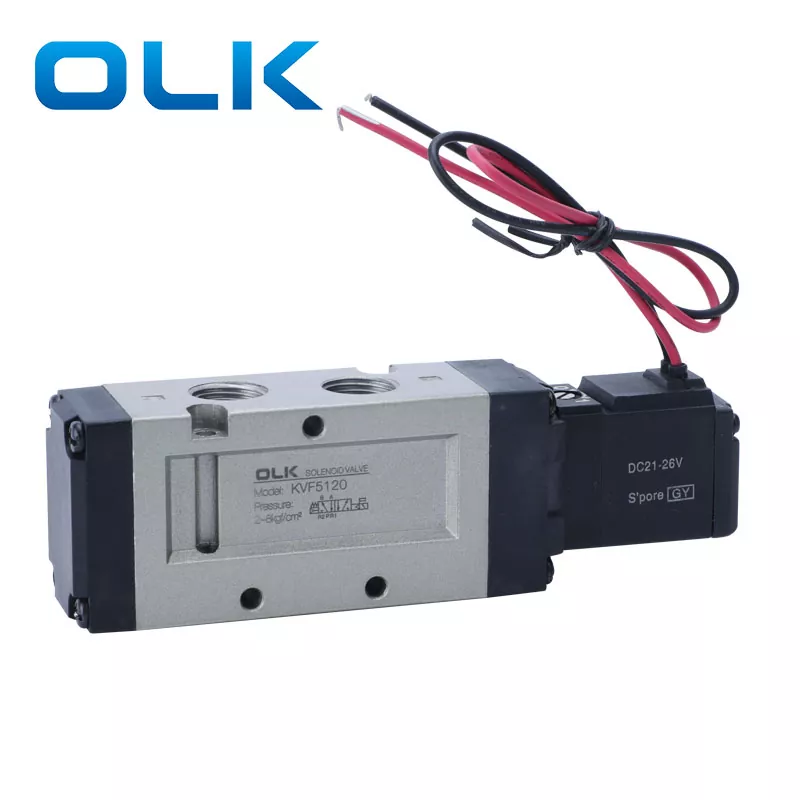

VF5120-□△B-02	2 position	single action	1.5～9(0.15～0.8)	≤30 ms	5	PT3/8	45(2.5)	0.38

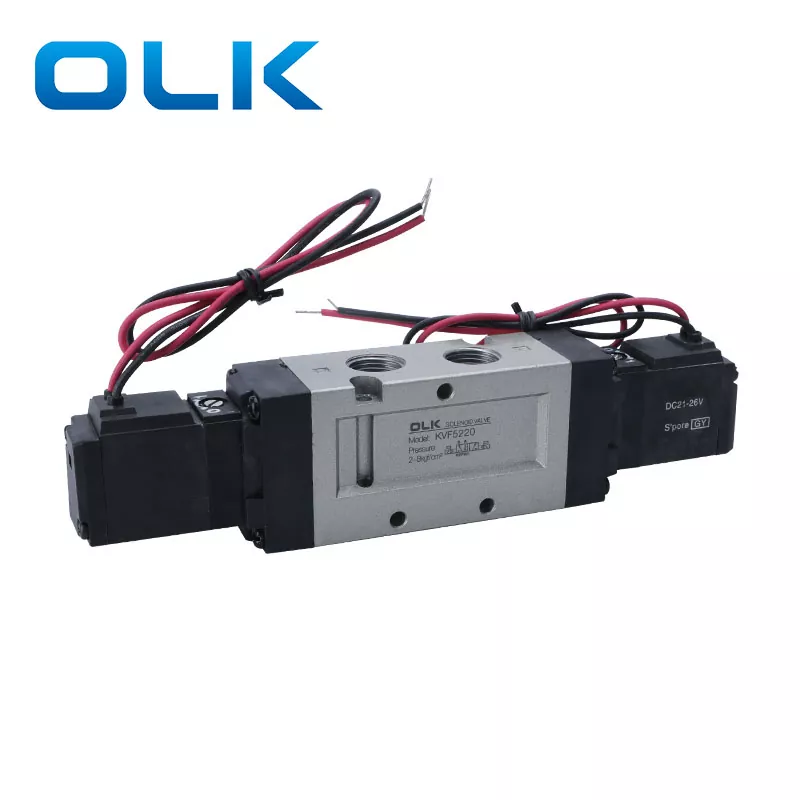

VF5220-□△B-02	2 position	double action	1~9(0.1~0.9)	≤30 ms	5	PT3/8	45(2.5)	0.45
VF5320-□△B-02	3 position	double solenoid vlave5/3way closed center	1~9(0.1~0.9)	≤50 ms	3	PT3/8	36(2)	0.53

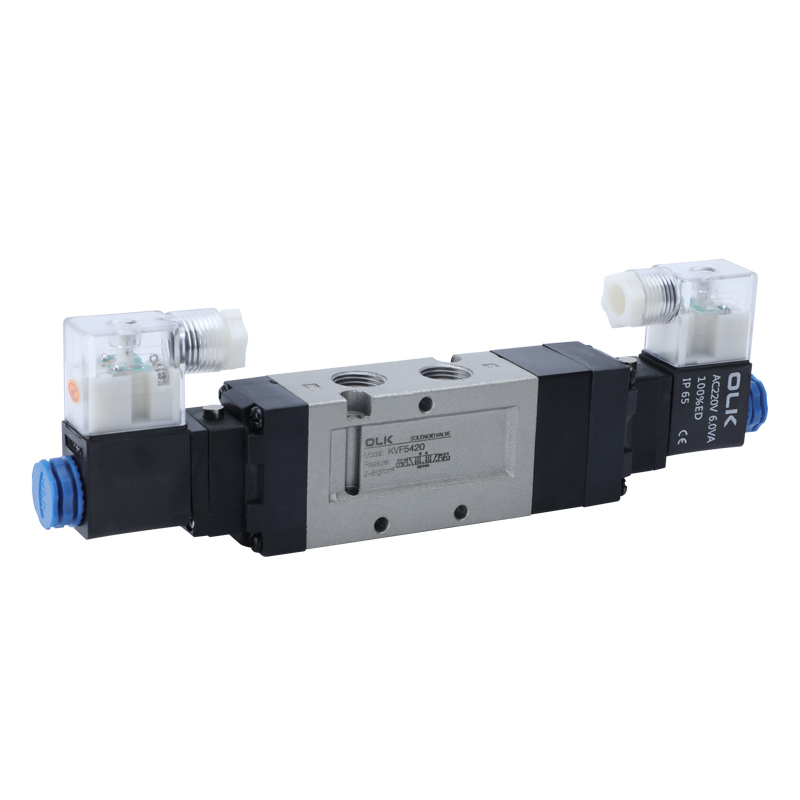

VF5420-□△B-02	3 position	double solenoid vlave5/3way exhaust center	1~9(0.1~0.9)	≤50 ms	3	PT3/8	41.4(2.3)	0.53

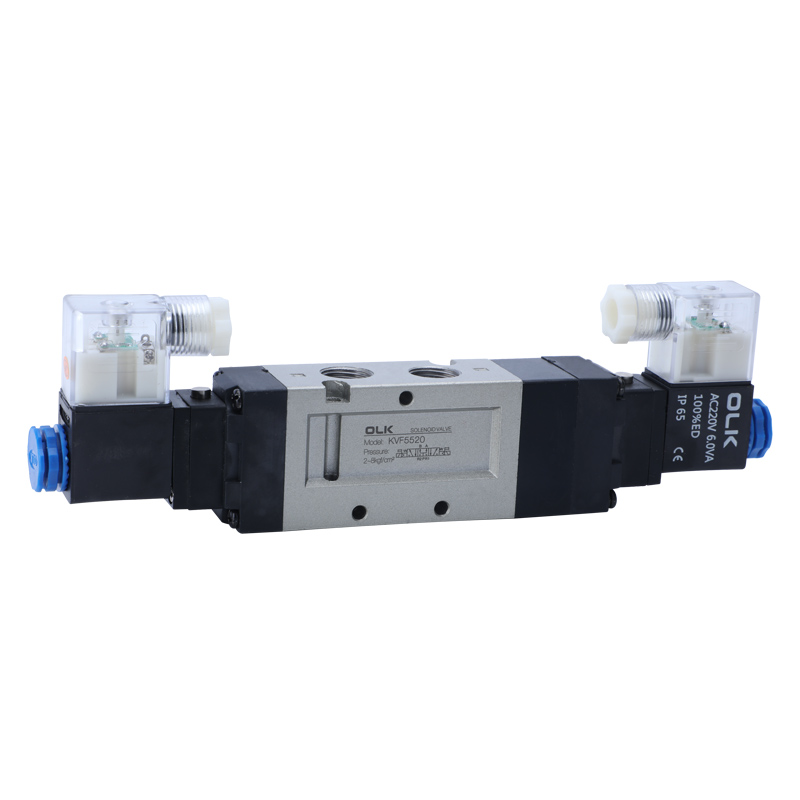

VF5520-□△B-02	3 position	double solenoid valve 5/3 way pressure center	1~9(0.1~0.9)	≤50 ms	3	PT3/8	36(2)	0.53
