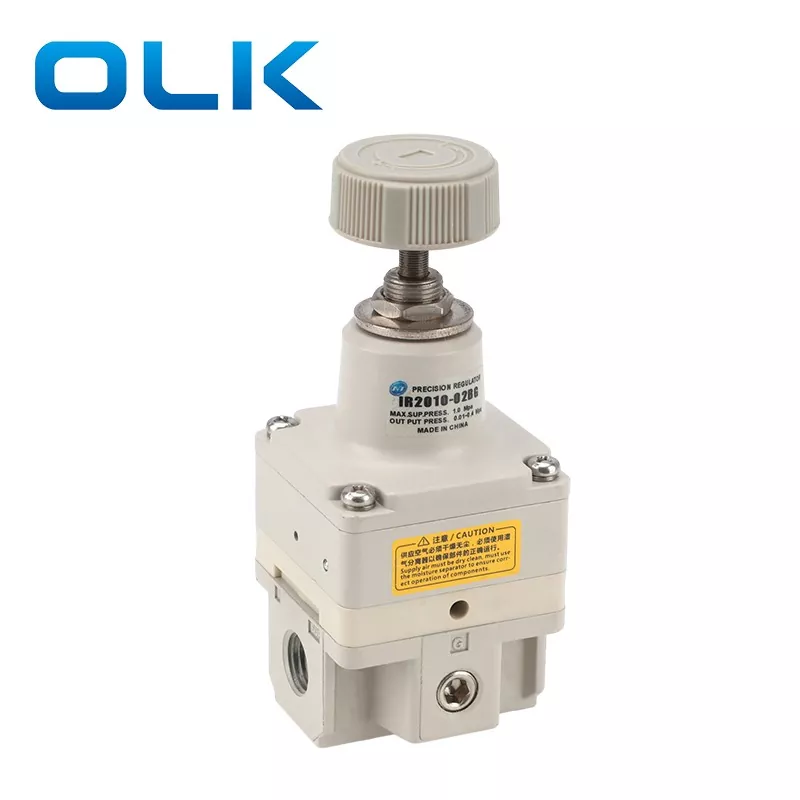

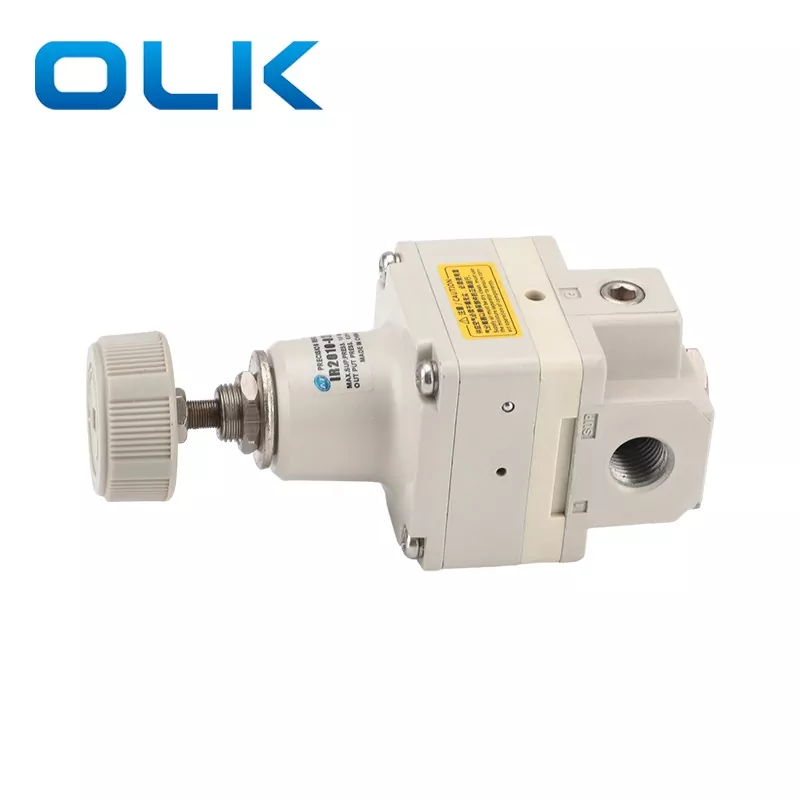

SMC IR Precision Regulator

Model:IR2020

You can rest assured to buy SMC IR Precision Regulator from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

OLK’S SMC IR precision regulator is known for its high accuracy and stability. It features a sensitive adjustment mechanism for precise pressure control, making it ideal for demanding applications. With low air consumption, it ensures efficient energy use. The IR series responds quickly, reaching set pressures in a short time to improve efficiency. Its optimized design provides excellent vibration resistance and durability for long-term reliability. The regulator supports various installation options, making it easy to integrate into different systems. It delivers stable output even with input pressure fluctuations, widely used in semiconductor manufacturing, lab equipment, and precision instruments.

Ordering code
IR	1	0	0	0	_		01
	body size		Set pressure range	Exhaust direction		Pipe thread type	Port size
	1:		0:0.005 to 0.2 MPa / 0.01 to 0.2 MPa	0:Bottom exhaust		Blank:PT/RC thread	01:1/8
	2:		1:0.01 to 0.4 MPa	1:Front exhaust		N:NPT thread	02:1/4
			2:0.01 to 0.8 MPa	2:Rear exhaust		F:G thread	03:3/8
							04:1/2

SMC type IRPrecision Regulator Standard Specifications

MODEL	IR10_0-A	IR20_0-0A
Fulid	AIR
Proof pressure	1.5Mpa
Maximum working pressure	1.0Mpa
Minimum working pressure	set pressure +0.05 Mpa
Set pressure range	IR1000-A:0.005 to 0.2 Mpa	IR2000-A:0.005 to 0.2 Mpa
	IR1010-A:0.01 to 0.4 Mpa	IR2010-A:0.01 to 0.4 Mpa
	IR1020-A:0.01 to 0.8 Mpa	IR2020-A:0.01 to 0.8 Mpa
Sensitivity	within 0.2% of full span
Repeatability	within ±0.5% of full span
Air consumption	1 L/min (ANR) or less
Port size	1/8.	1/4.
Pressure gauge port	1/8(2 locations)
Ambient and fluid temperatures	-5-60 ℃
Weight(kg)	0.13	0.23
