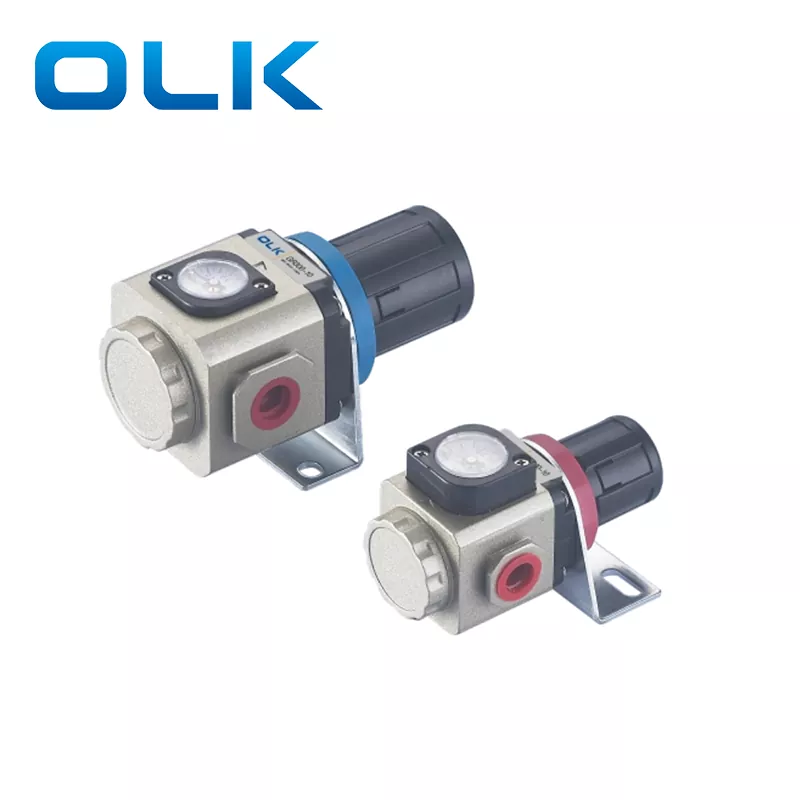

Airtac Type GR Pressure Regulator

The Airtac type GR pressure regulator provides stable and precise pressure control for pneumatic systems. OLK  GR pneumatic regulator with durable construction and easy adjustment, it ensures reliable performance in automation equipment, air tools, compressors, and general industrial applications. Compatible with filters, lubricators, and FRL units.

Airtac type GR pressure regulator Product Features:

·Built-in square pressure gauge saves installation space (external round gauge optional).

·Locking design prevents accidental pressure adjustment caused by outside force.

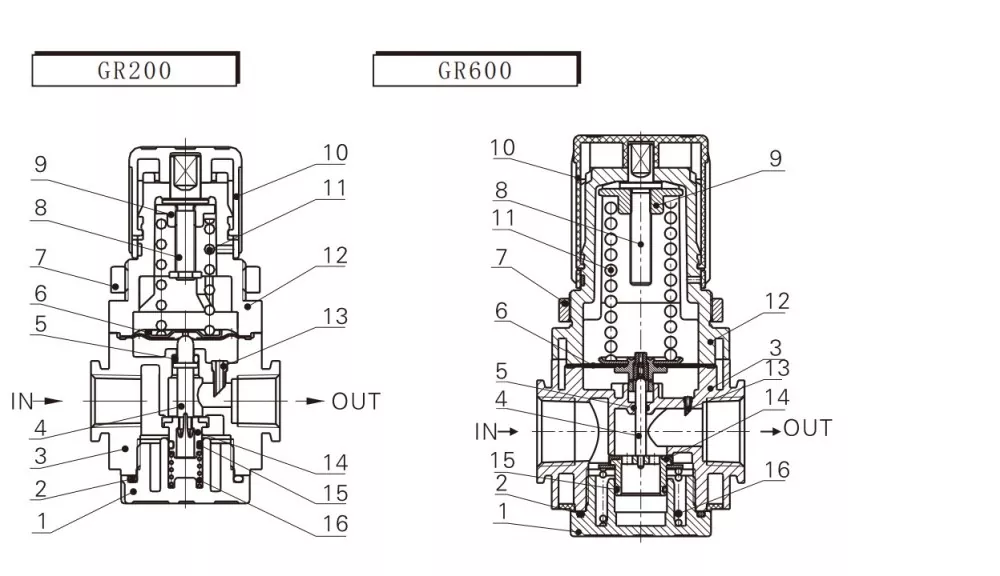

·Balanced pressure-regulating structure ensures stable pressure, small fluctuation, and good performance.

·Can be installed on a panel or with an optional mounting bracket.

·Besides the standard model, a low-pressure type is also available (maximum adjustable pressure: 0.4 MPa)

GR pressure regulator Symbol：

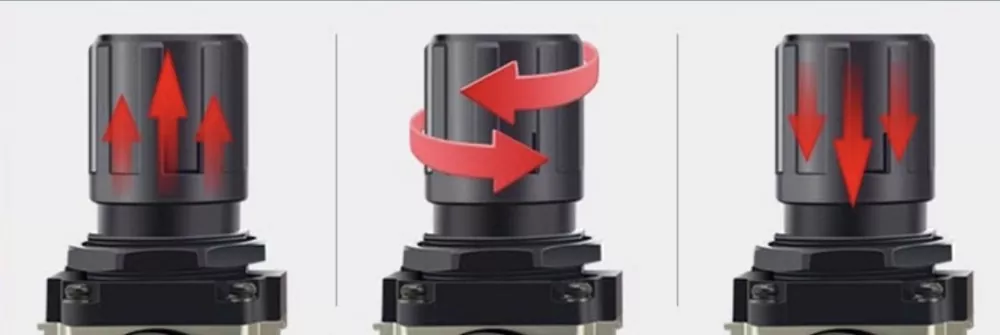

How to Adjust the Airtac type GR pressure regulator

There is a pressure scale on the adjustment cap. When air is supplied, pull up the knob and turn it clockwise toward the “+” sign to increase the pressure. After adjustment, press the knob down to lock it.

Step 1: Hold the knob and pull it up.

Step 2: Turn it clockwise to increase the pressure.

Step 3: Press the knob down to lock after adjustment.

Notice:Please pay attention to the arrow indicating the airflow direction when connecting. Reversed inlet connection may cause air leakage.

FAQs:

What means GR?

GR means GR series air regulator.

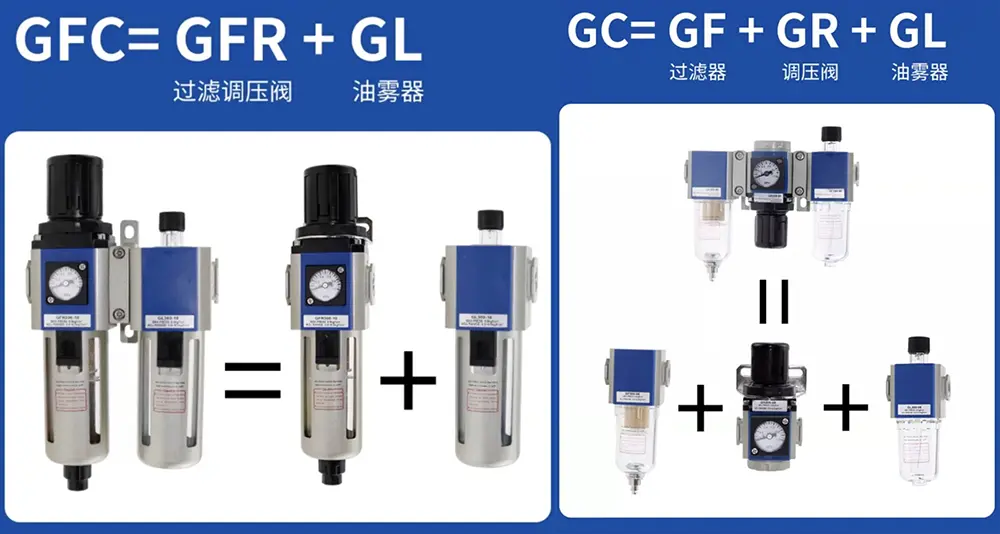

What means GFC?

GFC=GFR+GL  (Filter Regulator + Lubricator)

What means GC?

GC=GF+GR+GL (Filter + pneumatic Regulator + Lubricator)
