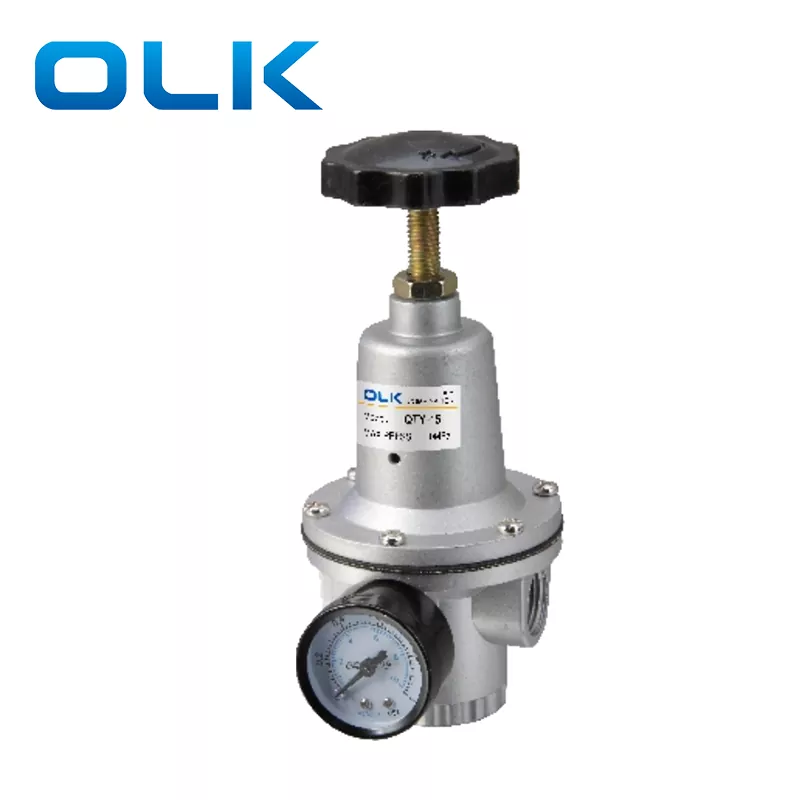

QTY Pressure Regulator

OLK is a professional QTY pressure regulator manufacturers and suppliers in China, you can rest assured to wholesale and customized QTY pressure regulator from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

The QTY pressure regulator controls air pressure in pneumatic systems. Suitable for compressed air, it offers seven size port size. The regulator features IN and OUT airflow markings—always follow them to prevent leakage. Easy adjustment ensures stable and reliable output.

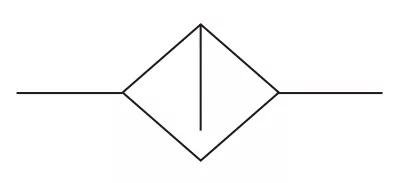

QTY pneumatic pressure regulator symbol:

Ordering code
QTY	-	15
Model:		Port size
QTY series pneumatic regulator		06:G1/8
		08:G1/4
		10:G3/8
		15:G1/2
		20:G3/4
		25:G1
		40:G1 1/2

Products specification

Model	QTY-6	QTY-8	QTY-10	QTY-15	QTY-20	QTY-25	QTY-40
Temperature range	5-6℃
Proof pressure	1.0Mpa
Water filtration accuracy	0.63Mpa
Pressure range	0.05--0.63Mpa

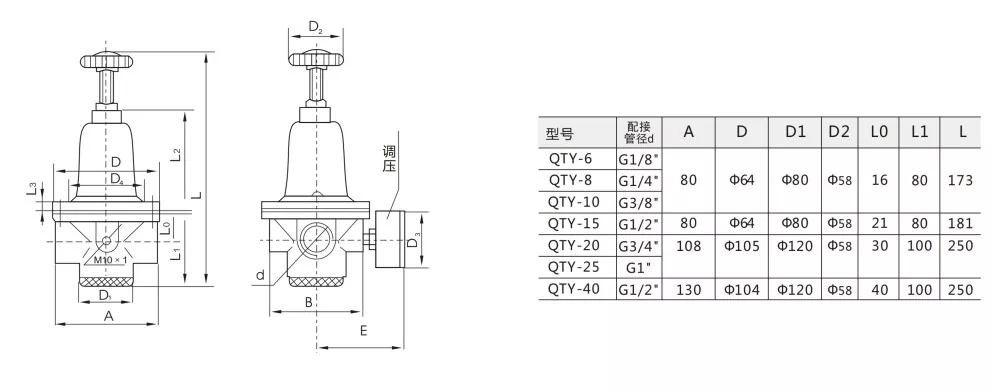

QTY pressure regulator valve outline dimension:

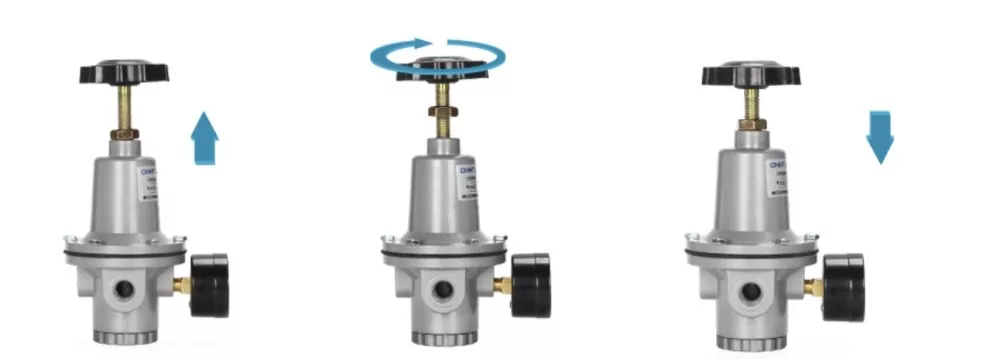

QTY Pressure Reducing Valve – Operation Steps

Step 1: Turn the screw upwards.

Step 2: Rotate the handle to adjust the pressure.

Step 3: Turn the screw downwards to lock.

FAQs:

What is different between QTY and QTYH regulator?

QTY: Standard pressure regulator, suitable for normal pressure range (medium to low pressure industrial applications).

QTYH: High-pressure regulator (High Pressure), capable of handling higher inlet pressure, suitable for high-pressure air sources or special industrial applications.
