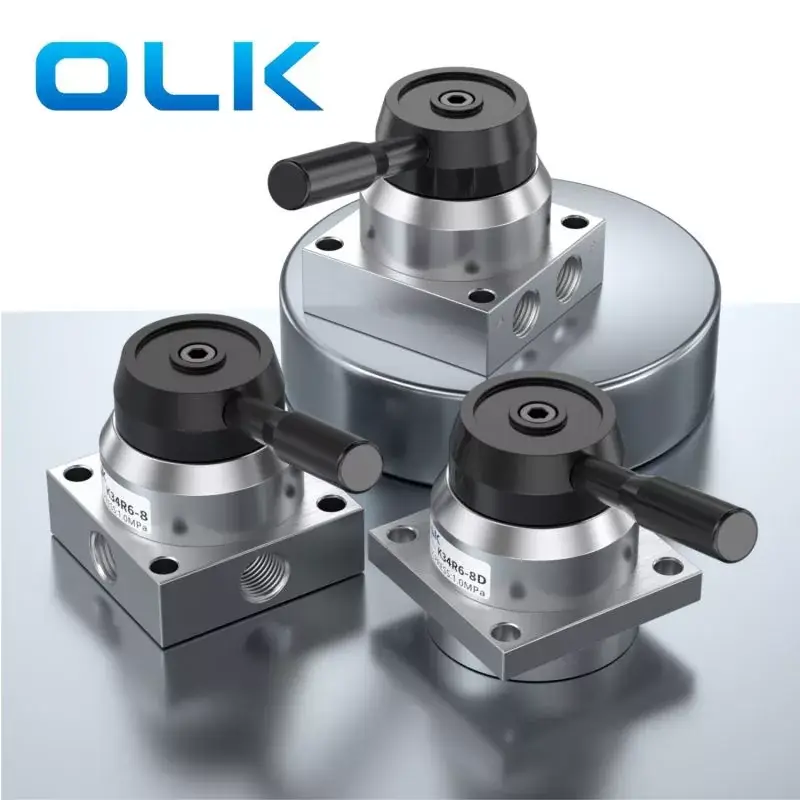

K23 K34 Series Manual Rotating Valve 4 Way

Model:K34R8

Welcome to wholesale or customized K23 K34 Series Manual Rotating Valve 4 Way from our factory at any time. We will provide you with factory discount prices for our products. OLK is K23 K34 manual rotating valve 4 way manufacturers and suppliers in China.

Send Inquiry

Product Description

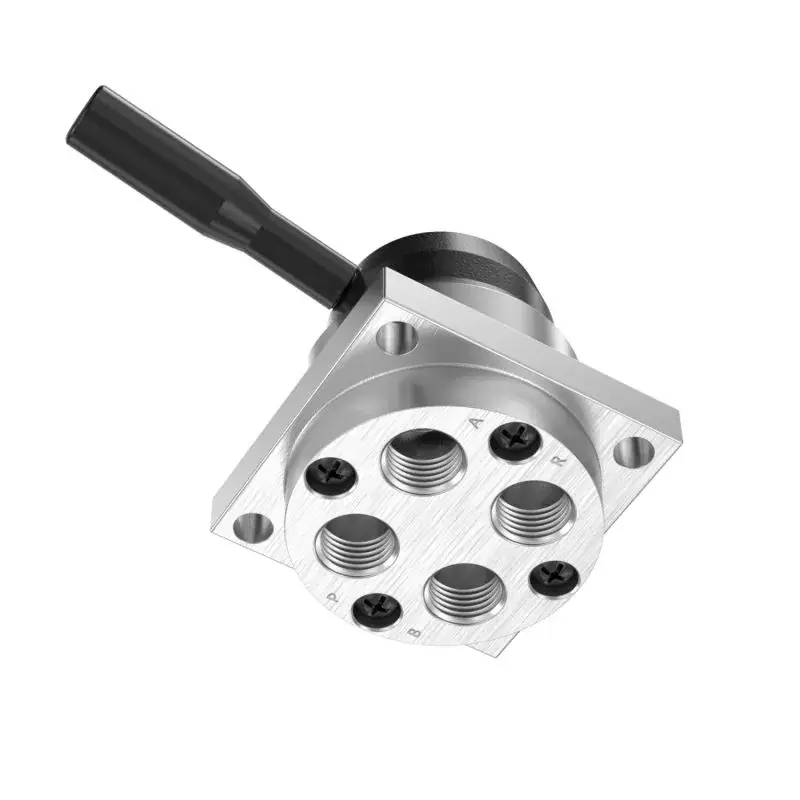

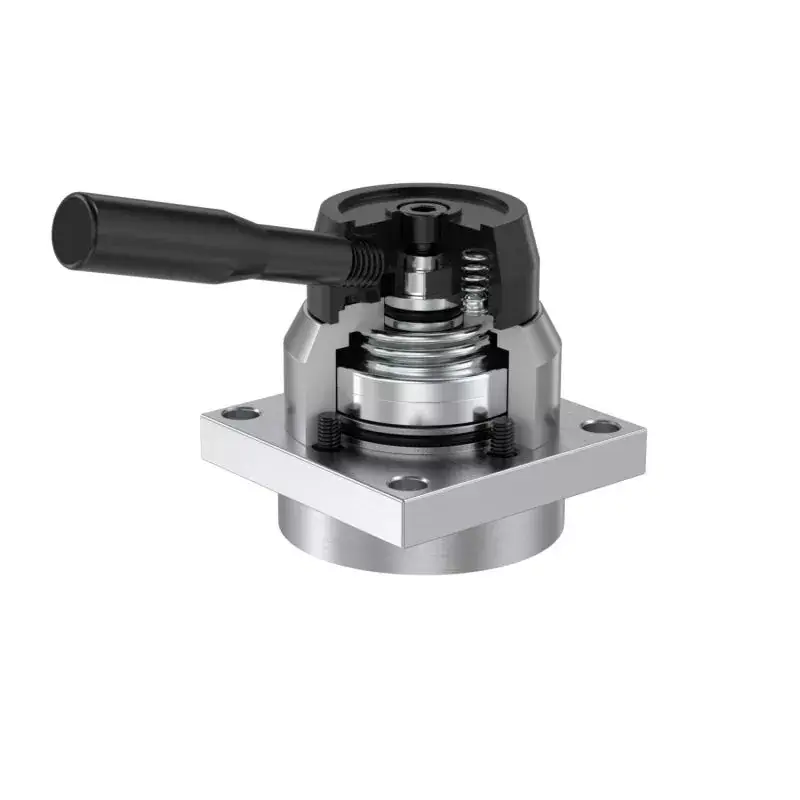

Ouleikai (OLK) manufactures 2-position 4-way and 3-position 4-way K34 manual rotary valves/direct acting cylinder control directional valves. They feature aluminum alloy valve bodies that are corrosion-resistant and rustproof. These high-strength valve bodies can operate continuously for 48 hours. K34 valve precision threaded ports come with a removable handle, and the bottom has mounting holes for easier installation.

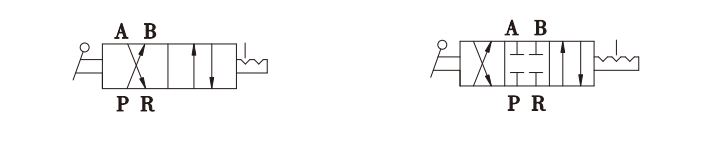

SYMBOL:

Ordering code:
K	34	R6	-	8	L
Model:	Code	Funtion:		Port size:	Installation:
K：K series hand manual rotating valve	24:2 position 4 way	R6:Hand control		8:G1/4	Blank:One hole on one side
	34:3 position 4 way				L:Double-hole on opposite sides
					A:Three holes at the bottom
					D:Four holes on the bottom

K23 K34 manual rotating valve 4 way General parameters

Model	K34R8-L8	K34R8-L8	K24R8-L8D	K34R8-L8D	K24R8-L8S	K34R8-L8S
Working medium	Air（Filter through a filter screen of over 40μm）
Action mode	HAND control
Port Size	Inlet=Outlet=PT1/4
Pressure range	0.15-0.8MPa (21-114psi)
Position	2/4 Port	3/4 Port	2/4 Port	3/4 Port	2/4 Port	3/4 Port
Woking Pressure	‘-10-60℃
Proof pressure	1.5MPa (215psi)

OLK Pneumatic Hand Rotary Valves – 5 Models Comparison
OLK Model	4HV210/310/410/230/330/430	HV200A/B	HV-02/03/04	HV400-02/03/04	K34R6-8/L/D
Position	2 Position 4 Way	3 Position 4 Way	3 Position 4 Way	3 Position 4 Way	3 Position 4 Way
	3 Position 4 Way
Port size	RC1/8,1/4,3/8,1/2,3/4	PT1/4	PT1/4,PT3/8,PT1/2	PT1/4,PT3/8,PT1/2	G1/4
Product features	Panel mounting	A: Quadrilateral interface B: two-side interface, with sound attenuation at the bottom			Blank：One hole on one side L：Two holes on opposite sides；D：Four hole on the bottom；

Handle	Removable handle	Removable handle	Removable handle	Non Removable/ Plastic Handles	Removable handle,Anti-scald handle

Dimensions of base	200 series:62 mm 300 series:74 mm 400 series:94 mm	61.3 mm	74 mm	74 mm	55 mm

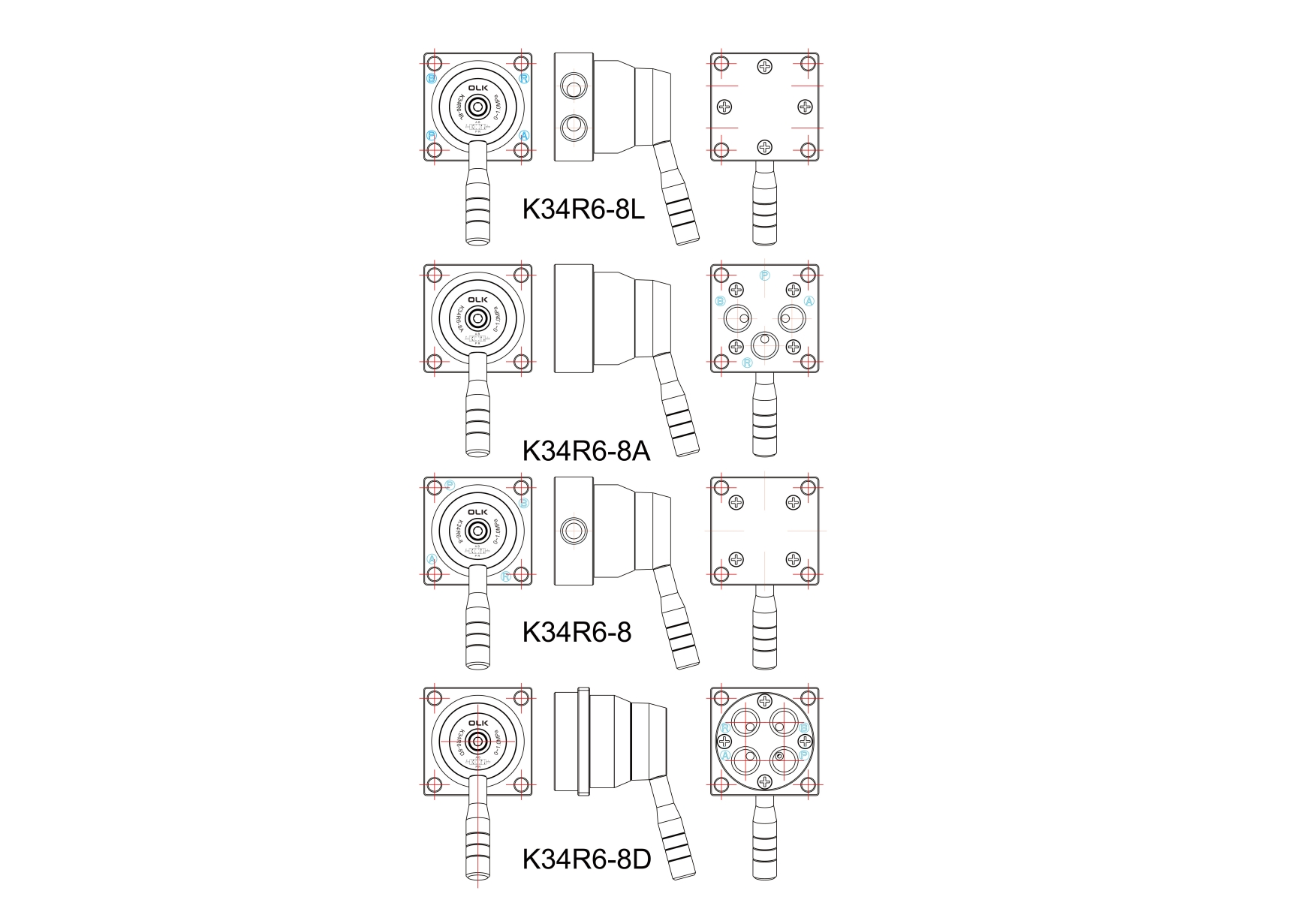

		HV200A			K34R6-8

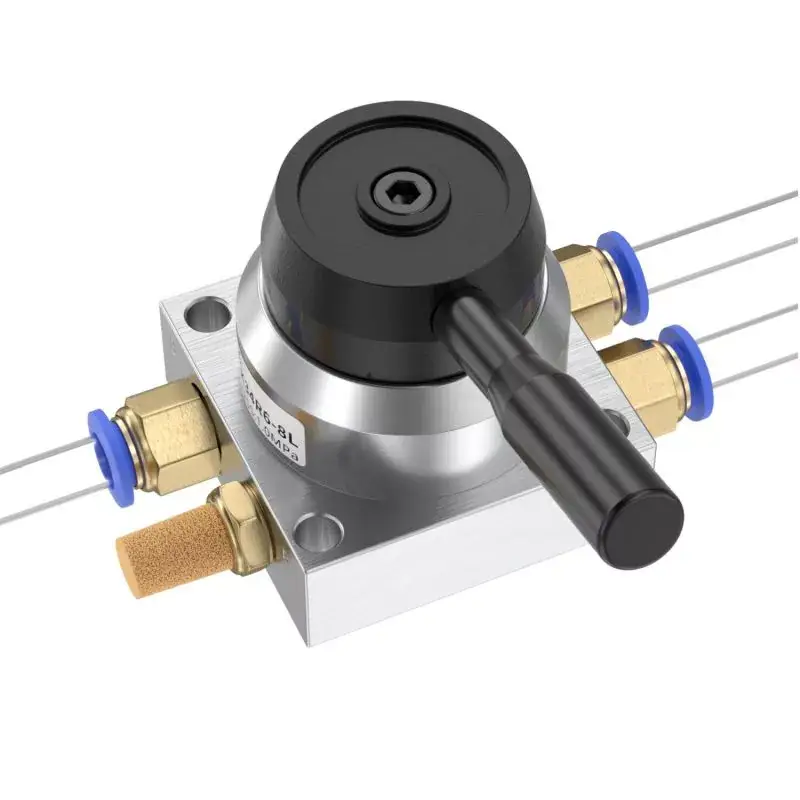

		HV200B			K34R6-8L

					K34R6-8D

K23 K34 Series Manual Rotating Valve 4 Way Ordering Code

Flip Angle	105°
Power Consumption	≤80W (Standby≤0.5W)
Load Bearing	45KG-65KG
Color	High Gloss White
Lifting Height	65cm-85cm (Can Be Equipped With A Second Lift)
Remote Control Distance	50 Meters (Open Space)

K23 K34 Series Manual Rotating Valve 4 Way General parameters

Model	K34R6-8
Working medium	Air（Filter through a filter screen of over 40μm）
Action mode	HAND control
Port Size	Inlet=Outlet=PT1/4
Pressure range	0.15-0.8MPa (21-114psi)
Position	3 position 4 way
Woking Pressure	‘-10-60℃
Proof pressure	1.5MPa (215psi)
