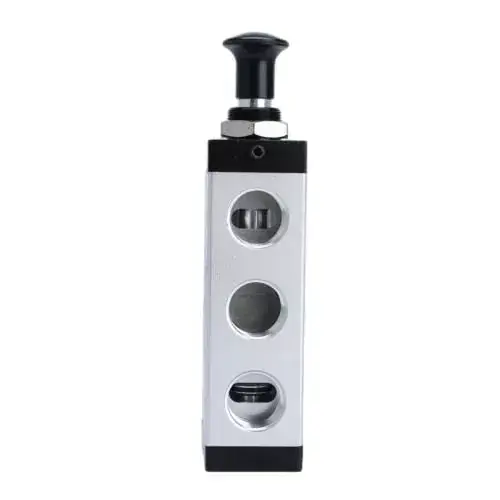

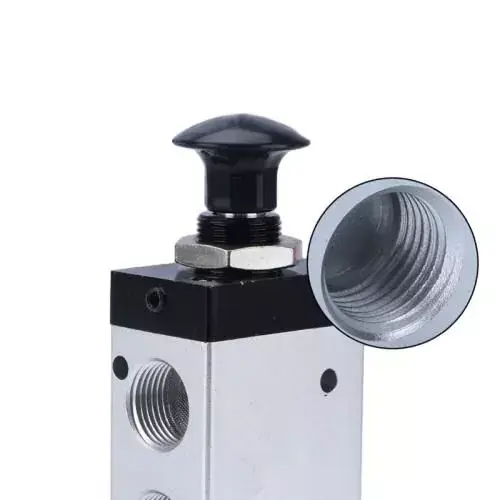

4R Series Hand Operated Valve 5 Way

Model:4R210-08

As a professional 4R series hand operated valve 5 way manufacture, you can rest assured to buy 4R series hand operated valve from our factory and OLK will offer you the best after-sale service and timely delivery.

Brand:
OLK
Port size:
M5,G1/8,G1/4,G3/8,G1/2
Position:
2 Position 5 Way

Send Inquiry

Product Description

The Ouleikai (OLK) 4R series hand operated valve 5 way adopts 2/5 design, enabling control and switching of various gases, suitable for the requirements of different pneumatic systems. The hand-pull operation controls the direction change, making it convenient for operators to manually control the gas flow direction with high flexibility.

Notes: Please do not exceed the rated working pressure range of the hand-pull valve to avoid affecting the safety and stability of the product. Usage Scenarios: Used for gas control in laboratory gas systems and similar applications.

SYMBOL:

Ordering code:
4R	2	10	08
MODEL:	SERIES	FUNCTION:	PORT SIZE:
4L:5/2 hand valve	1:100 series	10:2 position	100 series:06:G1/8
	2:200 seires		200 series:06:G1/8
	3:300 seires		200 series:08:G1/4
			300 series:08:G1/8
			300 series:10:G3/8

OLK 4R series hand operated valve 5 way General parameters

working medium	Air (filtered through a filter over 40μm)
Action	Manual direct action
lubricating	unnecessary
Working pressure range MPa(psi)	0∼0.8(0~114)
Guaranteed pressure resistance	1.5MPa (215psi)
Working temperature °C	-20∼70
Body material	aluminum alloy

OULEIKAI 4R series hand operated valve 5 way different parameters

model	Port diameter	Flow cross-sectional area mm² (CV value)
4R110-M5	M5	5.5(0.3)
4R110-06	G1/8	12.0(0.67)
4R210-06	G1/8	14.0(0.78)
4R210-08	G1/4	16.0(0.89)
4R310-08	G1/4	25.0(1.39)
4R310-10	G3/8	30.0(1.67)
4R410-15	G1/2	50.0(2.79)

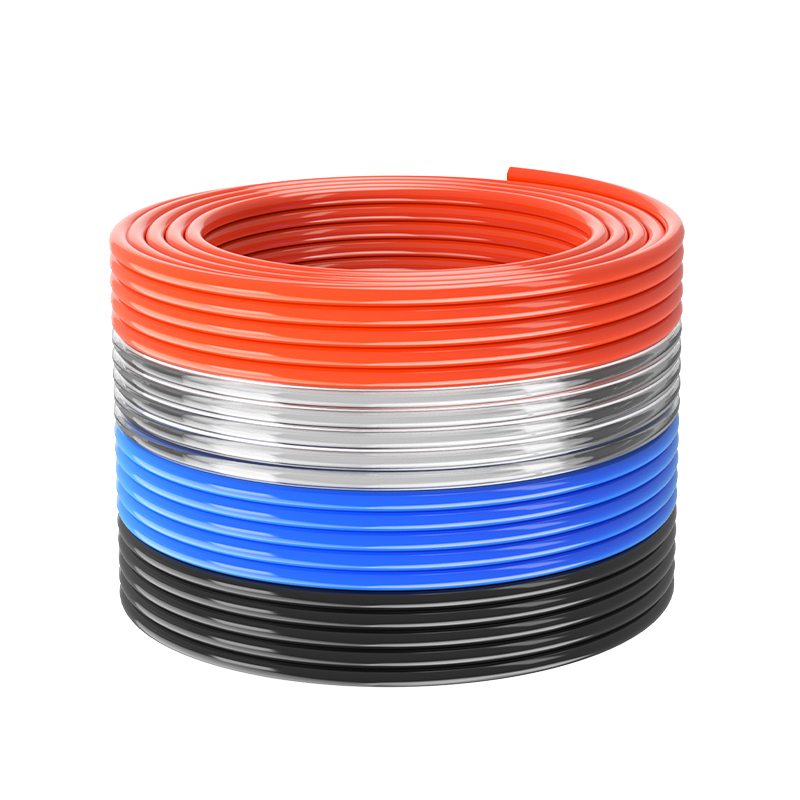

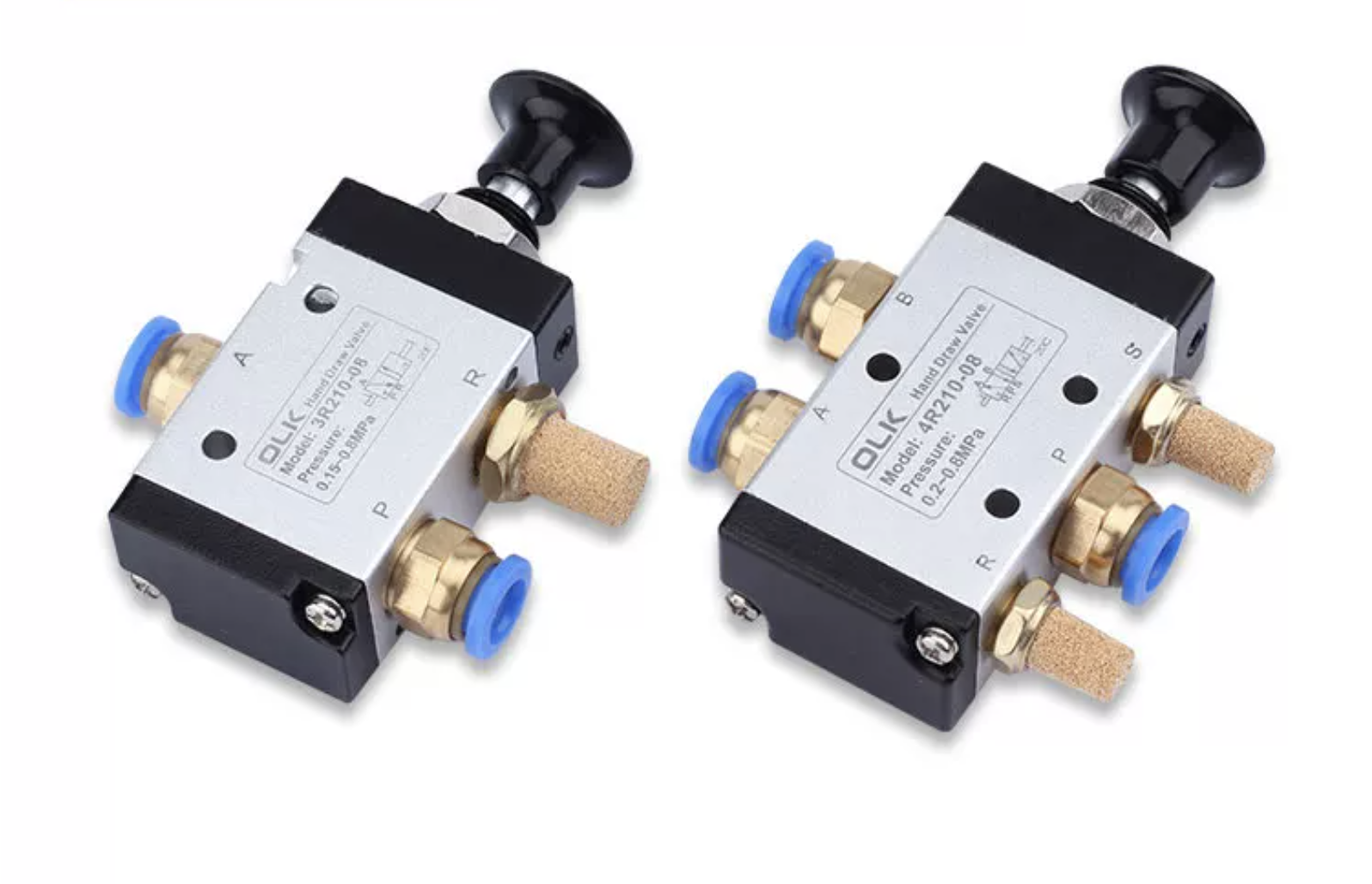

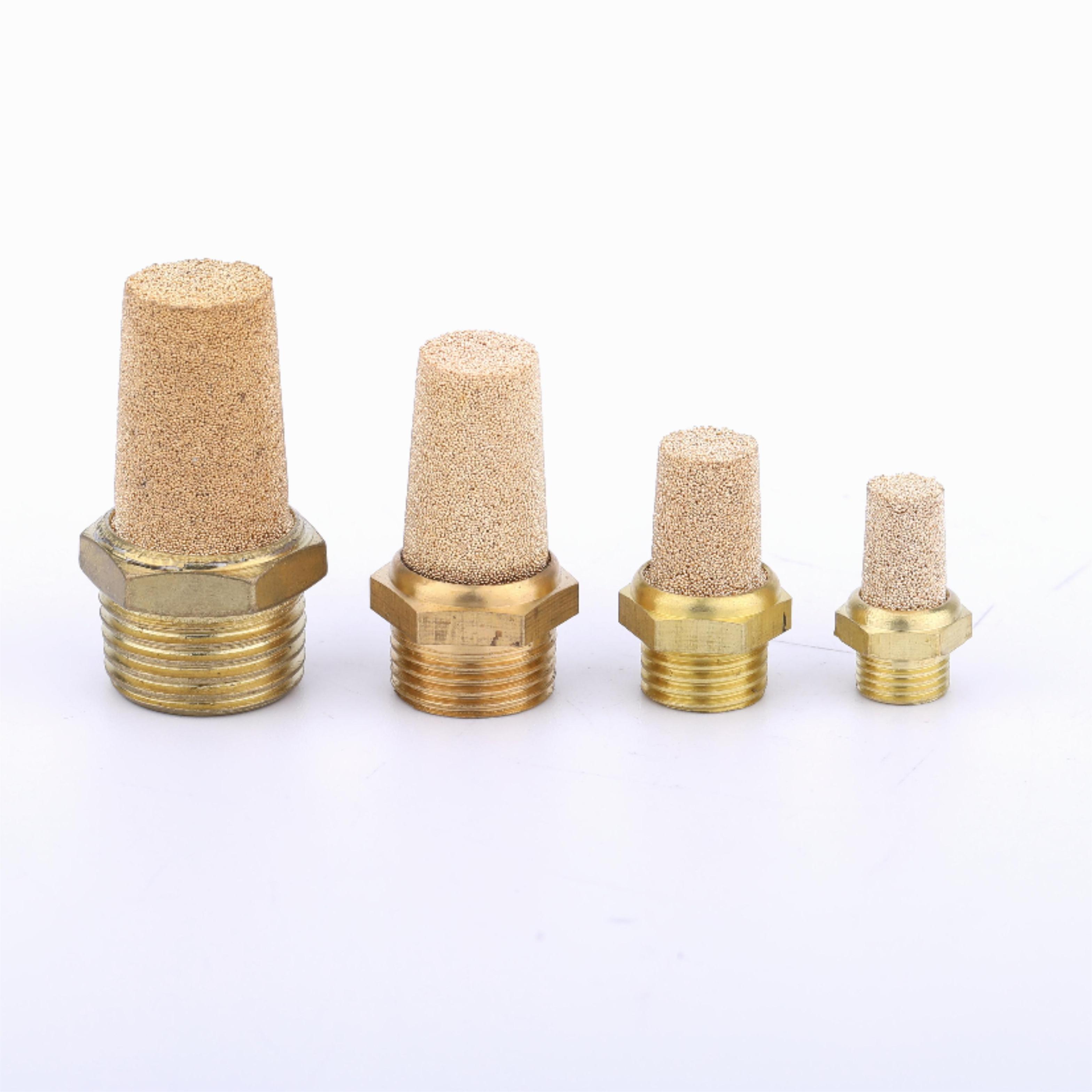

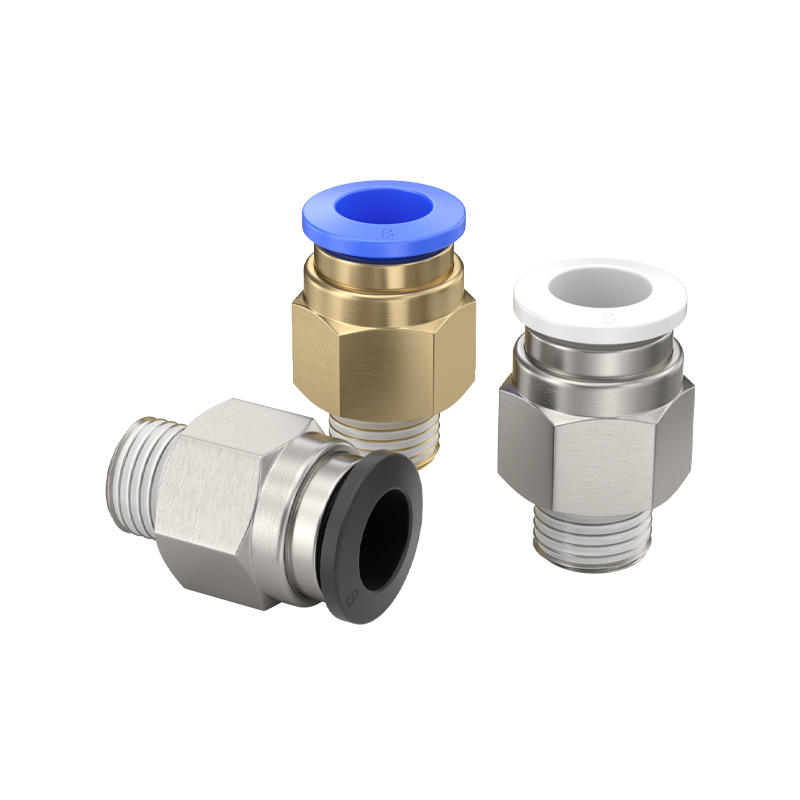

3R/4R Hand Valve Mounted Appearance	PU TUBE	PC JOINT	TOWER SILENCER

FAQs:

1: Does the valve output air only when the button is pressed?

Yes. This is a momentary mechanical valve. Air flows only when the button is pressed. Once the button is released, the valve automatically returns to its original position and the air supply is cut off.

2: What is the difference between the 210 and 310 series mechanical valves?

The main difference is the body size and flow capacity.

210 Series: Compact size, suitable for applications with lower air consumption.

310 Series: One size larger than the 210 series, providing higher flow capacity.

410 Series: Larger than the 310 series and suitable for applications requiring even greater airflow.

The operating function remains the same; the selection mainly depends on the required flow rate and installation space.

3: Does the valve have a built-in filter?

Yes. The main air inlet of OLK valve is equipped with a built-in filter screen to help prevent dust and particles from entering the valve body, improving reliability and extending service life.

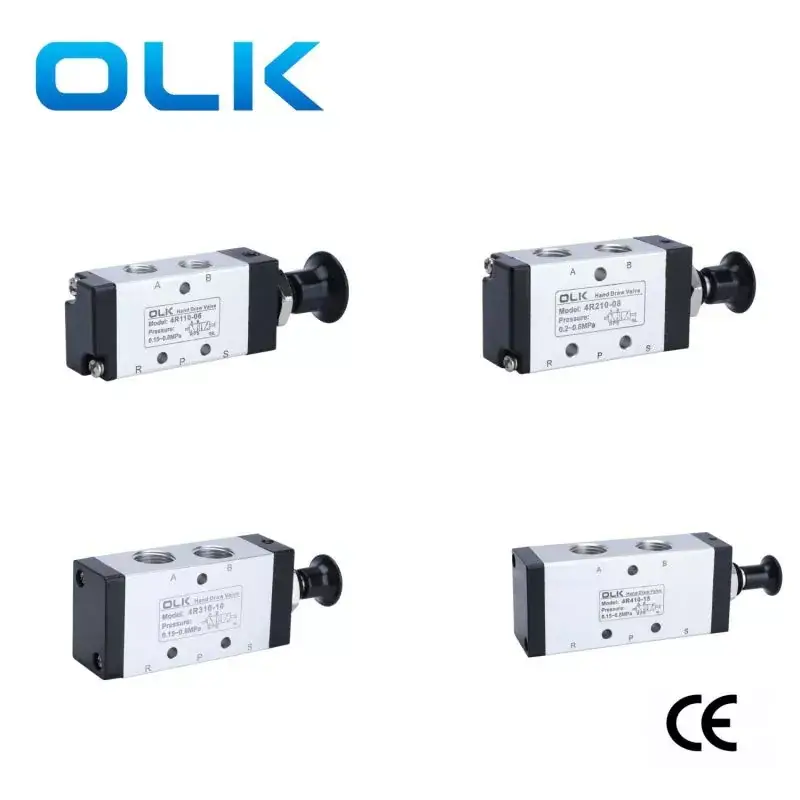

4: How do I choose between 4R210, 4R310, and 4R410 series valves?

If your application requires a small and compact valve, the 210 series is usually sufficient. For higher airflow requirements, the 310 series is recommended. For large pneumatic systems or applications with high air consumption, the 410 series is the preferred choice.

All three series provide the same operating function; the primary difference is valve size and flow capacity.
