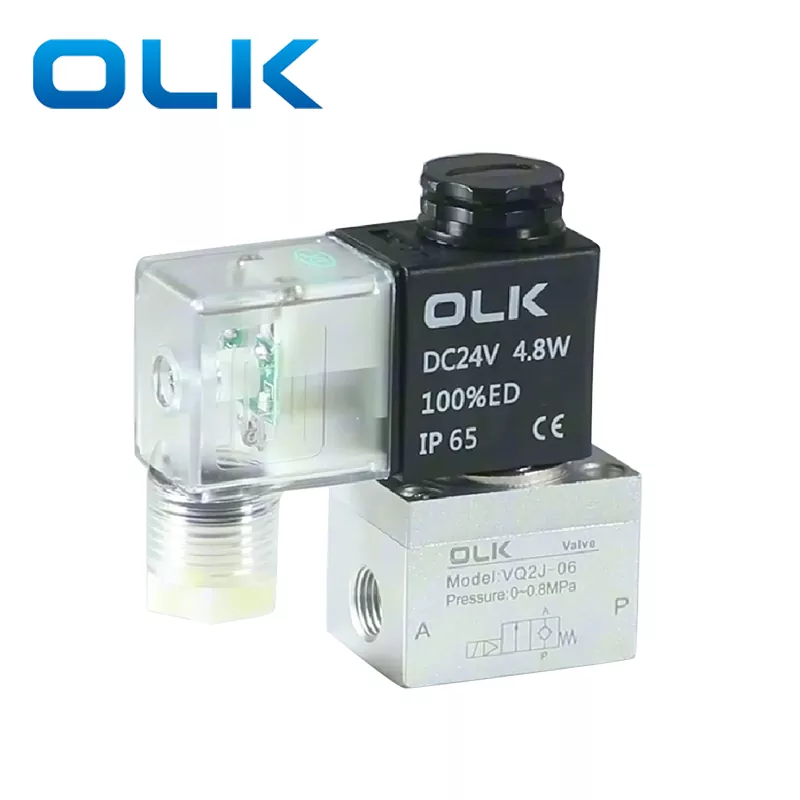

VQ series Pilot operated 2-way solenoid valve working media is dry air with large flow capacity (1.5 dm³/（S·bar) ).Initial state is normally closed （NC) valve type .The aluminum alloy material valve body design is more durable, compact and lightweight.VQ solenoid valve coil is DIN type that is more practical and dustproof. High speed response 7ms or less.The choice of threaded interface divided into two specifications: VQ2J-06(G1/8), VQ2J-08(G1/4).
The VQ series Pilot operated 2-way solenoid valve is very suitable for applications that require fast and precise air control. It is widely used in blowing systems, workpiece blowing, removal of surface dust or debris, and cooling processes in automated production lines.
High frequency and large flow capacity
Solenoid valve coil :DIN terminal
Initial state:Normally closed :NC

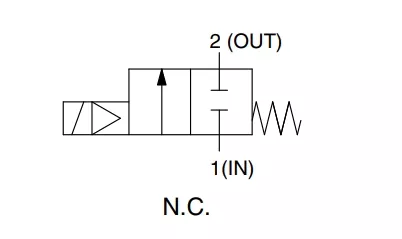

SYMBOL:
|
Ordering Code |
|||
|
VQ2 |
J |
_ |
06 |
|
Model |
|
|
port size |
|
VQ20 series valve |
|
|
06:G1/8 |
|
|
|
|
08:G1/4 |
|
Model |
VQ2J |
|
Positions |
2 position 2 way |
|
Working medium |
Air |
|
Lubrication |
No Need |
|
Woking Pressure |
–10 to 50°C |
|
Flow rate characteristics |
1.5 dm³/（S·bar) |
|
Action mode |
Pilot operated type |
|
port size |
G1/4,G1/8 |
|
Body Material |
Aluminum Alloy |
|
Coil rated voltage |
12 DC, 24 DC, 24 AC, 36 AC, 110 AC, 220 AC,380 AC |
|
Insulation Grade |
B Level |
|
Electrical entry |
DIN Plug Type |
What is the difference betweenOLK’sVQ series Pilot operated 2-way solenoid valve and SMC's VQ20 series solenoid valve?
Our valve body is made of aluminum alloy, which is more durable and has the same product function.
What’s VQ series valve Initial state?
Normally closed:NC
What’s VQ series valve position？
VQ series Pilot operated 2-way solenoid valve，2 position and 2 way valve.
