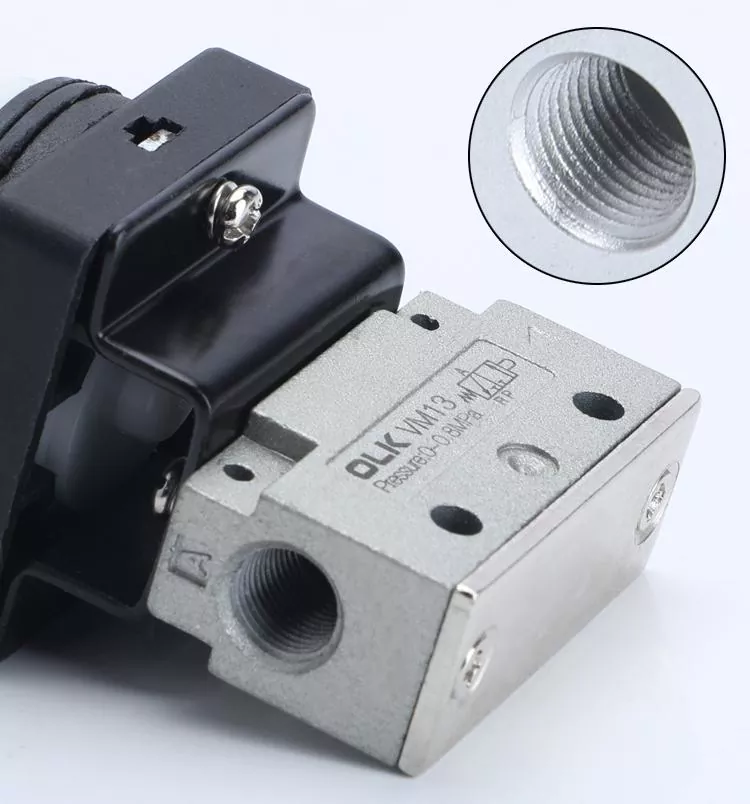

Ouleikai (OLK) VM130,VM131series SMC type 2 position 3 way mechanical valve.Precision thread G1/8 interface, good sealing performance, long service life.

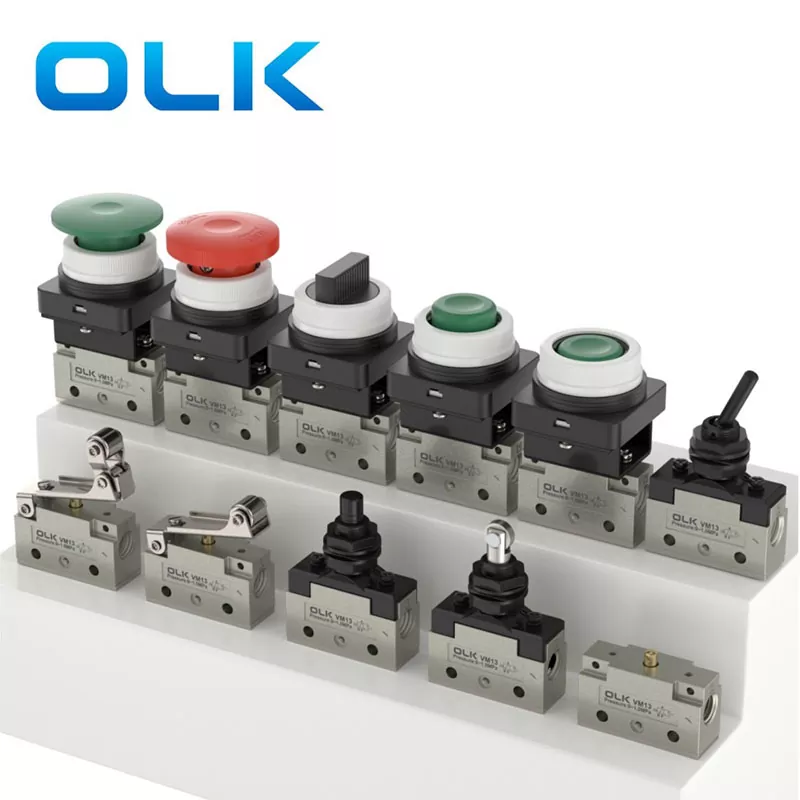

-Straight plunger（VM130-01-05)
-Roller plunger(VM130-01-06
-Toggle lever (VM130-01-08)
- Basic (VM131-01-00)

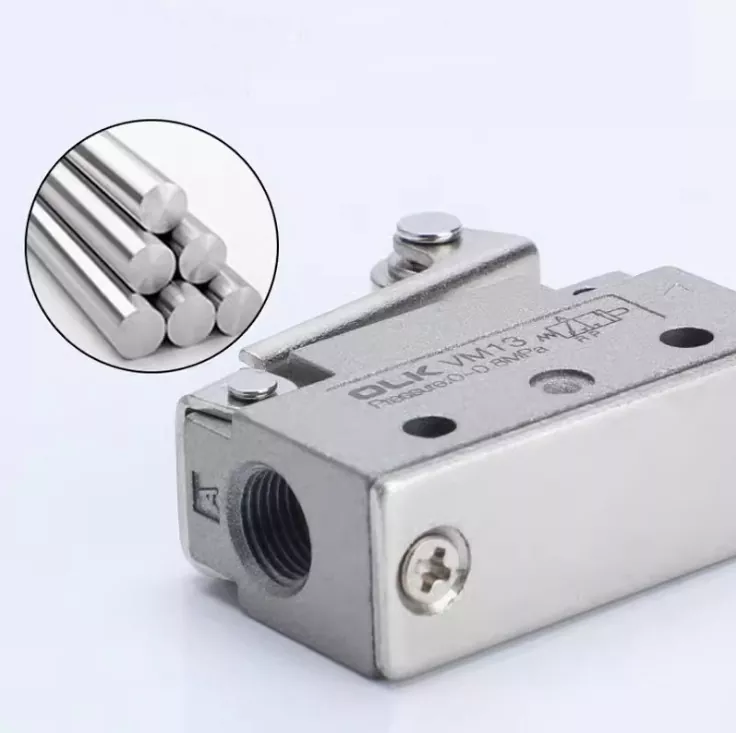

- Roller (VM131-01-01)
- Single-direction Roller (VM131-01-02)
- Mushroom Button (VM130-01-30)
- Extended Head Button (VM130-01-32)
- Flat Head Button (VM130-01-33)
- Emergency Stop Button (VM130-01-37)
- Knob (VM130-01-34)
|
Ordering code |
||||||||||
|
VM1 |
3 |
1 |
_ |
01 |
_ |
01 |
_ |
S |
_ |
|
|
MODEL:VM1 series |
Number of ports |
Piping direction and the height of plunger |
|
Port size: |
|
Actuator type |
|
Suffix for actuator |
|
Suffix for indicator |
|
|
2:2port |
0:side ported/long |
|
01:PT1/8 |
|
00:Basic |
|
S:Hard steel roller |
|
Z:with miniature indicator |
|
|
3:3port |
1:side ported /short |
|
|
|
01:Roller lever |
|
R:red push button |
|
|
|
|
|
2:bottom ported/long |
|
|
|
02:One way roller lever |
|
B:Black push button |
|
|
|
|
|
3:bottom ported/short |
|
|
|
05:Straight plunger |
|
G:Green push button |
|
|
|
|
|
|
|
|
|
06:Roller plunger |
|
Y:Yellow push button |
|
|
|
|
|
|
|
|
|
07:Cross roller plunger |
|
|
|
|
|
|
|
|
|
|
|
08:Toggle lever |
|
|
|
|
|
|
|
|
|
|
|
30:Push button (Mushroom) |
|
|
|
|
|
|
|
|
|
|
|
32:Push button (Extended) |
|
|
|
|
|
|
|
|
|
|
|
33:Push button (Flush) |
|
|
|
|
|
|
|
|
|
|
|
34:Twist selector (2 position) |
|
|
|
|
|
|
|
|
|
|
|
37:Key selector （EMERGENCY STOP） |
|
|
|
|
|
|
VM100 |
VM200 |
|
working medium |
Air/ inert gas |
Air/ inert gas |
|
Action |
External Control Direct Action |
External Control Direct Action |
|
Port diameter |
Side:G1/8 bottom:M5X0.8 |
PT1/4 |
|
number of positions |
2 position3 way |
2 position3 way |
|
lubricating |
unnecessary |
unnecessary |
|
Working pressure range MPa(psi) |
-0.1∼1.0 |
-0.1∼1.0 |
|
Working temperature °C |
-5∼60 |
-5∼60 |
|
Body material |
aluminum alloy |
aluminum alloy |
|
Effective cross-sectional area（CV) |
2.5 mm²（0.14） |
19 mm²（1.0） |
