Transmitters Pneumatic-electric Relay

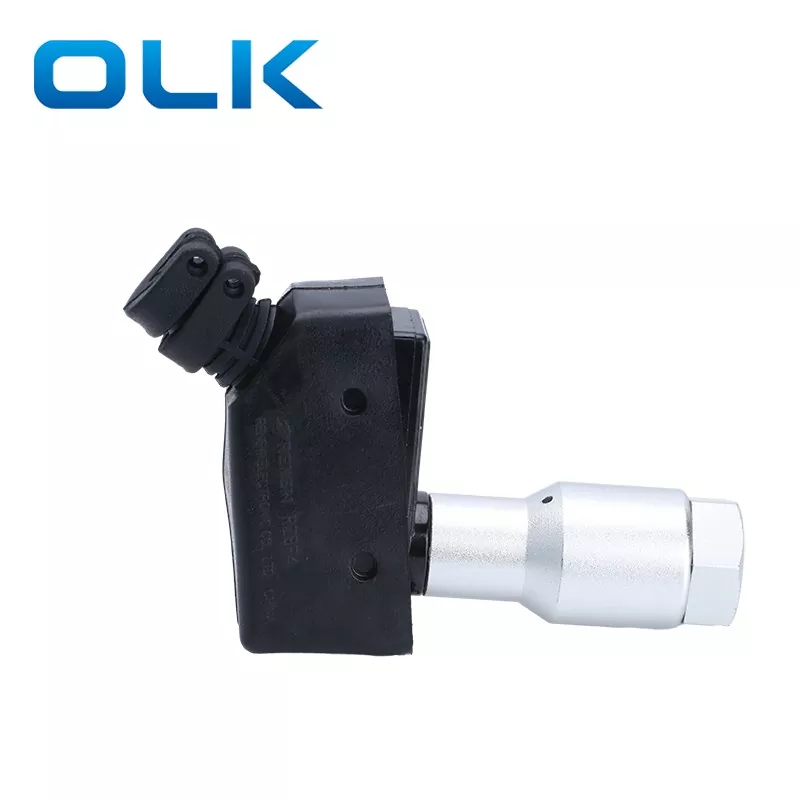

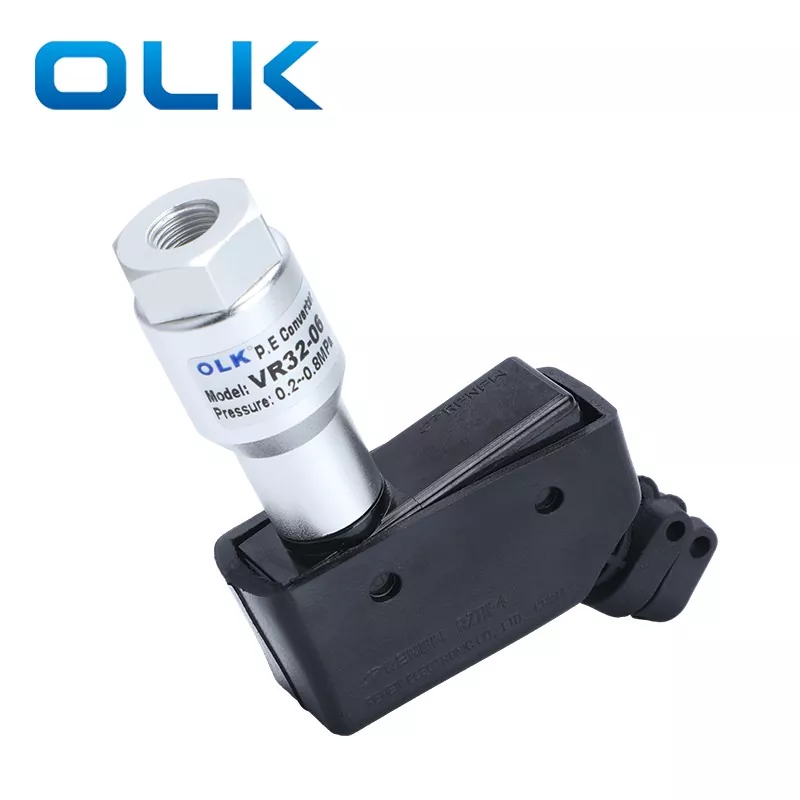

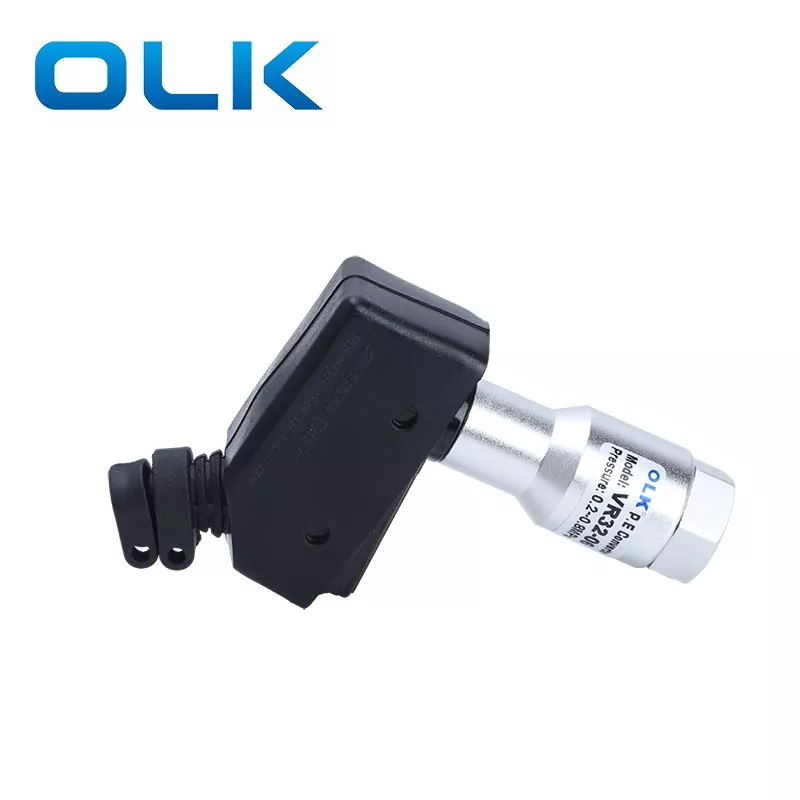

OLK Transmitters Pneumatic-electric Relay  SMC TYPE VR3200 Series is a pressure switch that converts pneumatic signals into electrical signals. It consists of five main parts: a micro switch, spring, piston, body, and cover. Operating pressure is 0.1-1.0 MPa VR3200 Pneumatic-electricprecision threaded interfaces are not easily stripped. Both ends are equipped with dust plugs, and the use of a special protective cover makes them more durable and extends their service life.

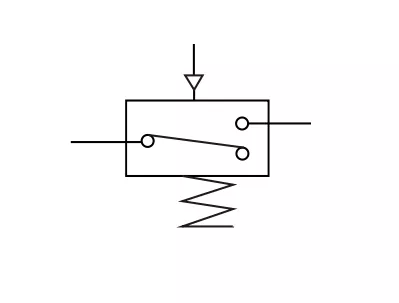

Symbol:

Applications of Pressure Switches:

1.Cylinder Pressure Detection: The pneumatic pressure switch detects the pressure in cylinders.

2. Vacuum Confirmation on Robot Arms:Near the suction cup of a robotic arm on an automatic conveyor, the switch confirms suction.

3. Gas Leak Detection: Using a low-pressure sensor, the switch detects small gas changes to measure leakage.

4. Supply Pressure Management: By connecting a pressure switch to a regulator in a pneumatic system, the supply pressure can be set based on the displayed pressure value. During operation, the displayed value shows if the supply pressure is abnormal. For example, in a washing production line, multiple fluid pressure switches monitor the supply of water, oil, etc. On hydraulic cylinders, pressure switches confirm hammer force.

5. Position Detection: A digital pressure switch detects nozzle back pressure to confirm the position of workpieces.

6. Airflow Control

7. Filter Clogging Monitoring: A differential pressure sensor measures the pressure difference on both sides of the filter. A larger difference indicates more clogging. Based on the clogging status, the filter can be cleaned or replaced.

8. Liquid Level Detection: A differential pressure sensor detects liquid levels by sealing the lower air port. As the liquid level changes, the net pressure in the connected vertical pipe changes, allowing level detection.

SMC type VR320 series Transmitters: Pneumatic-electric Relay General parameters

FAQs for VR32 Electro-Pneumatic Converter :

1.Can your VR32 Electro-Pneumatic Relay directly replace SMC's VR3200 or VR3201?

Yes. OLK's VR32 series is fully compatible with the SMC VR3200/3201 series in terms of mounting dimensions, port size (1/8"), and electrical performance. It is a 100% drop-in replacement with a more competitive price.Cost-effective VR3200 replacement!

2.What is the difference between a VR32 converter and a Pressure Switch?

The VR32 is a mechanical pneumatic-electric relay designed to convert a pneumatic signal into an electrical contact signal. It is simple and durable, mainly used for detecting "Air ON/OFF" status or stroke confirmation. Pressure switches, on the other hand, often feature digital displays and precise adjustment scales for monitoring specific pressure values.

3.What are the typical application scenarios for VR32 pneumatic-electric converters?

Cylinder position sensing relay:

Cylinder stroke limit detection: When the cylinder reaches the limit, the pressure rises, and VR32 sends a signal to the PLC, prompting the machine to proceed to the next step.

Safety interlock: The machine will only start when the air pressure reaches the standard, and the circuit is connected.
