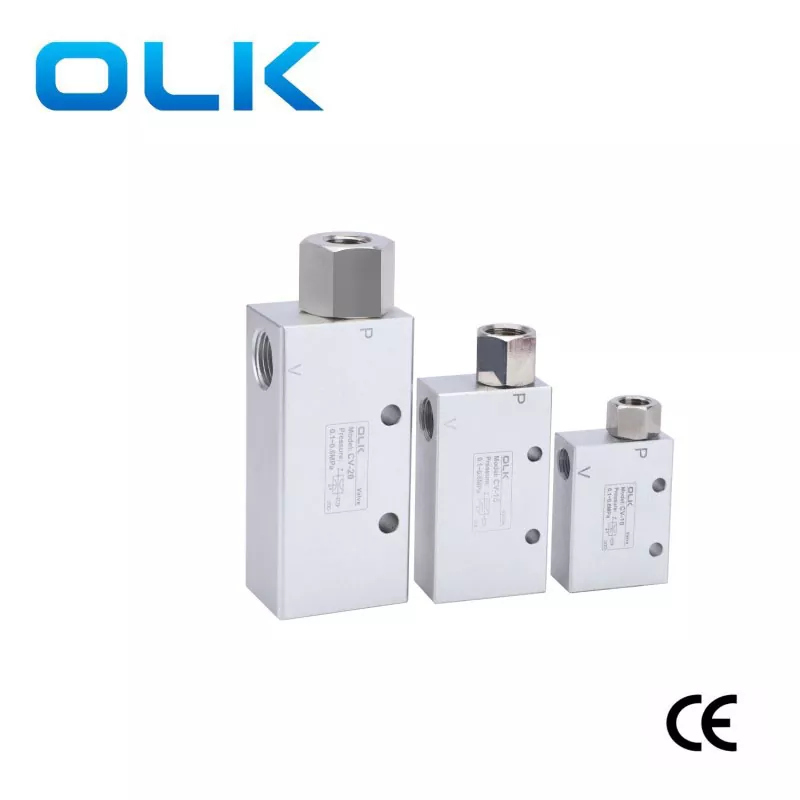

CV Vacuum Generators

Model:CV-10HS

As a professional CV vacuum generators manufacture, you can rest assured to buy CV vacuum generators from our factory and OLK will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

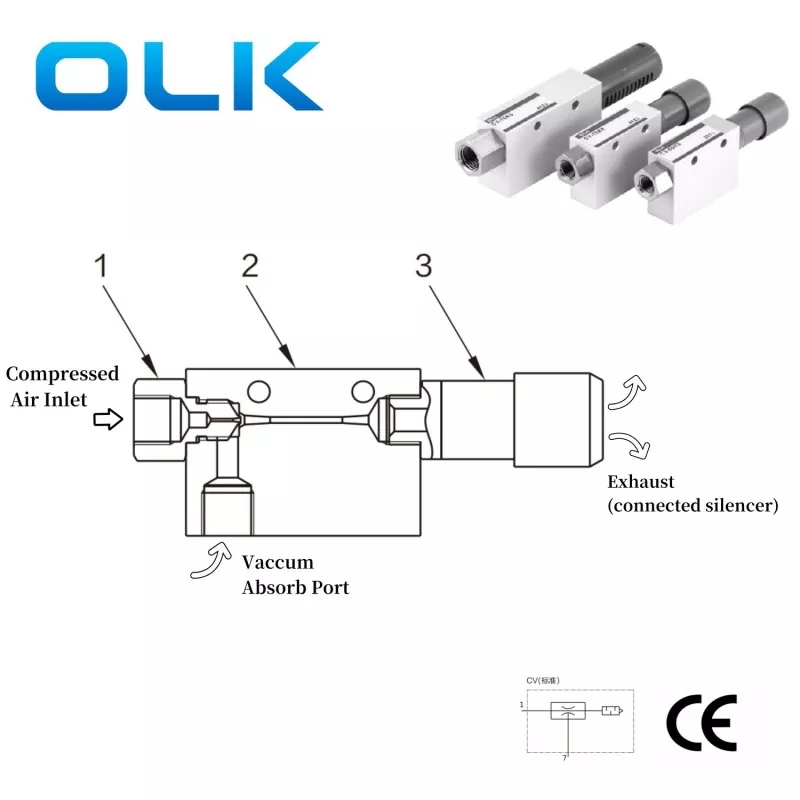

Ouleikai (OLK) CV vacuum generators are used to provide the vacuum environment needed for suction nozzles or fixtures. The intake port should be connected to compressed air, while the suction cup is connected to the vacuum port. When compressed air flows from the intake port to the exhaust port, a vacuum is generated at the vacuum port. This vacuum force can be used to adhere objects, achieving tasks like fixing or supporting, thereby improving operational efficiency in industrial production.

OLK CV vacuum generators have a simple structure and a long service life.

CV series vacuum generator features:

1.A vacuum generator that uses compressed air to form a vacuum can be used in combination with a vacuum sucker to transport materials.

2.Vacuum generators with a wide range of types and performance to meet your application requirements.CV series is plate vacuum generator.

Symbol:

Ordering Code
CV	--	10	H	S
CV series vacuum generator		Nozzle Diameter (Orifice Size)	Vacuum pressure reached	Rated air supply pressure
		10:Φ1.0	H:-88kpar pressure type	S:5 bar
		15:Φ1.5
		20:Φ2.0

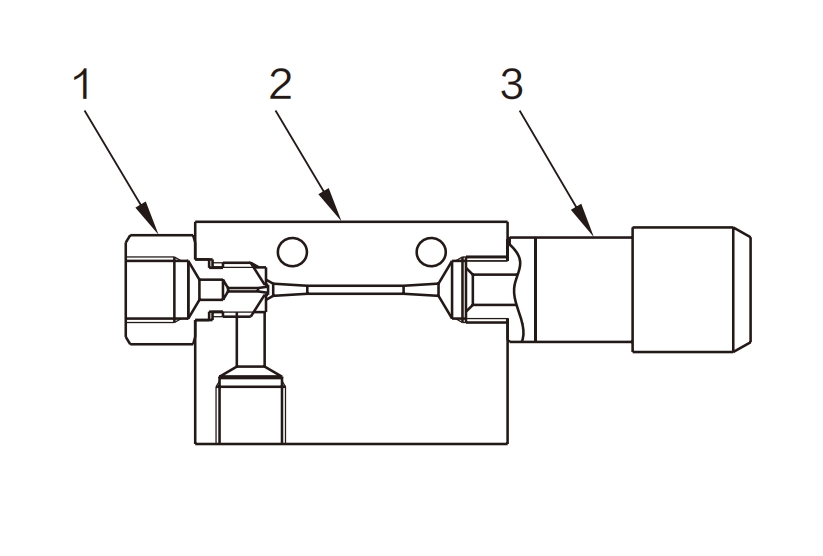

NO.	Name	Material
1	Supply port	Brass
2	Body	Aluminum
3	Silencer	POM

CV series vacuum generator General parameters

working medium	oil-free compressed air
Working pressure range MPa(psi)	0.1~0.6
Working temperature °C	0~60 (do not freeze)

CV series vacuum generator different parameters

Model	A	B	C	D	E	F	G	H	I	J/V port:Vacuum	K	L/P Port:air inlet	O	P	Silencer/R port:Exhaust
CV10	45	33	16	10	8	14	20	4.5	Φ4.2	G1/8	10	G1/8	14	90	G1/8
CV15	64	35	20	11	10	20	25	5	Φ4.5	G1/4	15	G1/4	17	123.5	G1/4
CV20	85	40	30	15	13	28	32	7	Φ6	G3/8	20	G1/4	17	165.5	G1/2

model	Nozzle diameter mm	Rated pressure MPa	Suction flow R/min(ANR)	Reach vacuum pressure kPa	Air consumption flow rate R/min(ANR)	N.W(g)

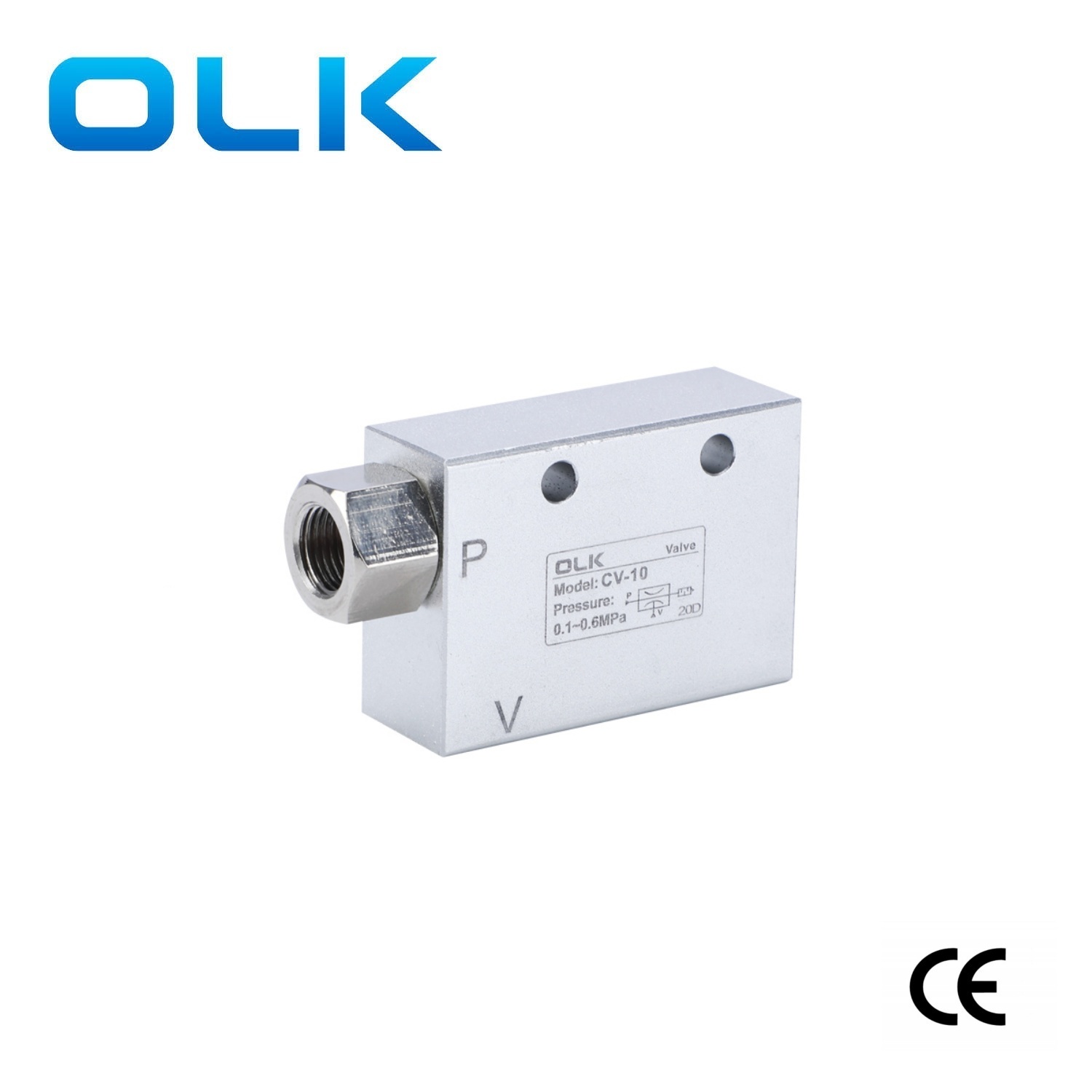

CV-10HS	1	0.5	27	-0.92	44	80

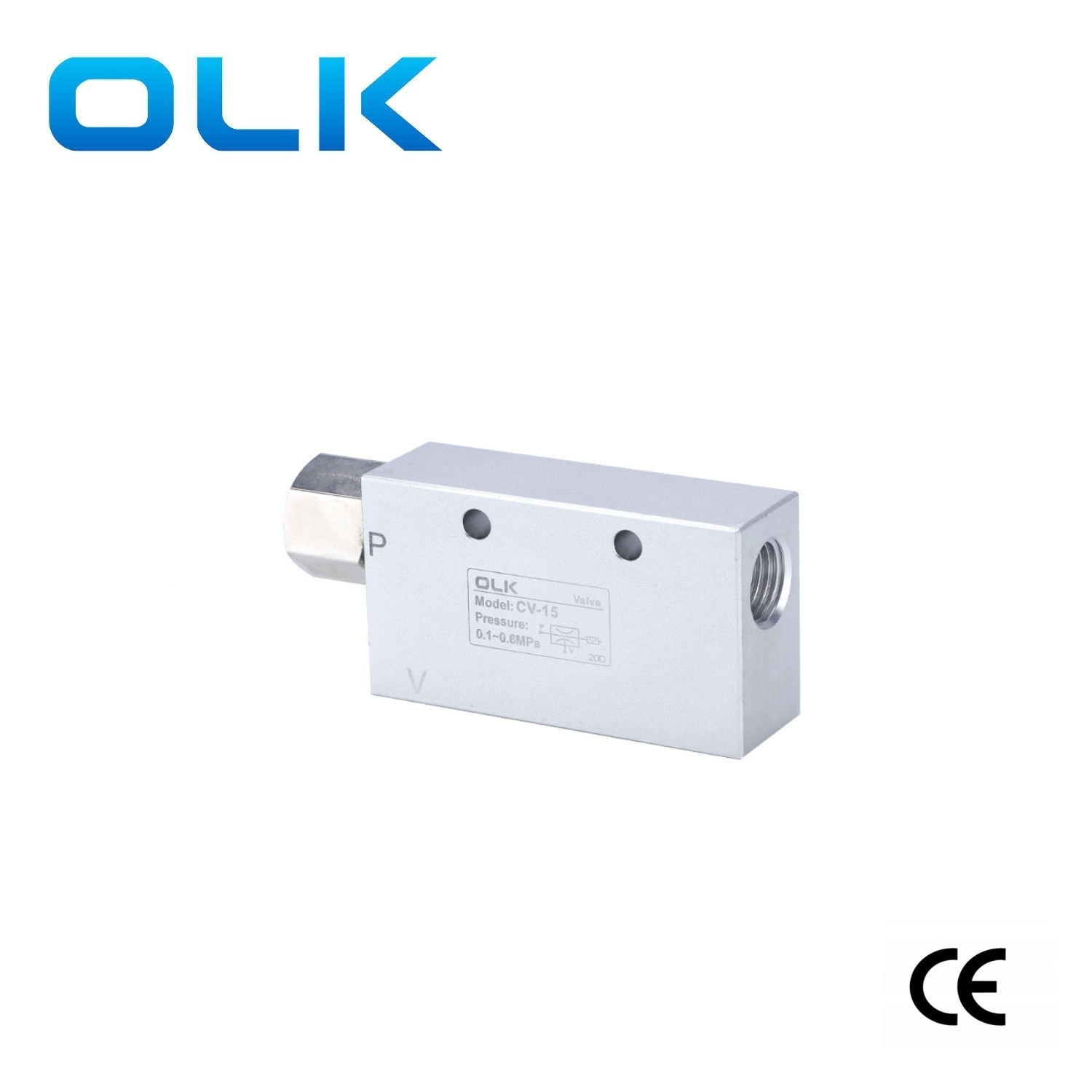

CV-15HS	1.5	0.5	63	-0.92	100	140
CV-20HS	2	0.5	110	-0.92	180	350

Precautions for CV Vacuum Generator

1.The flow rate of the generator must be chosen correctly.

If the flow rate is too large and not suitable, the vacuum pressure difference between "suction on" and "suction off" will not be clear.

This may cause the vacuum switch to not work properly.

Vacuum logic valves may also have the same problem. Please pay special attention, and refer to the related notes shared before.

2.The air supply to the vacuum generator must be dry and clean.

Between the vacuum port and the suction cup, a vacuum filter should be installed if necessary.

Do not suck in water, and especially not oil, as this may block the nozzle.

The silencer outlet must not be blocked.

If you extend the exhaust pipe, please consider that poor exhaust may cause vacuum pressure to drop.

3.Sometimes the vacuum system connects a blow-off pipe to help the suction cup release the workpiece quickly.

In this case, please make sure the blow-off pressure and flow are not too high.

If too high, it may blow out the pressure detection piston and cause the generator to fail.

FAQs:

What is the difference between a vacuum generator and a vacuum pump?

A vacuum pump creates negative pressure at the suction port and exhausts directly to the atmosphere. It removes gas by maintaining a large pressure difference between the inlet and outlet.

A vacuum generator uses the flow of compressed air to create a vacuum.

What accessories are needed for the CV vacuum generator?

One silencer and two fittings

Why is there no separate suction force parameter?

Suction force depends on both the vacuum level of the generator and the size of the suction cup.

Formula: Pressure × Area = Force.

The suction cup size is fixed, but the vacuum level changes with the generator and the flow rate. Please refer to the parameter explanation for details.

Why can’t the maximum vacuum be reached?

If the suction flow is too small, it cannot overcome leakage, causing pressure drop. It may also be due to insufficient air supply to the generator.

If the generator already reaches maximum vacuum but the suction is still weak, the suction cup may be too small. Replacing the generator will not increase suction in this case.

Which vacuum generator has stronger suction?

A generator itself does not have a “suction force” parameter, only a maximum vacuum level.

Maximum vacuum is not equal to actual vacuum. The real difference between models is the vacuum flow rate.

Suction force = Vacuum × Suction cup area. It is the combination of the generator and suction cup that determines suction.

If the vacuum flow rate of a generator is too low for the application, the vacuum level will drop and suction will not be enough. In that case, you should choos

Item	Vacuum Pump	Vacuum Generator
Maximum Vacuum	Up to 101.3 kPa (can reach maximum value at the same time)	Up to 88 kPa (cannot reach maximum value at the same time)
Suction Flow Rate	Very large	Not large
Structure	Complex	Simple
Volume	Large	Very small
Weight	Heavy	Very light
Service Life	With moving parts; relatively long	No moving parts; long service life
Power Consumption	Relatively high	Relatively high
Price	High	Low
Installation	Inconvenient	Convenient
Maintenance	Required	Not required
Integration with Accessories	Difficult	Easy
Vacuum Generation and Release	Slow	Fast
Vacuum Pressure Pulsation	With pulsation, vacuum tank required	No pulsation, vacuum tank not required
Application Fields	Suitable for continuous, high-flow operation; not suitable for frequent start/stop; best for centralized use	Requires compressed air supply; suitable for intermittent low-flow operations; best for distributed use; material can be modified to achieve heat resistance and corrosion resistance
