PE Union Tee Push In Tube Fitting

The following is an introduction to PE Union Tee Push In Tube Fitting, OLK hope to help you better understand PE Union Tee Push In Tube Fitting. Welcome new and old customers to continue to cooperate with us to create a better future together!

Send Inquiry

Product Description

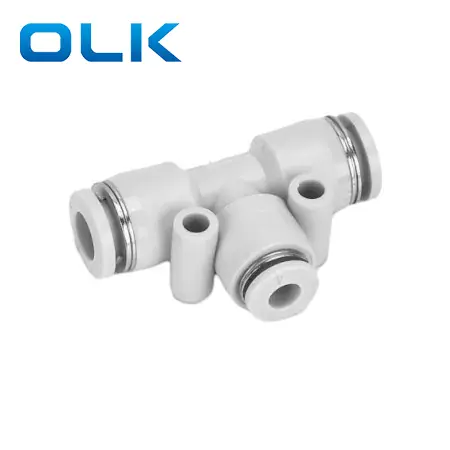

The PE Union Tee Push In Tube Fitting is a T-shaped fitting used to split or combine airflow in pneumatic systems.

It connects three tubes of the same outer diameter, offering a secure and airtight connection in all directions.

PE	8
Model	Tube size (metric)
PE series fitting	4:4mm
	6:6mm
	8:8mm
	10:10mm
	12:12mm
	14:14mm
	16:16mm

PE Union Tee Push In Tube Fitting General basic parameters

Fluid	Air/water(conditional)/vacuum
Operating pressure	0-1.0Mpa
Vacuum pressure	-100Kpa(10 Torr)
Operating temperature	-10-60℃
Material	NYLON(PA),Polyurethane(PU)

Inch Tube Fitting	MetricTube Fitting	φD	B	E	F	φd
PE5/32	PE-4	4	36.6	18.3	/	/
PE1/4	PE-6	6	41	20.5	16	3.5
PE5/16	PE-8	8	46	23	20	4.5
PE3/8	PE-10	10	56.6	28.3	24	4.5
PE1/2	PE-12	12	58.6	29.3	27.7	5
	PE-14	14	60.8	30.4	25.8	4
	PE-16	16	69	34.5	33	4

Common Imperial Thread Size Conversion Reference
Imperial Size	Approx. Metric (mm)	Conversion Formula
1/8	3.2mm	1÷8×25.4=3.175
5/32	3.97mm	5÷32×25.4=3.97
1/4	6.35mm	1÷4×25.4=6.35
5/16	7.94mm	5÷16×25.4=7.94
3/8	9.53mm	3÷8×25.4=9.53
1/2	12.7mm	1÷2×25.4=12.7
