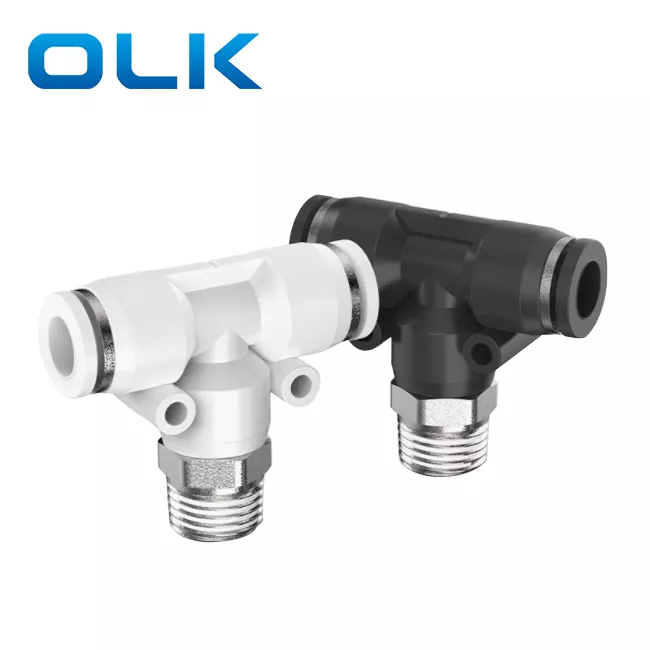

The PB Branch Tee Push In Tube Fitting is a straight union push-in fitting used to connect two tubes in a pneumatic system, ensuring smooth airflow and reliable sealing.
PB fitting Key Features:Push-to-connect for quick and easy installation;Straight dual-end tube connection
|
Ordering code |
|||
|
PB |
8 |
-- |
01 |
|
Model |
Tube size (metric) |
|
Thread type (55°straight tube thread) |
|
PB series fitting |
4:4mm |
|
01:G1/8 |
|
|
6:6mm |
|
02:G1/4 |
|
|
8:8mm |
|
03:G3/8 |
|
|
10:10mm |
|
04:G1/2 |
|
|
12:12mm |
|
|
|
|
14:14mm |
|
|
|
|
16:16mm |
|
|
|
Fluid |
Air/water(conditional)/vacuum |
|
Operating pressure |
0-1.0Mpa |
|
Vacuum pressure |
-100Kpa(10 Torr) |
|
Operating temperature |
-10-60℃ |
|
Material |
NYLON(PA),Polyurethane(PU) |
|
Inch Tube Fitting |
Metri Tube Fitting |

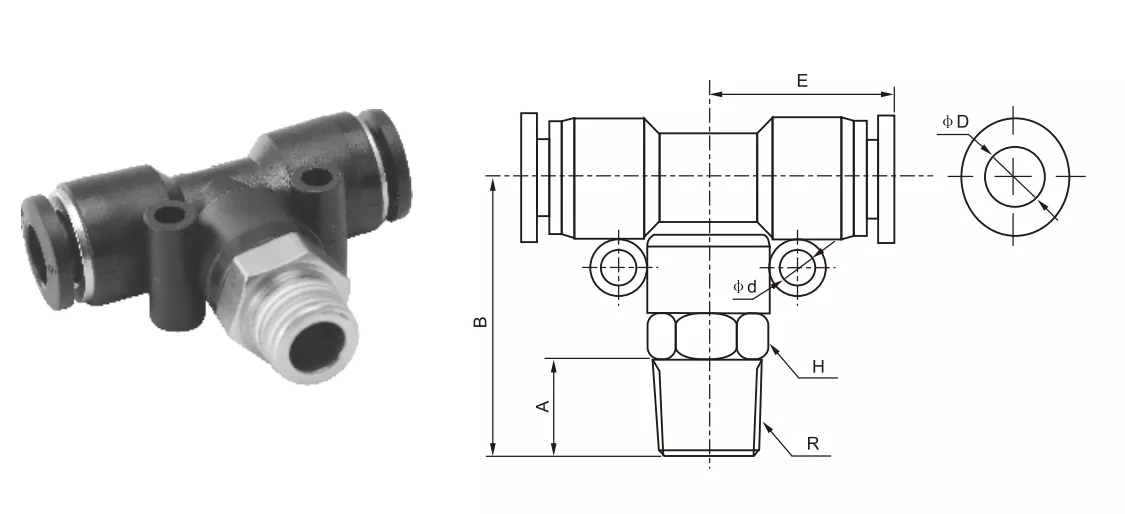

φD |
R |
A |
B |
E |
H2 |
φd |
|
PB5/32-M5 |
PB4-M5 |
4 |
M5 |
4.5 |
25.4 |
18.6 |
10 |
/ |
|
PB5/32-01 |
PB4-01 |
4 |
R1/8 |
7 |
25.4 |
18.6 |
10 |
/ |
|
PB5/32-02 |
PB4-02 |
4 |
R1/4 |
9 |
27.8 |
18.6 |
14 |
/ |
|
PB1/4-M5 |
PB6-M5 |
6 |
M5 |
4.5 |
26.8 |
20.8 |
12 |
3.5 |
|
PB1/4-01 |
PB6-01 |
6 |
R1/8 |
6.5 |
37.6 |
20.8 |
12 |
3.5 |
|
PB1/4-02 |
PB6-02 |
6 |
R1/4 |
9 |
30 |
20.8 |
14 |
3.5 |
|
PB1/4-03 |
PB6-03 |
6 |
R3/8 |
10 |
30.6 |
20.8 |
17 |
3.5 |
|
PB1/4-04 |
PB6-04 |
6 |
R1/2 |
10 |
32.5 |
20.8 |
21 |
3.5 |
|
PB5/16-01 |
PB8-01 |
8 |
R1/8 |
8 |
31.5 |
22.9 |
14 |
4.5 |
|
PB5/16-02 |
PB8-02 |
8 |
R1/4 |
10 |
33 |
22.9 |
14 |
4.5 |
|
PB5/16-03 |
PB8-03 |
8 |
R3/8 |
10 |
33.6 |
22.9 |
17 |
4.5 |
|
PB5/16-04 |
PB8-04 |
8 |
R1/2 |
11 |
35 |
22.9 |
21 |
4.5 |
|
PB3/8-01 |
PB10-01 |
10 |
R1/8 |
8 |
37 |
27.8 |
17 |
4 |
|
PB3/8-02 |
PB10-02 |
10 |
R1/4 |
10 |
38 |
27.8 |
17 |
4 |
|
PB3/8-03 |
PB10-03 |
10 |
R3/8 |
10 |
38 |
27.8 |
17 |
4.5 |
|
PB3/8-04 |
PB10-04 |
10 |
R1/2 |
11 |
39 |
27.8 |
21 |
4.5 |
|
PB1/2-01 |
PB12-01 |
12 |
R1/8 |
8 |
37.5 |
29.5 |
19 |
5 |
|
PB1/2-02 |
PB12-02 |
12 |
R1/4 |
10 |
40 |
29.5 |
19 |
5 |
|
PB1/2-03 |
PB12-03 |
12 |
R3/8 |
10 |
40 |
29.5 |
19 |
5 |
|
PB1/2-04 |
PB12-04 |
12 |
R1/2 |
11 |
41 |
29.5 |
21 |
5 |
|
|
PB14-03 |
16 |
R3/8 |
11 |
46.3 |
34.5 |
24 |
4 |
|
|
PB14-04 |
16 |
R1/2 |
12 |
47.3 |
34.5 |
27 |
4 |
|
Name/type |
Interface Structure Description |
|
Run Tee (PD) |
The main airflow is straight, and the branches are led out vertically |
|
Branch Tee(PB) |
Two interfaces are connected at right angles, one on the branch of "T" |
|
Equal Tee |
Three ports with the same size |
