OLK brand PG Reducer Union Straight Push In Tube Fitting is used to connect air tubes with different diameters, such as 6mm to 4mm. It is suitable for tight spaces or when a size transition is needed.

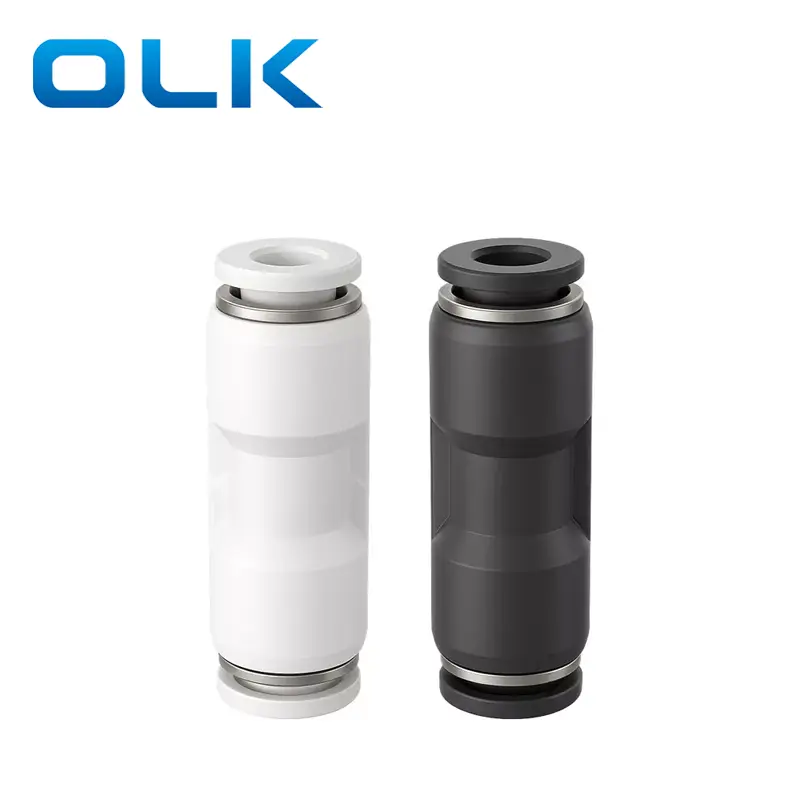

The connector is available in three colors: blue, white, and black.
|
Ordering code |
|||
|
PG |
8 |
-- |
01 |
|
Model |
Tube size (metric) |
|
Tube size (metric) |
|
PG series fitting |
4:4mm |
|
4:4mm |
|
|
6:6mm |
|
6:6mm |
|
|
8:8mm |
|
8:8mm |
|
|
10:10mm |
|
10:10mm |
|
|
12:12mm |
|
12:12mm |
|
|
14:14mm |
|
14:14mm |
|
|
16:16mm |
|
16:16mm |
|
Fluid |
Air/water(conditional)/vacuum |
|
Operating pressure |
0-1.0Mpa |
|
Vacuum pressure |
-100Kpa(10 Torr) |
|
Operating temperature |
-10-60℃ |
|
Material |
NYLON(PA),Polyurethane(PU) |
|
Inch Tube Fitting |
MetricTube Fitting |

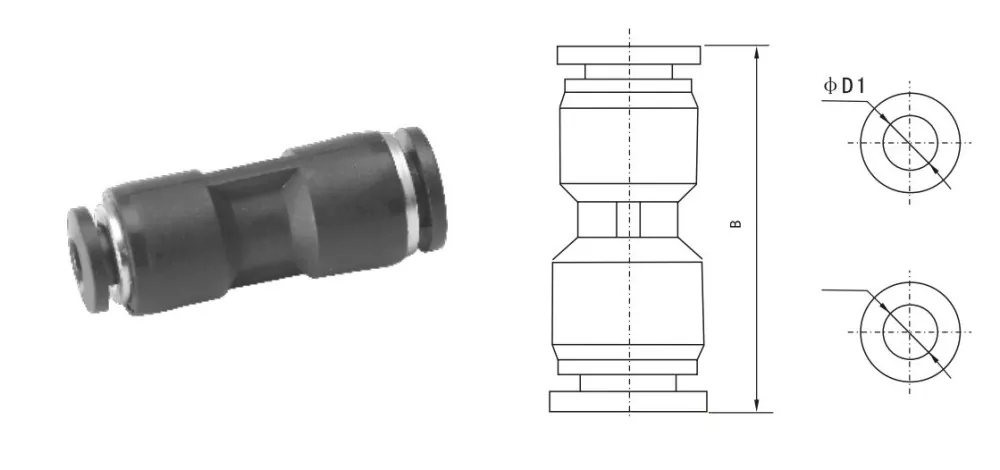

φD1 |
φD2 |
B |
|
PG1/4-5-32 |
PG6-4 |
6 |
4 |
35 |
|
PG5/16-1/4 |
PG8-6 |
8 |
6 |
35.5 |
|
PG3/8-5/16 |
PG10-8 |
10 |
8 |
38 |
|
PG1/2-13/8 |
PG12-10 |
12 |
10 |
47 |
|
|
PG16-12 |
12 |
12 |
47.5 |
|
PG2/6-5/32 |
PG8-4 |
8 |
4 |
47.5 |
|
PG3/8-1/4 |
PG8-4 |
10 |
6 |
67 |
|
PG1/2-5/16 |
PG12-8 |
12 |
8 |
67 |
|
Common Imperial Thread Size Conversion Reference |
||
|
Imperial Size |
Approx. Metric (mm) |
Conversion Formula |
|
1/8 |
3.2mm |
1÷8×25.4=3.175 |
|
5/32 |
3.97mm |
5÷32×25.4=3.97 |
|
1/4 |
6.35mm |
1÷4×25.4=6.35 |
|
5/16 |
7.94mm |
5÷16×25.4=7.94 |
|
3/8 |
9.53mm |
3÷8×25.4=9.53 |
|
1/2 |
12.7mm |
1÷2×25.4=12.7 |
The difference between PU fittings and PG fittings ?
PU connects the same air hose on both sides, PG connects air hose with different diameters on both sides
