PCF Female Straight Push In Tube Fitting
  • PCF Female Straight Push In Tube FittingPCF Female Straight Push In Tube Fitting
  • PCF Female Straight Push In Tube FittingPCF Female Straight Push In Tube Fitting

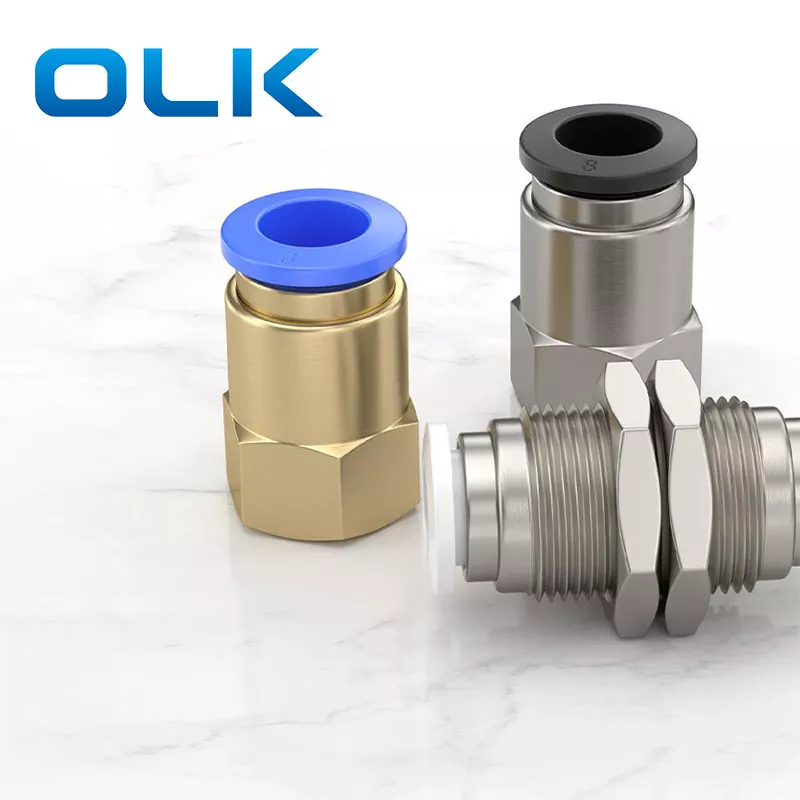

PCF Female Straight Push In Tube Fitting

As the professional manufacture, OLK would like to provide you PCF Female Straight Push In Tube Fitting. And OLK will offer you the best after-sale service and timely delivery.

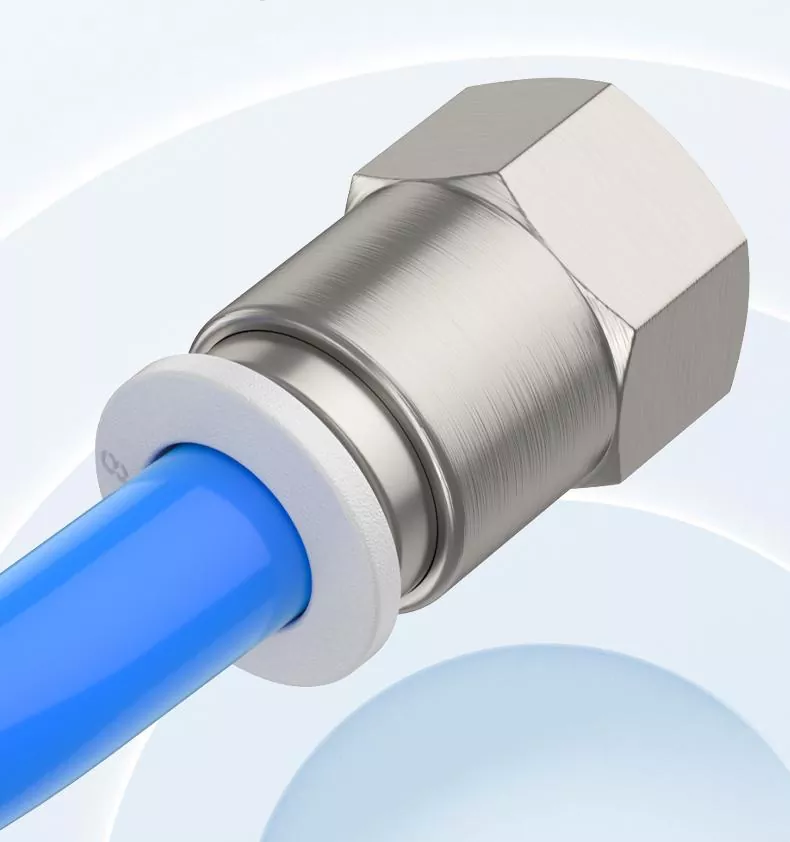

PCF Female Straight Push In Tube Fitting and PC male thread straight push in tube fitting all belong to the basic type push-in-fitting.But the PCF is female R thread straight.Internal thread is used to connect external threaded components, and the insertion tube end is connected to a hose.Both support multiple thread standards, making hose insertion and removal convenient.The product features internal threads, and the PCF Female Straight Push In Tube Fitting shape can be shorter and installed more compactly

Ordering code

PCF

8

--

01

Model

Tube size (metric)



Thread type (55°straight tube thread)

PCF series fitting

4:4mm



01:G1/8



6:6mm



02:G1/4



8:8mm



03:G3/8



10:10mm



04:G1/2



12:12mm







14:14mm







16:16mm




PCF Female Straight Push In Tube Fitting General basic parameters

Fluid

Air/water(conditional)/vacuum

Operating pressure

0-1.0Mpa

Vacuum pressure

-100Kpa(10 Torr)

Operating temperature

-10-60℃

Material

NYLON(PA),Polyurethane(PU)

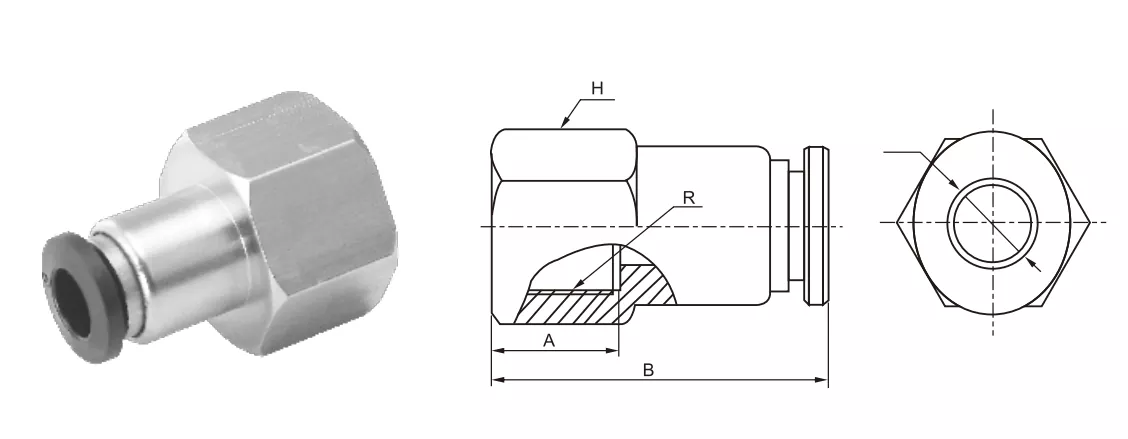

PCF Female Straight Push In Tube Fitting Outline dimension parameters

Inch Tube Fitting

Metric Tube Fitting

φD

R

A

B

H

PCF5/32-M5

PCF4-M5

4

M5

6.5

24.4

10

PCF5/32-01

PCF4-01

4

R1/8

9

26.6

10

PCF5/32-02

PCF4-02

4

R1/4

11

28.8

15

PCF1/4-M5

PCF6-M5

6

M5

6.5

24

12

PCF1/4-01

PCF6-01

6

R1/8

9

28

12

PCF1/4-02

PCF6-02

6

R1/4

11

30

15

PCF1/4-03

PCF6-03

6

R3/8

12

30.5

19

PCF1/4-04

PCF6-04

6

R1/2

12.5

31.5

24

PCF5/16-01

PCF8-01

8

R1/8

9

28.5

14

PCF5/16-02

PCF8-02

8

R1/4

11

30.5

15

PCF5/16-03

PCF8-03

8

R3/8

12

31

19

PCF5/16-04

PCF8-04

8

R1/2

12.5

32.5

24

PCF3/8-01

PCF10-01

10

R1/8

9

32.4

17

PCF3/8-02

PCF10-02

10

R1/4

11

34

17

PCF3/8-03

PCF10-03

10

R3/8

12

34

19

PCF3/8-04

PCF10-04

10

R1/2

12.5

35

24

PCF1/2-01

PCF12-01

12

R1/8

9

35

19

PCF1/2-02

PCF12-02

12

R1/4

11

35

19

PCF1/2-03

PCF12-03

12

R3/8

12

35

19

PCF1/2-04

PCF12-04

12

R1/2

12.5

36.5

24



PCF16-03

16

R3/8

16.5

46.4

24



PCF16-04

16

R1/2

18

48.4

32



PC

PCF

Type

Push-in-connector

Thread type support

BSPT / NPT / Metric

Thread

Male

Female

Installation

Screw in threaded holes or cylinder and other equipment ends

Screw into the externally threaded cylinder or joint

Application

The most common universal model, preferred, equipped with internal thread equipment

Used for connecting with external threaded fittings or in situations with high space requirements

Installed on the cylinder or valve body (the cylinder has internal threads), the threaded end is connected to the equipment, and the hose is inserted for use

Connect the air outlet of the control valve or solenoid valve (with external thread) and fix the device with internal thread, and insert a hose at the other end

Requires stronger locking strength or higher sealing requirements, often used in conjunction with thread sealant or O-ring

Due to limited space, only internal threads can be used for connection. Can reduce the overall joint length

FAQs:

What pneumatic applications are PCF Female Straight Push In Tube Fitting suitable for?

It must be an external threaded accessory connection with high space requirements


What should I pay attention to when using a PCF connector joint?

The operation pressure cannot exceed 1.0MPa
