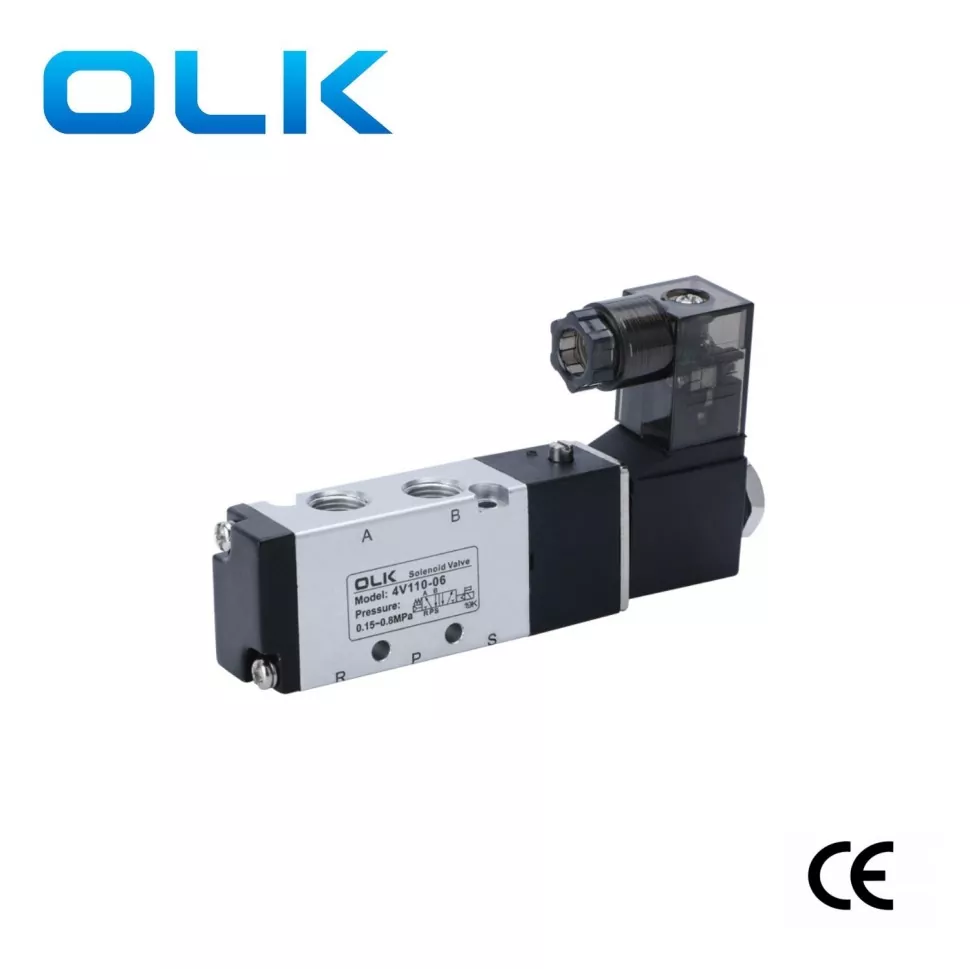

OLK 4V100 Solenoid Valve 5 Way, 5/2 way pneumatic solenoid valve passed CE certification.The appearance size is the smallest model, with a compact design and an interface specification of 1/8’’. 4V100 solenoid valve is suitable for smaller pneumatic systems with lower flow rates. Applied to small devices or small cylinders that require precise control.
|
Ordering code |
|
|
|
|
|
|
4V |
1 |
10 |
6 |
AC110V |
|
|
Model |
Code |
valve type |
port size |
voltage |
Explosion proof coil |
|
4v:sports2(3)position solenoid valve |
1:100 series |
10:single solenoid 5/2 way |
M5:M5X0.8 |
AC220V |

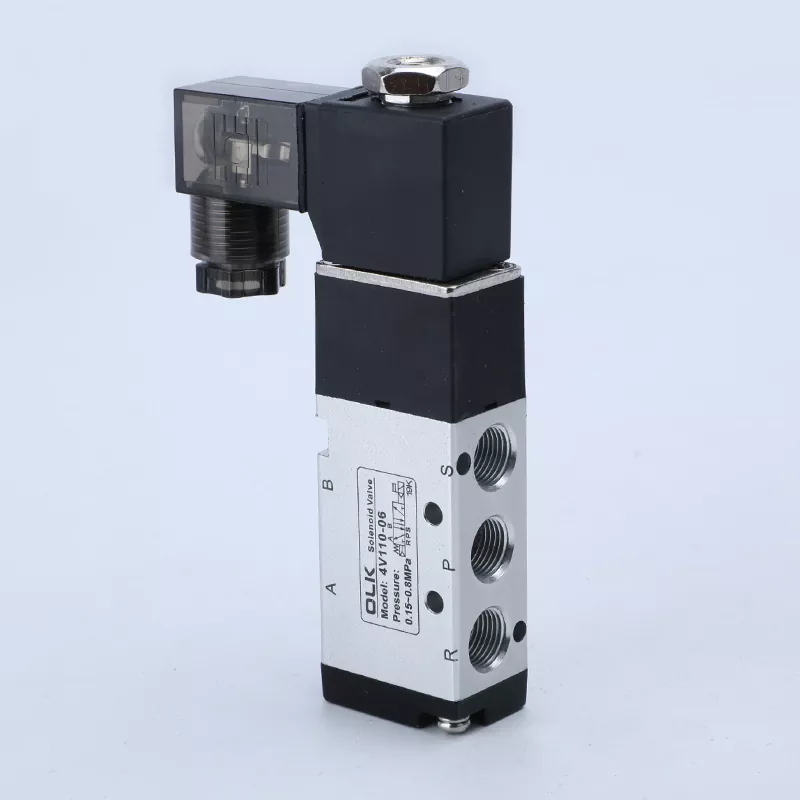

Non:Din type |
|
|
|
20:double solenoid valve 5/2 way |
06:1/8'' |
DC24V |

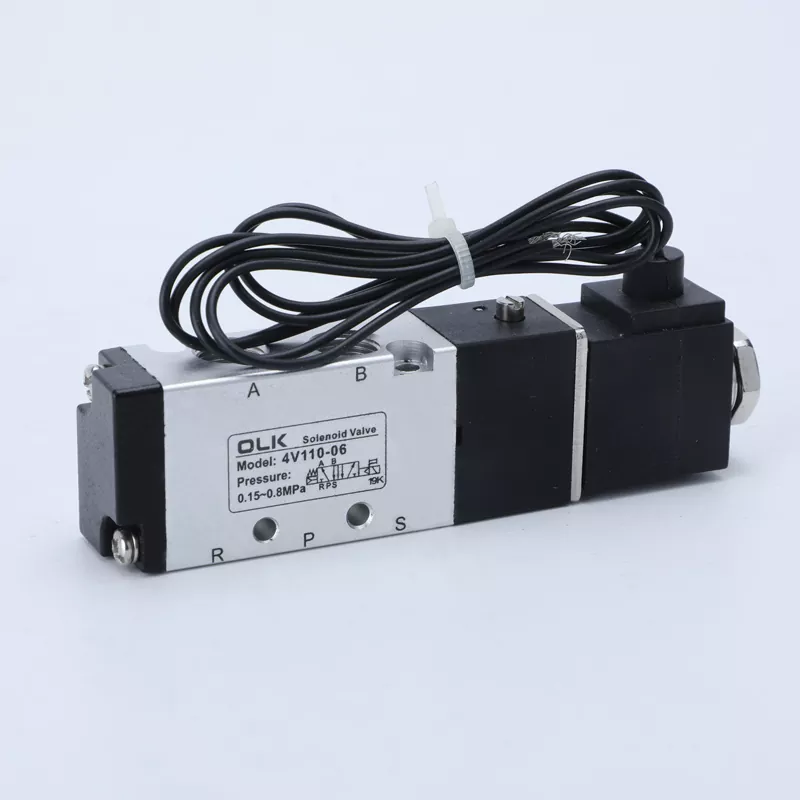

I:Line type |
|
|
|
30C:double solenoid vlave5/3way closed center |
|
AC110V |
|
|
|
|
30E:double solenoid vlave5/3way exhaust center |
|
AC24V |
|
|
|
|
30P:double solenoid valve 5/3 way pressure center |
|
DC12V |
|
|
Model |
4V110-M5 4V120-M5 |
4V130C-M5 4V130E-M5 4V130P-M5 |
4V110-06 4V120-06 |
4V130C-06 4V130E-06 4V130P-06 |
|
Working medium |
Air（Filter through a filter screen of over 40μm） |
|||
|
Action mode |
Internal Pilot Type |
|||
|
port size |
Inlet=Outlet=Exhaust Port=M5 |
Inlet=Outlet==G1/8 |
||
|
Effective cross-sectional area |
5.5mm²（Cv=0.31） |
5.0mm²（Cv=0.28） |
12.0mm²（Cv=0.67） |
9.0mm²（Cv=0.5） |
|
Positions |
5/2 Port |
5/3 Port |
5/2 Port |
5/2 Port |
|
Pressure range |
0.15-0.8 MPa (21-114psi) |
|||
|
Proof pressure |
1.5MPa (215psi) |
|||
|
Working Pressure |
‘-20-70℃ |
|||
|
Body Material |
Aluminum Alloy |
|||
|
Lubrication |
No Need |
|||
|
Max.Operating Frequency |
5 times/second |
3 times/second |
5 times/second |
3 times/second |
|
Weight |
4V110-M5:130g 4V120-M5:175g |
200 g |
4V110-06:120g 4V120-06：175g |
200 g |
