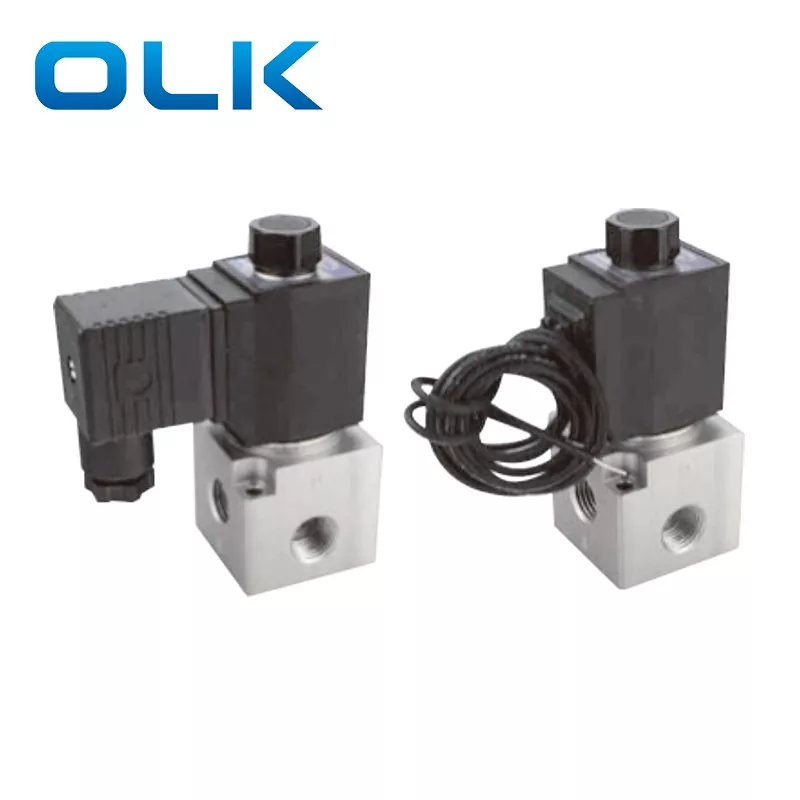

The 3V3 high-flow solenoid valve is a 2-position, 3-way valve with a direct-acting design, providing faster response and higher switching frequency than pilot-operated valves. Its robust aluminum alloy body supports high air flow and higher pressure, and it can also be used with vacuum applications. The solenoid coil options include DC12V, DC24V, AC110V, or AC220V, ensuring stable and sensitive operation.
This 3V3 high-flow solenoid valve 3 way is suitable for medium to large pneumatic systems, especially for multiple cylinders working together or systems requiring high air flow. Its normally closed (NC), normally open (NO), and double-solenoid configurations make it ideal for automation lines, packaging machines, printing equipment, and food processing machinery. Its fast and precise response distinguishes it from small valves like the 3V2.
1.Direct-acting structure with sensitive switching.

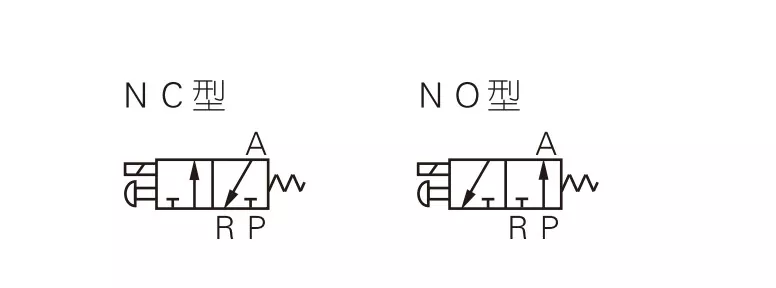

2.Normally closed (NC) and normally open (NO) types available.
3.Coaxial shut-off design for good sealing and large flow.
4.No lubrication required.
5.Equipped with a manual override for easy installation and testing.
6.Multiple standard voltage options available.
|
Ordering code |
||||||||
|
3V |
3 |
- |
08 |
NC |
A |
|
|
|
|
Model |
Code |
|
Port size |
Acting type |
Standard voltage |
Electrical entry |
Thread type |
|
|
3V:2 position 3 way |
3:3series |
|
08:G1/4 |
NC:normally closed
|
A:AC220V |

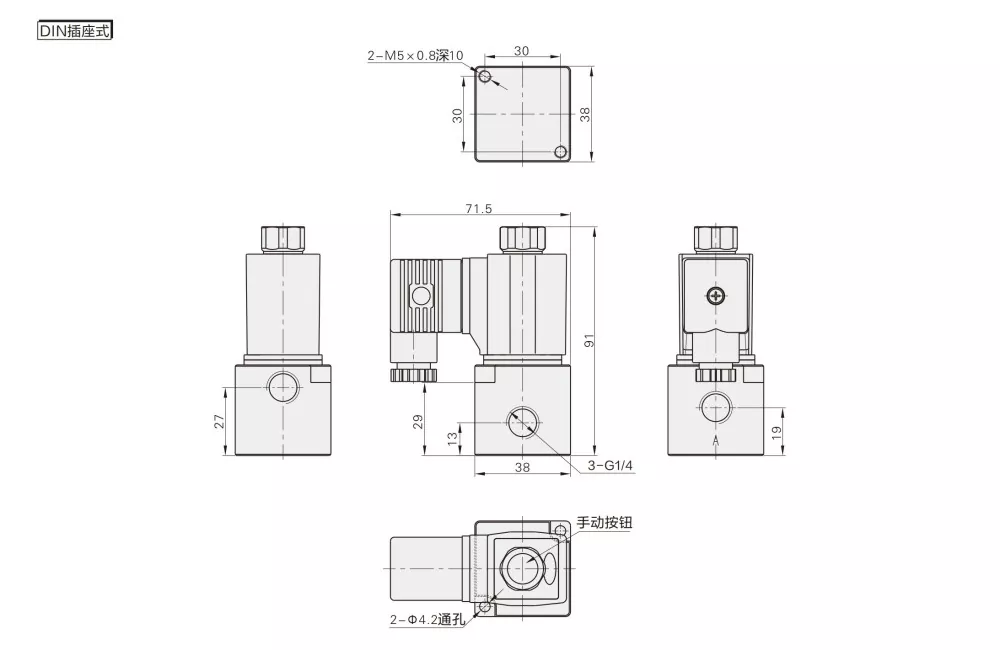

Blank:DIN type |
Blank:G
|
|
|
|
|
|
|
NO:normally opened |
B:DC24V |

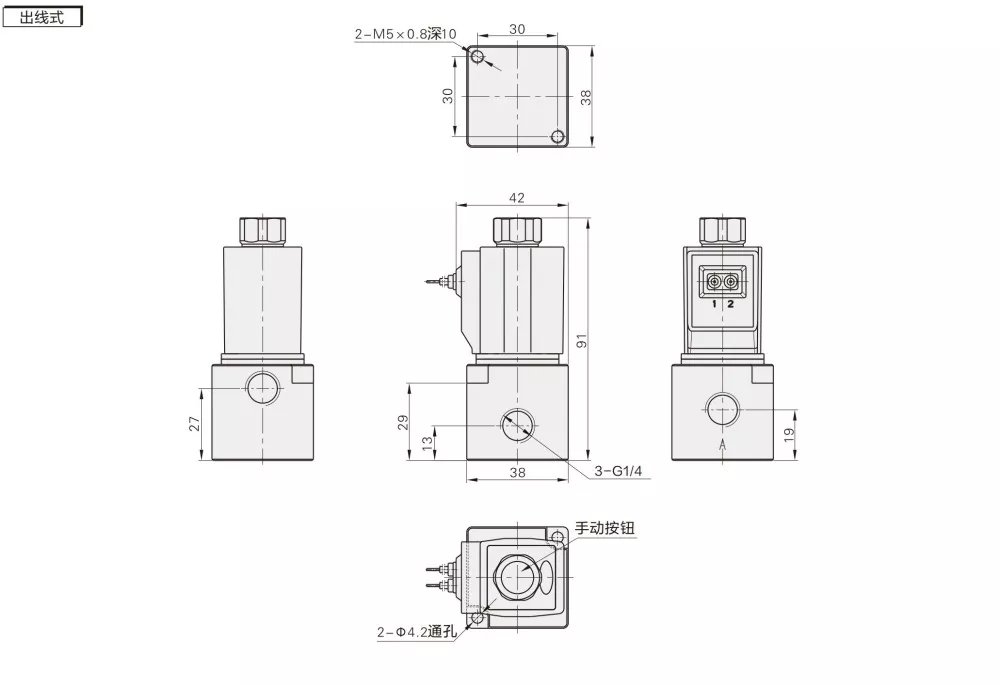

I: Line type |
T:NPT |
|
|
|
|
|
|
|
C:AC110V |
|
|
|
|
|
|
|
|
|
E:AC24V |
|
|
|
|
|
|
|
|
|
F:DC12V |
|
|
|
|
Model |
3V3-08 |
|
Working Medium |
Air (filtered by 40 μm or above filter) |
|
Acting Type |
Direct Acting |
|
Port Size* |
G1/4 |
|
Position & Way |
2 Position 3 way |
|
Effective Area |
11 mm²(Cv = 0.62) |
|
Lubrication |
Not required |
|
Operating Pressure Range |
0 ~ 0.8 MPa (0 ~ 114 psi) |
|
Proof Pressure |
1.5 MPa (215 psi) |
|
Operating Temperature (℃) |
-20 ~ 70 |
|
Body Material |
Aluminum Alloy |
|
Standard voltage |
AC220V AC110 AC24V DC24V DC12V |
|
Voltage Range |
AC：±15% DC :±10% |
|
Power Consumption |
AC:10VA DC:6.5W |
|
Protection Class |
IP65(DIN40050) |
|
Insulation Grade |
B Level |
|
Connecting Type |
DIN Plug Type/Line Type |
|
Min.Excitation Time |
0.05 Sec |
|
Item |
3V1-M5/3V1-06 |
2V025-06/2V025-08 |
3V2-06/3V2-08 |
3V3-08 |
|
Working Medium |
Air |
Air,Water,Oil |
Air |
Air |
|
Initial State: |
NC |
NC/NO |
NO/NC |
NO/NC |
|
Actuation Type |
Direct Acting |
Direct Acting |
Direct Acting |
Direct Acting |
|
Port Size |
M5;G1/8 |
G1/8;G1/4 |
G1/8;G1/4 |
G1/4 |
|
Position & Way |
3 Port 2 Position |
2 Port 2 Position |
3 Port 2 Position |
3 Port 2 Position |
|
Lubrication |
Not Required |
Not Required |
Not Required |
Not Required |
|
Working Pressure |
0–0.7 MPa |
0–0.7 MPa |
0–0.8 MPa |
0–0.8 MPa |
|
Proof Pressure |
1.2 MPa |
1.5 MPa |
1.2 MPa |
1.2 MPa |
|
Orifice Size |
φ1.2 mm |
φ2.5 mm |
Φ3.2 mm/φ3.4 mm |
Φ11 mm(large air flow) |
Q:What's the main different between 3V2 and 3V3 solenoid valve ?
A: 3V2:middle flow,suit for small pneumatic control system
3V3:high flow ,suit for multiple cylinders or high-flow applications.
Structure difference: 3V3 has a larger body and can handle higher pressure and flow.
Q:What is 3V3 solenoid valve orifice size?
A:3V3-08 valve orifice size is 11mm
Q: Which products can OLK 3V3 replace?
A: OLK 3V3 can replace AIRTAC 3V3 series solenoid valves with the same function and similar specifications.
