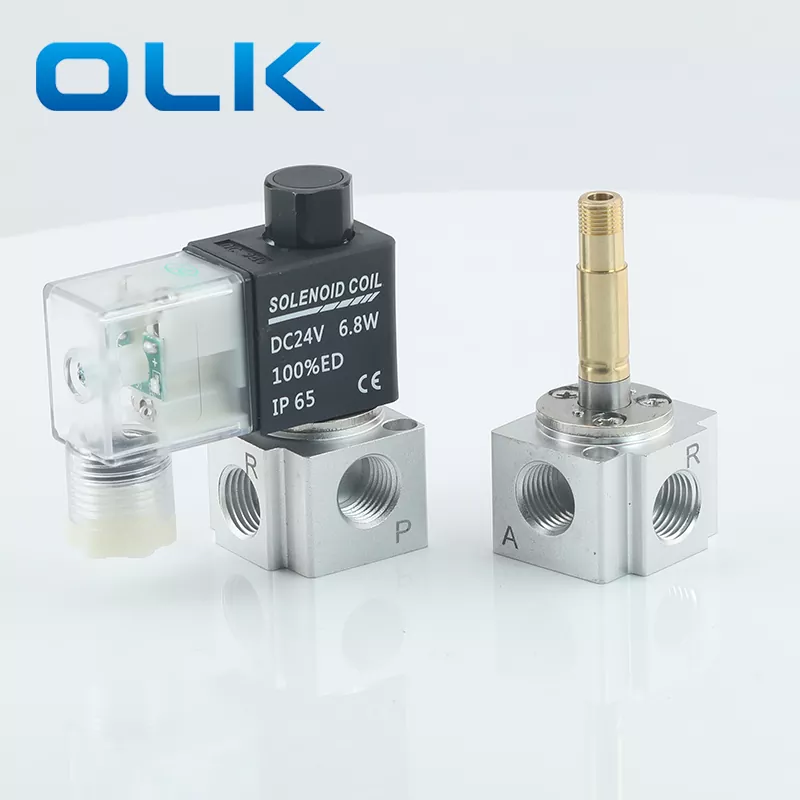

The 3V2 solenoid valve is small, light, and easy to install. Its body is made of strong aluminum, which resists rust and damage. The valve uses a reliable solenoid coil with options for DC12V, DC24V, AC110V, or AC220V power.

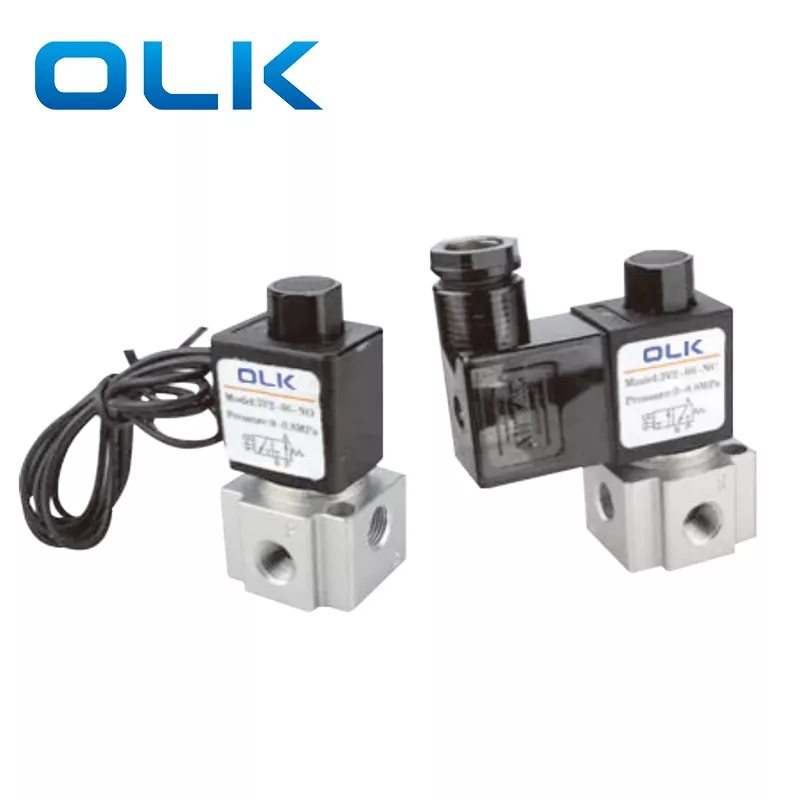

This OLK brand 3V2 solenoid valve works well for medium-flow air control. It switches quickly, uses little power, and lasts a long time. It can be normally closed (NC), normally open (NO), or double-solenoid. It is often used in automation lines, packaging machines, printing machines, and food machines. Its small size makes it perfect for tight spaces.
1.Direct-acting structure with sensitive switching.

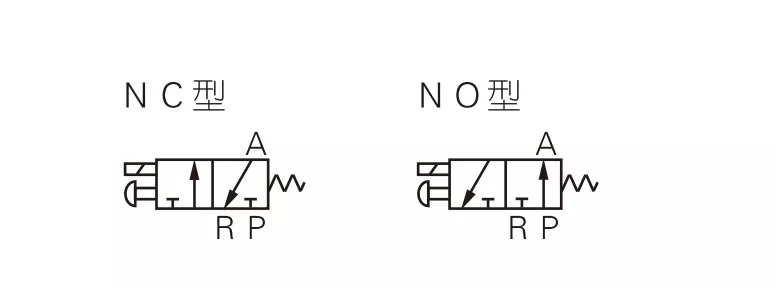

2.Normally closed (NC) and normally open (NO) types available.
3.Coaxial shut-off design for good sealing and large flow.
4.No lubrication required.
5.Equipped with a manual override for easy installation and testing.
6.Multiple standard voltage options available.
|
Ordering code |
||||||||
|
3V |
2 |
- |
08 |
NC |
A |
|
|
|
|
Model |
Code |
|
Port size |
Acting type |
Standard voltage |
Electrical entry |
Thread type |
|
|
3V:2 position 3 way |
2:2 series |
|
06:G1/8 |
NC:normally closed |
A:AC220V |

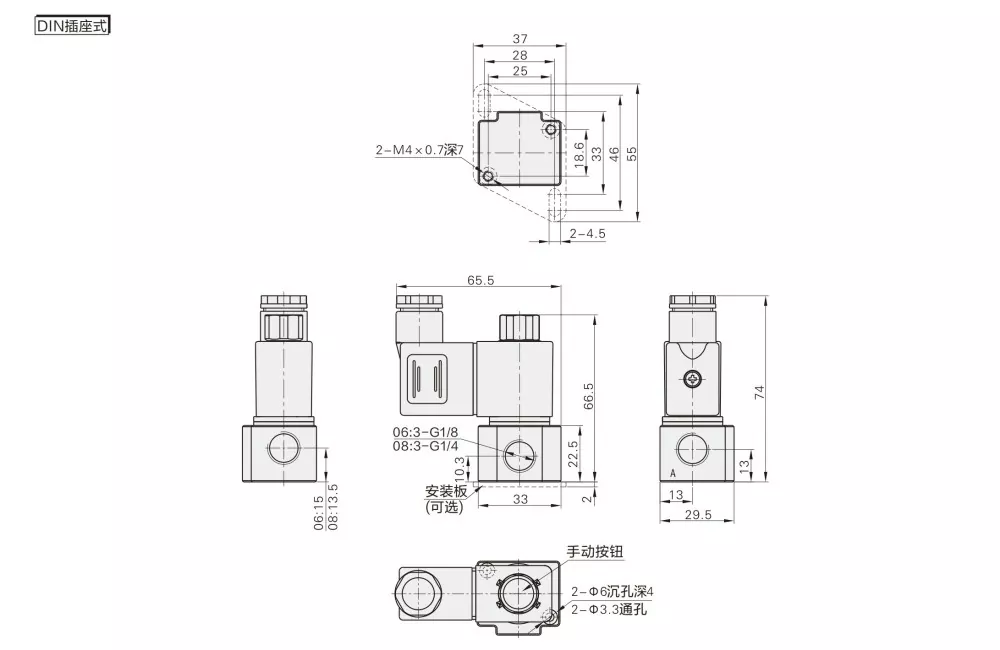

Blank:DIN type |
Blank:G |
|
|
|
|
|
08:G1/4 |
NO:normally opened |
B:DC24V |

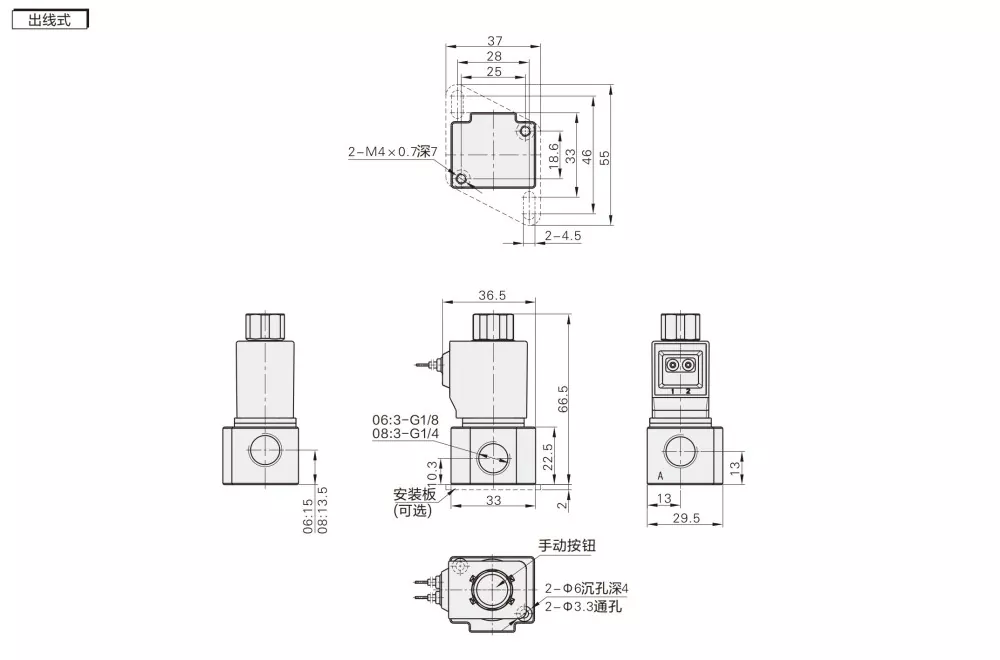

I: Line type |
T:NPT |
|
|
|
|
|
|
|
C:AC110V |
|
|
|
|
|
|
|
|
|
E:AC24V |
|
|
|
|
|
|
|
|
|
F:DC12V |
|
|
|
|
Model |
3V206 |
3V208 |
|
Working Medium |
Air (filtered by 40 μm or above filter) |
Air (filtered by 40 μm or above filter) |
|
Acting Type |
Direct Acting |
|
|
Port Size |
G1/8 |
G1/4 |
|
Position & Way |
2 Position 3 way |
|
|
Effective Area |
3.2 mm²(Cv = 0.18) |
3.4 mm² (Cv = 0.19) |
|
Lubrication |
Not required |
|
|
Operating Pressure Range |
0 ~ 0.8 MPa (0 ~ 114 psi) |
|
|
Proof Pressure |
1.5 MPa (215 psi) |
|
|
Operating Temperature (℃) |
-20 ~ 70 |
|
|
Body Material |
Aluminum Alloy |
|
|
Standard voltage |
AC220V AC110 AC24V DC24V DC12V |
|
Voltage Range |
AC：±15% DC :±10% |
|
Power Consumption |
AC:7VA DC:7.0W |
|
Protection Class |
IP65(DIN40050) |
|
Insulation Grade |
B Level |
|
Connecting Type |
DIN Plug Type/Line Type |
|
Min.Excitation Time |
0.05 Sec |
|

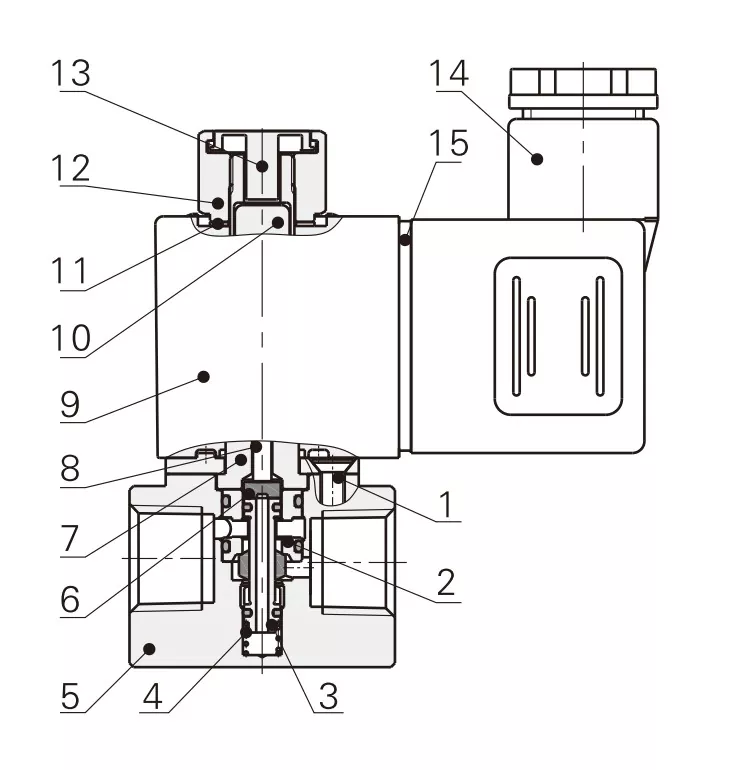

No. |
Name |
|
1 |
Countersunk Screw |
|
2 |
Spacer Sleeve |
|
3 |
Core Assembly |
|
4 |
Spring |
|
5 |
Body |
|
6 |
Gasket |
|
7 |
Solenoid Assembly |
|
8 |
Plunger Rod |
|
9 |
Coil |
|
10 |
Moving Iron Core |
|
11 |
Fixed Washer |
|
12 |
Fixed Nut |
|
13 |
Manual Button |
|
14 |
Terminal |
|
15 |
Terminal Gasket |
|
Item |
3V1-M5/3V1-06 |
2V025-06/2V025-08 |
3V2-06/3V2-08 |
3V3-08 |
|
Working Medium |
Air |
Air,Water,Oil |
Air |
Air |
|
Initial State: |
NC |
NC/NO |
NO/NC |
NO/NC |
|
Actuation Type |
Direct Acting |
Direct Acting |
Direct Acting |
Direct Acting |
|
Port Size |
M5;G1/8 |
G1/8;G1/4 |
G1/8;G1/4 |
G1/4 |
|
Position & Way |
3 Port 2 Position |
2 Port 2 Position |
3 Port 2 Position |
3 Port 2 Position |
|
Lubrication |
Not Required |
Not Required |
Not Required |
Not Required |
|
Working Pressure |
0–0.7 MPa |
0–0.7 MPa |
0–0.8 MPa |
0–0.8 MPa |
|
Proof Pressure |
1.2 MPa |
1.5 MPa |
1.2 MPa |
1.2 MPa |
|
Orifice Size |
φ1.2 mm |
φ2.5 mm |
Φ3.2 mm/φ3.4 mm |
Φ11 mm(large air flow) |
Q:What's the main different between 3V2 and 3V3 solenoid valve ?
A: 3V2:middle flow,suit for small pneumatic control system
3V3:high flow ,suit for multiple cylinders or high-flow applications.
Structure difference: 3V3 has a larger body and can handle higher pressure and flow.
Q:What is 3V2 solenoid valve orifice size?
A:3V2-06 valve orifice size is 3.2mm;3V2-06 valve orifice size is 3.4mm
Q: Which products can OLK 3V2 replace?
A: OLK 3V2 can replace AIRTAC 3V2 series solenoid valves with the same function and similar specifications.
