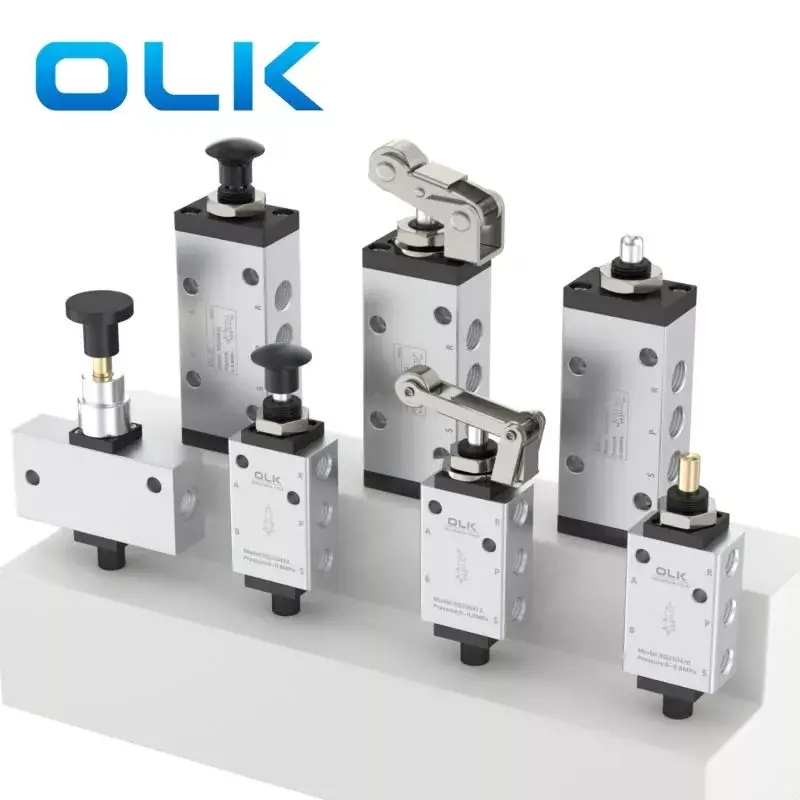

The Ouleikai (OLK) XSPC-type XQ valve is a manually controlled directional valve that can be used to drive cylinders or serve as a signal valve for other pneumatic components. This valve's control types include push rod, pull handle, bidirectional roller, and unidirectional roller, offering sensitive operation. It is commonly used as an emergency stop valve in pneumatic devices due to its short switching stroke and rapid response.
The Ouleikai (OLK) XQ valve is available in 2-position 3-way and 2-position 5-way configurations. The XQ2-position 3-way valve's air ports can be interchanged between normally open and normally closed modes.
SYMBOL:
|
XQ |
23 |
4 |
10 |
|
Model |
Position |
Port Size |
Button type |
|
XQ mechanical valve |
23:2/3 way |
04:G1/8 |
10:rod type |
|
25:2/5 way |
06:G1/4 |
12:bidirectional roller type |
|
|
20: button Type |
|||
|
21：Swing Lever type |
|||
|
|
|
|
22：hand pull type |
|
Model |
Position |
Function |
Port Size |
mm |
Woking Pressure |
ambient temperature |
|
XQ230410 |
2/3 way |
rod type |
G1/8 |
4 |
0-0.8Mpa |
‘-10~+60℃ |
|
XQ230610 |
G1/4 |
6 |
||||
|
XQ250410 |
2/5 way |
G1/8 |
4 |
|||
|
XQ250610 |
G1/4 |
6 |
||||
|
XQ230422 |
2/3 way |
Hand pull type |
G1/8 |
4 |
||
|
XQ230622 |
G1/4 |
6 |
||||
|
XQ250422 |
2/5 port |
G1/8 |
4 |
|||
|
XQ250622 |
G1/4 |
6 |
||||
|

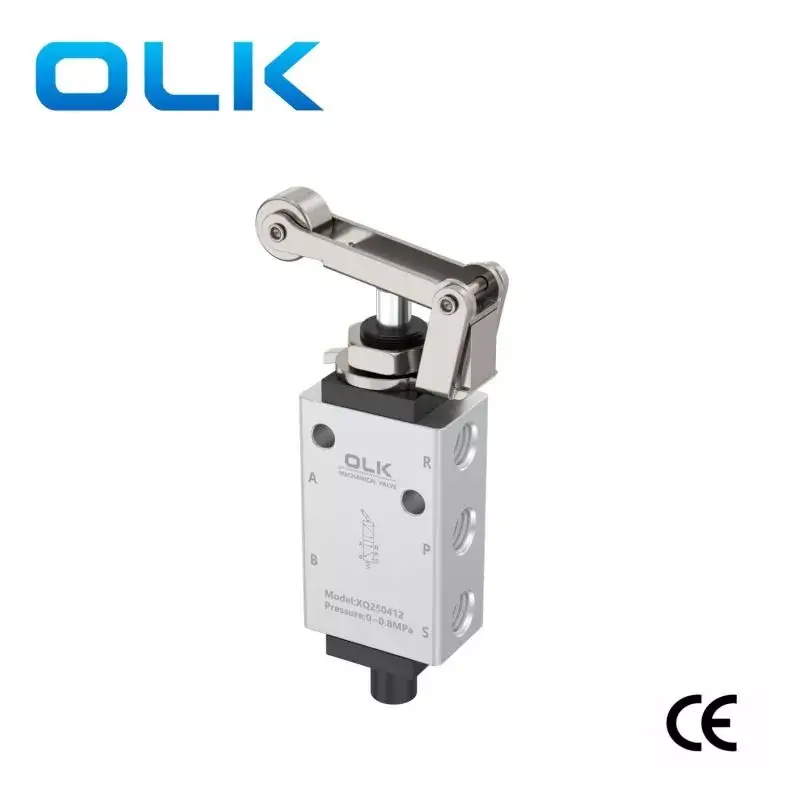

XQ230412 |
2/3 way |
Bidirectional Roller Type |
G1/8 |
4 |
||
|
XQ230612 |
G1/4 |
6 |
||||
|
XQ250412 |
2/5 way |
G1/8 |
4 |
|||
|
XQ250612 |
G1/4 |
6 |
||||
|
XQ230413 |
2/3 way |
Unidirectional Roller Type |
G1/8 |
4 |
||
|
XQ230613 |
G1/4 |
6 |
||||
|
XQ250413 |
2/5 way |
G1/8 |
4 |
|||
|
XQ250613 |
G1/4 |
6 |
| XQ250620 |
5/2 way |
button type |
G1/4 | 6 |
0-0.8Mpa |
‘-10~+60℃ |
| XQ250420 | G1/8 | 4 |
0-0.8Mpa |
‘-10~+60℃ |
||
|
XQ250621 |
swing lever type |
G1/4 | 6 |
0-0.8Mpa |
‘-10~+60℃ |
|
| XQ250421 | G1/8 | 4 |
0-0.8Mpa |
‘-10~+60℃ |
