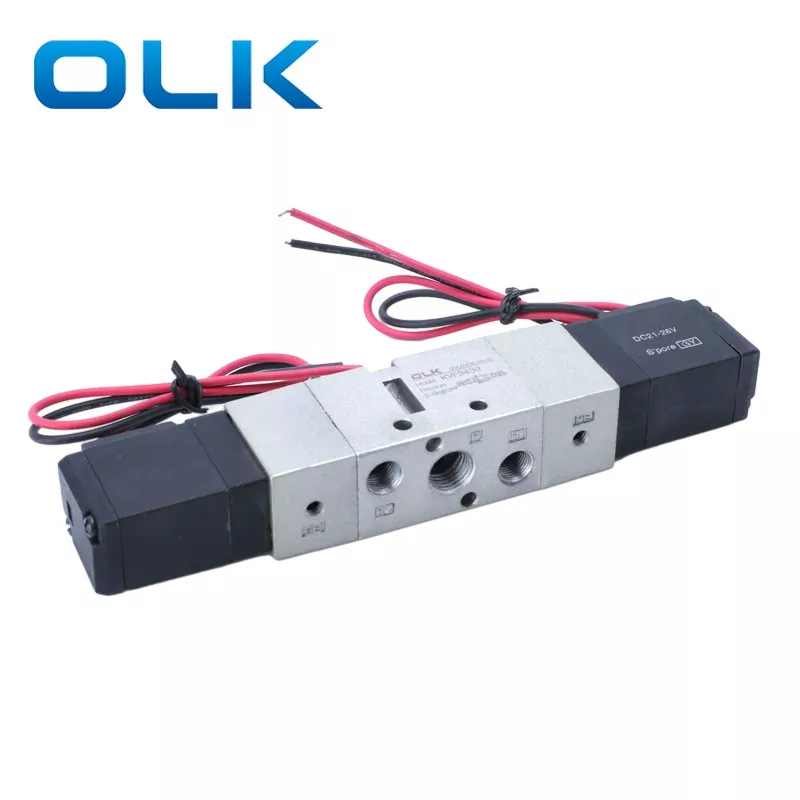

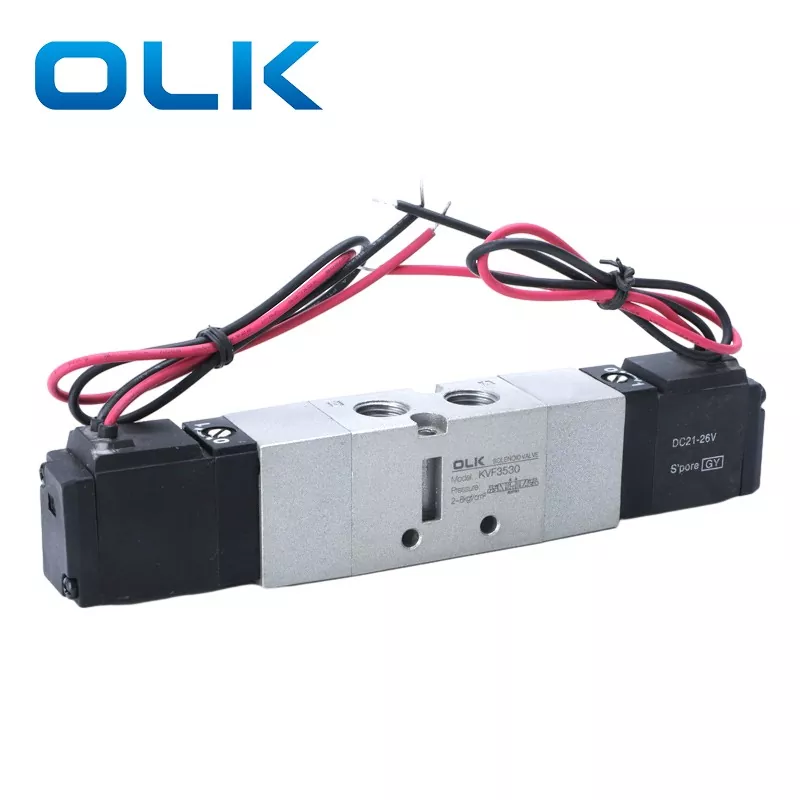

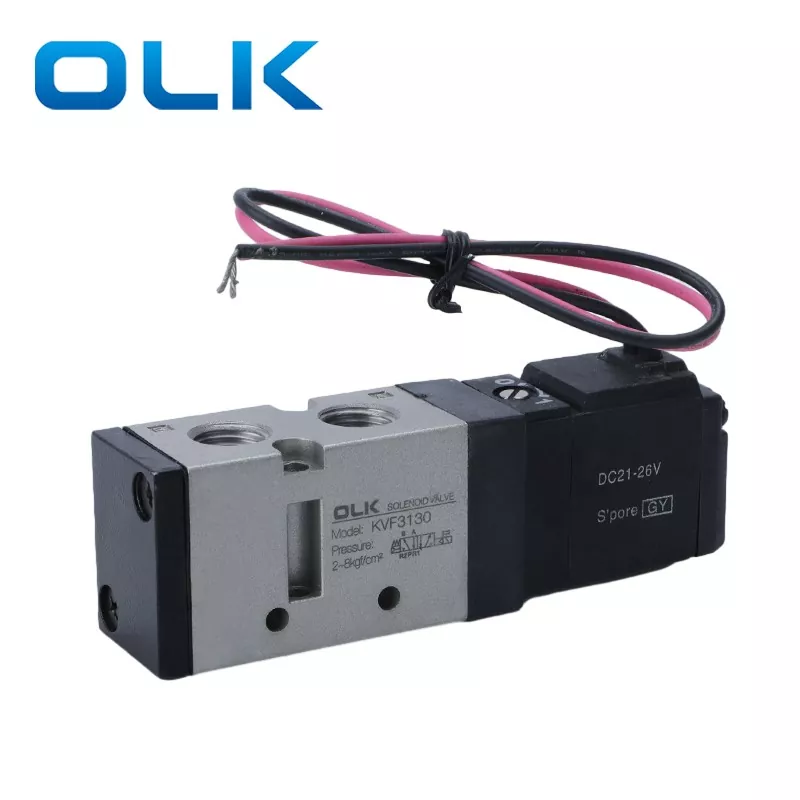

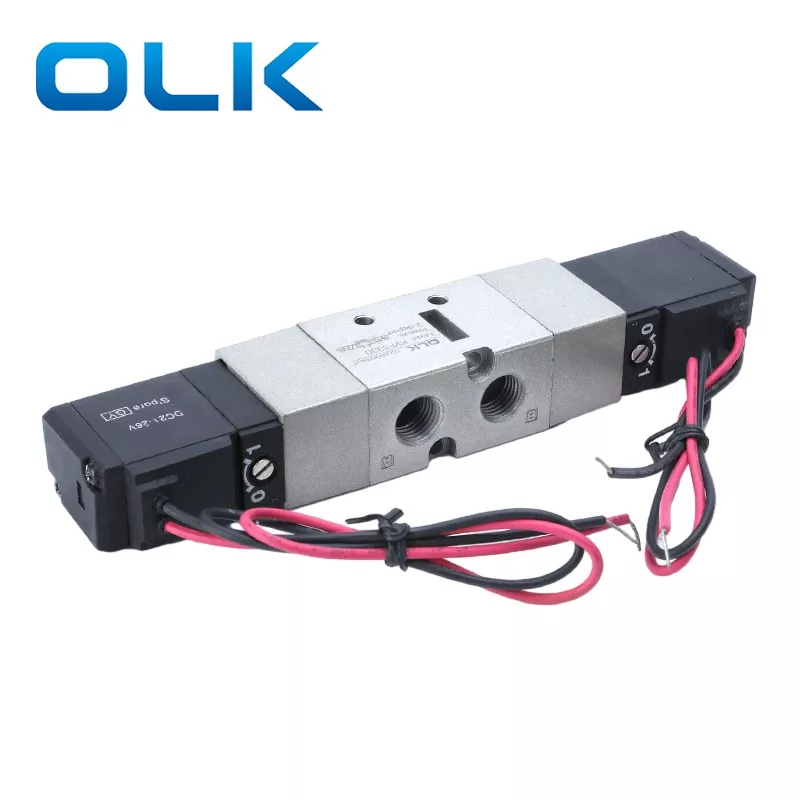

VF3000 Solenoid Valve 5 Way

OLK is a professional VF3000 solenoid valve 5 way manufacturers and suppliers in China. If you interested in VF3000 solenoid valve 5 way products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.

Send Inquiry

Product Description

Internal Pilot VF3000 solenoid valve 2 position 5 way and 3 position 5 way Direct Piping Type

The spool bore uses a special machining process for low friction, low starting pressure, and longer service life.Large port size provides higher airflow, suitable for driving medium to large cylinders or multiple actuators.

Modular design allows manifold mounting for multiple valves, centralized air supply, and reduced piping.The DS/VF 3000 and 5000 series solenoid valve are widely used in high-flow pneumatic control systems for automated production lines and industrial machinery.

VF3000 solenoid valve 5 way Features:

·High Flow

·Piping / Modular / Space-Saving

·Industrial-Grade Durability

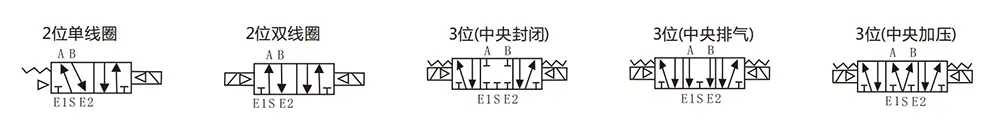

VF3000 solenoid valve 5 way Symbol

Ordering Code
VF3	130	_	4	G	B	02
Model	valve type		voltage	line type	manul	port size
VF3000 solenoid valve	130:single solenoid 5/2 way		3:110VAC	G:line type		02:PT1/4
	230:double solenoid vlave 5/2 way		4:220VAC	D:Din type
	330C:double solenoid vlave5/3way closed center		5:24VDC	DZ:DZ with light
	430E:double solenoid vlave5/3way exhaust center		6:12VDC
	530P:double solenoid valve 5/3 way pressure center

Common specifications
Working medium	Air
Woking temperature	0-50℃
Lubrication	No Need
Manual Override	Screwdriver-Locking Type
Shock/Vibration Resistance	30G/5G (8.3--2000Hz)
Enclosure	Dustproof

Model	position	coil	kgf/cm ²(Mpa)	Response Time (ms)	Max. Operating Frequency	port size	Effective Cross-Sectional Areamm²(CV)	kgf
VF3130-□△B-02	2 position	single action	1.5～9(0.15～0.8)	≤30 ms	5	PT1/4	17.1(0.95)	0.21
VF3230-□△B-02	2 position	double action	1~9(0.1~0.9)	≤30 ms	5	PT1/4	17.1(0.95)	0.29
VF3330-□△B-02	3 position	double solenoid vlave5/3way closed center	1~9(0.1~0.9)	≤50 ms	3	PT1/4	13.5(0.75)	0.42
VF3430-□△B-02	3 position	double solenoid vlave5/3way exhaust center	1~9(0.1~0.9)	≤50 ms	3	PT1/4	17.1(0.95)	0.42
VF3530-□△B-02	3 position	double solenoid valve 5/3 way pressure center	1~9(0.1~0.9)	≤50 ms	3	PT1/4	16.2(0.9)	0.42
