PY Union Y Push In Tube Fitting

As a professional PY Union Y Push In Tube Fitting manufacture, you can rest assured to buy PY Union Y Push In Tube Fitting from our factory and OLK will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

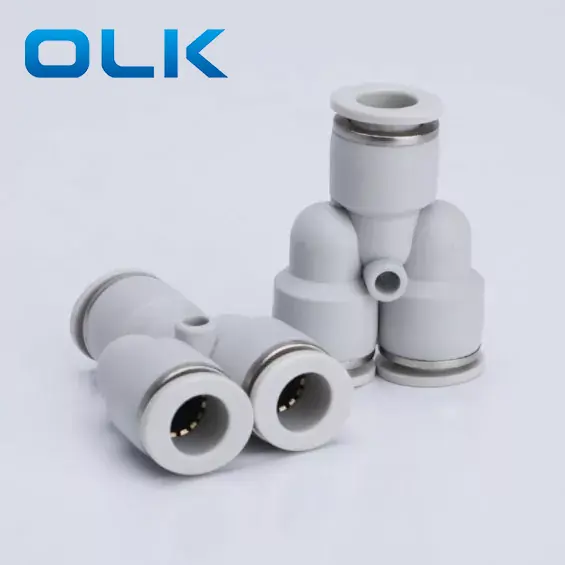

The PY Union Y Push In Tube Fitting is a Y-shaped fitting used to split or combine airflow in pneumatic systems.

It connects three tubes of the same outer diameter, offering a secure and airtight connection in all directions.

PY	8
Model	Tube size (metric)
PY series fitting	4:4mm
	6:6mm
	8:8mm
	10:10mm
	12:12mm
	14:14mm
	16:16mm

PY Union Y Push In Tube Fitting General basic parameters

Fluid	Air/water(conditional)/vacuum
Operating pressure	0-1.0Mpa
Vacuum pressure	-100Kpa(10 Torr)
Operating temperature	-10-60℃
Material	NYLON(PA),Polyurethane(PU)

PY Union Y Push In Tube Fitting Outline dimension parameters

Inch Tube Fitting	MetricTube Fitting	φD	B	J	φd
PY5/32	PY-4	4	38	11.6	2.5
PY1/4	PY-6	6	39	13.3	3.5
PY5/16	PY-8	8	42.5	15.5	4.5
PY3/8	PY-10	10	48	38.5	4.5
PY1/2	PY-12	12	54	21.5	4

Common Imperial Thread Size Conversion Reference
Imperial Size	Approx. Metric (mm)	Conversion Formula
1/8	3.2mm	1÷8×25.4=3.175
5/32	3.97mm	5÷32×25.4=3.97
1/4	6.35mm	1÷4×25.4=6.35
5/16	7.94mm	5÷16×25.4=7.94
3/8	9.53mm	3÷8×25.4=9.53
1/2	12.7mm	1÷2×25.4=12.7
