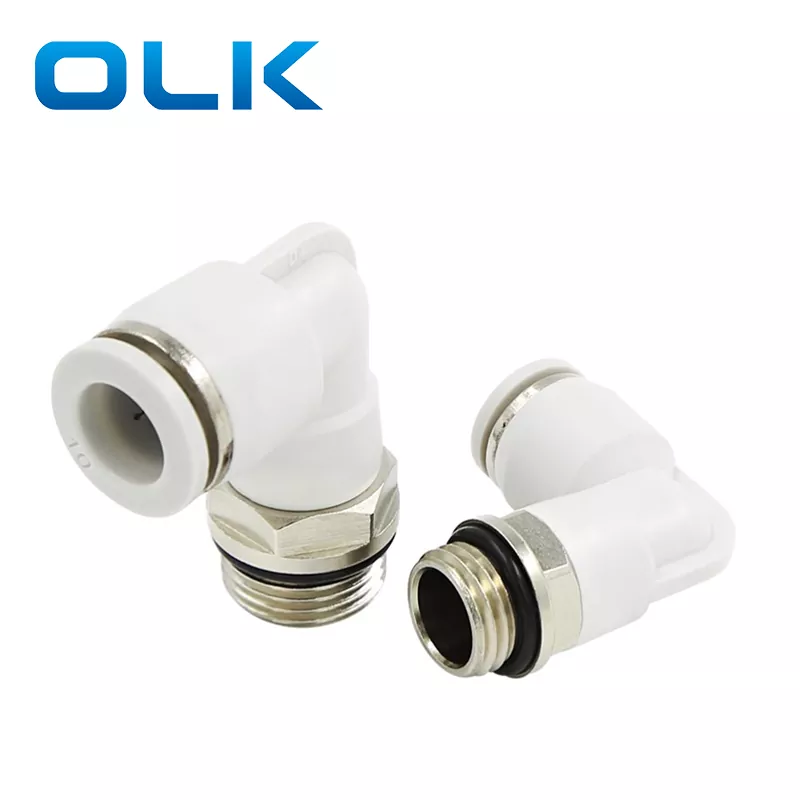

The PL-G male Elbow Push In Tube Fitting is a 90-degree elbow connector and G thread ideal for use in confined spaces or where tubing redirection is required.Equipped with sealing rings to prevent air or fluid leakage.
Product features: Compact structure, suitable for small spaces;Right angle steering design, convenient for tracheal wiring
|
Ordering code |
|||
|
PL |
8 |
-- |
G01 |
|
Model |
Tube size (metric) |
|
Thread type (55°straight tube thread) |
|
|
4:4mm |
|
01:G1/8 |
|
|
6:6mm |
|
02:G1/4 |
|
|
8:8mm |
|
03:G3/8 |
|
|
10:10mm |
|
04:G1/2 |
|
|
12:12mm |
|
|
|
|
14:14mm |
|
|
|
|
16:16mm |
|
|
|
Fluid |
Air/water(conditional)/vacuum |
|
Operating pressure |
0-1.0Mpa |
|
Vacuum pressure |
-100Kpa(10 Torr) |
|
Operating temperature |
-10-60℃ |
|
Material |
NYLON(PA),Polyurethane(PU) |
|
|

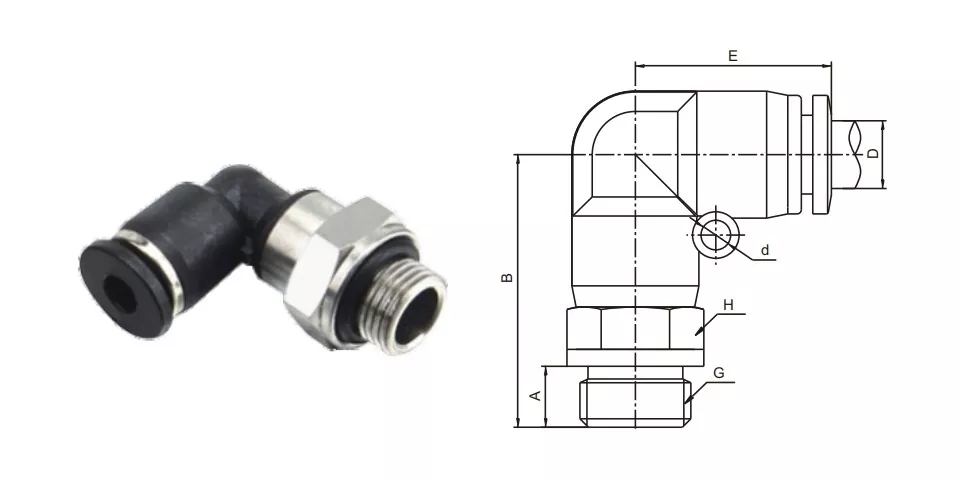

D |
G |
A |
B |
E |
H |
d |
|
PL4-G01 |
4 |
G1/8 |
6 |
24 |
19.7 |
14 |
- |
|
PL4-G02 |
G1/4 |
8 |
25 |
19.7 |
17 |
- |
|
|
PL6-G01 |
6 |
G1/8 |
6 |
24 |
20.8 |
14 |
3.5 |
|
PL6-G02 |
G1/4 |
8 |
25 |
20.8 |
17 |
3.5 |
|
|
PL6-G03 |
G3/8 |
10 |
25 |
20.8 |
20 |
3.5 |
|
|
PL6-G04 |
G1/2 |
12 |
25 |
20.8 |
24 |
3.5 |
|
|
PL8-G01 |
8 |
G1/8 |
6 |
25 |
23.5 |
14 |
4.5 |
|
PL8-G02 |
G1/4 |
8 |
25 |
23.5 |
17 |
4.5 |
|
|
PL8-G03 |
G3/8 |
10 |
26 |
23.5 |
20 |
4.5 |
|
|
PL8-G04 |
G1/2 |
12 |
29 |
23.5 |
24 |
4.5 |
|
|
PL10-G01 |
10 |
G1/8 |
6 |
29 |
27.4 |
14 |
4.5 |
|
PL10-G02 |
G1/4 |
8 |
29 |
27.4 |
17 |
4.5 |
|
|
PL10-G03 |
G3/8 |
10 |
30 |
27.4 |
20 |
4.5 |
|
|
PL10-G04 |
G1/2 |
12 |
31 |
27.4 |
24 |
4.5 |
|
|
PL12-G02 |
12 |
G1/4 |
8 |
31 |
30.3 |
17 |
5 |
|
PL12-G03 |
G3/8 |
10 |
33 |
30.3 |
20 |
5 |
|
|
PL12-G04 |
G1/2 |
12 |
33 |
30.3 |
24 |
5 |
|
|
PL16-G03 |
16 |
G3/8 |
10 |
43 |
34 |
24 |
4 |
|
PL16-G04 |
G1/2 |
12 |
45 |
34 |
24 |
4 |
|
Name/type |
Interface Structure Description |
|
PC Elbow |
The pipe joint is bent at a 90°angle, and the other end is internally threaded |
|
PL Elbow |
One end is inserted and the other end has an external thread of 90° |
|
PV Elbow |
Both ends are tube insertion type, with a 90°bend |
What material is the PL connector made of?
copper
What are the names of the connecting tube fitting parts?

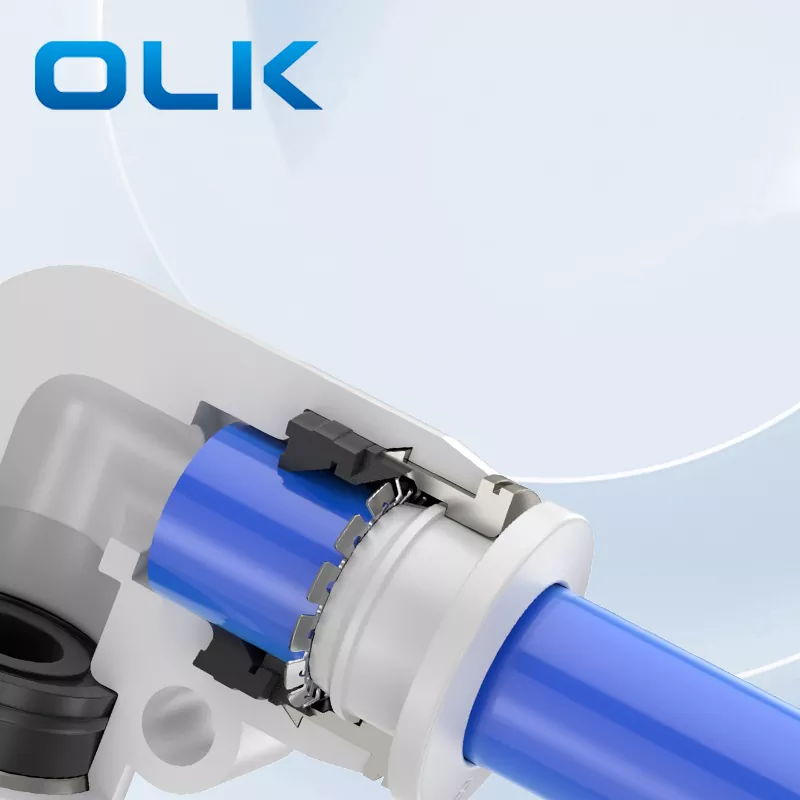

Quick connecting tube fitting internal structure:Release,zinc alloy card set,lock clip spring,lock sleeve,clasp sealing ring,high strength plastics
What type of PL thread is it?
It is a metric thread, M represents.
What means ‘Elbow’ in pneumatic fitting?
Elbow Fitting：A pneumatic fitting that allows the tube to change direction, typically at a 90-degree angle.
