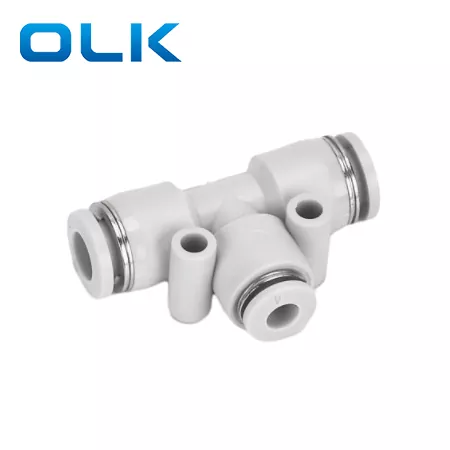

The PEG series is a Reducer Tee Union Fitting, with D1 larger than D2, designed for connecting main and branch pipes of different diameters. ThePEG Reducer Tee union fitting comes with a small mounting hole for easy and secure installation on equipment or panels, saving installation space.
D1＞D2, suitable for different pipe size connections
Built-in small mounting hole for quick fixing
Easy push-in & pull-out design for fast installation
Widely used in pneumatic systems and automation equipment
|
PEG |
8 |
-- |
6 |
|
Model |
Tube size (metric) |
|
Tube size (metric) |
|
PEG series fitting |
4:4mm |
|
4:4mm |
|
|
6:6mm |
|
6:6mm |
|
|
8:8mm |
|
8:8mm |
|
|
10:10mm |
|
10:10mm |
|
|
12:12mm |
|
12:12mm |
|
|
14:14mm |
|
14:14mm |
|
|
16:16mm |
|
16:16mm |
|
Fluid |
Air/water(conditional)/vacuum |
|
Operating pressure |
0-1.0Mpa |
|
Vacuum pressure |
-100Kpa(10 Torr) |
|
Operating temperature |
-10-60℃ |
|
Material |
NYLON(PA),Polyurethane(PU) |

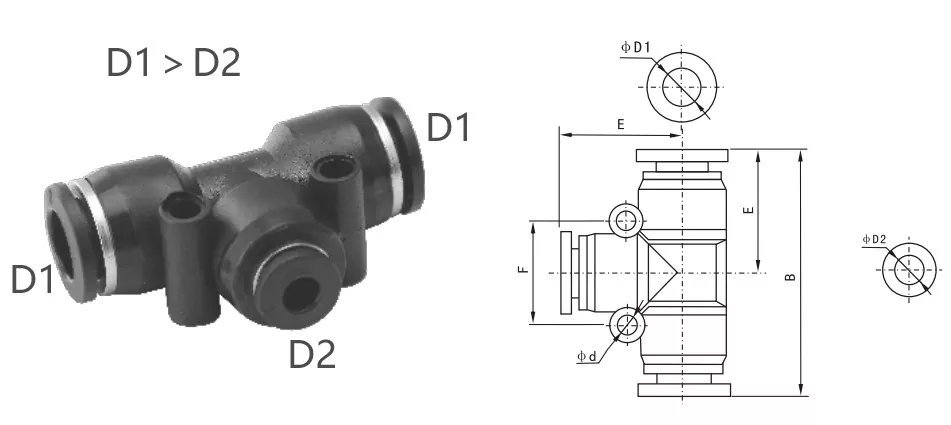

PEG Reducer Tee union fitting Outline dimension parameters
|
Inch Tube |
Metric Tube |
ϕD1 |
ϕD2 |
B (mm) |
E (mm) |
F (mm) |
ϕd (mm) |
|
PEN1/4-5/32 |
PEN6-4 |
6 |
4 |
41.2 |
20 |
14.9 |
3.5 |
|
PEN5/16-1/4 |
PEN8-6 |
8 |
6 |
45 |
18 |
22.8 |
4.5 |
|
PEN3/8-5/16 |
PEN10-8 |
10 |
8 |
51 |
24 |
19.8 |
4.5 |
|
PEN1/2-3/8 |
PEN12-10 |
12 |
10 |
59 |
28 |
24.5 |
5 |
|
PEN16-12 |
PEN16-12 |
16 |
12 |
69 |
34 |
32.2 |
4 |
|
PEN5/16-5/32 |
PEN8-4 |
8 |
4 |
46 |
18 |
20 |
4.5 |
|
PEN3/8-1/4 |
PEN10-6 |
10 |
6 |
57 |
26.8 |
23.8 |
4 |
|
PEN1/2-5/16 |
PEN12-8 |
12 |
8 |
59 |
27.8 |
27.6 |
5 |
What is different in PE fitting and PEG fitting?
PE Fitting (Equal Tee Union): All three tubes have the same outer diameter, suitable for connecting three pneumatic tubes of the same size.
PEG Fitting (Reducer Tee Union): The two side tubes are larger than the center tube, designed for connecting different tube sizes.
