HV200 Series Manual Rotating Valve 4 Way

OLK is one of the professional HHV200 Series Manual Rotating Valve 4 Way manufacturers and suppliers in China. Our products are CE certified and have in stock of factory, welcome to wholesale HV200B 2/4 port valve from us.

Send Inquiry

Product Description

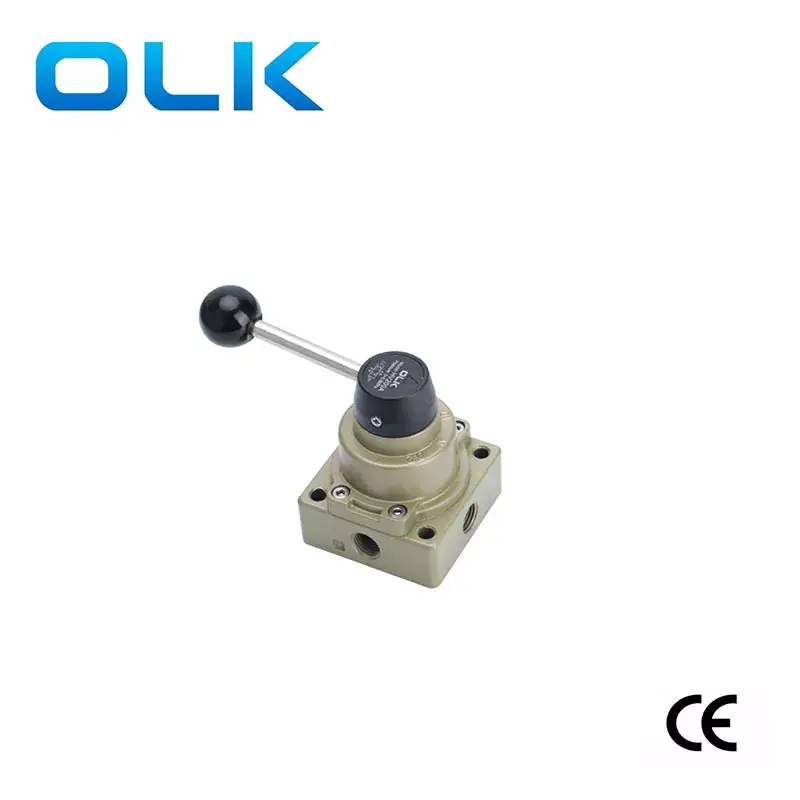

Ouleikai (OLK) HV200A/B two-way four-port hand-operated valves are manually operated, with air path switching achieved by rotating the valve handle. They are easy to operate and intuitive, requiring no additional energy supply. The HV200B 2/4 port valve features a built-in silencer at the bottom exhaust port.

The OLK HV200 Series Manual Rotating Valve 4 Way are versatile and suitable for various pneumatic systems. With stable performance, reliability, and cost-effectiveness, they are an ideal choice for pneumatic system control.

HV200 series manual rotating valves 4 way Different gears result in different cylinder actions.

When switched to the 02 gear, the B exhaust port releases air, the A exhaust port vents, and the cylinder extends.

When switched to the N gear, both A and B exhaust ports are closed, and the cylinder stops midway.

When switched to the 01 gear, the A exhaust port releases air, the B exhaust port vents, and the cylinder retracts.

HV-02 manual valve symbol:

Ordering code
HV	2	00	__	A	08
Model	series			Function	Port size
HV：HV series hand manual rotating valve	2:200 series			A:Quadrilateral interface	08:RC1/4
				B:B: two-side interface, with sound attenuation at the bottom

HV200 series manual rotating valves 4 way standard specification

Model	HV200A-02	HV230A-02	HV200B-02	HV230B-02
Working medium	Air（Filter through a filter screen of over 40μm）
Action mode	HAND control
Port Size	Inlet=Outlet=PT1/4
Pressure range	0.15-0.8MPa (21-114psi)
Position	2/4 Port	3/4 Port	2/4 Port	3/4 Port
Woking Pressure	‘-10-60℃
Proof pressure	1.5MPa (215psi)

OLK Pneumatic Hand Rotary Valves – 5 Models Comparison
OLK Model	4HV210/310/410/230/330/430	HV200A/B	HV-02/03/04	HV400-02/03/04	K34R6-8/L/D
Position	2 Position 4 Way	3 Position 4 Way	3 Position 4 Way	3 Position 4 Way	3 Position 4 Way
	3 Position 4 Way
Port size	RC1/8,1/4,3/8,1/2,3/4	PT1/4	PT1/4,PT3/8,PT1/2	PT1/4,PT3/8,PT1/2	G1/4
Product features	Panel mounting	A: Quadrilateral interface B: two-side interface, with sound attenuation at the bottom			Blank：One hole on one side L：Two holes on opposite sides；D：Four hole on the bottom；

Handle	Removable handle	Removable handle	Removable handle	Non Removable/ Plastic Handles	Removable handle,Anti-scald handle

Dimensions of base	200 series:62 mm 300 series:74 mm 400 series:94 mm	61.3 mm	74 mm	74 mm	55 mm
		HV200A			K34R6-8

		HV200B			K34R6-8L

					K34R6-8D

Model	HV300-02	HV330-02	HV300-03	HV330-03	HV300-04	HV330-04
Working medium	Air（Filter through a filter screen of over 40μm）
Action mode	HAND control
Port Size	PT1/4	PT1/4	PT3/8	PT3/8	PT1/2	PT1/2
Pressure range	0.15-0.8MPa (21-114psi)
Position	2/4 Port	3/4 Port	2/4 Port	3/4 Port	2/4 Port	3/4 Port
Woking Pressure	‘-10-60℃
Proof pressure	1.5MPa (215psi)
