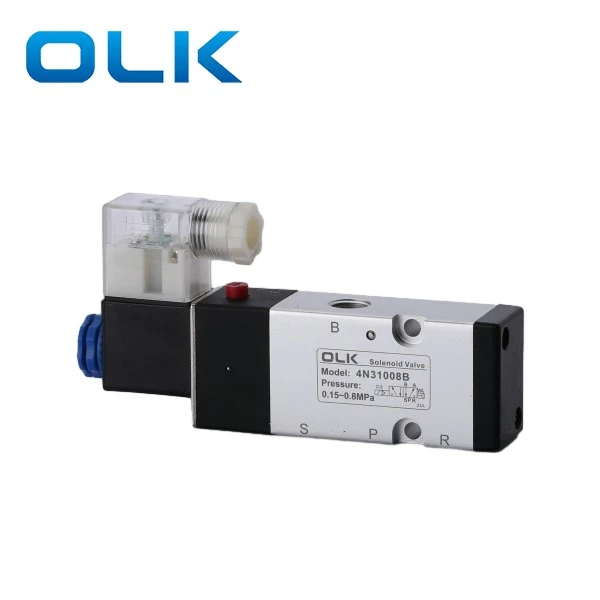

5 Way 4N310-08 Plate Solenoid Valve

OLK 2position 5 way 4N310-08 plate solenoid valve thread is G1/4 port size.4N310-08 valve have one back air outlet design,allowing for flexible installation and space-saving,effectively enhancing response speed and system stability.

5 way 4N310-08 is specifically for the tool-clamping cylinder system, Suitable for high frequency switching scenarios.and is dedicated to automation equipment such as CNC machine tools and machining centers.

5 way 4N310-08 plate solenoid valve Product Features：

Dedicated design for knife cylinder/clamping cylinder

Air vent on the back, compact structure

Optional Voltage: AC220V / DC24V

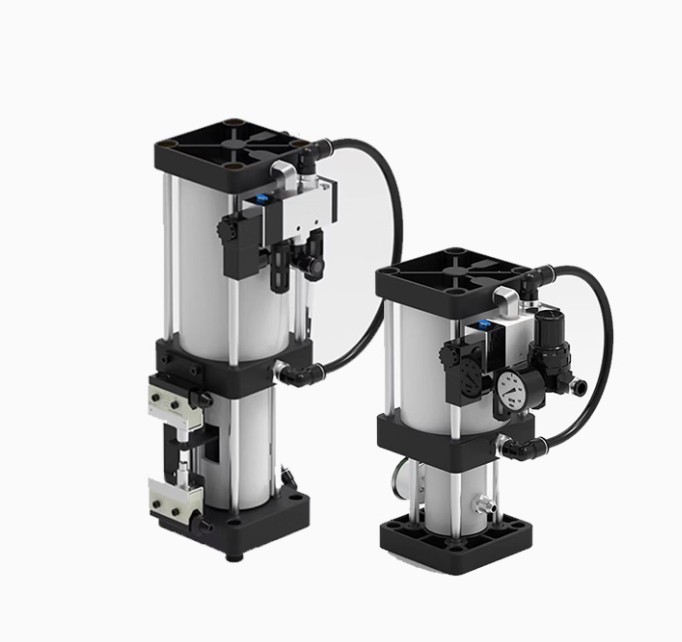

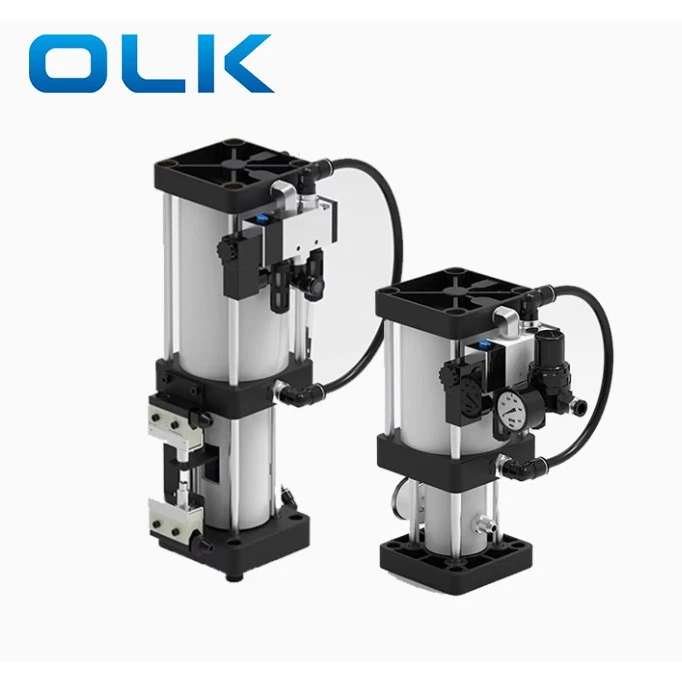

Tool Release Cylinder (TRC) Overview

The tool release cylinder is specially used for CNC machine spindles to release tools. This cylinder uses the principle of "equal pressure transmission in liquids," allowing a small air pressure to generate the large force needed to release the tool in the CNC spindle.The cylinder consists of: air cylinder, 5-way 2-position 4N310 solenoid valve, oil reservoir, and micro switches.

Tool Release Cylinder Installation Notes

For vertical spindles, fix the cylinder with a bracket and install it vertically above the spindle box.

For horizontal spindles, keep the oil cup vertical and higher than the cylinder body.

The oil cup must face up to allow air to escape from the cylinder.

Tool Release Cylinder Installation Steps

Turn off the machine power (panel and cabinet) and air supply.

Remove the spindle box cover. Disconnect air tubes from the solenoid valve.

Unscrew the plastic nut on the solenoid coil (do not remove wires unless properly marked).

Disconnect the wires from the top and bottom limit switches (mark carefully).

Remove the old cylinder.

Install the new cylinder and fix it with screws.

Reconnect wires and air tubes. Make sure:

The top limit switch is pressed.

The bottom limit switch is adjusted correctly (for machines with tool magazine, this is critical for safety).

After installation, test with a tool. Check tool release and clamp. For machines with a tool magazine, test tool change.

Tool Release Cylinder Usage Precautions

·Cylinder can be installed vertically or horizontally. For horizontal, oil cup must face up.

·Air supply must be clean and dry, pressure at least 6 kgf/cm².

·Oil level in the cup: minimum 1/5, maximum 4/5.

·Check 4N310 solenoid voltage and air pressure  during installation.

FAQ

What is 4N310 used for?

4N310 is used for Tool Release Cylinder.

AC vs DC coil?

AC is for household power; DC is direct current.

What is the button under the connection hole?

It manually switches the exhaust port.

Installation tips?

Clean pipes and connections to avoid dirt entering the air circuit.

What ‘s 4N310-08 port size?

Inlet, outlet, exhaust: G1/4 thread; side exhaust hole diameter: 19 mm.
