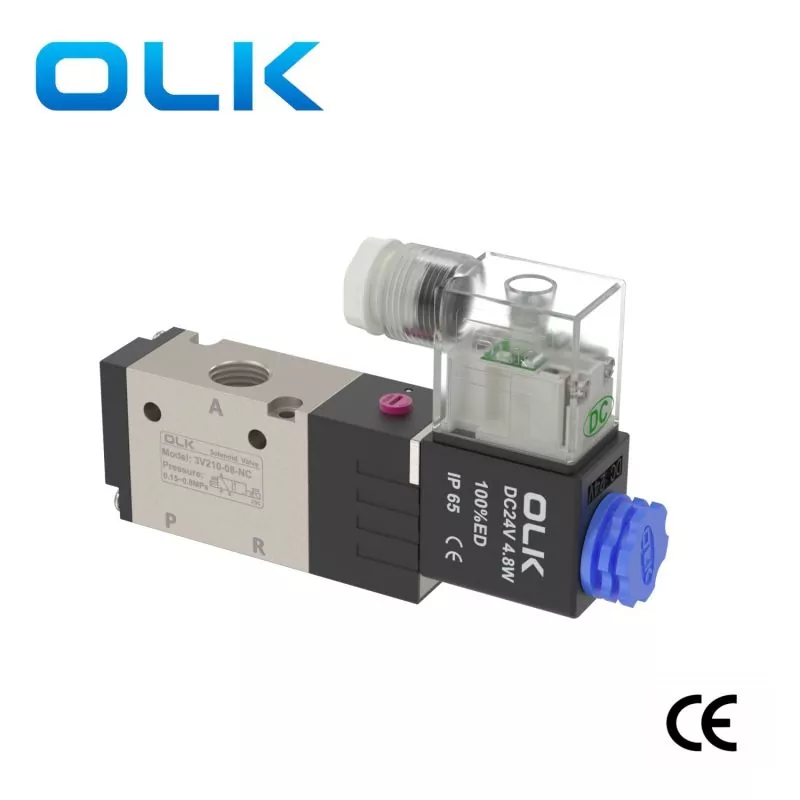

OLK 3V200 series,3position 2 way air solenoid valve used by high quality aluminum alloy .Action mode is internal pilot type.Suitable for controlling single-acting pneumatic cylinders. Making it suitable for use in various harsh workplace.
|
3V |
2 |
10 |
8 |
NO |
|
Model |
Code |
valve type |
port size |
Action type |
|
3V:3/2way solenoid valve |
2:200 series |
10:single solenoid 5/2 way |
06:G1/8 |
NC:Normally closed |
|
20:double solenoid valve 5/2 way |
08:G1/4 |
NO:Normally open |
|
Model |

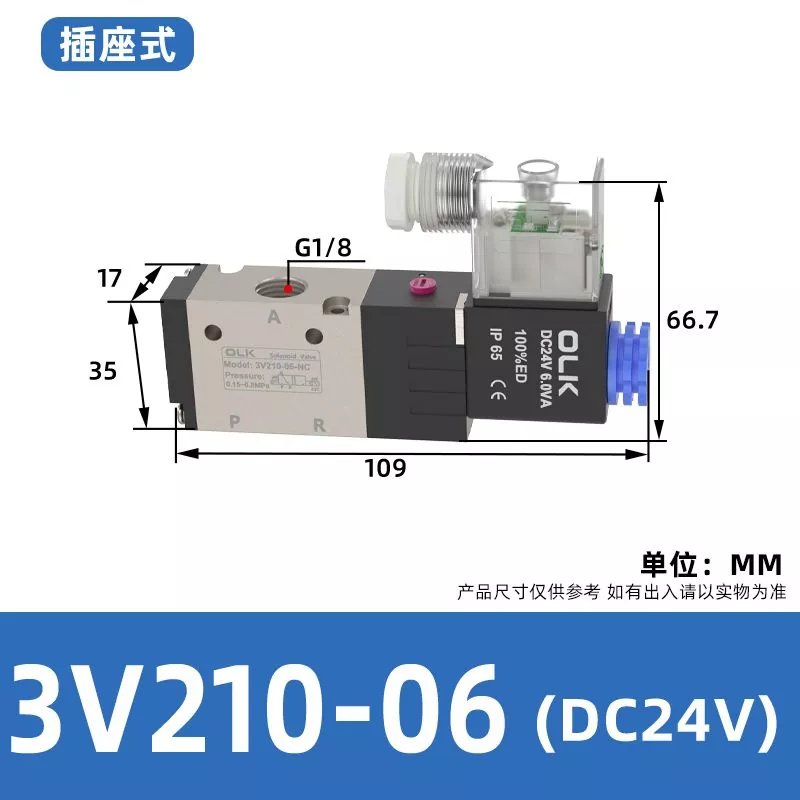

3V210-06 |

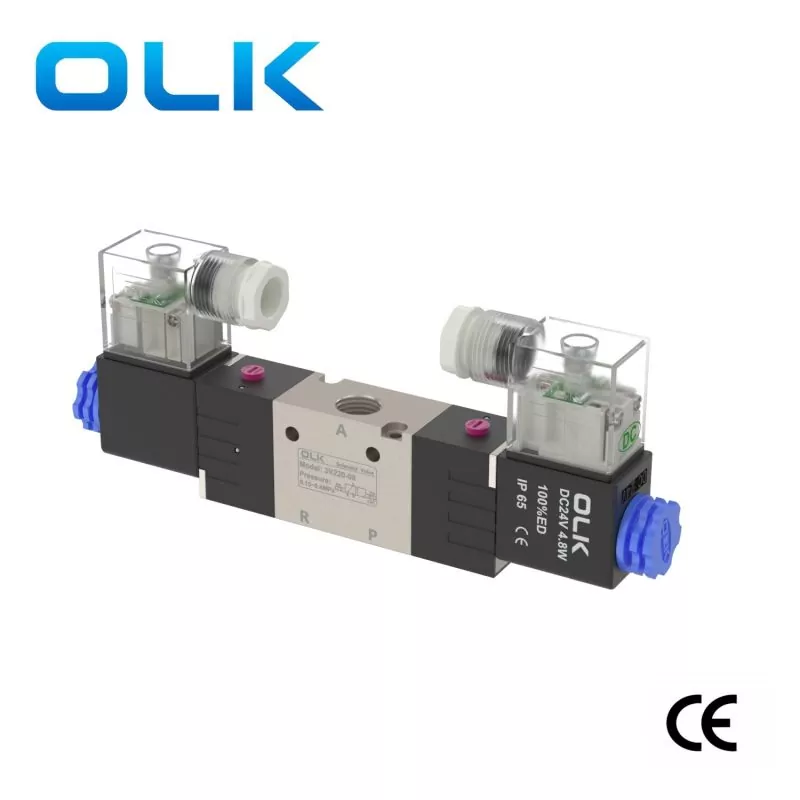

3V220-06 |
3V210-08 |
3V220-08 |
|
Working medium |
Air（Filter through a filter screen of over 40μm） |
|||
|
Action mode |
Internal Pilot Type |
|||
|
port size |
M5Inlet=Outlet=G1/8 |
Inlet=Outlet=G1/4 |
||
|
Effective cross-sectional area |
14mm²（Cv=0.78） |
16.0mm²（Cv=0.89） |
||
|
Positions |
3/2 Port |
|||
|
Pressure range |
0.15-0.8 MPa (21-114psi) |
|||
|
Proof pressure |
1.5MPa (215psi) |
|||
|
Woking Pressure |
‘-20-70 ℃ |
|||
|
Body Material |
Aluminum Alloy |
|||
|
Lubrication |
No Need |
|||
|
3V210-06 AC24V |
3V210-06 AC110V |
3V210-06 AC220V |
3V210-06 DC220V |
3V210-06 DC24V |
|
3V210-08 AC24V |
3V210-08 AC110 |
3V210-08 AC220V |
3V210-08 DC220V |
3V210-08 DC24V |
|
3V220-06 AC24V |
3V220-06 AC110V |
3V220-06 AC220V |
3V220-06 DC220V |
3V220-06 DC24V |
|
3V220-08 AC24V |
3V220-08 AC110V |
3V220-08 AC220V |
3V220-08 DC220V |
3V220-08 DC24V |
