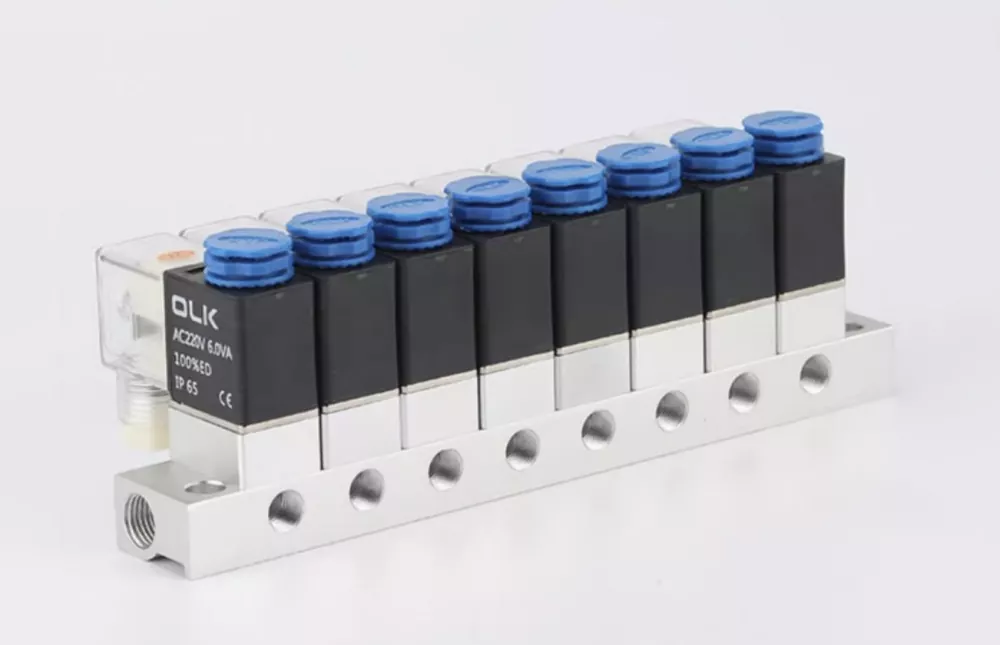

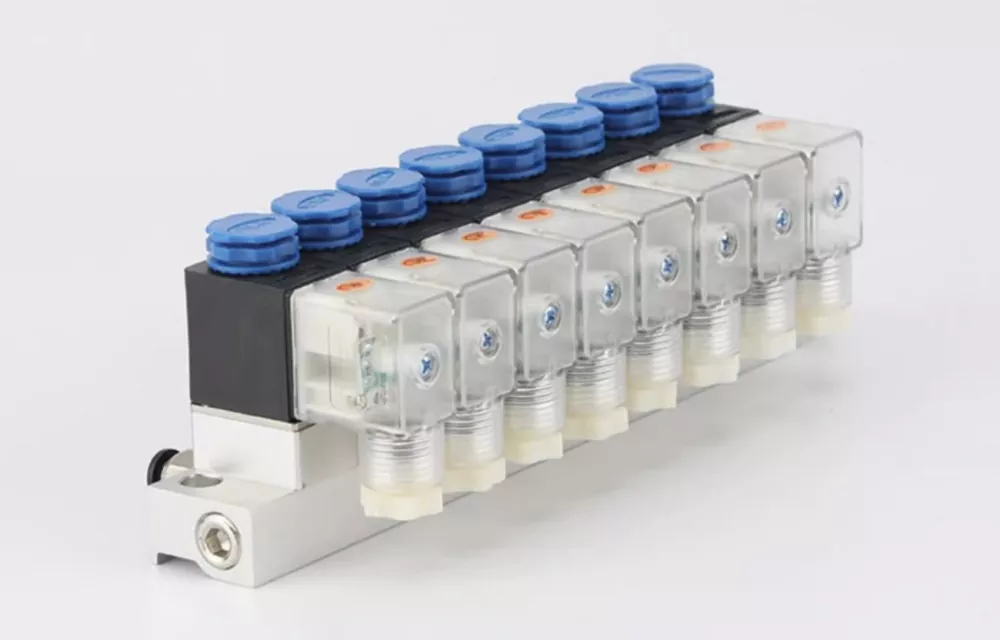

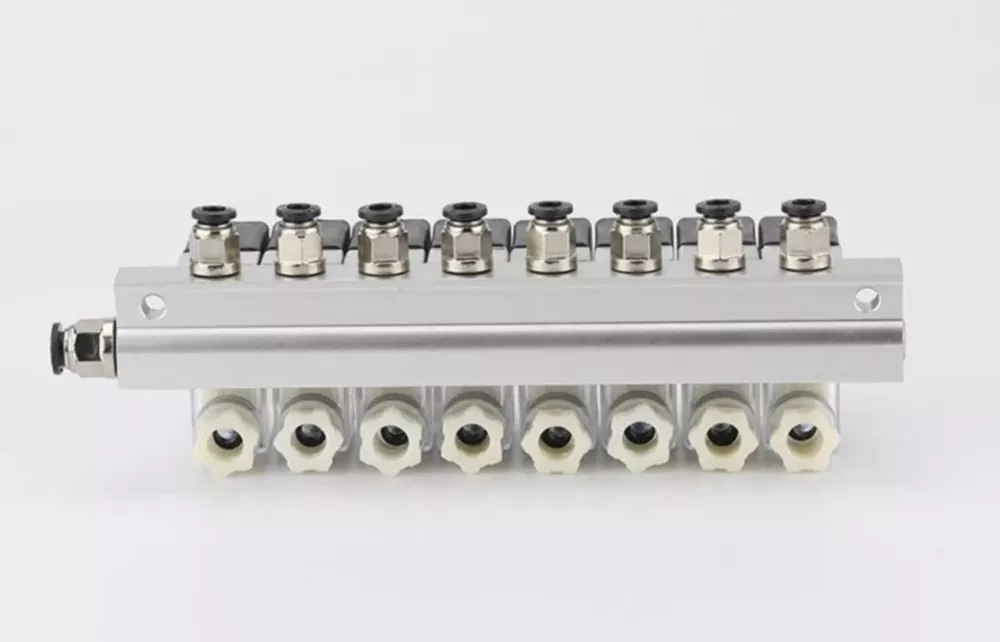

Depending on the intake and exhaust directions, 2V025 Solenoid Valve Manifold can be divided into positive pressure types with one inlet and multiple outlets, and negative pressure types with multiple inlets and one outlet. Negative pressure can be applied in vacuum pumps. Since positive and negative pressure operate in opposite directions, please consult the OLK sales team before placing an order
|
Action |
direct acting |
|
number of positions |
2-position 2-way |
|
Initial State |
NO,NC |
|
lubricating |
unnecessary |
|
Working pressure range MPa(psi) |
0~0.8Mpa(0~114psi) |
|
Guaranteed pressure resistance |
1.5MPa (215psi) |
|
Standard Voltage |
AC220V, AC110V, AC24V, DC24V, DC12V |
|
Use voltage range |
AC:±15％DC:±10％ |
|
power consumption |
AC: 6VADC: 6W |
|
protection level |
IP65 (DIN40050) |
|
heat resistance grade |
Class B |
|
Connection type |
DIN socket type, outlet type |
|
Excitation time |
0.05 seconds or less |
|
Valve body |
Aluminum alloy |
What is the difference between 2V025-06 and 2V025-08?
The difference between 2V025-06 and 2V025-08 is port diameter. 06 = G1/8, and 08 = G1/4

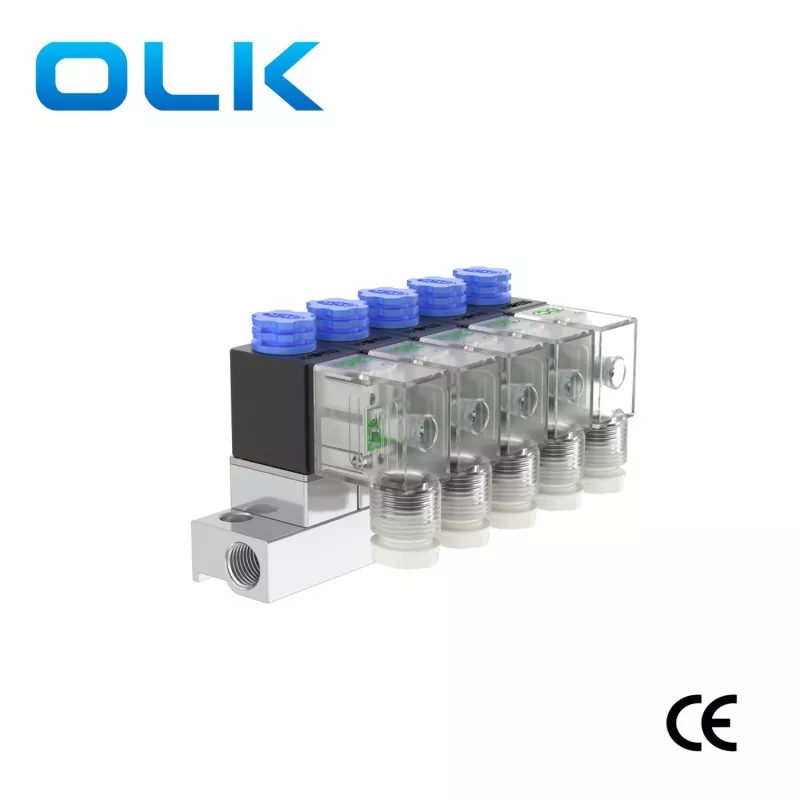

Can 2V025 be combined together to form a manifold valve ?
Up to 10 pcs 2V025 solenoid valve can form a manifold valve.
What scenarios is the 2-way valve 2V025 suitable for?
Two way two-way 2V025 valve is suitable for blowing work scenarios, but it is not suitable for pneumatic cylinders because there is no exhaust port.
Can 2V025 solenoid valve be used in a negative pressure environment?
Sure, the 2V025 solenoid valve with multiple air inlets and one outlet is suitable for use with the vacuum pump.

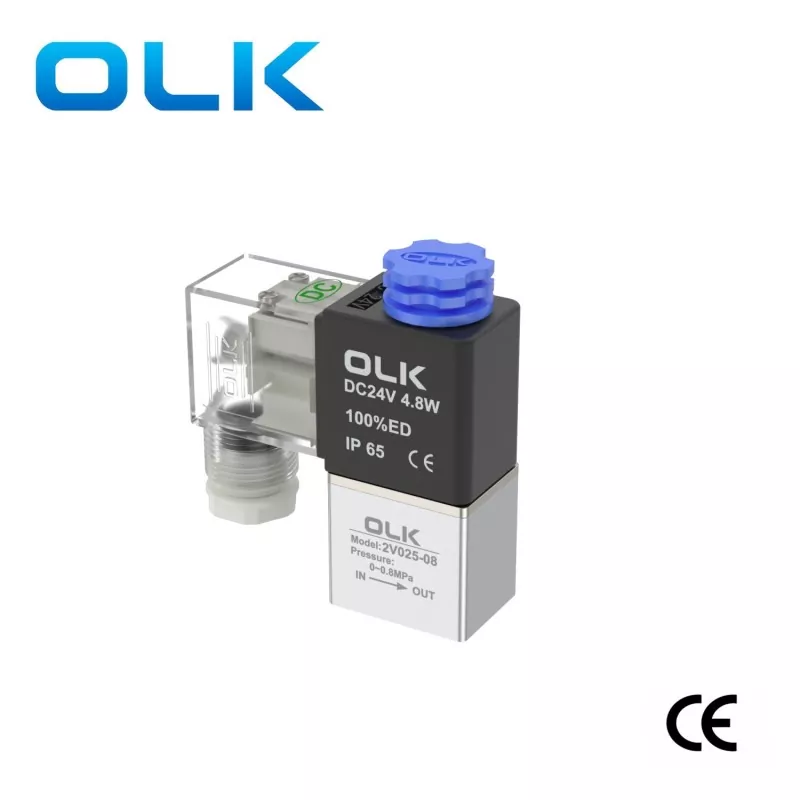

Is the 2V025 fluid control vale 2 way normally open?
YES，2V025-06-NO:Inlet :G1/8 , Outlet:M5
2V025-08-NO:Inlet:G1/4 , Outlet:M5
