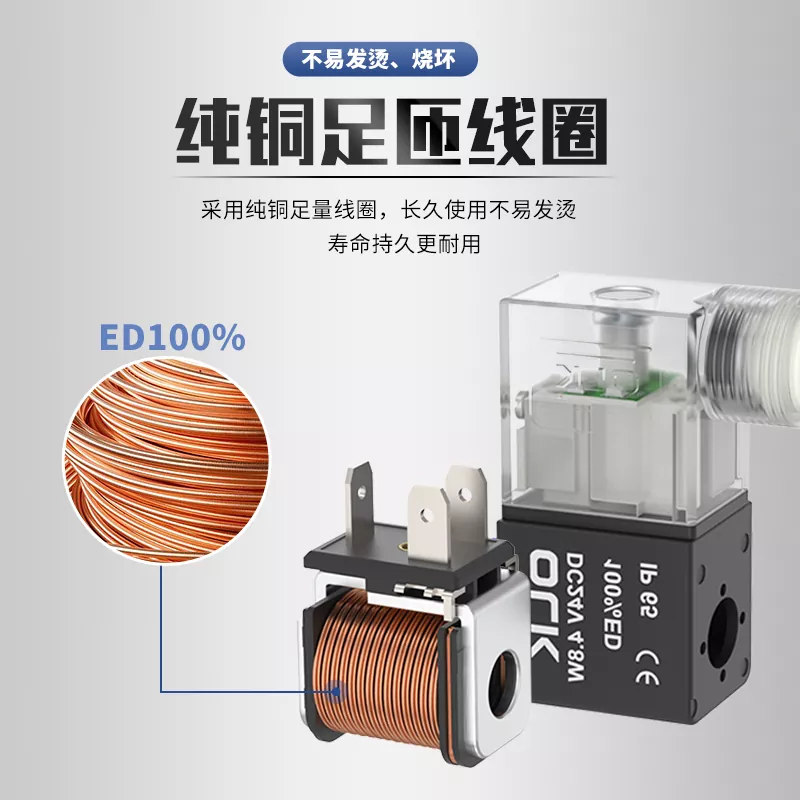

The 080 092 series solenoid valve coil is made of copper wire wound into a simple magnetic field.When electricity passes through the coil, it creates a magnetic force that pulls the 080/092 series solenoid valve core.This movement changes the air flow direction then changes the working position of the pneumatic cylinder.The OLK solenoid valve body adopts pure copper coil ED100% with sufficient turns for long-term operation without overheating

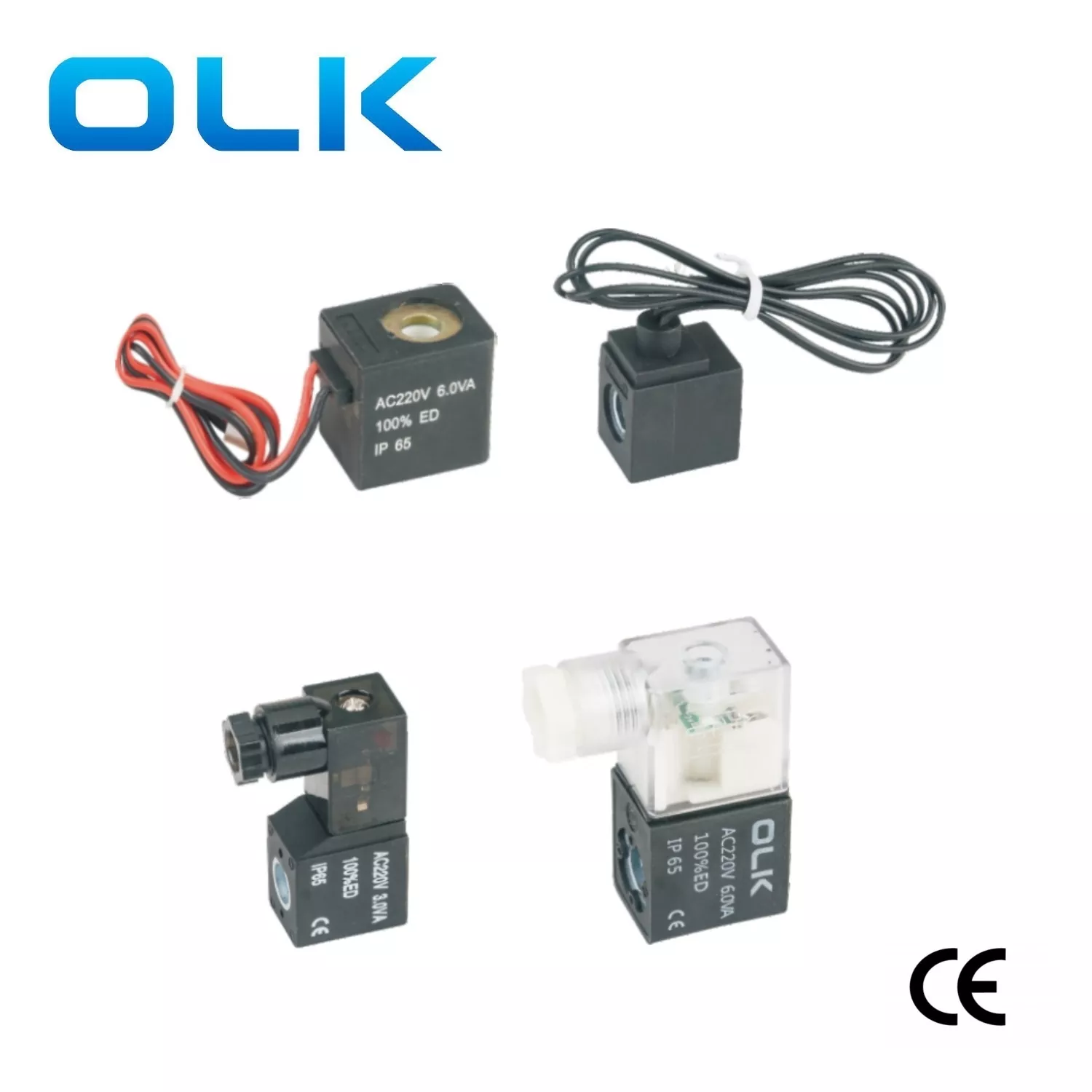

The 080/092 series solenoid valve coil end cover can change installation direction without causing inconvenience to the wiring, and the plastic shell can be selected from black or transparent
It is easy to wiring and installation for use,just removing the protective cover .
The DC coil terminals have a light that shows the polarity.
When wiring, connect terminal "1" to the positive side and terminal "2" to the negative side.
If you connect them the wrong way, the light will not turn on, but the valve will still work.
|
Ordering Code |
|
|
|
CD |
A080 |
A |
|
Model |
Coil's bore |
voltage |
|
CD:DIN |
A080:bore size 8 mm |
A:AC220V |
|
CL:Line type |
A092:bore size 9 mm |
B:DC24V |
|
|
|
C:AC110V |
|
|
|
E:AC24V |
|
|
|
F:DC12V |
|
080/092 solenoid valve coil volvate selection: |
||
|
DC Voltage |
AC Voltage |
|
|
DC12V |
DC12V 5W coil |
AC24V |
|
DC12V 6W coil |
AC36V |
|
|
DC12V 6.8W coil |
AC110V |
|
|
DC24V |
DC24V 4.8W |
AC220V |
|
DC24V 5W |
AC380V |
|
|
DC24V 6W |
|
|
|
DC24V 6.8W |
|
|
|
080 series solenoid valve coil |
coil type |
voltage |
Connector type |
Memo |
|
production series |
CDA080 Terminal |
AC |
PL1515-P1 |
Applied to CDA080 AC,DC type coil |
|
PL1515T-P2 |
Applied to CDA080 AC type coil |
|||
|
3V100 series 4V100 series 4M series |
CDA080 Terminal |
DC |
PL1515T-P3 |
Applied to CDA080 DC type coil |
|
CLA080 Grommet |
AC |
/ |
/ |
|
|
CLA080 Grommet |
DC |
/ |
/ |
|
092 series solenoid valve coil |
coil type |
voltage |
Connector type |
Memo |
|
3V1 series 3V200 series 3V300 series 4V200 series 4V300 series 4V400 series 4M200 series 4M300 series |
CDA092 Terminal |
AC |
4V210-005-P1 |
Applied to CDA092 AC,DC type coil |
|
4V210-005-P2 |
Applied to CDA092 AC type coil |
|||
|
DC |
4V210-005-P3 |
Applied to CDA092 DC type coil |
||
|
CLA092 Grommet |
AC |
/ |
/ |
|
|
DC |
/ |
/ |
1.What's the diameter of OLK brand solenoid valve coil?
Coil hole diameter 8mm or 9mm
2.Can the 080/092 series solenoid valve be powered on for a long time?
YES,Our coil is 100% ED.
3.What’s the difference between AC and DC Voltage?
DC is direct current, AC is alternating current. Generally, household electricity is AC220V
4. The coil can choose several colors?
The coil casing can be selected in black or transparent color.
5.How a Solenoid Valve Coil Works？
The solenoid valve coil creates a magnetic field when it is powered. This magnetic force moves the valve inside, opening or closing the flow of air, gas, or liquid.
