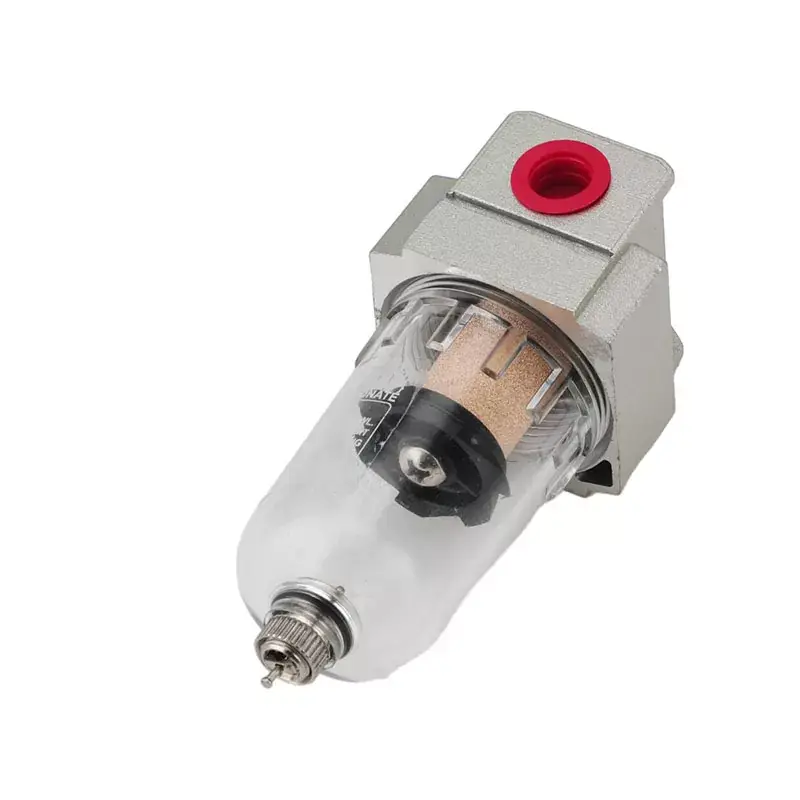

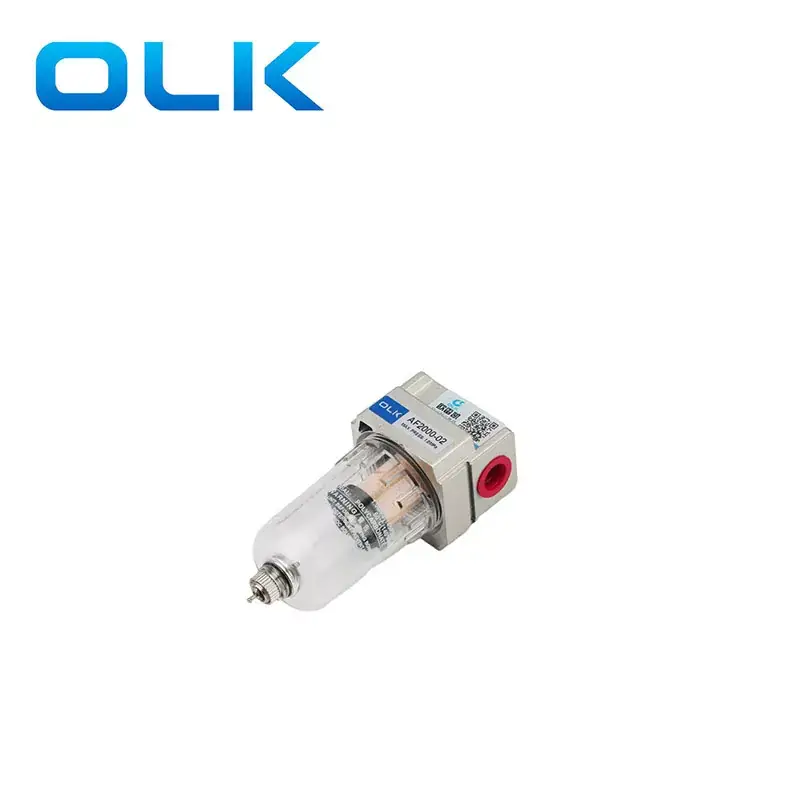

SMC Type Af Air Filter

The following is an introduction to SMC Type Af Air Filter, OLK(Ouleikai ) hope to help you better understand AF series air filter. Welcome new and old customers to continue to cooperate with us to create a better future together!

Send Inquiry

Product Description

As a professional SMC Type Af Air Filter manufacturer, you can rest assured to buy SMC Type Af Air Filter from our factory and OLK will offer you the best after-sale service and timely delivery. The Ouleikai (OLK) AF series air filter is an essential component in pneumatic control systems. In pneumatic technology, air filters, pressure regulators, and lubricators are collectively referred to as the "three major components" of the air source. In practical applications, the filter is installed near the pneumatic equipment, where it removes solid impurities, water droplets, and oil contaminants from the compressed air.

OLK's manufactured air filters not only ensure their own quality but also consider space-saving, easy operation, and convenient installation. They can be combined with other pressure regulators and lubricators as needed.

OLK SUPPLIERS SMC TYPE AF AIR FILTER Product characteristics

Easy component replacement

The component and the bowl are combined.

Replacement can be performed manually.

・Decreased necessary maintenance space: Maximum 46% decrease

・Enhanced visibility & heightened safety

The bowl is enclosed by a translucent bowl protector.

AF Series air source treatment Common specifications

Proof pressure	1.5 Mpa (15.3 kgf/cm²）
Maximum working pressure	1.0Mpa(10.2 kgf/cm²）
Ambient and fluid temperatures	5-60℃
Filtration aperture	5 μm
Cup material	PC
Cup protective cover	AF1000-2000(without) AF 3000-5000 (with)

Attention: There are also 2, 10, 20, 40, 70,100 μ M available for selection

ITEM.		Specification				Spare parts
ITEM.		Specification				Cup group
Manual drainage type	Automatic drainage type	L/min	Rc (PT)	cm²	Kgf	Manual drainage type	Automatic drainage type
AF1000-M5	AF1000-M5D	110	M5X8	4	0.07	C100F	AD61

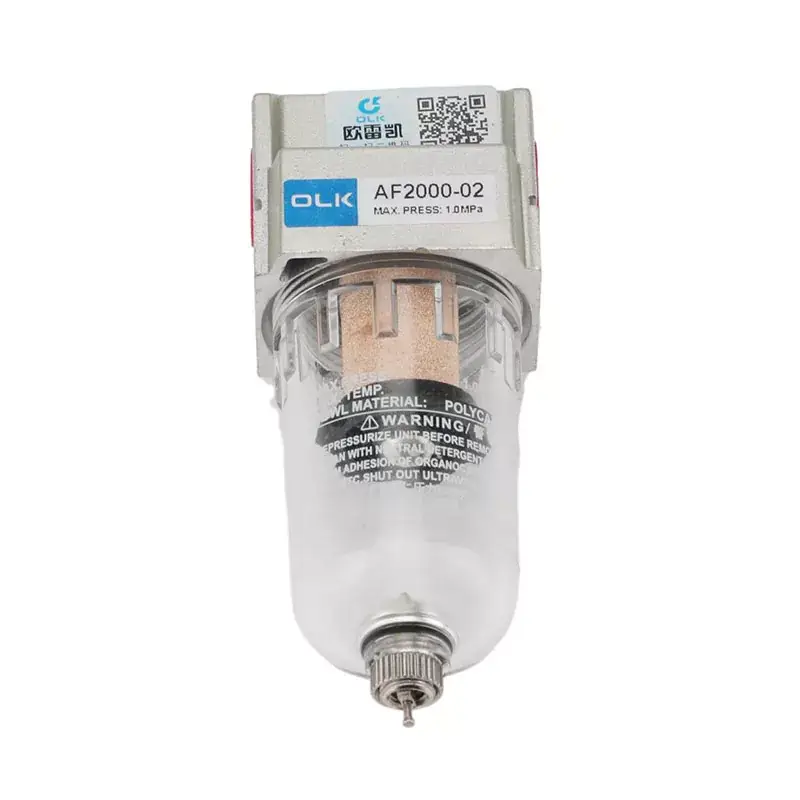

AF2000-02	AF2000-02D	750	1/4.	15	0.19	C200F	AD62
AF3000-02	AF3000-02D	1500	1/4.	20	0.29	C300F	AD43
AF3000-03	AF3000-03D	1500	3/8.	20	0.29	C300F	AD43
AF4000-03	AF4000-03D	4000	3/8.	45	0.55	C400F	AD44
AF4000-04	AF4000-04D	4000	1/2.	45	0.55	C400F	AD44
AF4000-06	AF4000-06D	6000	3/4.	45	0.59	C400F	AD44
AF5000-06	AF5000-06D	7000	3/4.	130	1.08	C400F	AD44
AF5000-10	AF5000-10D	7000	1	130	1.08	C400F	AD44
