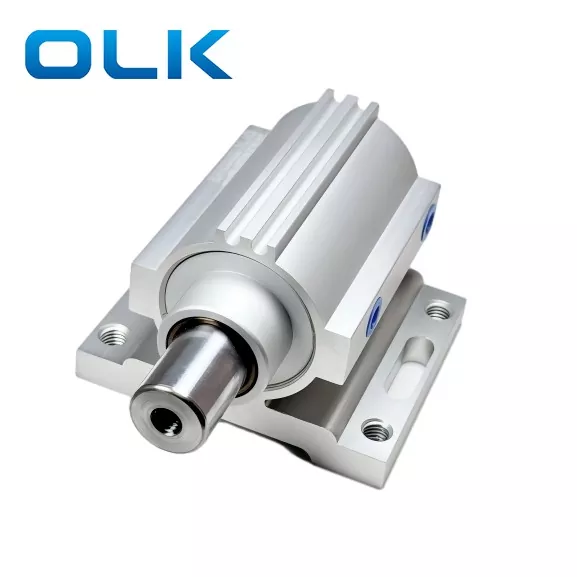

Engraving Machine Positioning Cylinder

OLK Engraving Machine Positioning Cylinder is a specialized pneumatic cylinder designed for CNC engraving and milling machines. Its primary job is to hold work-pieces in place or push them into the correct position before processing. It is built to be compact, strong, and resistant to the dust and chips created during engraving.

OLK PNEUMATIC has two styles of cylinders to meet different scene requirements. For specific details, please contact the OLK sales team.

Engraving Machine Positioning Cylinder Feature:

·High positioning accuracy: Designed for stable and precise linear movement in small-stroke applications.

·Durable structure: Made from high-quality aluminum with a reinforced front guide for long service life.

·Easy installation: Standard mounting holes and slots fit most engraving machine frames.

·Smooth operation: Low friction, low noise, and consistent movement for high-speed production lines.

·Compact size: Space-saving design suitable for limited machine layouts.

Application:

Woodworking Engraving: Holding wood panels or doors in place for intricate carving.

Stone & Glass Processing: Positioning heavy stone slabs or glass for etching.

Metal Milling: Securing aluminum or copper plates for precision machining.

Automated Assembly Lines: Acting as a stopper or pusher on conveyor belts.

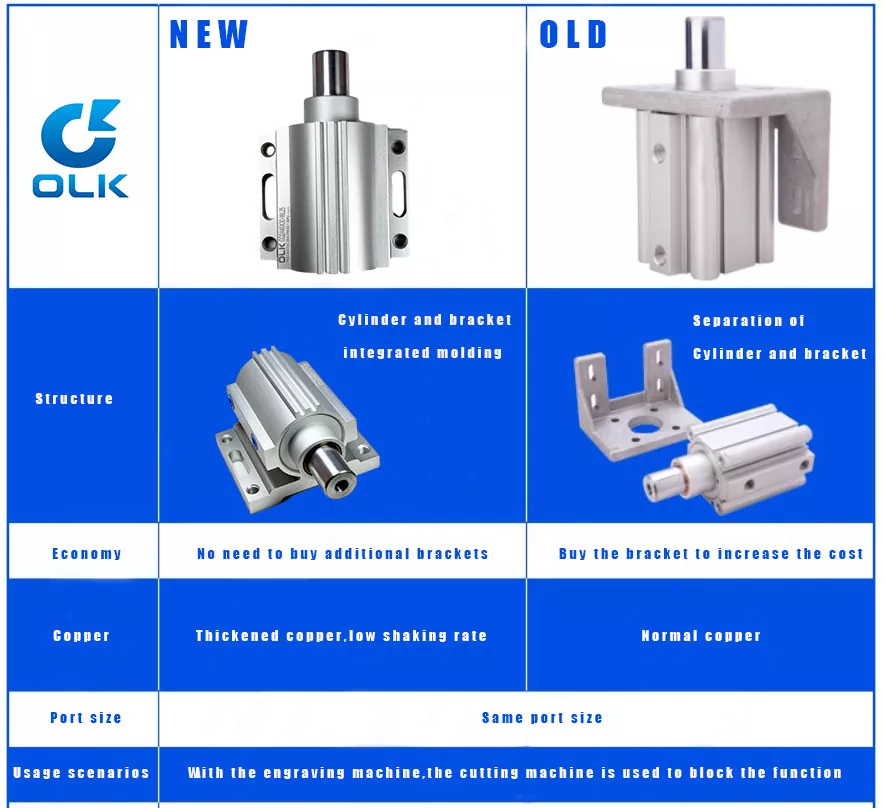

Engraving Machine Positioning Cylinder New old comparison chart

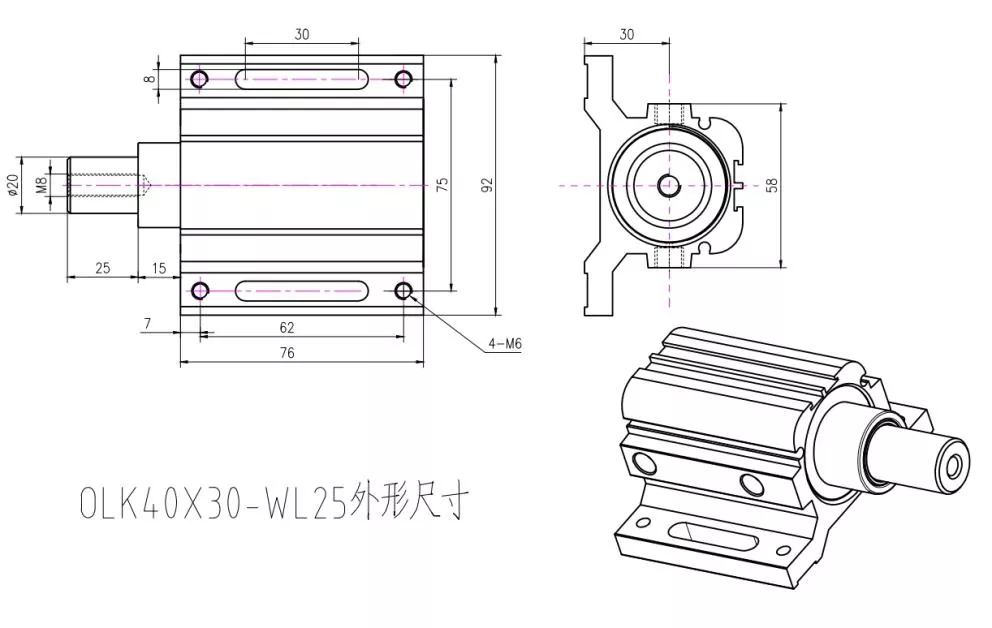

Engraving Machine Positioning Cylinder outline dimension:

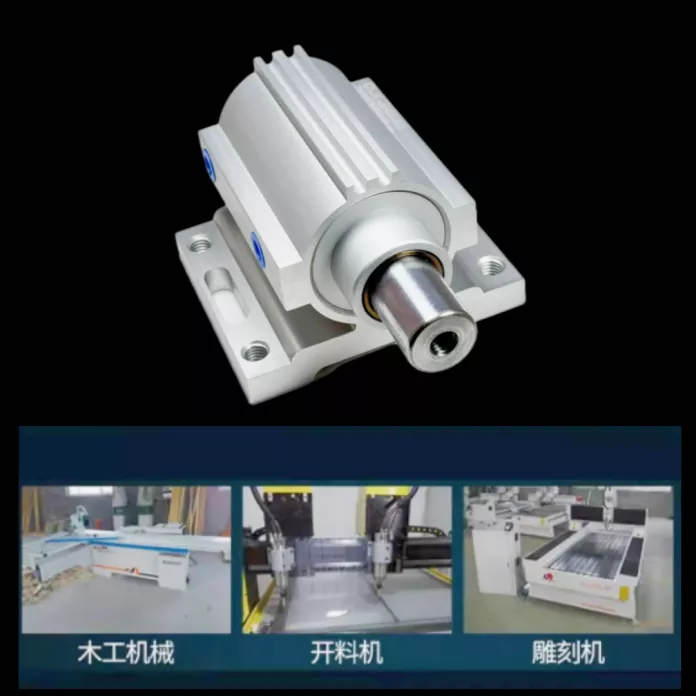

Engraving Machine Positioning Cylinder Application scenario diagram
