Air Control Delay Directional Reversing Valve

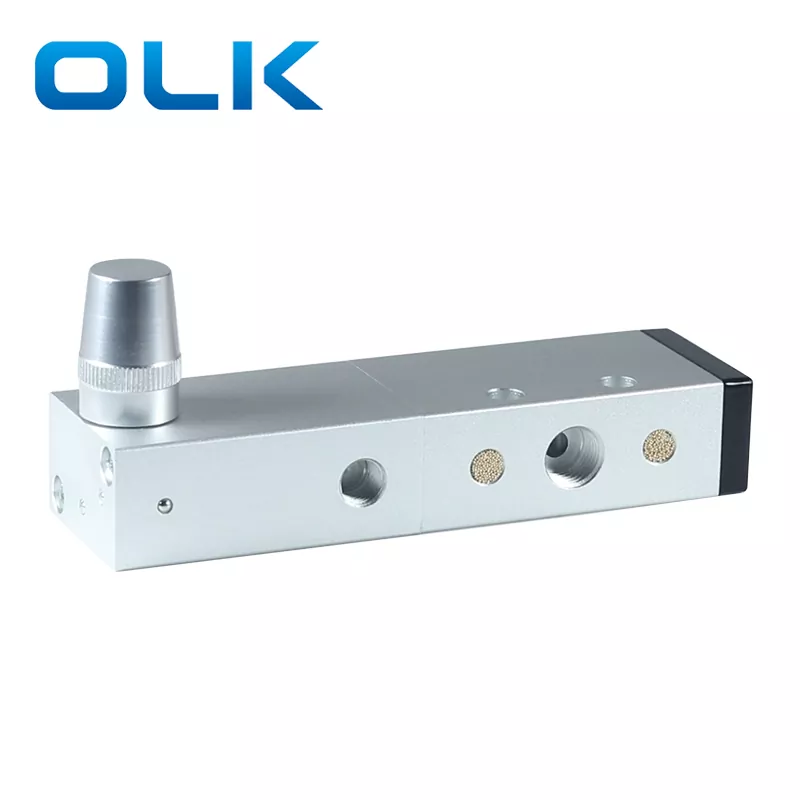

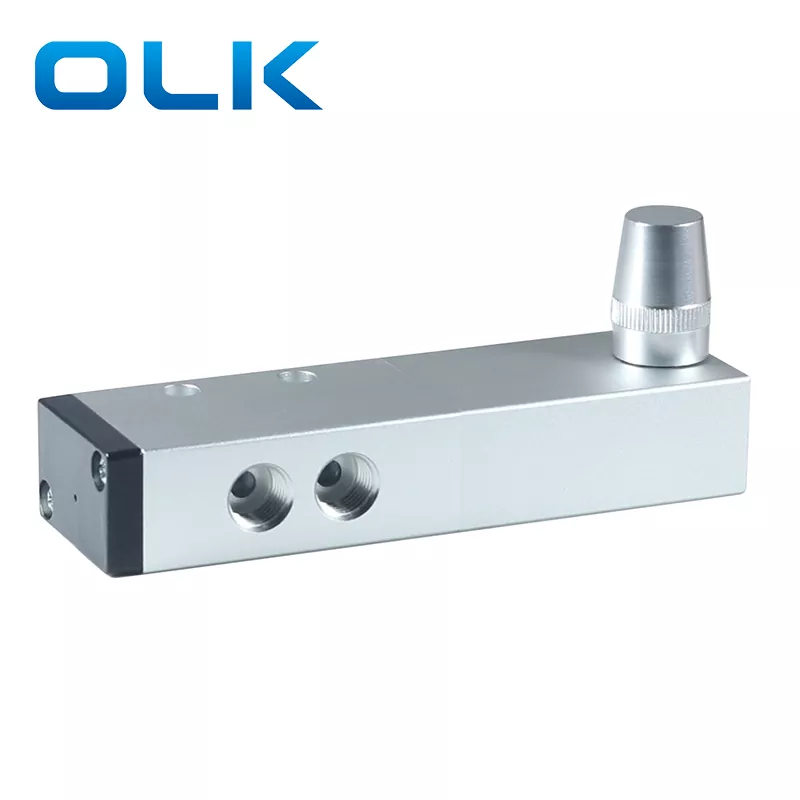

OLK  XQ230650 Air control delay directional reversing valve

The OLK XQ series air-controlled time delay valve is the pneumatic directional actuated valve used to control the delay time for a switch from one direction to another. Valve body is constructed from high strength aluminum alloy, thus adding its strength and wear capability. Depending on the degree of turning of the graduated needle valve, the delay time is set in a range between 1 to 30 seconds. It is widely used in pneumatic systems that are where the time-based switching of an air circuit is needed.

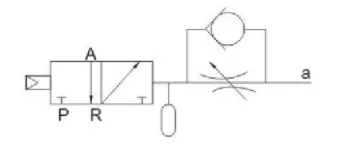

time delay valve symbol

Advantages of the Air control delay directional reversing valve

Improved System Automation: Through time control, the air-controlled time delay valve provides a way of switching of pneumatic circuit; it improves the automation of pneumatic circuits.

Simple and Reliable Structure: The need for extra electrical control equipment is eliminated and thus the chances of failure of this equipment are also eradicated leading to less frequent maintenance.

Easy Installation: As mentioned earlier, its form factor is small and generic connections, which make it easy to integrate without requiring complex configurations.

Stable Performance: The delay switch performs the function efficiently and also with great accuracy; it is also immune to environmental influences.

Energy-Saving and Eco-Friendly: The operation of such tools as a pneumatic spike driviver does not need extra energy supply which makes the process energy efficient and complying with green manufacturing.

XQ 230650 time delay valve Operating Instructions

Pre-Installation Check: Victoria King recommends that one checks the size of the interface of the valve and the state of the pipeline system as well as any signs of damage on the valve body.

Installation Steps: Ensure that everything is well connected and sealed where the valve is connected to other components of the pneumatic system.

Adjust the Delay Time: Turn the time delay knob to set the required amount of time delay on the instrument as needed.

Air Supply and Operation: Plug the air supply in to its port and check the configured delay effect on the loudspeaker with signal frequency, and test the accuracy of the directional switching.

XQ230650  Delay Directional valve  3 way   parameters

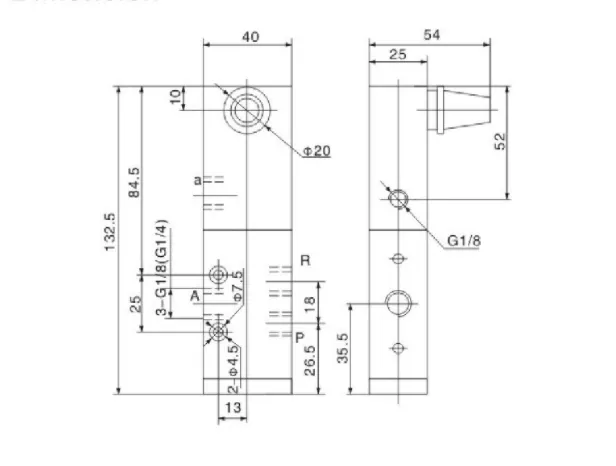

XQ230650 DIMENSION
